Legris 7040 06 13 Flow Control Regulator Trap

6 mm pneumatic flow regulator

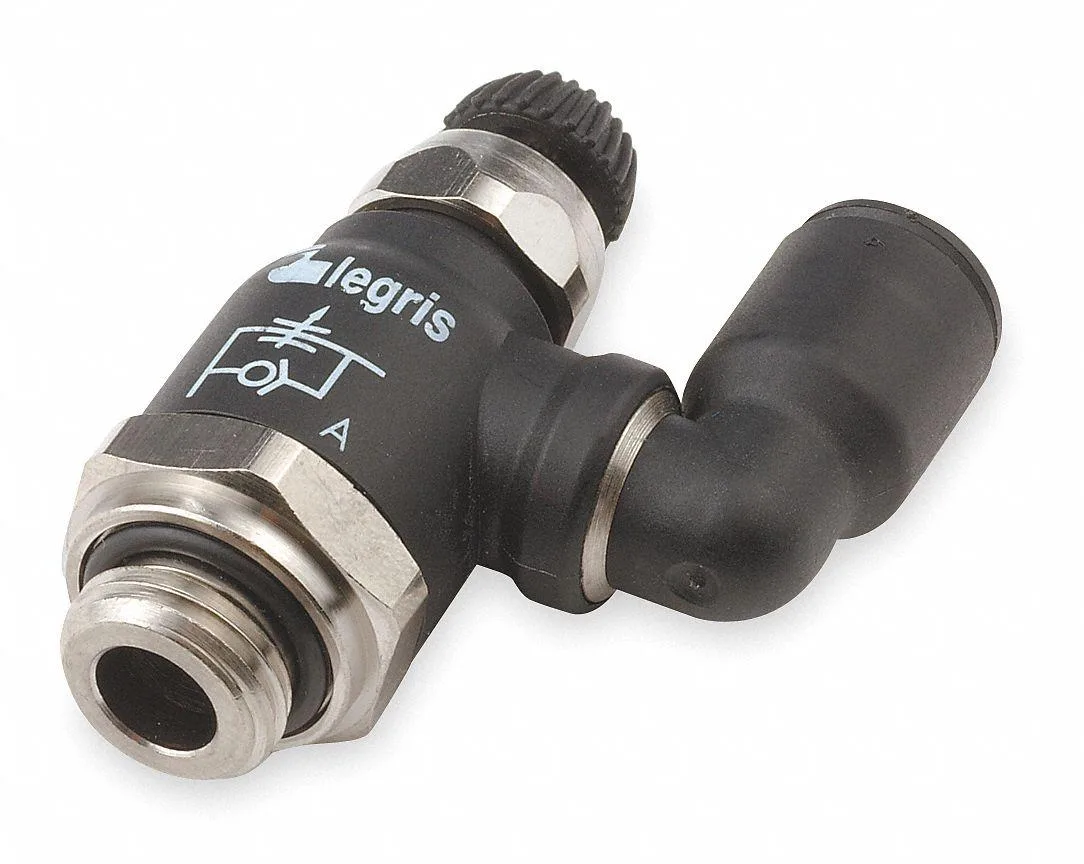

The Legris 7040 06 13 is a push-to-connect flow control valve with a 6 mm tube inlet and a 1/4 in BSPP outlet. It regulates air flow in one direction while allowing full flow in the opposite direction. The valve operates between 14.5 and 145 psi and withstands temperatures up to 158 degrees F. A 360-degree swivel body simplifies tube routing in tight spaces.

Installers needing adjustable metering

Suits pneumatic circuits that require precise speed control on actuators or cylinders. The single-direction regulation handles basic flow restriction tasks. Not for systems needing bi-directional throttling or electronic proportional control. Buyers who need integrated silencers or check-valve functions must select a different valve type.

6 mm push-to-connect inlet

The 6 mm push-to-connect inlet determines tube compatibility and seals without tools. The 1/4 in BSPP outlet threads into standard pneumatic ports. Verify that the circuit pressure stays within the 14.5 to 145 psi range and that the media temperature does not exceed 158 degrees F.
