Legris

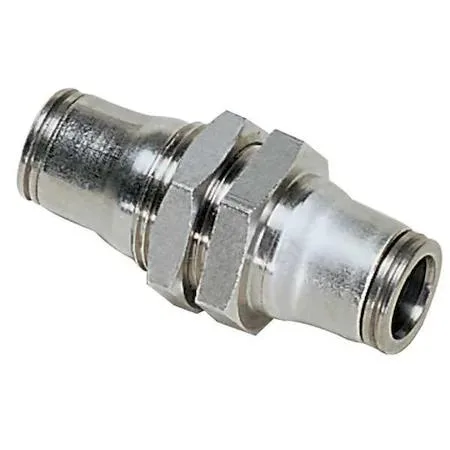

Legris 3616 04 00 Nickel Plated Brass Bulkhead Union 5/32 in
Nickel-plated brass bulkhead union joins two 5/32 in tubes with push-to-connect ends, rated to 435 psi and 302 °F
- TypeDrain Components
- Push-to-connect fitting speeds installation with no tools required
- Brass construction resists corrosion for long service life
- Rated to 435 psi for high-pressure pneumatic systems
- Operates up to 302 °F in demanding thermal environments
- Compact 1 11/32 in length fits tight panel spaces
Brass bulkhead union for 5/32 in tubing
This nickel-plated brass bulkhead union joins two 5/32 in tubes through a panel or bulkhead. Both ends use a push-to-connect design so no tools are required for assembly. The fitting is rated for 435 psi at up to 302 °F. It suits fluid or air lines in automotive and general plumbing installations.
Panel-mount push-fit fitting for same-size lines
Installers who need a through-panel connection for two 5/32 in lines will find this union straightforward. It is not intended for transitions between different tube diameters or for threaded pipe connections. Buyers needing a threaded bulkhead or a reducing union should look elsewhere.
Push-to-connect on both ends with 435 psi rating
The defining specification is the dual push-to-connect interface rated at 435 psi maximum operating pressure. This single figure determines whether the union matches the system pressure requirements.
Highlights
- Push-to-connect fitting speeds installation with no tools required
- Brass construction resists corrosion for long service life
- Rated to 435 psi for high-pressure pneumatic systems
- Operates up to 302 °F in demanding thermal environments
- Compact 1 11/32 in length fits tight panel spaces
Specifications
| Type | Drain Components |
|---|---|
| Brand | Legris |
| Model | 3616 04 00 |
Questions about this item
Does the 435 psi brass union add noise or heat when installed in a lubrication line running all day?
The push-to-connect brass body has no moving parts, so it adds no noise or heat beyond the fluid temperature.
What tube size must I already have for the 5/32 in push-to-connect ends to seal properly?
You need 5/32 in outer-diameter tubing on both sides for the push-fit connection to grip and seal.
Will the C36000 brass bulkhead union thread into older 11/32 in panel cut-outs without leaks?
The 1 11/32 in overall length fits standard bulkhead openings; use the correct panel hole size for a leak-free seal.
