Legris
Legris 3101 12 13 Male Connector 1/4 in Pack 10
Pack of ten push-fit brass connectors joining 12 mm tube to 1/4 in MBSPP thread, rated to 290 psi and 175 °F
- TypeDrain Components
- MaterialHAWA
- Push-to-connect design enables quick installation
- Brass construction withstands 290 psi operating pressure
- Rated for temperatures up to 175 degrees Fahrenheit
- 12 mm tube fits 1/4 inch BSPP thread
- Pack of ten connectors for multiple fittings

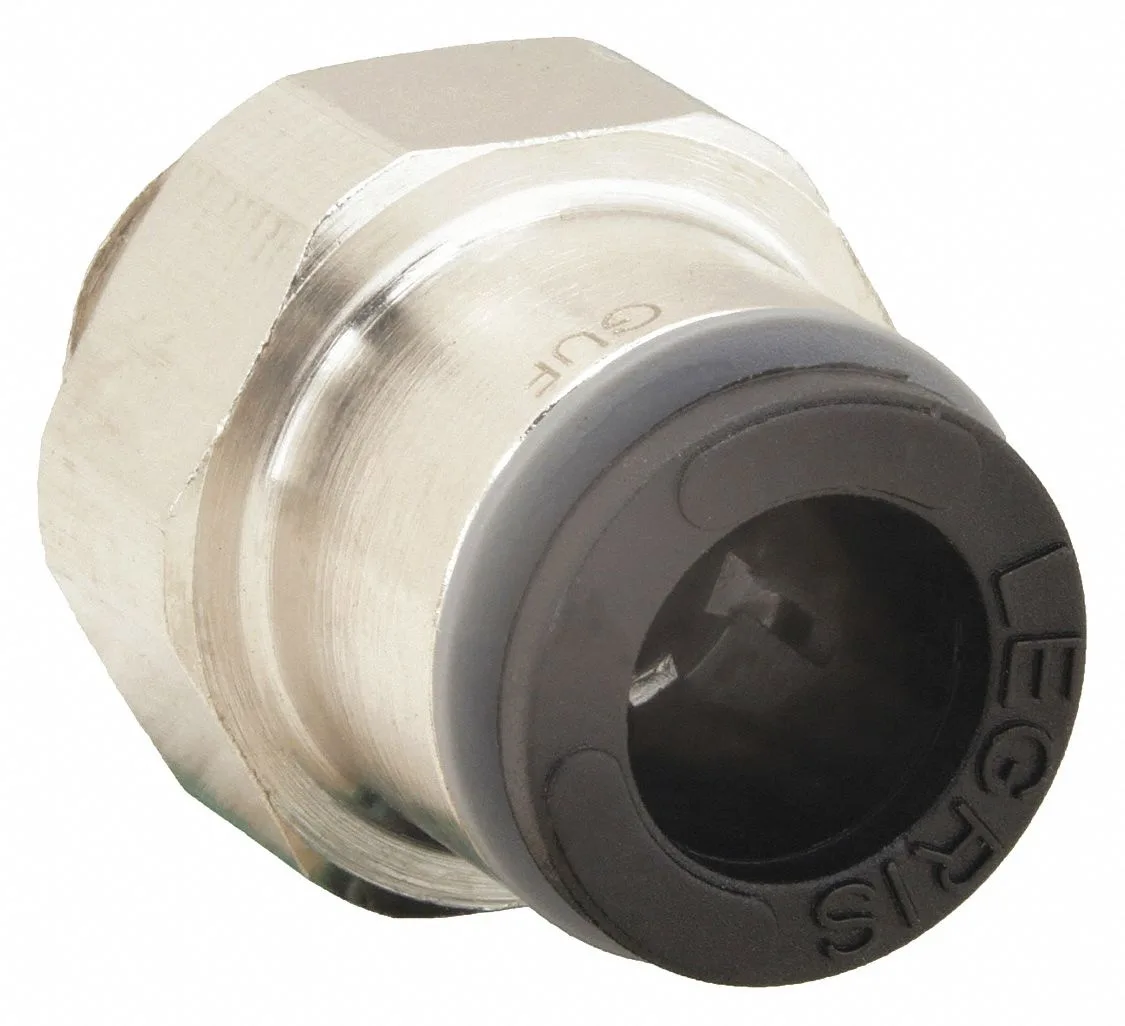

Brass push-fit male connector
This brass push-fit male connector joins 12 mm tubing to a 1/4 inch MBSPP thread. It is supplied in a pack of ten for plumbing and pneumatic installations. The fitting accepts vacuum service and handles a maximum operating pressure of 290 psi. Operating temperature reaches 175 degrees F.
Installers needing 12 mm to 1/4 inch transitions
Suits technicians who need a straight male adapter with push-to-connect on the tube side and a tapered thread on the port side. Not for systems that require a female port, a different tube diameter, or a thread form other than 1/4 inch MBSPP. Buyers needing a built-in valve or a bulkhead fitting should look elsewhere.
12 mm tube to 1/4 inch MBSPP thread
The decisive specification is the combination of a 12 mm push-to-connect tube end and a 1/4 inch MBSPP male thread. This single interface match determines whether the connector fits the tubing and port in your circuit.
Highlights
- Push-to-connect design enables quick installation
- Brass construction withstands 290 psi operating pressure
- Rated for temperatures up to 175 degrees Fahrenheit
- 12 mm tube fits 1/4 inch BSPP thread
- Pack of ten connectors for multiple fittings
Specifications
| Type | Drain Components |
|---|---|
| Material | HAWA |
| Brand | Legris |
| Model | 3101 12 13 |
Questions about this item
Does the brass body of the Legris 3101 12 13 connector handle continuous operation at 175 Degrees F and 290 psi without leaking?
The brass fitting is rated for a maximum operating temperature of 175 Degrees F and a maximum operating pressure of 290 psi, suitable for continuous vacuum application within those limits.
What tube size and thread type must my existing system have to use these 1/4 in MBSPP push-to-connect fittings?
Each connector accepts a 12 mm outer diameter tube on the push-fit side and seals to a 1/4 in MBSPP threaded port on the other side.
Will the 27 1/2 mm overall length of these Legris 3101 adapters fit in the same space as my older compression fittings?
The overall length is 27 1/2 mm; compare this dimension to your current fittings to confirm clearance in the existing plumbing layout.
