Green PCB adapter card with M.2 slot and SATA port, full-height bracket

Lanfan

Lanfan PCIe x1 to M.2 SATA + SATA 6G gender changer

SKU CH-SM1S-ESQMW

Adds an M.2 SATA SSD slot and a SATA 6 Gbps port through a PCIe x1 slot using an ASM1061 chipset

  • Changer TypeM.2 SATA
  • Connect M.2 SATA SSD and SATA drive together
  • ASM1061 chipset drives both ports at 6Gbps
  • Fits 2230 2242 2260 2280 B key cards
  • Hot swap supported on both connectors
  • Works with SATA I II III and NCQ

PCIe x1 M.2 SATA adapter

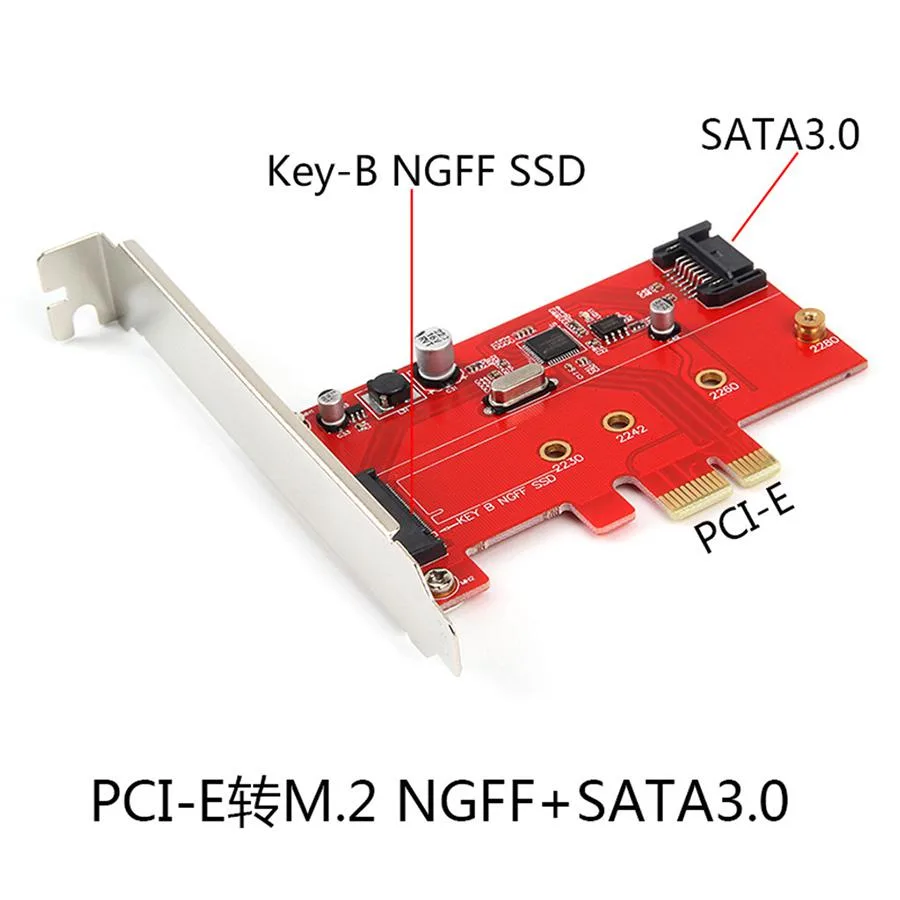

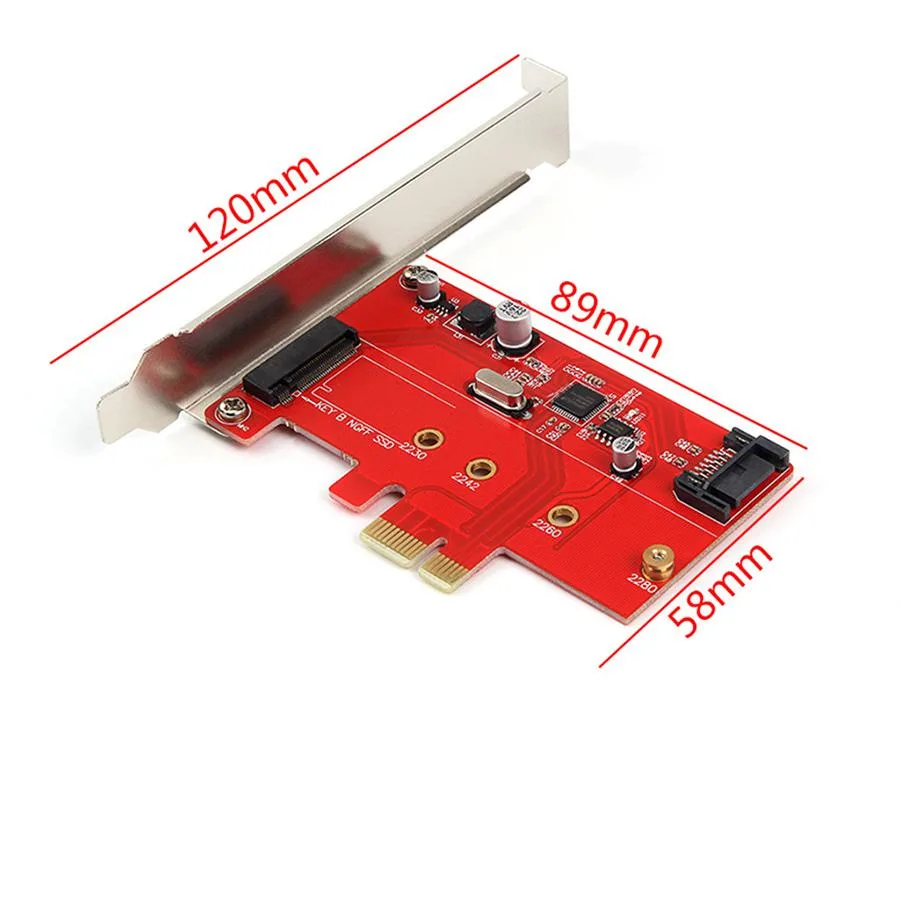

This Lanfan adapter adds an M.2 B-key SATA slot and a SATA III port through a single PCIe x1 lane. It fits standard-profile brackets and uses the ASM1061 chipset to manage both connections simultaneously. The card accepts M.2 2230, 2242, 2260 and 2280 SATA modules only.

Build integration

The board plugs into any PCIe x1, x2, x4, x8 or x16 slot and requires no extra power cables beyond the slot itself. It frees internal SATA headers for other drives while letting you run an M.2 SATA SSD and a 2.5-inch drive or optical unit at the same time. Hot-swap support lets you change drives without shutting down the system.

Bundled bracket and software impact

A standard-profile bracket is included so the card secures cleanly in full-height chassis. The ASM1061 controller provides native NCQ and SATA I, II, III compatibility across Windows 10, 8, 7, Vista, XP, Server 2003, 2008 and Linux without proprietary drivers. NVMe M.2 SSDs are not supported.

Highlights

  • Connect M.2 SATA SSD and SATA drive together
  • ASM1061 chipset drives both ports at 6Gbps
  • Fits 2230 2242 2260 2280 B key cards
  • Hot swap supported on both connectors
  • Works with SATA I II III and NCQ

Specifications

Changer TypeM.2 SATA

Questions about this item

Which M.2 card sizes fit the B-key slot on this PCIe x1 adapter?

The slot accepts 2230, 2242, 2260 and 2280 modules with B-key or B+M-key pinouts.

What throughput can I expect when an M.2 SATA SSD and a SATA drive run together all day?

Both ports share the single PCIe x1 lane and the ASM1061 controller, so combined traffic is capped at the lane's practical bandwidth.

What must already be inside the PC for this card to function?

A free PCIe x1, x2, x4, x8 or x16 slot and a spare SATA power cable from the power supply.
