Small square analog camera, 30mm sides, matte finish

KT&C

KT&C KPC-E700NU analog camera 700 TVL 30mm x 30mm

SKU CH-BKKT-8WYTF

Compact 30 mm square analog camera delivering 700 TVL resolution with Sony EXview HAD CCD II sensor and 0.1 lux minimum illumination

  • 700 TVL resolution captures fine detail with 1/3" Sony EXview HAD CCD II sensor
  • 1 lux minimum illumination records usable footage in very low light
  • 2D noise reduction and digital WDR improve clarity in high-contrast scenes
  • On-screen display enables privacy masking and motion detection setup
  • Compact 30 mm square board fits tight installations and multiple lens options

Compact 30 mm square CCTV camera

The KT&C KPC-E700NU is an analog colour camera built on a 1/3-inch Sony EXview HAD CCD II sensor. Its 30 mm by 30 mm board fits tight enclosures where standard housings cannot. The unit delivers 700 TV lines of resolution for clear standard-definition surveillance footage.

On-board image processing and OSD

Integrated 2D digital noise reduction and adaptive tone-curve reproduction handle low-light scenes down to 0.1 lux without external processors. Multi-language on-screen menus add privacy masking and motion detection zones, so installers can configure zones and masking directly at the camera without extra software.

12 V DC power requirement

The camera operates on a 12 V DC supply only; no dual-voltage or PoE option is included. Installers must provide a compatible 12 V source and the correct connector, or the unit will not power up.

Highlights

  • 700 TVL resolution captures fine detail with 1/3" Sony EXview HAD CCD II sensor
  • 1 lux minimum illumination records usable footage in very low light
  • 2D noise reduction and digital WDR improve clarity in high-contrast scenes
  • On-screen display enables privacy masking and motion detection setup
  • Compact 30 mm square board fits tight installations and multiple lens options

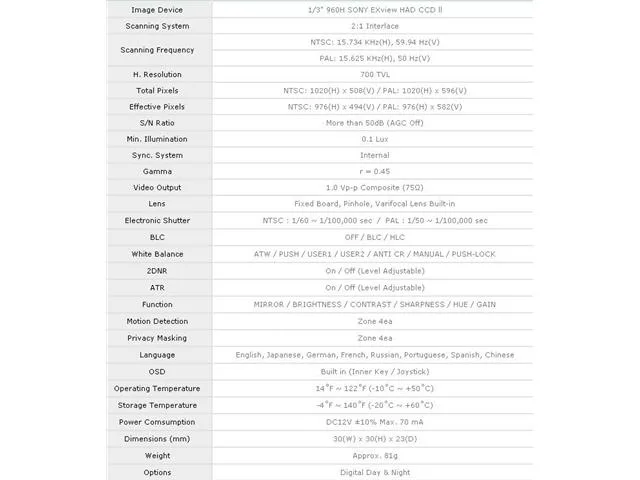

Specifications

BrandKT&C
ModelKPC-E700NU

Questions about this item

Does the 1/3" 960H SONY EXview HAD CCD II sensor need periodic cleaning?

The sealed miniature housing protects the sensor; no routine cleaning is required.

What limits continuous operation of the 700 TVL analogue output?

The 12 V DC supply and thermal design set the practical limit; no duty-cycle restriction is stated.

How much heat does the 30 mm square body produce when running all day?

Power draw at 12 V DC is low, so heat stays minimal inside the compact enclosure.
