Compact black metal box with HDMI ports on the front face

Kramer Electronics

Kramer Electronics 10-804080190 1:2 4K HDR HDMI video splitter

SKU CH-SQ26-PNQXF MPN 10-804080190

Distributes one HDMI source to two displays at 4K 60 Hz with HDR and HDCP 2.2 compliance

  • Changer TypeAudio/Video Distribution Amplifier
  • Maximum Resolutions4096 x 2160
  • Splits one HDMI source to two displays
  • Supports 4K HDR at 60 Hz 4:4:4
  • 82 Gbps bandwidth for high-resolution signals
  • HDCP 2.2 compliant with selectable authorization
  • EDID processing and reclocking for reliable transmission

1:2 4K HDR HDMI Splitter

The Kramer 10-804080190 is a 1:2 distribution amplifier that takes a single HDMI 2.0 input and sends it to two identical outputs. It handles signals up to 4096 x 2160 at 60 Hz with 4:4:4 colour sampling. HDCP 2.2 compliance protects premium content while CEC pass-through on output one retains basic display control.

Installers needing reliable dual-display

This unit suits AV integrators and home-cinema owners who must drive two screens from one source without signal degradation. Built-in equalisation and re-clocking rebuild the digital stream for longer cable runs. Buyers who need more than two outputs or require HDMI 2.1 bandwidth for higher frame rates should look at a different model.

17.82 Gbps maximum data rate

The 17.82 Gbps ceiling defines the splitter's capability ceiling, supporting 4K@60 Hz 4:4:4 and 7.1-channel lossless audio formats such as Dolby TrueHD and DTS-HD. Each graphic channel carries 5.94 Gbps. If the source demands bandwidth beyond this limit, the device cannot pass the signal.

Highlights

  • Splits one HDMI source to two displays
  • Supports 4K HDR at 60 Hz 4:4:4
  • 82 Gbps bandwidth for high-resolution signals
  • HDCP 2.2 compliant with selectable authorization
  • EDID processing and reclocking for reliable transmission

Specifications

BrandKramer
Changer TypeAudio/Video Distribution Amplifier
Maximum Resolutions4096 x 2160
Shipping weight1.36 kg
Package size305 × 254 × 127 mm

Questions about this item

What does the 4096 x 2160 maximum resolution mean when the splitter is connected to a display?

It means the unit can pass a 4K signal at 60 Hz with full 4:4:4 chroma subsampling to each of the two outputs, so both screens receive the same pixel-for-pixel image.

How does the HDMI 2.0 interface limit the data rate in practice?

The splitter handles up to 17.82 Gbps total bandwidth, which is the ceiling for HDMI 2.0, allowing 4K 60 Hz 4:4:4 and high-bitrate audio such as 7.1 PCM or Dolby TrueHD.

What physical connections are required to mount and operate the splitter?

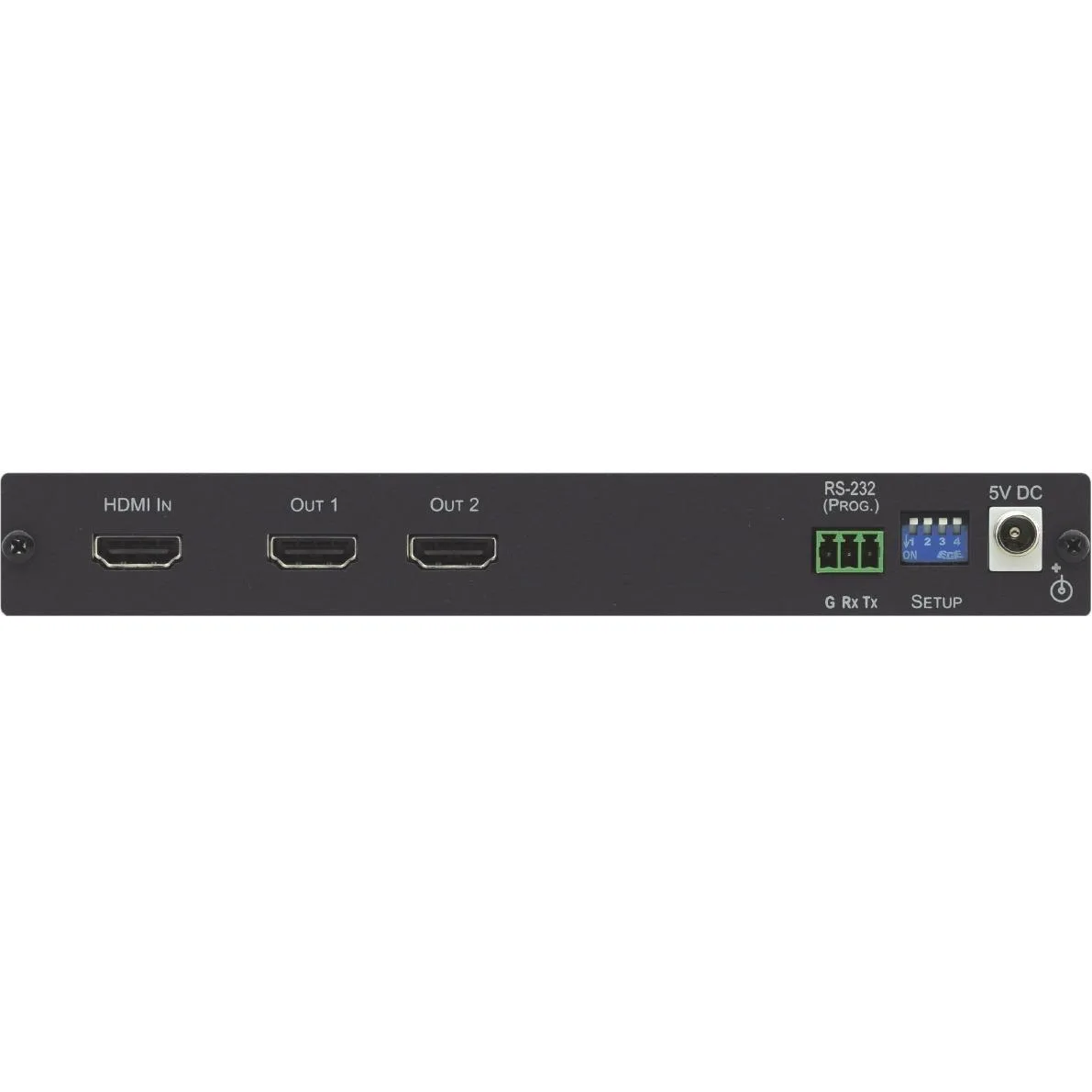

One HDMI source plugs into the input, and two HDMI cables run from the outputs to the displays; the unit also needs its supplied power adapter to operate.
