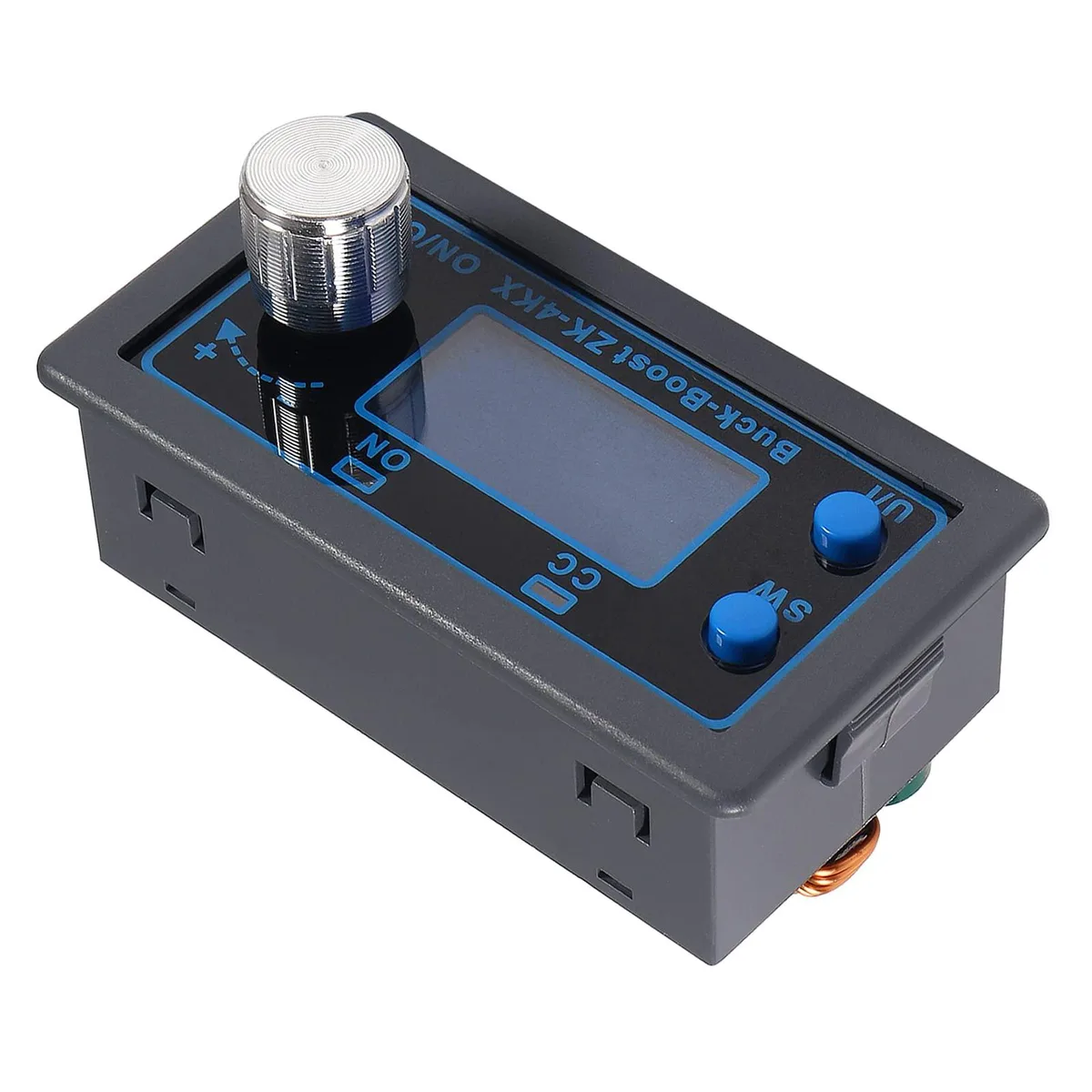

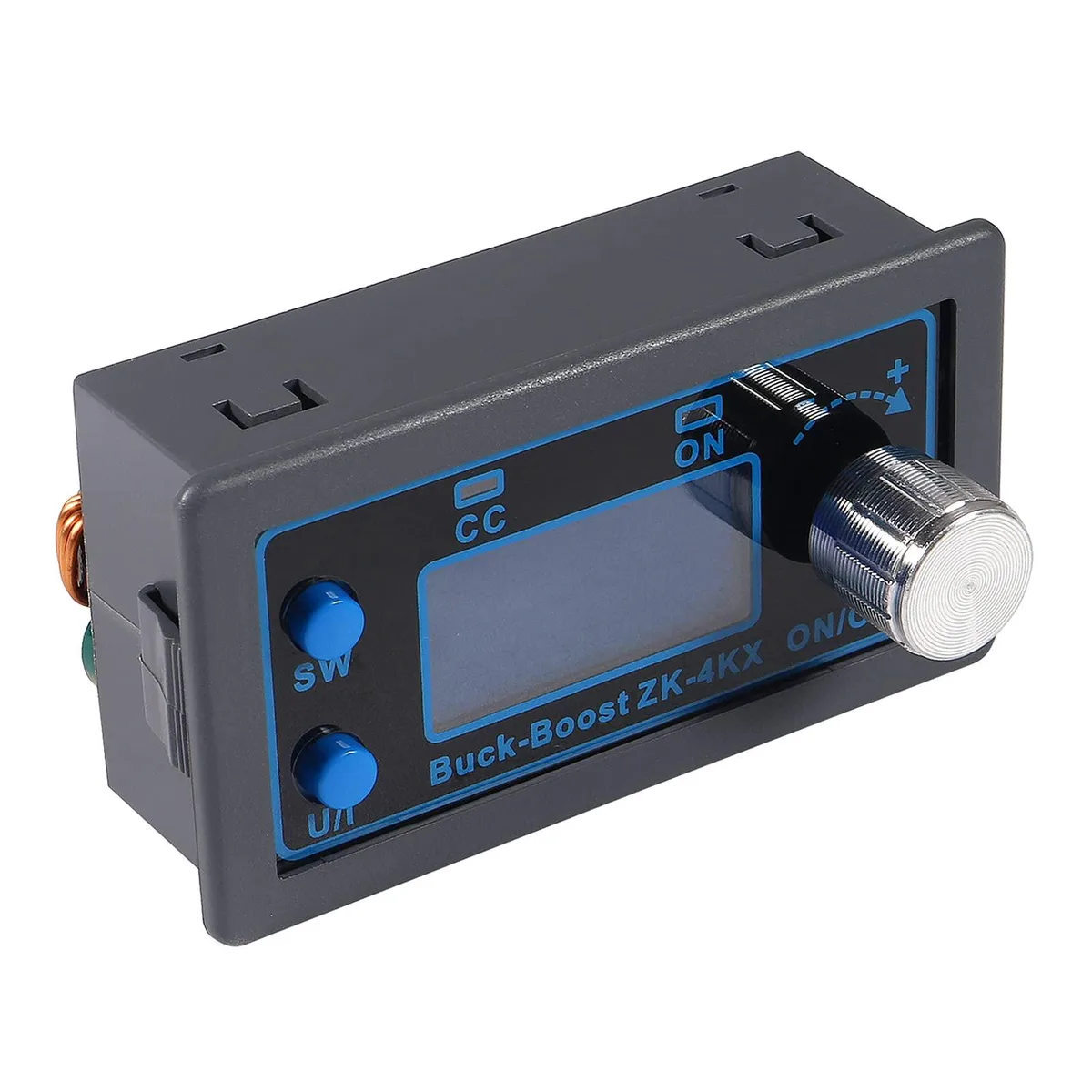

Green circuit board module with LCD screen and adjustment knobs

KEHIPI

KEHIPI ZK-4KX 0.5-30V 0-4A Buck Boost Power Adapter

SKU CH-M89G-1GNNV MPN ZK-4KX

Adjustable buck-boost module delivers 0.5-30 V at up to 4 A with LCD readouts and multiple programmable protections

  • Color1 PACK
  • Adjustable 0.5–30 V output with 0–4 A current limit
  • LCD shows voltage, current, power, capacity and runtime
  • Anti-backflow output terminal removes need for external diode when charging batteries
  • Multiple programmable protections including under-voltage, over-voltage, over-current, over-power and over-temperature
  • Up to 50 W output with enhanced cooling and 88 % conversion efficiency

DC-DC Buck Boost Converter

The KEHIPI ZK-4KX is a step-up and step-down regulator module for hobbyists and engineers building adjustable bench supplies or battery chargers. It accepts an input range of 5.0-30V and delivers a continuously variable output from 0.5-30V at up to 4A. An integrated LCD shows voltage, current, power, capacity and elapsed time during operation.

Replaces fixed-voltage bricks

Unlike single-output wall adapters this module lets you dial the exact voltage and current limit a project needs, so one unit covers many prototypes. The jump is worth it when you test different battery chemistries, drive LED strings at precise currents or need a portable supply that runs from a wide range of DC sources. It is not for builders who require mains isolation or AC input.

Sustained-load behaviour

Natural convection handles 35W continuous; adding forced airflow raises the limit to 50W. The converter runs at 180KHZ with roughly 88% conversion efficiency and includes soft-start, though high-power loads at power-on may still trip protection. Adjustable safeguards cover input undervoltage, output overvoltage, overcurrent, overpower, overtemperature, timeout and capacity limits.

Highlights

  • Adjustable 0.5–30 V output with 0–4 A current limit
  • LCD shows voltage, current, power, capacity and runtime
  • Anti-backflow output terminal removes need for external diode when charging batteries
  • Multiple programmable protections including under-voltage, over-voltage, over-current, over-power and over-temperature
  • Up to 50 W output with enhanced cooling and 88 % conversion efficiency

Specifications

BrandAITRIP
ModelZK-4KX
Color1 PACK

Questions about this item

What are the mounting hole dimensions for the ZK-4KX?

The module uses 75 x 39 mm hole spacing for embedded installation.

How do I set the input under-voltage protection on the ZK-4KX?

Adjust the protection threshold between 4.8 V and 30 V using the CNC encoder; the default is 4.8 V.

What cooling is required to reach the 50 W output rating on the ZK-4KX?

Strengthened heat dissipation such as a heatsink or forced airflow is needed; natural convection is limited to 35 W.
