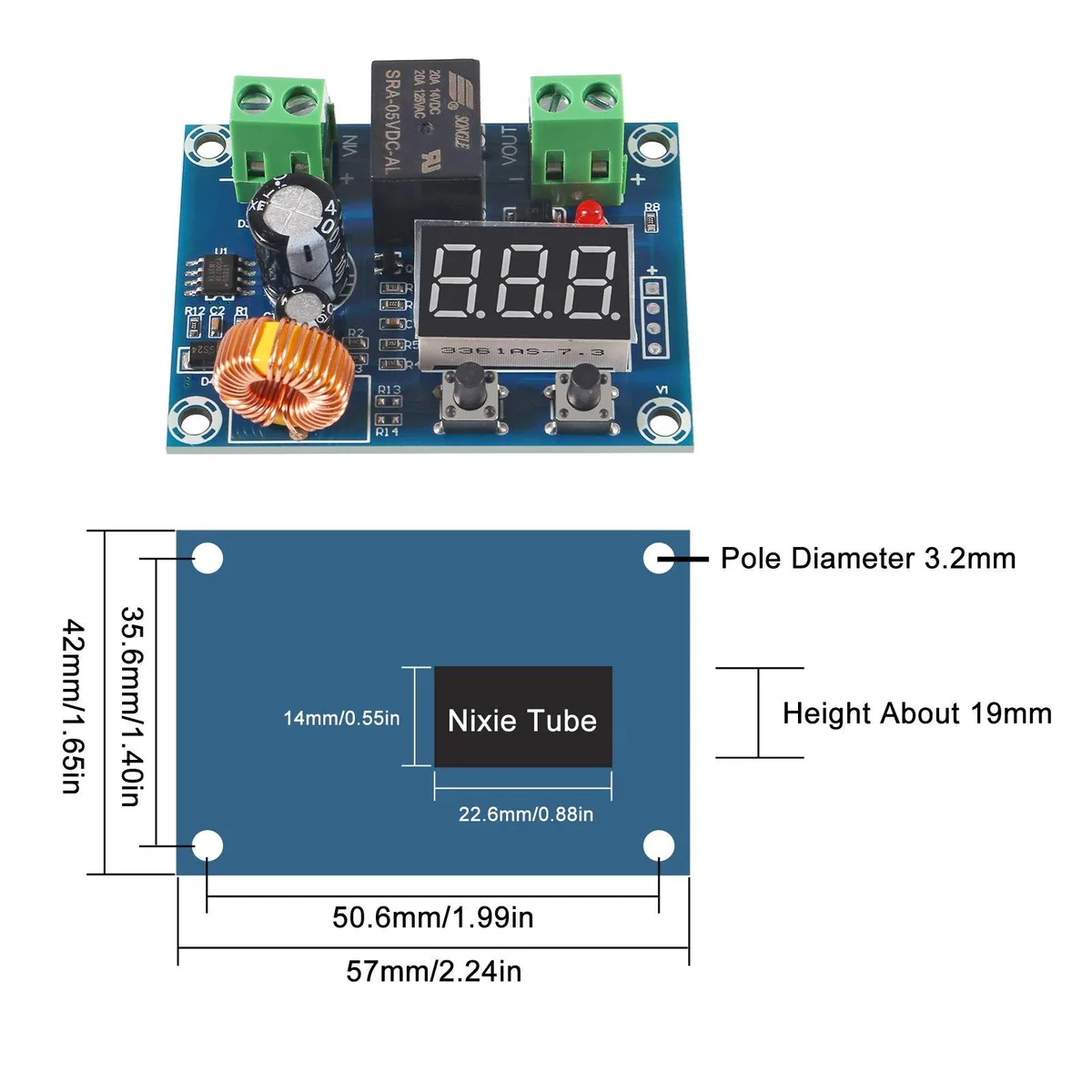

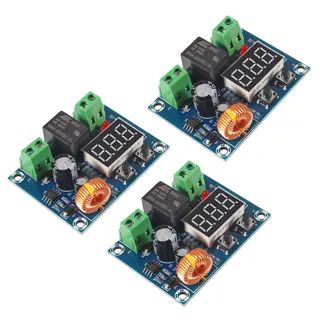

Three small green circuit boards with red three-digit LED displays and push buttons, each measuring 57 by 42 by 19 millimetres

KEHIPI

KEHIPI XH-M609 DC 12V-36V Low Voltage Protection Module 3PCS

SKU CH-S96B-A0E02

Three digital low-voltage disconnect modules protect 12-36 V lithium or lead-acid batteries from over-discharge with 0.1 V accuracy and 20 A peak current handling

  • TypeDigital
  • Color3PCS
  • Weight0.091 kilograms
  • Automatic disconnection prevents over-discharge
  • Works with 12-36V lithium and lead-acid batteries
  • 1V control accuracy for precise cut-off
  • 20A instantaneous current before trip
  • Three modules per pack for multiple projects

Three-pack low-voltage protector

The KEHIPI XH-M609 modules protect 12-36V lithium or lead-acid batteries from over-discharge. Each board disconnects the load automatically when voltage falls to a user-set threshold. Control accuracy is 0.1V and the onboard relay handles momentary peaks up to 20A. Three identical units are supplied for multi-battery installations.

Single-battery systems only

These protectors suit standalone batteries in solar, UPS or portable equipment where automatic cut-off preserves cell life. They are not for series or parallel battery packs, nor for voltages outside the 12-36V DC range. Builders needing pack-level management or higher current ratings should look at different hardware.

Sustained operation behaviour

Under continuous load the module draws 1.5W and passes the supply voltage unchanged to the output. When the programmed low-voltage limit is reached the relay opens and the load is removed; the board itself remains powered until the supply is manually disconnected. The three-digit red LED shows real-time voltage and the configured hysteresis value during normal running.

Highlights

  • Automatic disconnection prevents over-discharge
  • Works with 12-36V lithium and lead-acid batteries
  • 1V control accuracy for precise cut-off
  • 20A instantaneous current before trip
  • Three modules per pack for multiple projects

Specifications

BrandAITRIP
ModelXH-M609
TypeDigital
Color3PCS
Weight0.091 kilograms

Questions about this item

What battery voltage range must the XH-M609 module connect to for it to operate?

The module works with a single 12-36V lithium or lead-acid battery; supply voltage equals output voltage.

If I keep a 12V lead-acid battery, will the module protect it from over-discharge?

Yes, it disconnects the load automatically when voltage reaches the set threshold and reconnects after the hysteresis value is met.

How can I confirm the protection settings are active after wiring the board?

Press the "+" button to view the low-voltage cut-off value and "-" to view the hysteresis; the 3-digit red LED shows both parameters.
