Square 8x8 LED matrix panel on black flexible PCB with 64 individually addressable RGB pixels

KEHIPI

KEHIPI WS2812B 8x8 64 Pixel LED Matrix Panel DC5V 19W IP30

SKU CH-PQ7M-BRYBS MPN WS2812B

An 8×8 matrix of 64 individually addressable WS2812B LEDs on a flexible 8 cm square FPCB runs at 5 V and 19 W with 256-level greyscale and 120° viewing angle

  • MaterialPlastic
  • Individually addressable 64 pixels enable custom animations
  • 19W at DC5V keeps power needs modest
  • 120° beam angle spreads light evenly across surfaces
  • Flexible FPCB with JST connectors allows curved installations
  • >50,000-hour lifespan supports long-term creative projects

Compact 8x8 Matrix

The KEHIPI WS2812B panel packs 64 individually addressable 5050 RGB LEDs into an 8 cm square on a flexible FPCB. Each pixel contains a built-in WS2811 driver IC, allowing full 24-bit colour control from a single 5 V supply. The board draws up to 19 W at maximum brightness and is rated IP30 for indoor use only.

Upgrade From Basic Strips

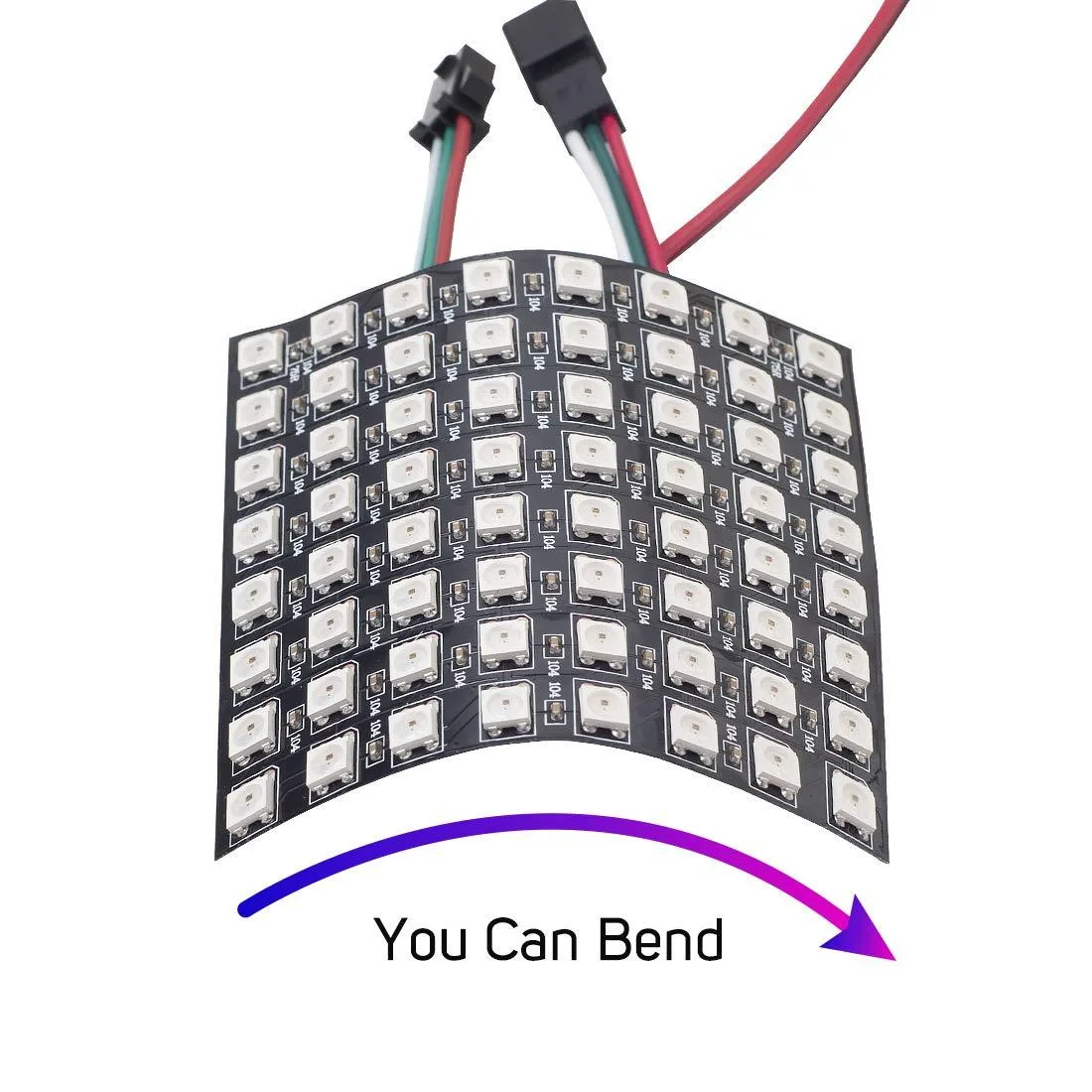

Unlike standard analogue strips that shift every LED together, this matrix lets you address each of the 64 pixels separately for scrolling text, graphics or video effects. The jump is worth it when you need pixel-level animation on a curved or irregular surface, because the 0.3 cm thick FPCB bends without breaking the data chain and panels link through 3-pin JST connectors for larger arrays.

Makers and Prototypers

Hobbyists using Arduino, Raspberry Pi or WLED-compatible controllers will find the GRB colour order and 256 gray levels straightforward to drive with common libraries. Buyers who need outdoor-rated sealing, higher pixel density or a rigid mounting frame should look at something else, as this panel is non-waterproof and designed for temporary or indoor installations.

Highlights

  • Individually addressable 64 pixels enable custom animations
  • 19W at DC5V keeps power needs modest
  • 120° beam angle spreads light evenly across surfaces
  • Flexible FPCB with JST connectors allows curved installations
  • >50,000-hour lifespan supports long-term creative projects

Specifications

BrandBTF-LIGHTING
MaterialPlastic

Questions about this item

What are the exact dimensions of the 8×8 matrix so I can plan the cut-out or enclosure?

The panel measures 8 cm × 8 cm (3.15 in × 3.15 in) with a 0.3 cm thick flexible FPCB, giving a 64-pixel grid in a compact square footprint.

How do I chain multiple panels together and which connector orientation trips people up?

Link panels via the 3-pin JST connectors; the common mistake is reversing the data-in/data-out direction — follow the arrow on the FPCB so signal flows from controller through each panel in series.

The LEDs are rated for 50 000 hours — what actually degrades first and how do I swap a panel?

The WS2812B emitters dim gradually over 50 000+ hours; because each panel connects with JST plugs, you unplug the faulty 8×8 module and snap in a replacement without re-soldering.
