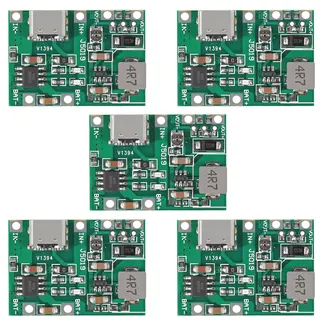

Five small green circuit boards with Type-C ports and solder pads

KEHIPI

KEHIPI TP4056 Type-C USB 18650 Battery Charger Board 5PCS Power Adapter

SKU CH-5C8H-2HSHB

Charges 18650 cells at 4.2 V 1 A via USB-C and boosts output to 5 V 1.4 A, 9 V 0.8 A or 12 V 0.6 A in a 33 × 23 mm board

  • Color5PCS TYPE-C USB
  • Dimensions1.3 in x 0.92 in x 0.1 in
  • Charge 18650 cells via Type-C USB at up to 1A
  • Boost output adjusts from 4.3 V to 27 V for versatile projects
  • Compact 33 mm × 23 mm board fits tight enclosures
  • Five boards included for multi-cell or parallel builds
  • Discharge path delivers up to 2A for higher-load devices

DIY USB-C Power Module

This compact board pairs a TP4056 lithium charger with a boost converter so makers can add USB-C recharging to any 3.7 V 18650-powered project. It accepts a 4.5 V to 8 V DC source such as a solar panel and delivers a regulated 4.2 V charge at up to 1 A.

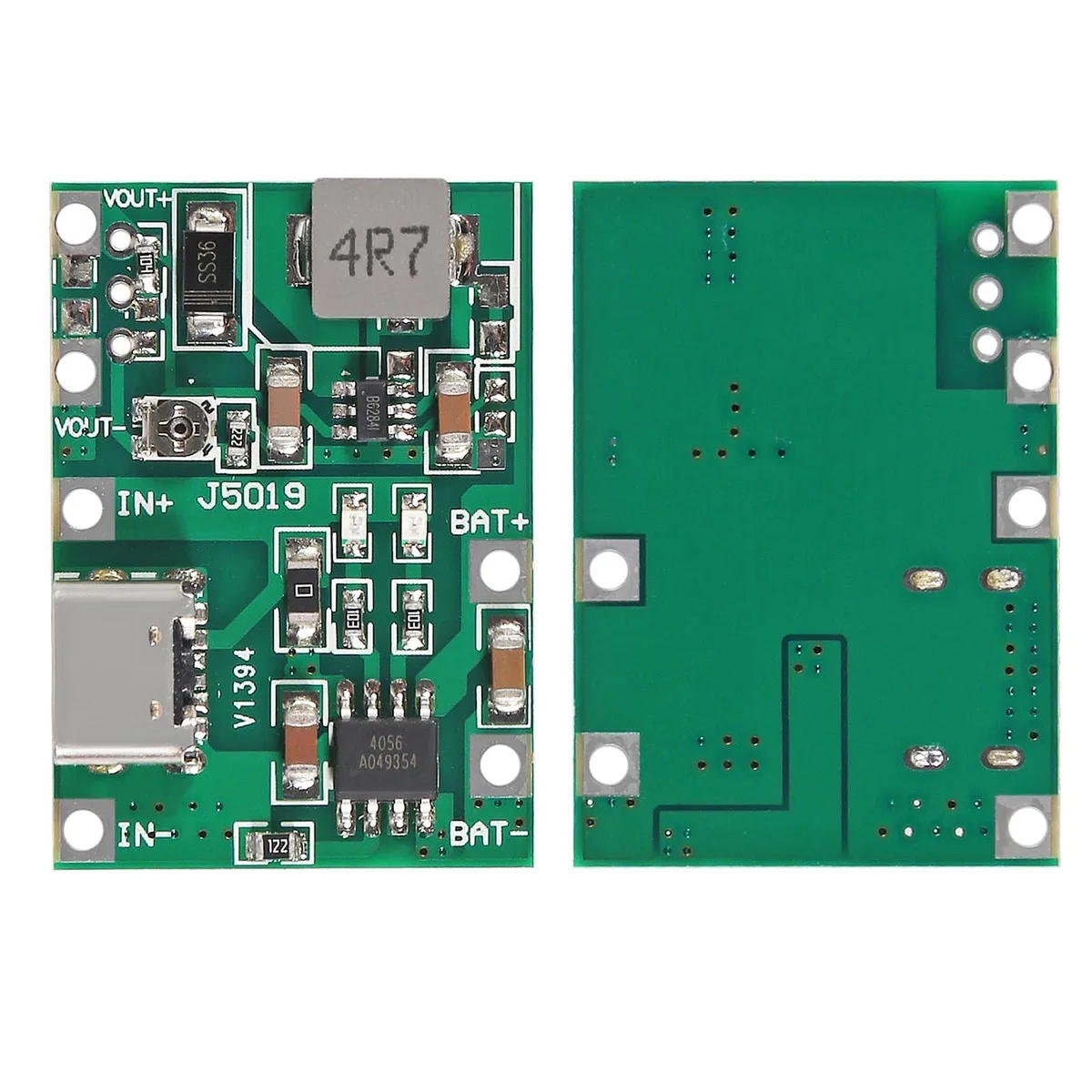

Compact PCB With Type-C Port

The 33 mm by 23 mm PCB fits tight enclosures and exposes a USB-C connector for convenient cable attachment. Adjustable output spans 4.3 V to 27 V, providing 5 V at 1.4 A, 9 V at 0.8 A or 12 V at 0.6 A for versatile low-power loads.

Upgrade From Micro-USB Charger Boards

Replaces older micro-USB TP4056 modules when a reversible Type-C plug and wider output voltage range simplify enclosure design. The five-piece pack suits builders converting multiple devices but is not for users needing integrated cell protection or higher discharge rates.

Highlights

  • Charge 18650 cells via Type-C USB at up to 1A
  • Boost output adjusts from 4.3 V to 27 V for versatile projects
  • Compact 33 mm × 23 mm board fits tight enclosures
  • Five boards included for multi-cell or parallel builds
  • Discharge path delivers up to 2A for higher-load devices

Specifications

BrandAITRIP
ModelTP4056
Color5PCS TYPE-C USB
Dimensions1.3 in x 0.92 in x 0.1 in

Questions about this item

What does the Type-C USB port cap the output at in practice?

The board delivers up to 5V 1.4A, 9V 0.8A or 12V 0.6A through the Type-C USB port.

What physical space and battery does this board need to fit?

Each module measures 33 mm by 23 mm and is designed for a single 18650 cell.

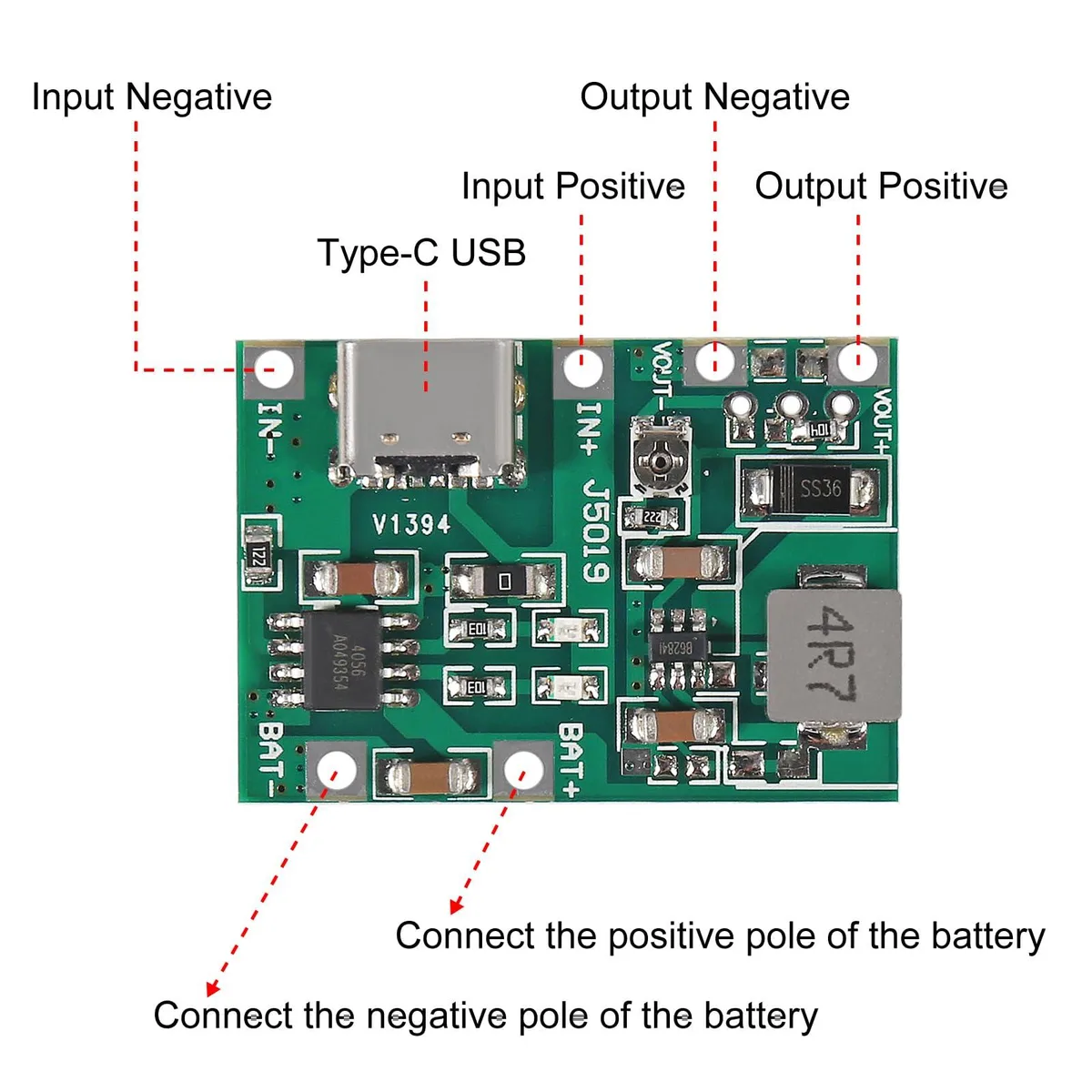

How do I wire the TP4056 board and which step do builders often miss?

Feed 4.5–8V DC into VIN+, connect the 18650 to BAT+/BAT−, set the boost output to 4.3–27V, then enable the boost circuit — many forget that last jumper.
