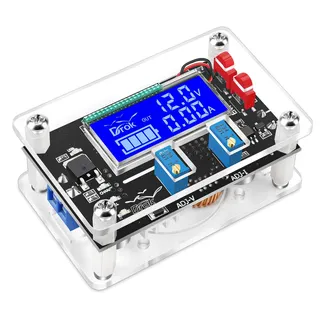

Clear black rectangular boost converter module with LCD display in protective case

KEHIPI

KEHIPI DC 6-30V to 7-32V 5A 60W Boost Converter LCD Case

SKU CH-D759-RN2ZF

Adjustable boost converter steps 6–30 V input up to 7–32 V at up to 5 A with a built-in LCD readout

  • Colorclear black
  • Dimensions1.71 in x 2.73 in x 1.04 in
  • Weight2.08 ounces
  • Boosts 6–30 V input to 7–32 V output with 1.5 V minimum step
  • Delivers up to 60 W (50 W recommended) at 5 A max current

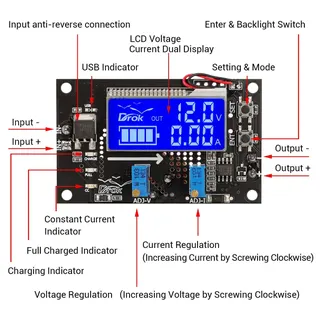

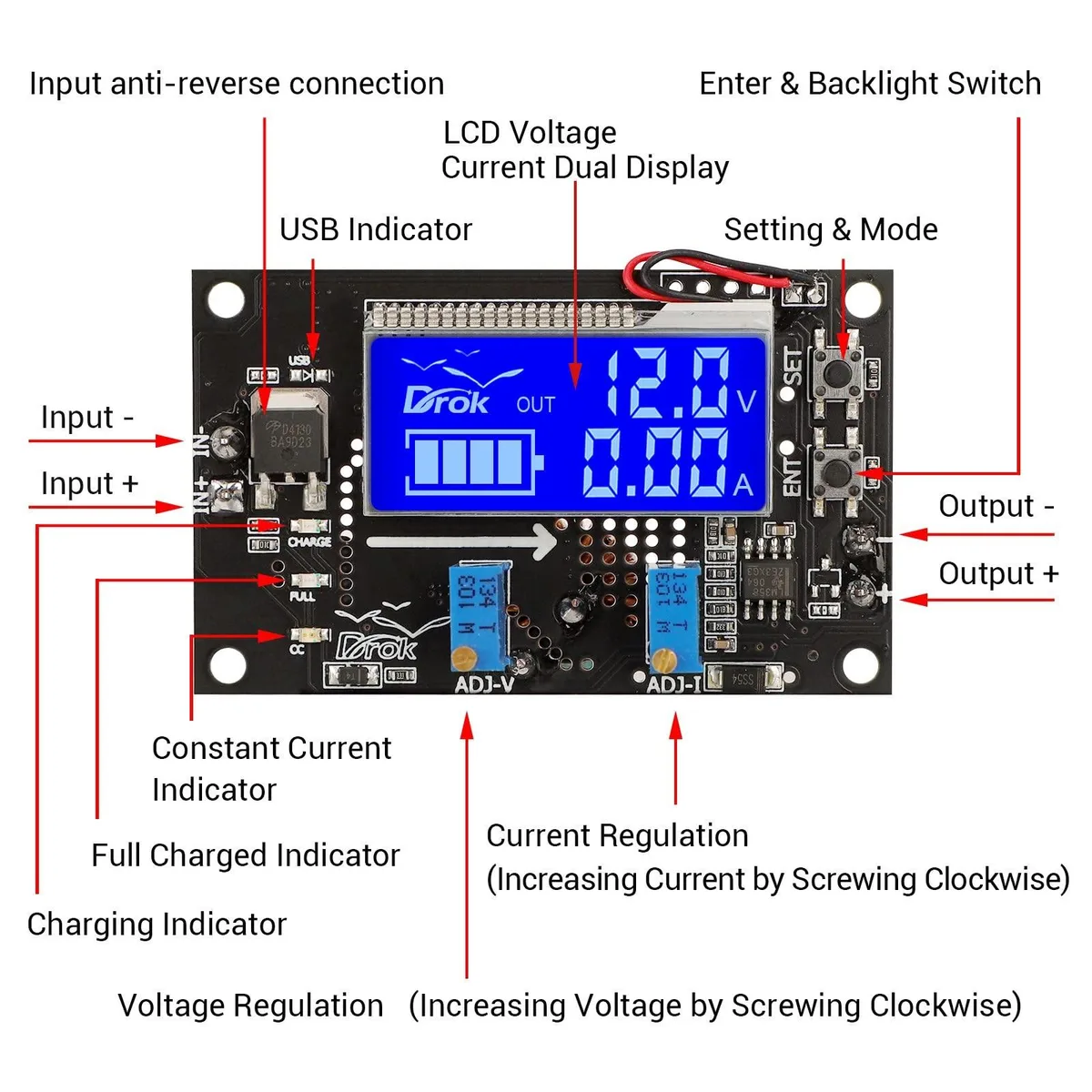

  • Built-in LCD shows voltage and current simultaneously for easy monitoring
  • Multiple protections: short-circuit, over-temperature, reverse-polarity and anti-backflow
  • Compact enclosed board measures 1.71 × 2.73 × 1.04 in for tight installs

KEHIPI DC Boost Converter Module

The KEHIPI module steps a 6-30V DC source up to an adjustable 7-32V output at up to 5A continuous current. It suits hobbyists and engineers building custom power supplies, LED drivers or solar charge controllers who need a compact, cased board with built-in monitoring.

Thermals noise and protection

Conversion efficiency reaches 96 percent so waste heat stays low at moderate loads. The supplier notes that sustained output above 3A or 35W warrants extra heat-sinking, and the on-board over-temperature protection shuts the output down if the power devices exceed 70°C. Short-circuit, input reverse-polarity and output anti-backflow protections are also integrated.

Upgrading from basic step-up boards

This unit replaces bare PCBs that lack a display, calibrated voltage read-out or protective enclosure. The jump is worthwhile when you need simultaneous voltage and current readout, constant-current LED driving or a rugged case for bench or vehicle use. It is not suited for applications that require buck or buck-boost topology, isolation or output voltages below the input level.

Highlights

  • Boosts 6–30 V input to 7–32 V output with 1.5 V minimum step
  • Delivers up to 60 W (50 W recommended) at 5 A max current
  • Built-in LCD shows voltage and current simultaneously for easy monitoring
  • Multiple protections: short-circuit, over-temperature, reverse-polarity and anti-backflow
  • Compact enclosed board measures 1.71 × 2.73 × 1.04 in for tight installs

Specifications

BrandDROK
Colorclear black
Dimensions1.71 in x 2.73 in x 1.04 in
Weight2.08 ounces

Questions about this item

How do I connect the input and output terminals on the KEHIPI boost converter, and what is the most common wiring mistake?

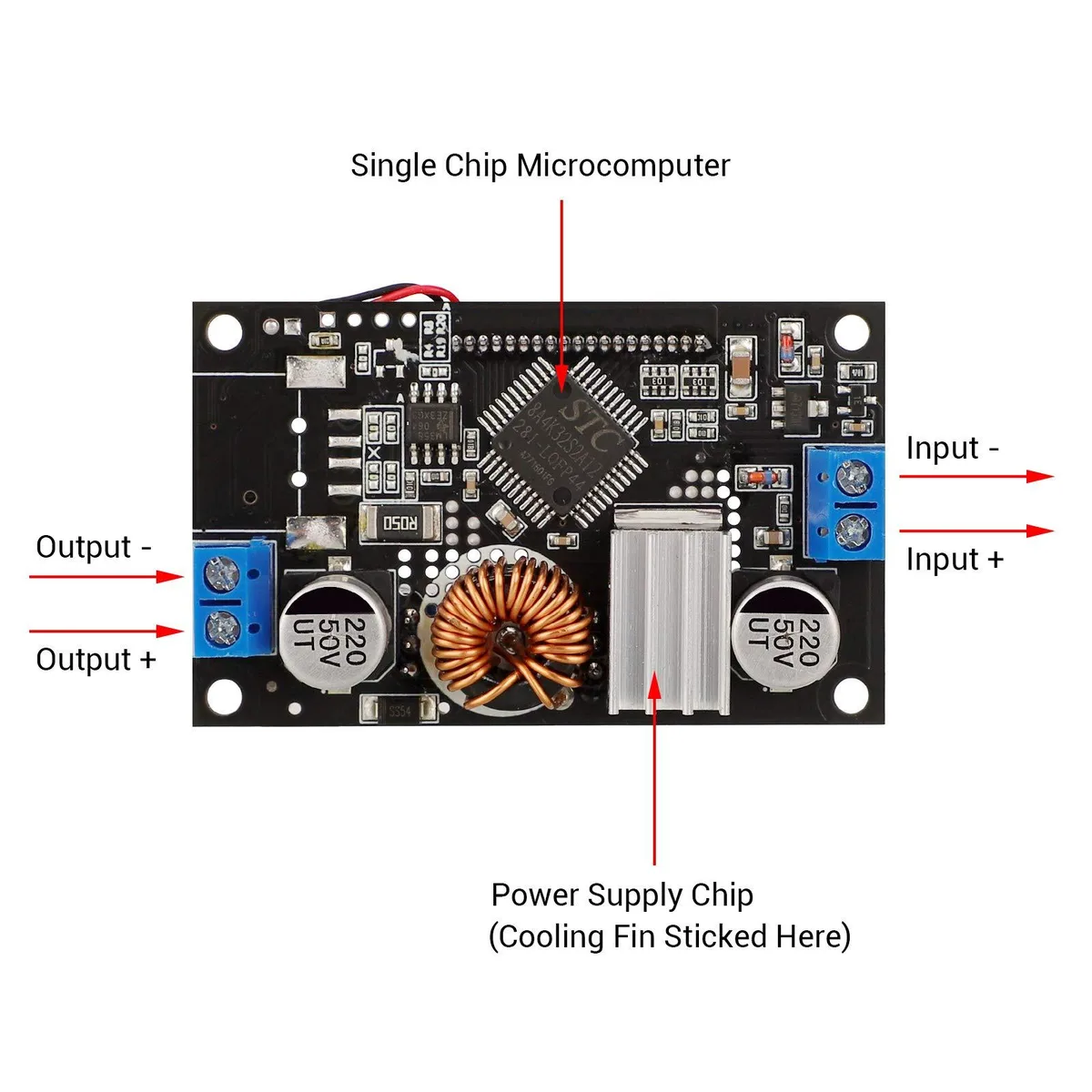

Connect the power source to the VIN terminals and the load to the VOUT terminals; the most common mistake is reversing the input polarity despite the built-in reverse-connection protection.

What maintenance will the KEHIPI boost converter need during its service life?

No scheduled maintenance is required; if the power transistor temperature exceeds 70 °C during sustained loads above 35 W, improve heatsinking or airflow to keep the over-temperature protection from shutting the output off.

What is the first limit reached when running the KEHIPI boost converter continuously at high power?

The thermal limit appears first; the module will automatically disable the output once the power transistor temperature rises above 70 °C, so sustained operation above 35 W requires additional heat dissipation.
