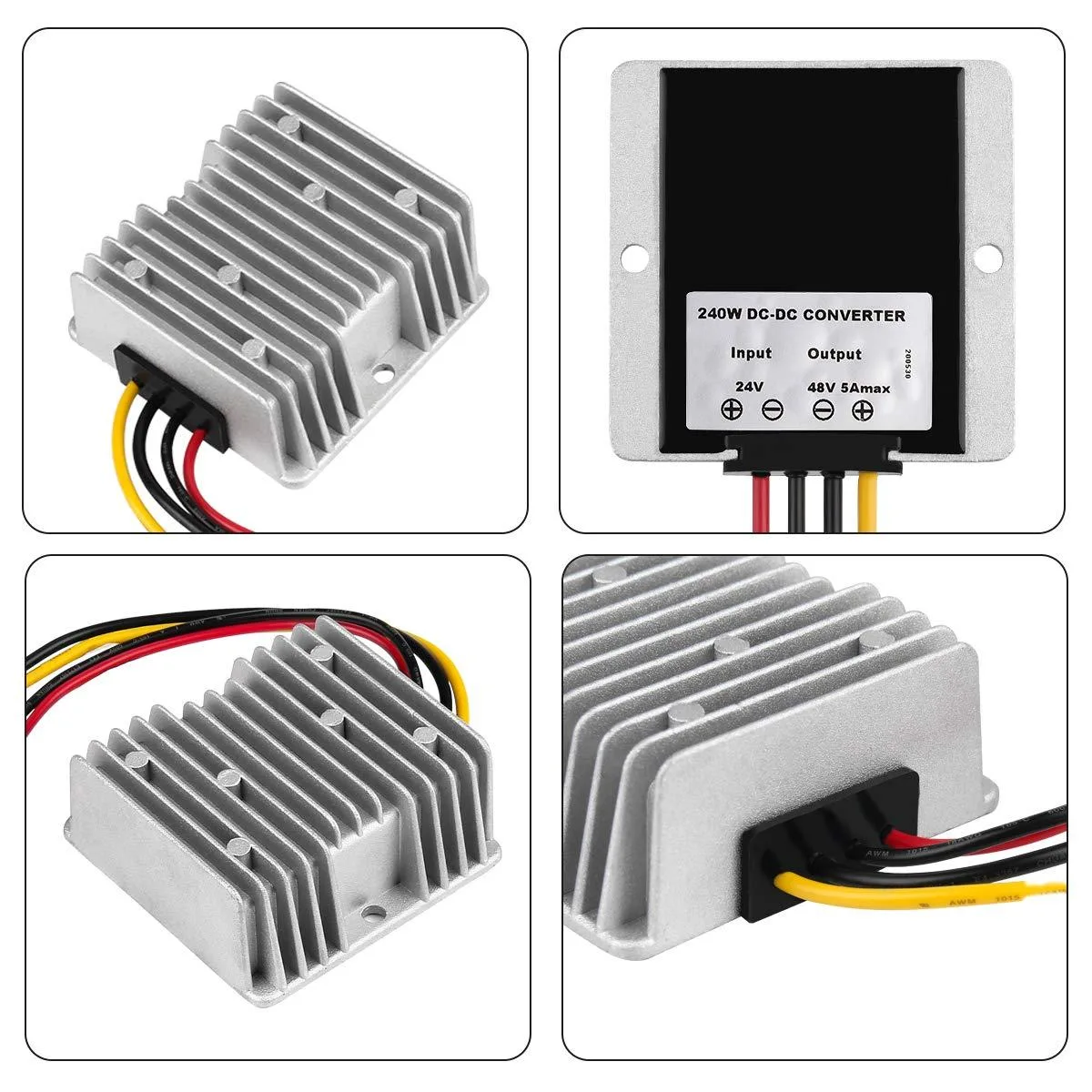

Grey rectangular IP67 boost converter module, aluminium shell with silicone seal

KEHIPI

KEHIPI DC 24V to 48V 5A 240W Waterproof Boost Converter IP67

SKU CH-Z2YQ-BQH0H

Boosts 24 V DC to a fixed 48 V DC output at 5 A and 240 W with 96 % efficiency in an IP67 aluminium enclosure

  • TypeDC 48V*5A (24V-48V)
  • ColorGrey
  • Converts 24 V input to fixed 48 V output at 5 A delivering 240 W power
  • Achieves 96 % conversion efficiency with synchronous rectification and 2 s start-up delay
  • IP67 aluminium housing sealed against water dust shock and humidity
  • Built-in overload overcurrent overtemperature short-circuit and overvoltage protection for safe operation
  • Operates reliably from −40 °C to 80 °C ambient temperature range

240 W Boost Converter for 24 V to 48 V Systems

This unit steps a 24 V DC source up to a fixed 48 V output at up to 5 A, delivering 240 W of continuous power. It suits operators of golf carts, electric utility vehicles, trucks and off-grid solar installations that need reliable 48 V supply from a 24 V battery bank.

Replaces basic linear regulators

The synchronous rectification design reaches 96 % conversion efficiency, cutting heat loss compared with older passive converters. The jump is worthwhile when the load demands steady 5 A current and the environment exposes the converter to vibration, moisture or temperature extremes.

Verify input source and mounting before ordering

Confirm the supply can provide a stable 24 V input and that the fixed 48 V output matches every connected device. The IP67 aluminium housing is sealed for -40 °C to 80 °C operation, so ensure the chosen location allows the unit to dissipate its waste heat without forced airflow.

Highlights

  • Converts 24 V input to fixed 48 V output at 5 A delivering 240 W power
  • Achieves 96 % conversion efficiency with synchronous rectification and 2 s start-up delay
  • IP67 aluminium housing sealed against water dust shock and humidity
  • Built-in overload overcurrent overtemperature short-circuit and overvoltage protection for safe operation
  • Operates reliably from −40 °C to 80 °C ambient temperature range

Specifications

BrandSUPERNIGHT
ModelLC-307
Part Number24V-48V
TypeDC 48V*5A (24V-48V)
ColorGrey

Questions about this item

What are the input and output voltage figures for this KEHIPI boost converter?

The unit accepts a 24 V DC input and delivers a fixed 48 V DC output at up to 5 A for 240 W total power.

How is the converter mounted and what wiring mistake should be avoided?

The aluminium IP67 case is designed for surface mounting; connect the 24 V source to the input terminals and the 48 V load to the output terminals, observing polarity, and allow the 2-second start-up delay before applying full load.

What temperature extremes and protection ratings determine its service life?

Rated for continuous operation from -40 °C to 80 °C with IP67 waterproof and dust-proof sealing; the built-in over-temperature, over-current, over-voltage and short-circuit protections limit wear, so no scheduled maintenance is required beyond keeping the case vents clear.
