KEHIPI DC 12V-24V to 5V 5A 25W Step Down Power Adapter

Vehicle power conversion

This step-down adapter converts a 12V or 24V DC source into a stable 5V 5A output rated at 25W. It is built for installers who need to run 5V equipment from automotive, surveillance or industrial DC systems. The module includes over-voltage, over-current, over-temperature and short-circuit protection with automatic recovery. It ships as a single regulator unit ready for wiring into the target circuit.

25W continuous headroom

The converter delivers up to 5A at 5V while maintaining over 90 percent efficiency across the 12V-24V input range. Full rated output is reliable up to an ambient temperature of 45°C; above that level the load must be reduced or additional heat dissipation provided. The unit's maximum operating temperature is 80°C, beyond which the thermal protection will intervene. This defines the practical thermal envelope for sustained operation in enclosed cabinets or engine bays.

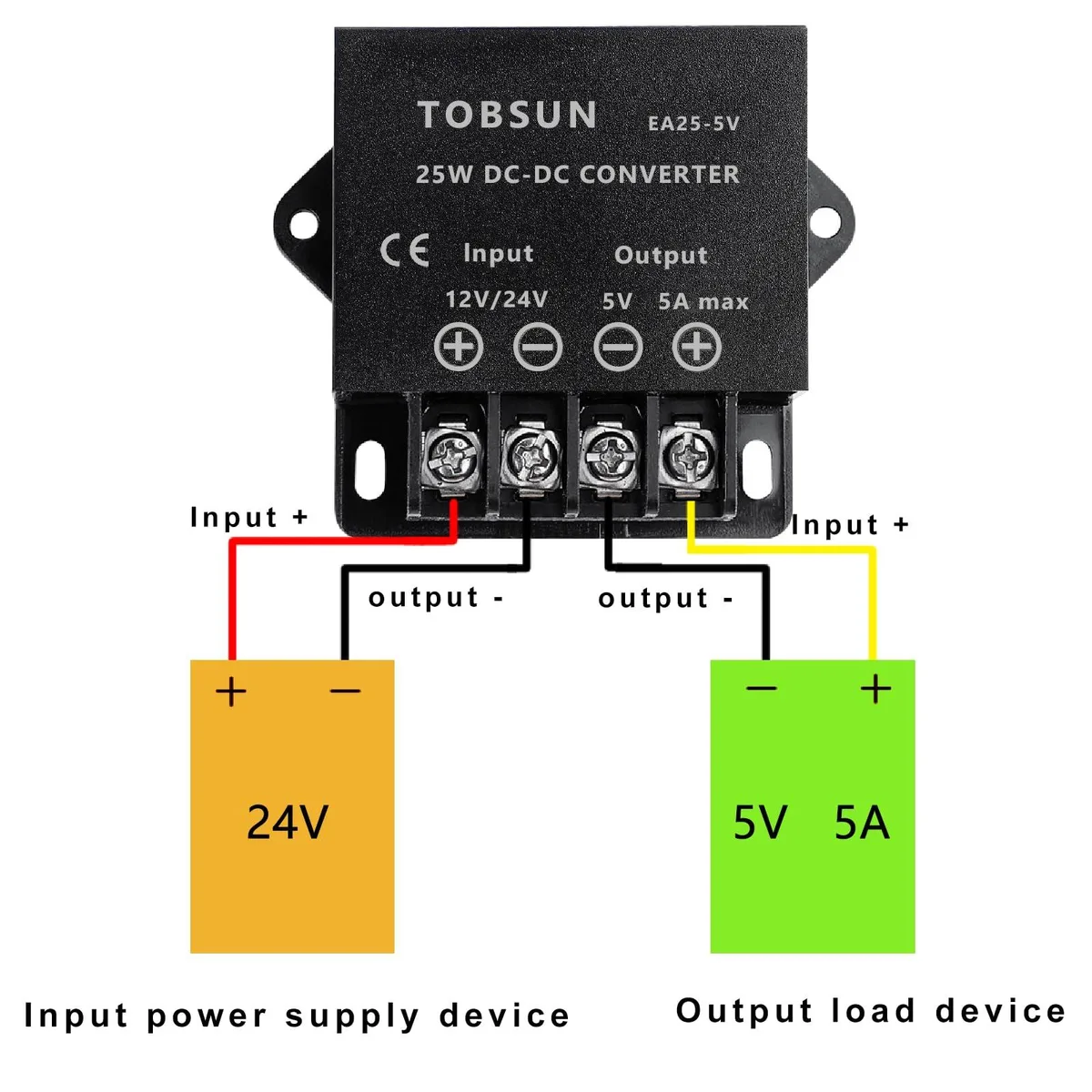

Wiring into 12V-24V systems

The adapter accepts a wide DC input span so it connects directly to vehicle batteries, railway signalling rails or industrial bus bars without an intermediate supply. Its protection suite frees the installer from adding external fuses or crowbar circuits for common fault modes. The compact module fits into existing enclosures where a separate 5V rail would otherwise require a larger transformer. No AC mains connection or additional regulation stage is needed.
