Transparent Cat 6A RJ45 modular plugs, three-piece design, 100 pack

KEHIPI

KEHIPI Cat 6A RJ45 Modular Plug Three-Piece Suit Transparent 100 Pack

SKU CH-A5ER-87206

A 100-pack of transparent Cat 6A RJ45 modular plugs with load bars for terminating solid or stranded cable to ANSI/TIA-568-B.2-10 performance with 50-micron gold contacts

  • TypeEthernet
  • Cat6A
  • Connector ARJ45
  • ColorTransparent
  • Features, , , ,
  • Three-piece design simplifies custom Cat 6A cable assembly
  • 50-micron gold-plated contacts reduce interference for gigabit speeds
  • Transparent housing with staggered contacts suppresses alien crosstalk
  • Compliant with ANSI/TIA-568-B.2-10, RoHS, UL and FCC standards
  • 100 connectors and 100 load bars included for large projects

Cat 6A Three-Piece RJ45 Connectors

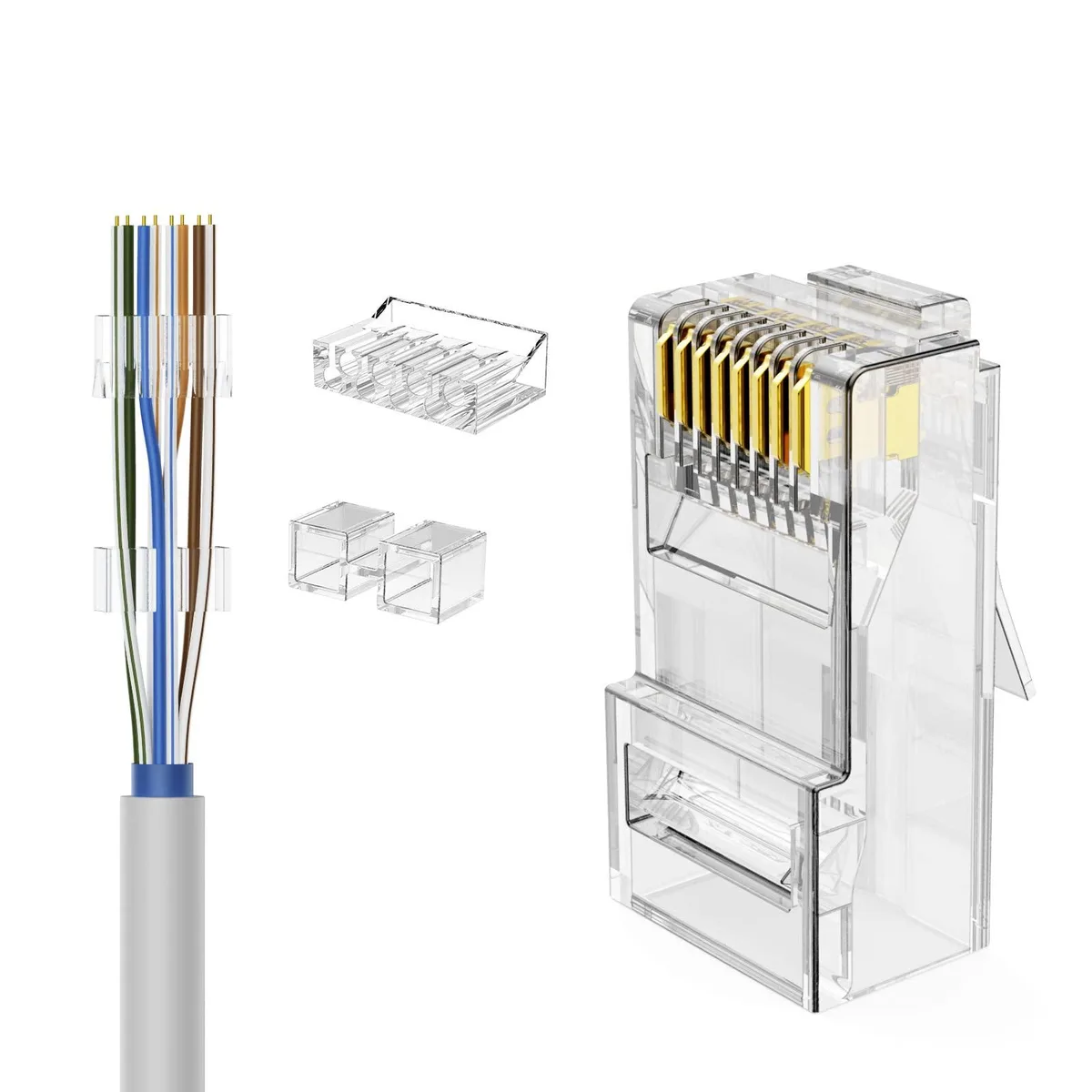

These Cat 6A modular plugs use a three-piece design with load bars to terminate shielded twisted-pair cable for custom-length runs. The transparent housing shows conductor alignment while 50-micron gold-plated 8P8C contacts meet ANSI/TIA-568-B.2-10 channel requirements. The 100-pack suits installers wiring multiple drops in commercial or residential structured cabling projects.

Termination Requirements and Build Flexibility

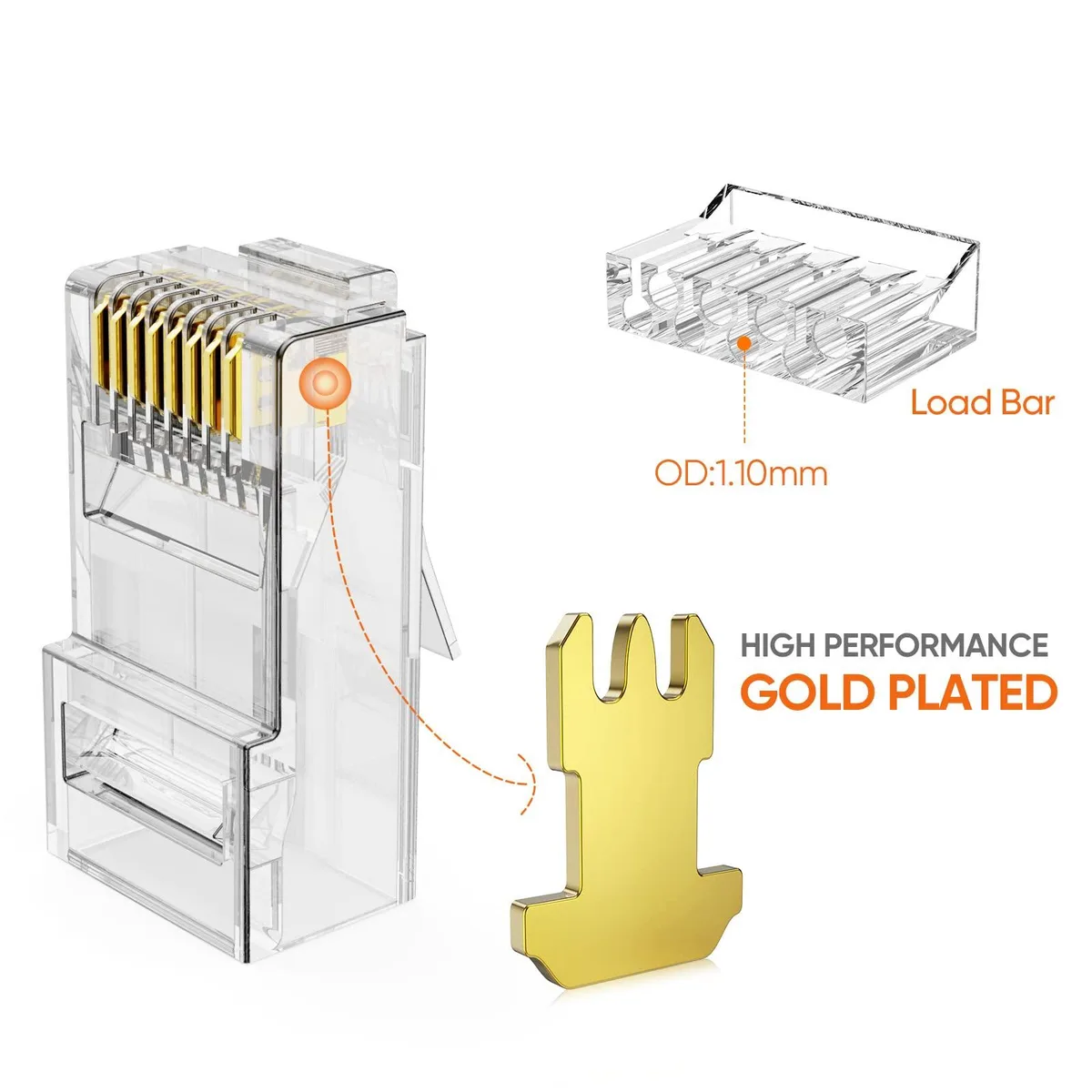

Each connector accepts solid or stranded conductors with a core outer diameter up to 1.10 mm and requires a standard RJ45 crimp tool for the three-point staggered contacts. The separate load bars organise wires before insertion, reducing rework on long pulls. The plugs support PoE and PoE+ power delivery, freeing the installer from separate power runs for access points or cameras.

Upgrade From Cat 6 or Two-Piece Plugs

The Cat 6A rating and alien-crosstalk suppression replace standard Cat 6 connectors when 10 Gbps bandwidth is specified over the full 100 m channel. The three-piece construction adds a step over two-piece plugs but yields more consistent NEXT performance. The jump is worth it when certification tests demand Cat 6A margins or when PoE+ loads require the 50-micron gold contact integrity.

Highlights

  • Three-piece design simplifies custom Cat 6A cable assembly
  • 50-micron gold-plated contacts reduce interference for gigabit speeds
  • Transparent housing with staggered contacts suppresses alien crosstalk
  • Compliant with ANSI/TIA-568-B.2-10, RoHS, UL and FCC standards
  • 100 connectors and 100 load bars included for large projects

Specifications

BrandCableCreation
TypeEthernet
Cat6A
Connector ARJ45
ColorTransparent
Features, , , ,

Questions about this item

What is the maximum core wire diameter these Cat 6A plugs accept?

The core wire outer diameter must not exceed 1.10 mm for a proper fit inside the connector.

How much heat do the gold-plated contacts add during continuous PoE+ use?

The 50-micron gold plating keeps resistance low, so the connectors add negligible heat even when carrying full PoE+ current all day.

Which crimp tool works with the three-piece staggered-contact design?

Any standard 8P8C RJ45 crimp tool that accommodates a three-piece plug with load bar will terminate these connectors correctly.
