KEHIPI Adjustable Voltage Regulator 6-36V to 0.5-36V 5A 90W Power Adapter

KEHIPI Adjustable Regulator for RV Solar Panels

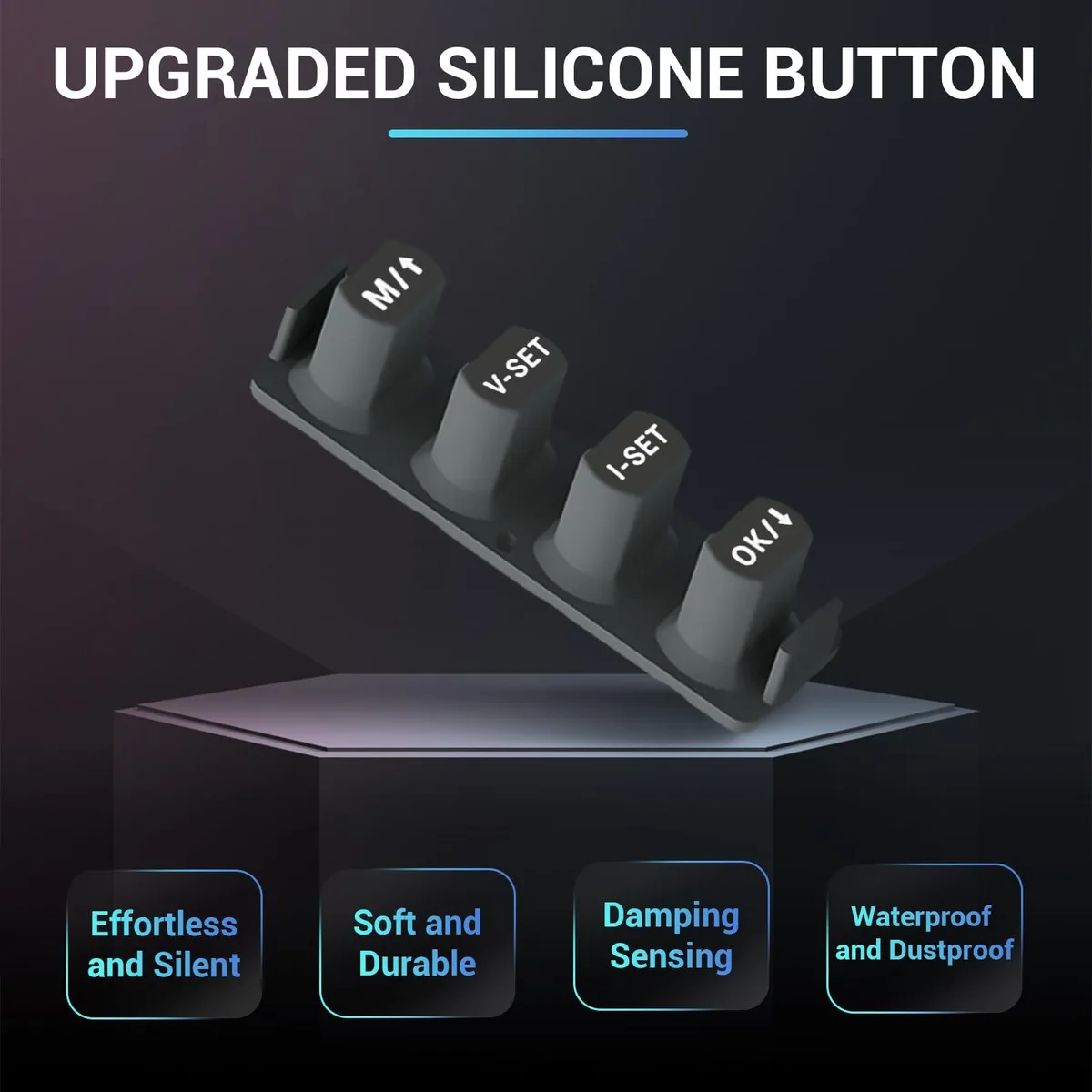

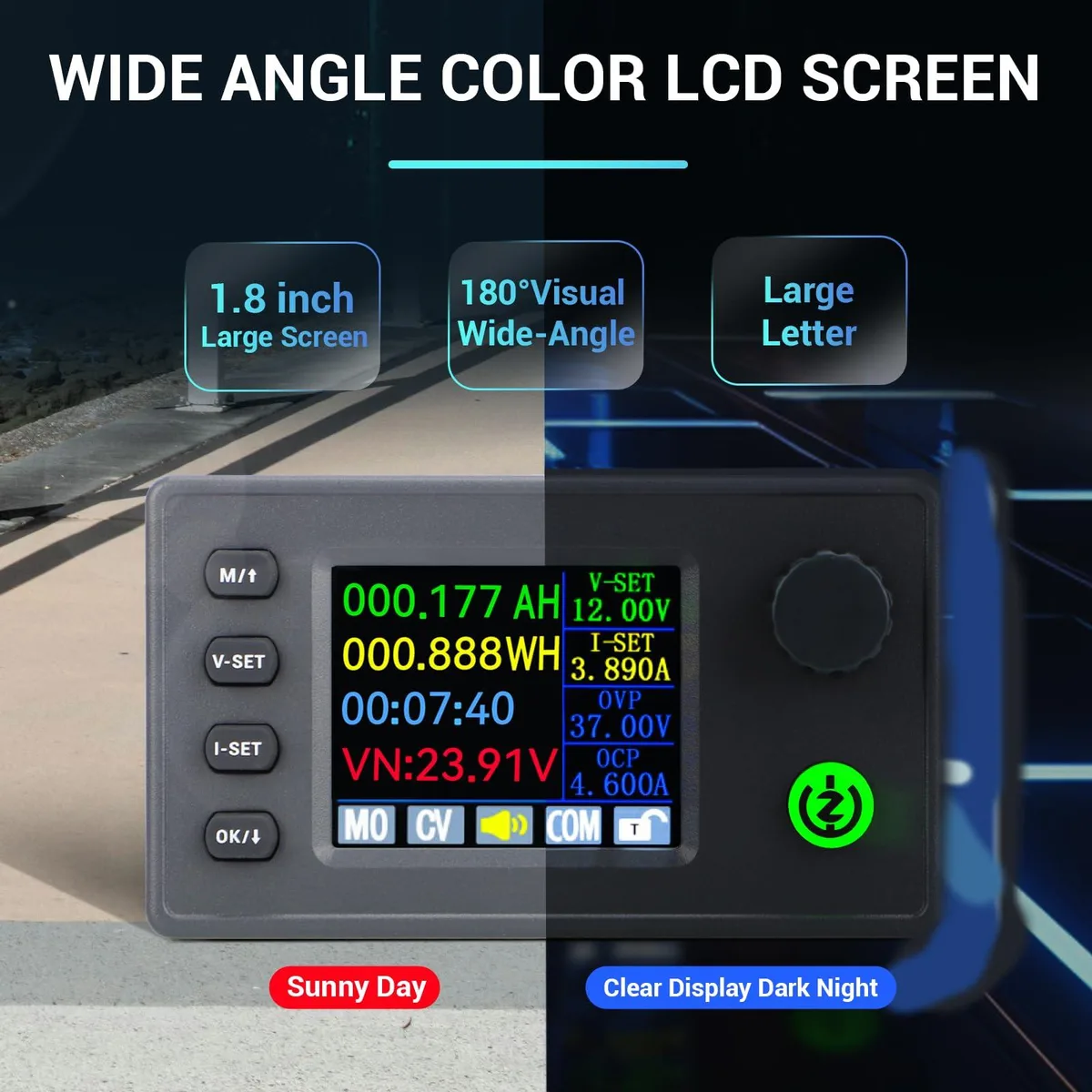

The KEHIPI adjustable voltage regulator accepts a DC input between 6.0 and 36 volts and delivers a calibrated output from 0.5 to 36 volts at up to 5 amps with a 90 watt power rating. A colour LCD shows voltage and current with 0.01 volt and 0.001 amp resolution, while silicone keypads provide tactile control for field adjustments. It suits RV owners and solar installers who need a compact buck-boost converter for battery charging or equipment supply.

Sustained Operation at 88 Percent Efficiency

Under continuous load the converter maintains 88 percent conversion efficiency, limiting heat rise during extended charging cycles. Calibratable accuracy of ±0.3 percent plus three words for voltage and ±0.5 percent plus three words for current keeps output stable over time. Adjustable over-power protection defaults to 91 watts and over-temperature protection triggers at 60 degrees, both configurable to match specific thermal envelopes.

Protection Suite with Audible Alerts

Built-in safeguards include input reverse-connection protection, output anti-backflow protection, under-voltage protection adjustable from 5.5 to 35 volts, over-voltage protection adjustable to 37 volts, and over-current protection adjustable to 5.2 amps. A buzzer sounds on any fault condition, while over-time, over-capacity and over-energy protections can be enabled with limits up to 99 hours 59 minutes, 9999 amp-hours and 4000 kilowatt-hours respectively.
