KEHIPI
KEHIPI 5V 40A 200W Power Adapter
A 5 V switching supply delivering 40 A and 200 W from 110 V or 220 V AC, with adjustable output, multiple protections and a fan-less metal case for silent indoor use
- ColorMetallic
- Dimensions5.4 in x 20.0 in x 11.5 in
- Weight0.64 kilograms
- Delivers 200W at 5V DC for demanding LED projects
- Adjustable output voltage up to 15% via built-in potentiometer
- Four protection circuits guard against over-voltage, overload, overheating and short circuits
- Fanless metal enclosure with ventilation holes enables silent operation
- Dual output channels simplify wiring for large installations
5V 40A switching supply for high-current LED

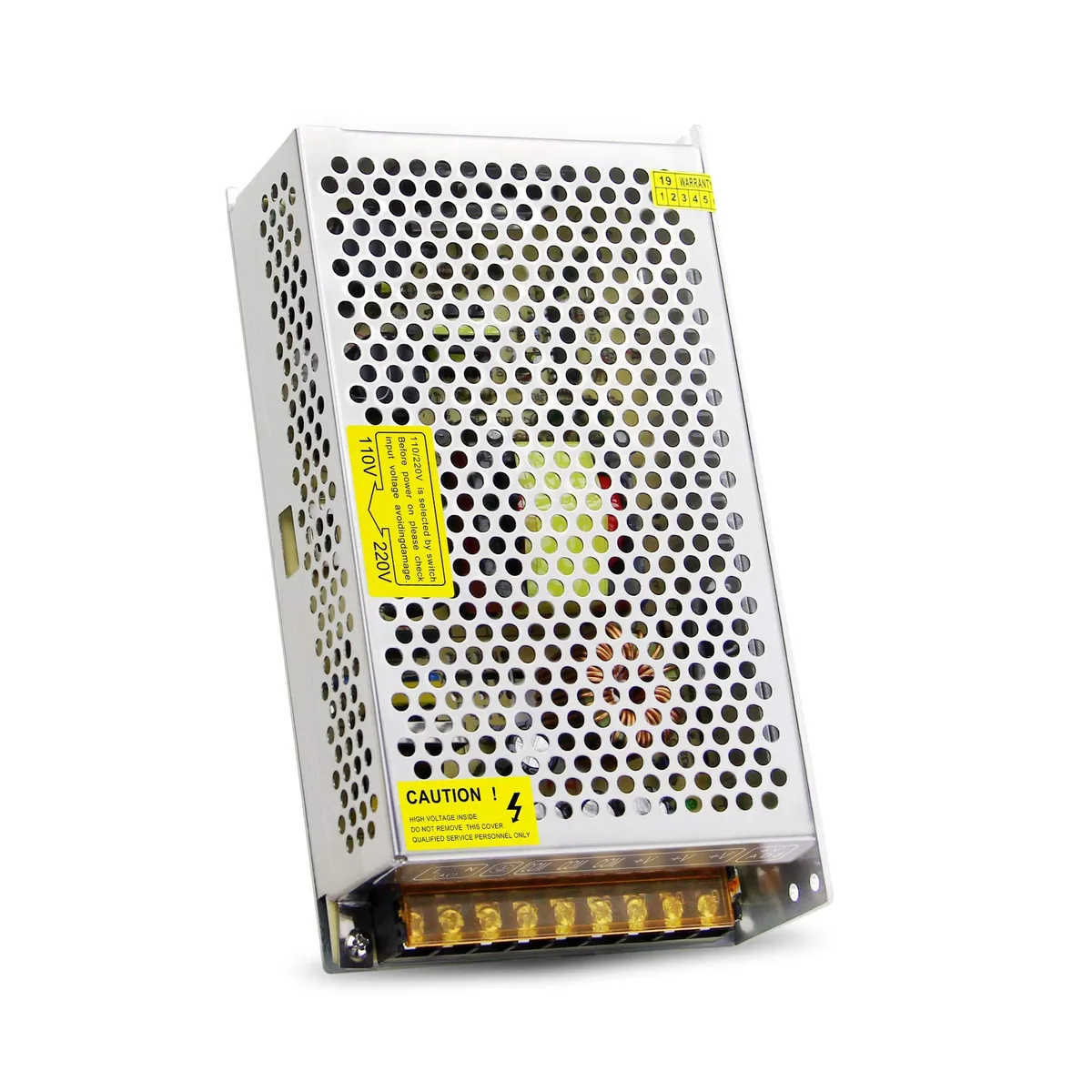

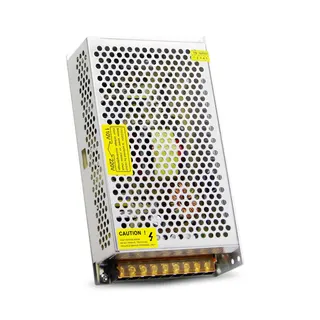

This unit converts 110V or 220V AC into a stable 5V DC rail rated at 40 amps and 200 watts. It is built for indoor installations that demand sustained current, such as long WS2812B, WS2813, WS2811 or WS2801 pixel strips, CCTV arrays or security systems. The metal enclosure uses convection cooling through multiple vents, so it runs silently without an internal fan. Dual output channels simplify wiring for parallel loads.
Sustained 200W delivery with 15% voltage adjustment

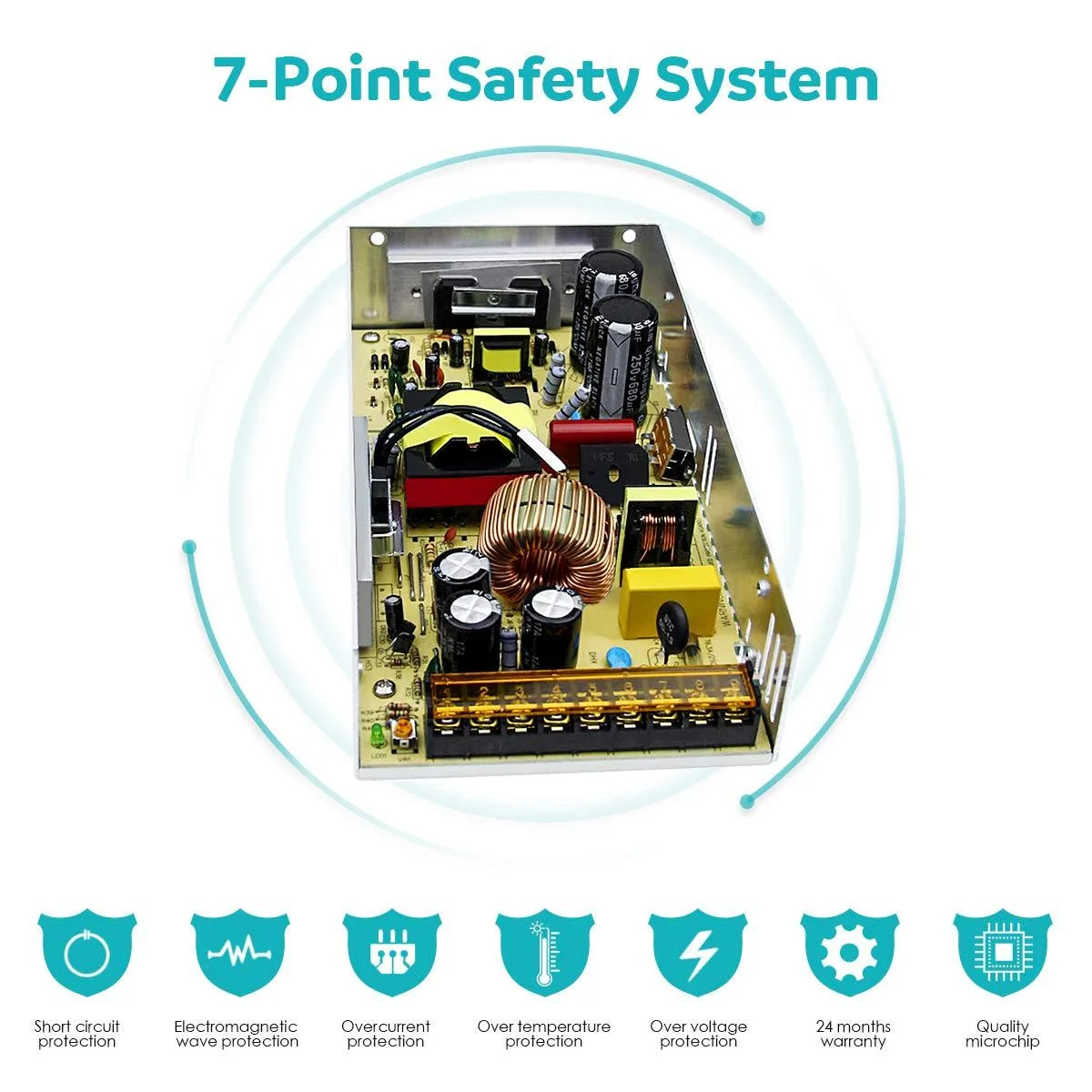

Continuous operation at the full 40A rating is supported by pure copper inductors, high-performance transformers and dual electrolytic capacitors. Over-voltage, overload, over-temperature and short-circuit protections engage automatically to protect connected hardware during extended runs. The output voltage can be trimmed by 15% via the onboard adjuster to compensate for voltage drop across long cable runs. An input-voltage selector switch must be set to 110V or 220V before power is applied.
2.5 mm mounting holes fix the chassis in place
Four screw holes with a 2.5 mm diameter secure the 5.4 × 20.0 × 11.5 inch metal case to a panel or enclosure. The unit weighs 0.64 kilograms and operates from -10 to 50 degrees Celsius in 10–95% humidity. It is not rated for outdoor or wet environments and provides no isolation beyond the standard AC-to-DC conversion. Buyers needing weather-sealed enclosures, higher voltages or redundant hot-swap modules should look elsewhere.
Highlights
- Delivers 200W at 5V DC for demanding LED projects
- Adjustable output voltage up to 15% via built-in potentiometer
- Four protection circuits guard against over-voltage, overload, overheating and short circuits
- Fanless metal enclosure with ventilation holes enables silent operation
- Dual output channels simplify wiring for large installations
Specifications
| Brand | Aclorol |
|---|---|
| Model | Aclorol Generic Power Supply Model |
| Part Number | YC-5V40A-SL |
| Color | Metallic |
| Dimensions | 5.4 in x 20.0 in x 11.5 in |
| Weight | 0.64 kilograms |
Questions about this item
How loud and hot does the 200W 5V 40A unit get when running continuously?
The metal case has no internal fan, so it runs silently; ventilation holes provide passive cooling, and the operating temperature range is -10 to 50 °C.
Which cables or connectors must I already have to wire this supply to my LED strips?
You need to provide your own AC mains cord for the L/N input terminals and suitable DC wiring for the +V and COM output terminals; the unit only includes screw terminals.
Will the adjustable 5V output work safely with older 5V pixel strips such as WS2811 or WS2801?
Yes, the output voltage can be trimmed by 15 % via the +V ADJ potentiometer, and the built-in over-voltage, overload, overheat and short-circuit protections safeguard legacy 5V devices.
