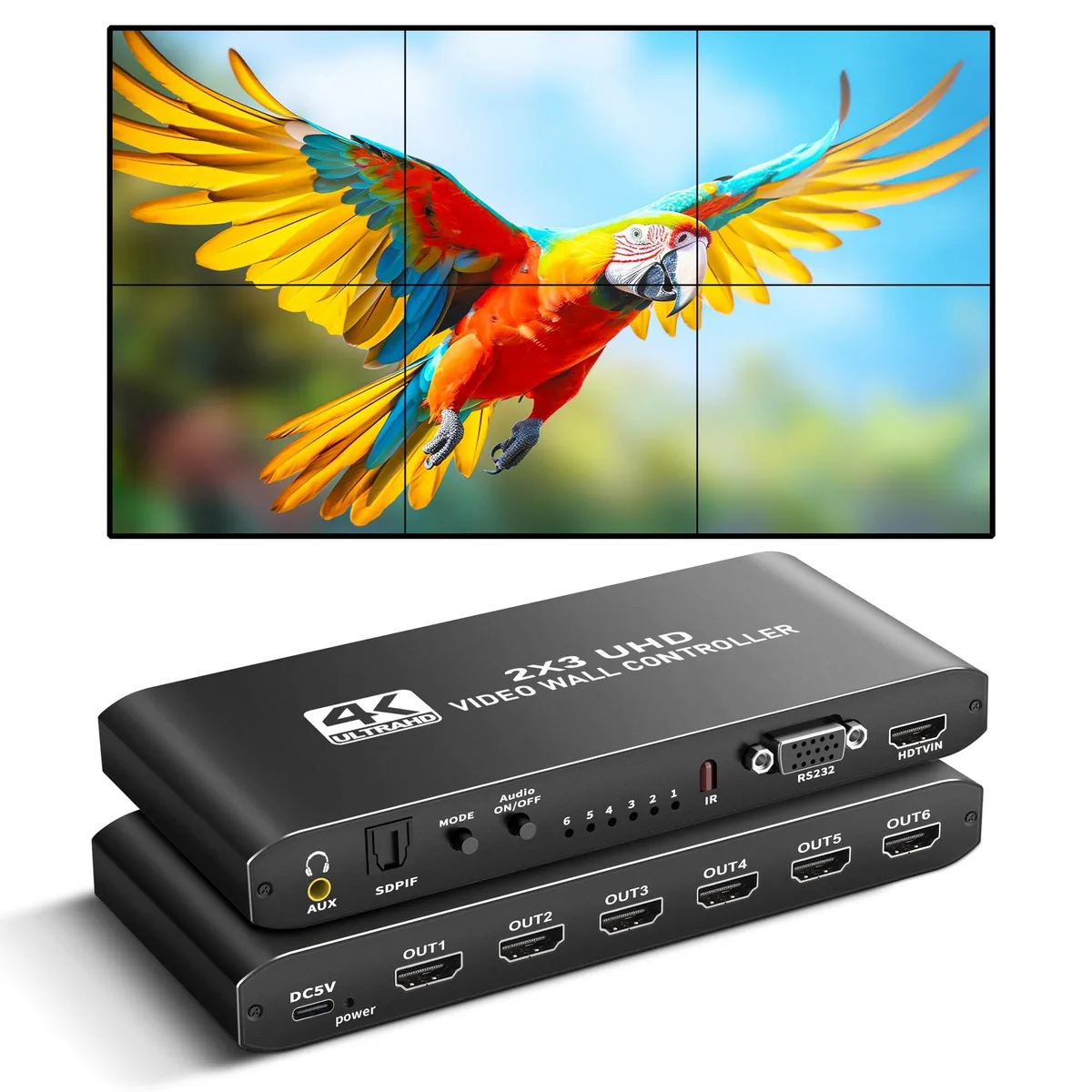

Black rectangular HDMI video wall controller with seven ports and IR remote

KEHIPI

KEHIPI 4K HDMI Video Wall Controller 2x3 audio

SKU CH-XEH6-E8747

Splits one 4K HDMI source across six displays with 14 layout modes, 180° rotation for 2x2 walls, and SPDIF plus 3.5 mm audio outputs

  • TypeHDMI
  • Changer TypeHDMI
  • ColorBlack
  • Ports7
  • Cable Length1
  • Input Connector7
  • Distributes one HDMI source across six displays simultaneously
  • Fourteen splicing modes from 1x1 up to 2x3 and 6x1
  • 4K at 30 Hz input and output with HDCP 1.4
  • 180 degree rotation on two outputs for thinner bezels in 2x2 mode
  • Optical and 3.5 mm audio outputs for external sound systems

4K HDMI Video Wall Controller 2x3

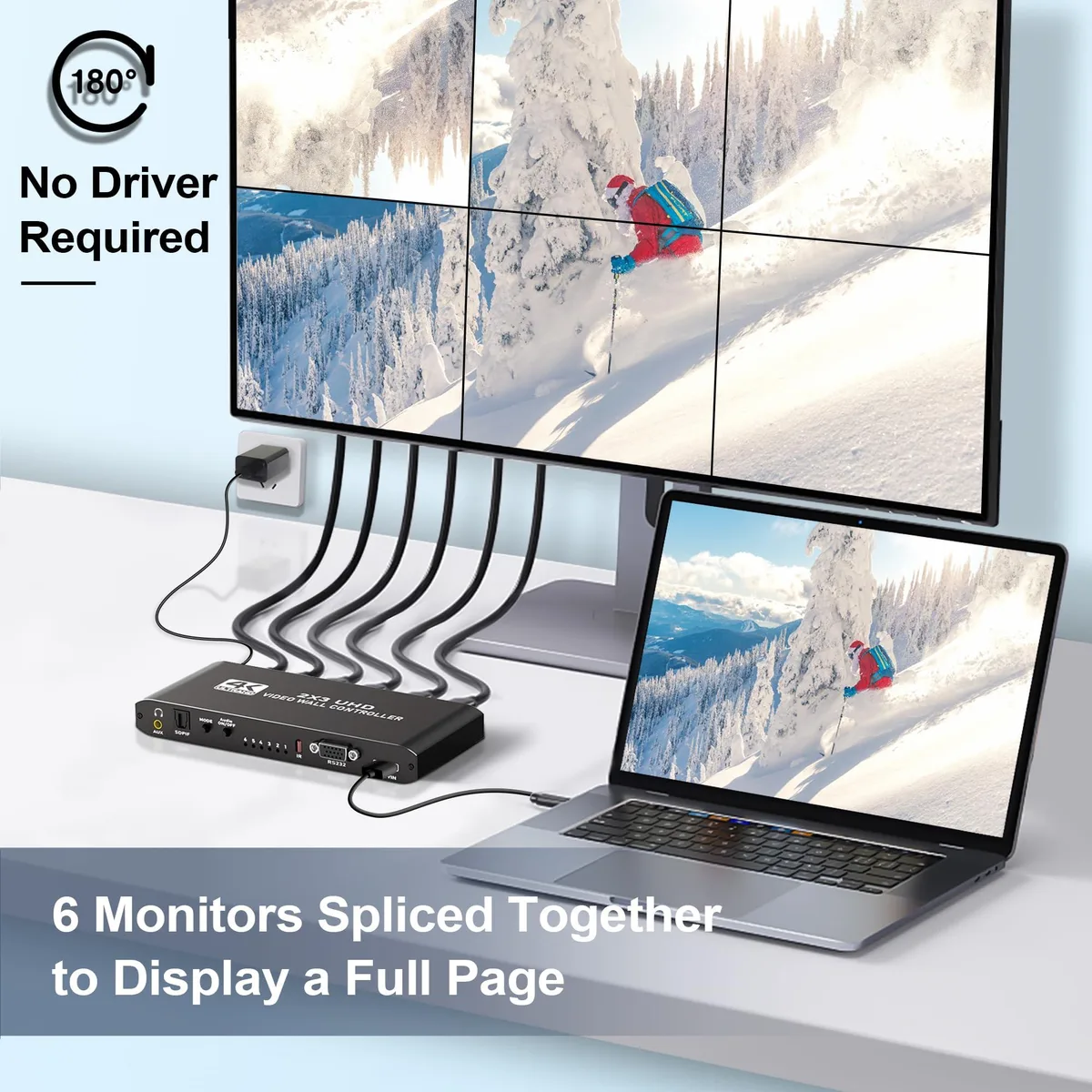

The KEHIPI controller distributes a single HDMI source to six displays for digital signage or video-wall installations. It accepts input from media players, consoles or PCs and drives professional LCD splicing screens in a 2x3 layout. The unit includes an IR remote and RS-232 interface for mode switching. It is not suited for buyers who need multi-source switching or matrix routing.

HDMI 1.4 interface limits resolution and refresh

The processor complies with HDMI 1.4 and HDCP 1.4, capping both input and output at 4K 30 Hz. Supported input timings include 3840x2160p at 24 or 30 Hz and 1920x1080p at 25, 30, 50 or 60 Hz. Output resolution is fixed at 4K 30 Hz across all six ports. Displays must share the same resolution for stable operation. Builders needing 4K 60 Hz or HDR pass-through cannot use this device.

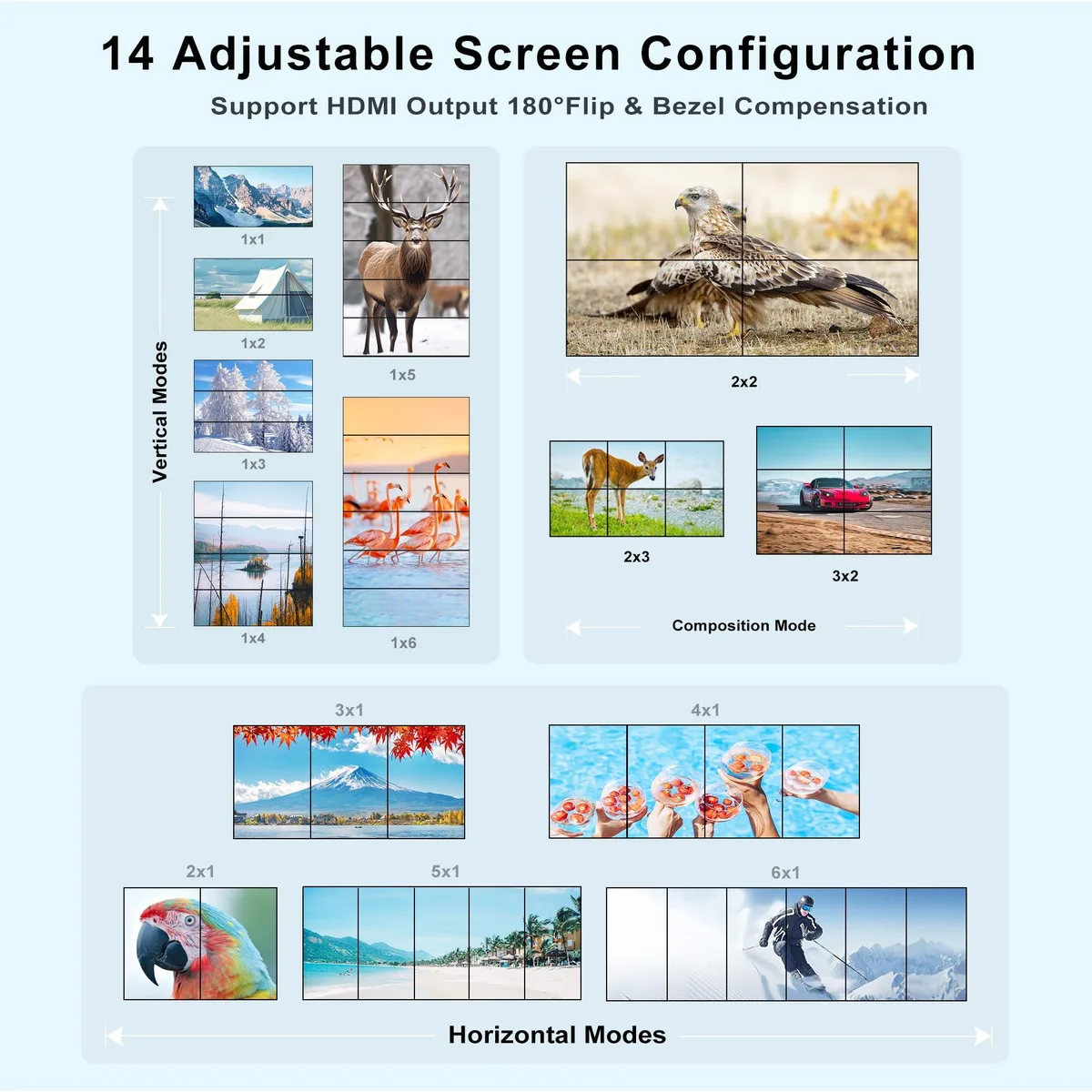

14 splicing modes define layout flexibility

Fourteen preset layouts range from 1x1 through 1x6, 2x1 through 2x3, 3x1, 3x2, 4x1, 5x1 and 6x1 configurations. The 180-degree rotation feature applies only to outputs one and two in 2x2 mode to reduce bezel gaps. Audio is extracted via SPDIF and 3.5 mm stereo jacks with PCM 2.0 and 5.1-channel optical support. Users requiring per-zone audio routing or custom aspect ratios will find the fixed mode list restrictive.

Highlights

  • Distributes one HDMI source across six displays simultaneously
  • Fourteen splicing modes from 1x1 up to 2x3 and 6x1
  • 4K at 30 Hz input and output with HDCP 1.4
  • 180 degree rotation on two outputs for thinner bezels in 2x2 mode
  • Optical and 3.5 mm audio outputs for external sound systems

Specifications

BrandKEHIPI
TypeHDMI
Changer TypeHDMI
ColorBlack
Ports7
Cable Length1
Input Connector7
Output ConnectorFemale-to-Female
Maximum Resolutions2x3
Weight0.8 lb

Questions about this item

Should I choose the 2x3 splicing mode or one of the other 13 modes for my six screens?

The controller offers 14 splicing modes including 1x1, 1x2, 1x3, 1x4, 1x5, 1x6, 2x1, 2x2, 2x3, 3x1, 3x2, 4x1, 5x1 and 6x1. Select the layout that matches your physical screen arrangement.

What does the 4K@30Hz specification mean when the unit is connected to my displays?

The processor accepts an HDMI input up to 3840x2160 at 24 or 30 Hz and 1920x1080 at 25, 30, 50 or 60 Hz, then drives all six outputs at up to 4K@30Hz. All screens must support the same resolution for best results.

Which HDMI standard does the controller use and what bandwidth limit does that impose?

It uses HDMI 1.4 with HDCP 1.4, capping input and output at 4K@30Hz (3840x2160@24/30Hz) and 1080p@60Hz.
