Small rectangular aluminium module with sealed epoxy finish and attached wiring

KEHIPI

KEHIPI 12V to 24V 3A 72W Boost Converter Waterproof Module

SKU CH-YQDZ-TFG7H

Steps 12 V up to 24 V at 3 A with 96 % efficiency in an IP68 aluminium case

  • Type12V to 24V 3A
  • Dimensions2.5 in x 2.1 in x 0.7 in
  • Weight110 grams
  • Steps 12 V to 24 V at 72 W for golf-cart accessories
  • 96 % peak efficiency from synchronous rectification cuts waste heat
  • Smart chip guards against over-current, overload, short-circuit and over-heat
  • IP68 epoxy-potted aluminium case survives –40 °C to 80 °C extremes
  • Compact 2.5 in × 2.1 in × .7 in module weighs only 110 g

Voltage Boost for 24 V Systems

The KEHIPI module steps a nominal 12 V DC source up to a regulated 24 V DC output at 3 A, delivering up to 72 W. It is intended for equipment that requires a stable 24 V rail from a 12 V battery or vehicle supply, such as golf carts, club cars or similar mobile platforms.

9 V to 16 V Input Window

The converter accepts an input range of 9 V to 16 V with a maximum input current of 10 A. If the source voltage falls outside this window or cannot supply the required current, the unit will not operate correctly and a different power solution is needed.

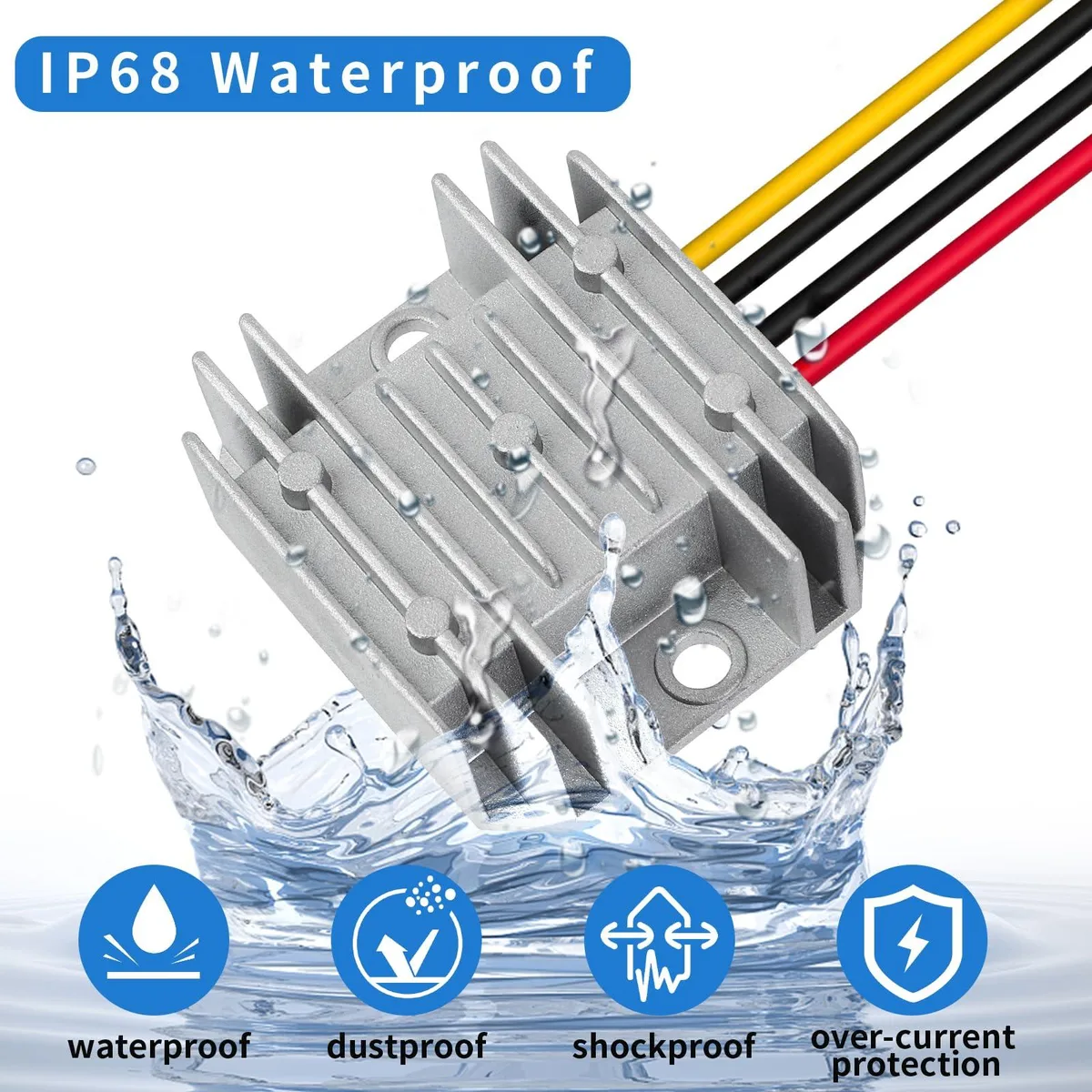

Sealed Aluminium Housing

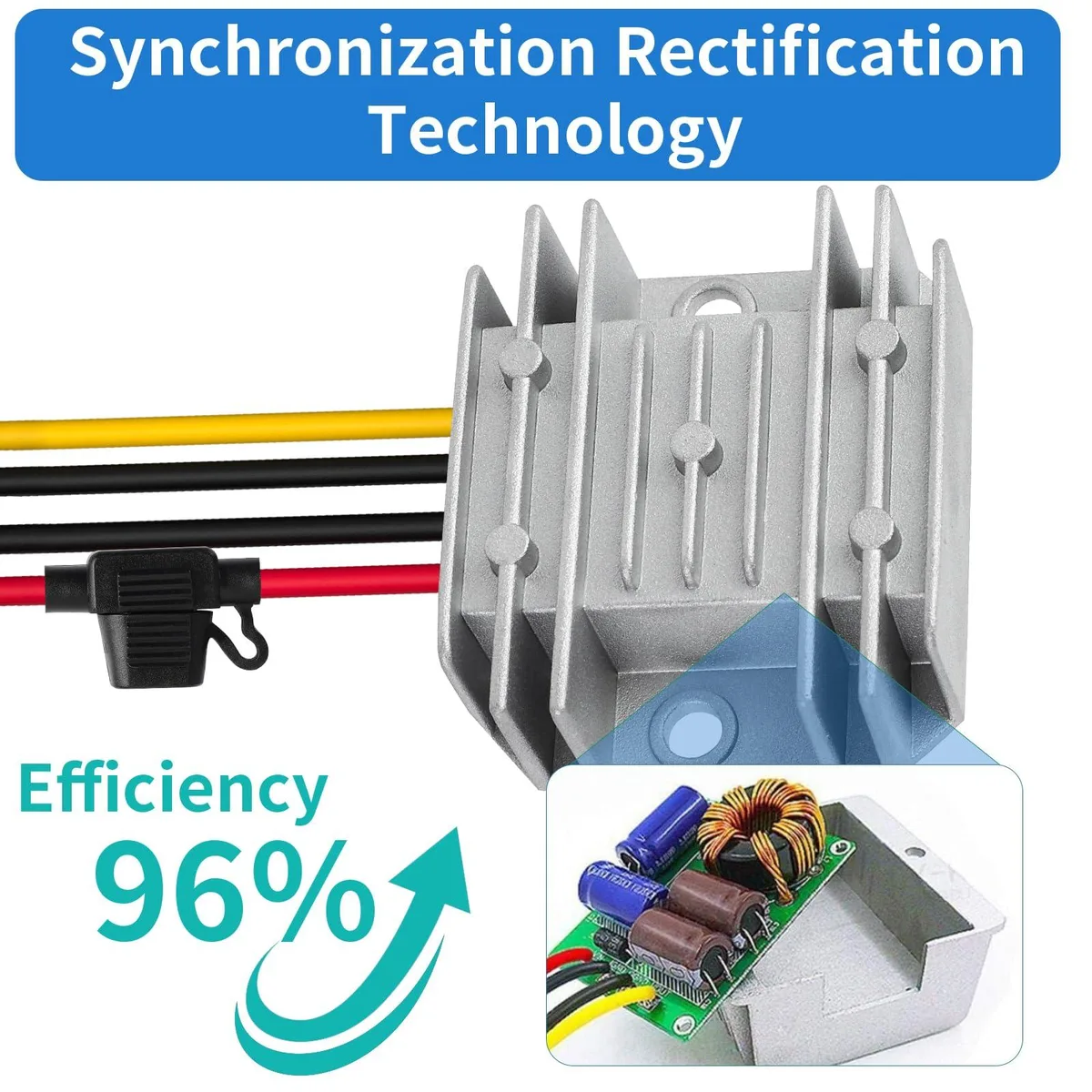

The epoxy-potted aluminium shell is rated IP68, providing full waterproof, dust-proof and shock-resistant protection. Synchronous rectification achieves up to 96 % efficiency with 50 mV ripple, and the unit is specified for continuous operation from -40 °C to 80 °C.

Highlights

  • Steps 12 V to 24 V at 72 W for golf-cart accessories
  • 96 % peak efficiency from synchronous rectification cuts waste heat
  • Smart chip guards against over-current, overload, short-circuit and over-heat
  • IP68 epoxy-potted aluminium case survives –40 °C to 80 °C extremes
  • Compact 2.5 in × 2.1 in × .7 in module weighs only 110 g

Specifications

BrandHOMELYLIFE
ModelTBS1224B072Z
Part NumberTBS1224B072Z
Type12V to 24V 3A
Dimensions2.5 in x 2.1 in x 0.7 in
Weight110 grams

Questions about this item

What does the 72W output rating mean for the devices I can run?

It means the converter can supply up to 3A at 24V continuously, so any 24V load drawing 3A or less will operate within its rated capacity.

How does the 9V to 16V input range affect real-world use?

The module accepts a nominal 12V source that may sag to 9V or rise to 16V and still maintains a regulated 24V output, making it suitable for vehicle electrical systems.

Will the 2.5 in by 2.1 in aluminium case fit in a tight golf-cart compartment?

The compact potted enclosure measures 2.5 in long, 2.1 in wide and 0.7 in high, weighing 110 g, so it can be mounted in confined spaces with the included connectors.
