Gray rectangular aluminum enclosure with epoxy resin sealing, 4.0 by 3.0 by 1.0 inches

KEHIPI

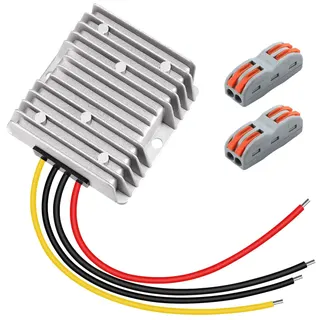

KEHIPI 12V-24V 120W 5A Boost Converter Power Adapter

SKU CH-HP78-SMKTY

Steps 10 V to 16 V DC input up to 24 V at 5 A with 97 % efficiency in an IP68 aluminium case

  • ColorGray
  • Dimensions4.0 in x 3.0 in x 1.0 in
  • Steps 12 V up to fixed 24 V for 24 V gear
  • Delivers 120 W at 5 A with 97 % peak efficiency
  • IP68 epoxy-sealed aluminium case resists water, dust and shock
  • Built-in overload, overcurrent, over-temperature and short-circuit protection
  • Operates from 10 V to 16 V input across -40 °C to 85 °C

Purpose-built DC step-up unit

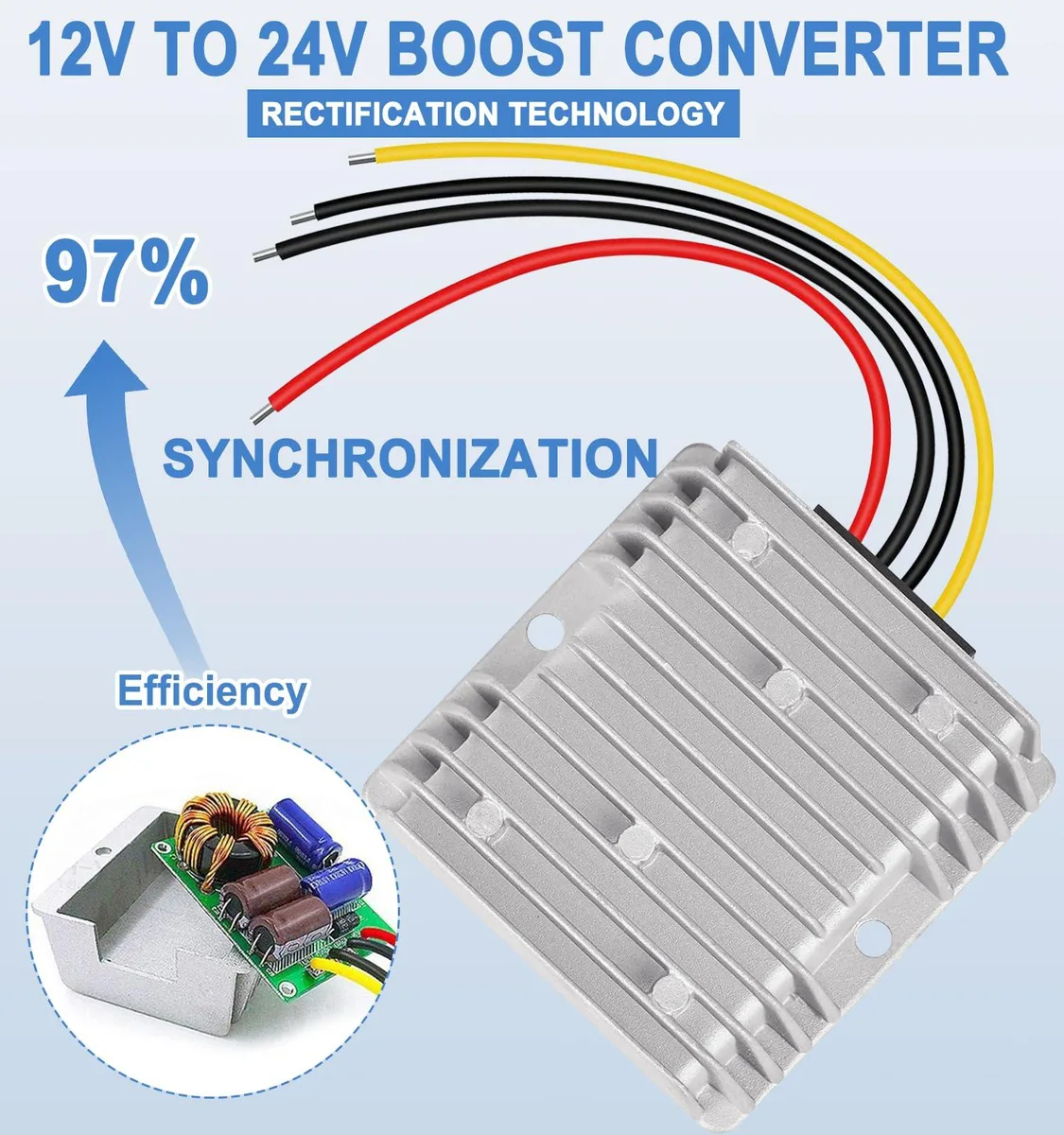

This KEHIPI converter raises a 10-16V DC source to a fixed 24V DC output rated at 5A and 120W. The die-cast aluminium housing is epoxy-potted to IP68 and specified for -40 to 85°C operation. Synchronous rectifier topology delivers up to 97% efficiency at half load and 95% at full load. Built-in protections cover overload, overcurrent, over-temperature, short circuit and overvoltage with automatic recovery.

Suits 24V loads on 12V systems.

Installers powering golf-cart accessories, RV lighting, industrial pumps, CNC machinery or mobile radios from a 12V battery will find the fixed 24V rail convenient. Buyers who require an adjustable output, a higher current rating or an input range outside 10-16V should select a different module. The note that input current must exceed output current also rules out undersized battery packs.

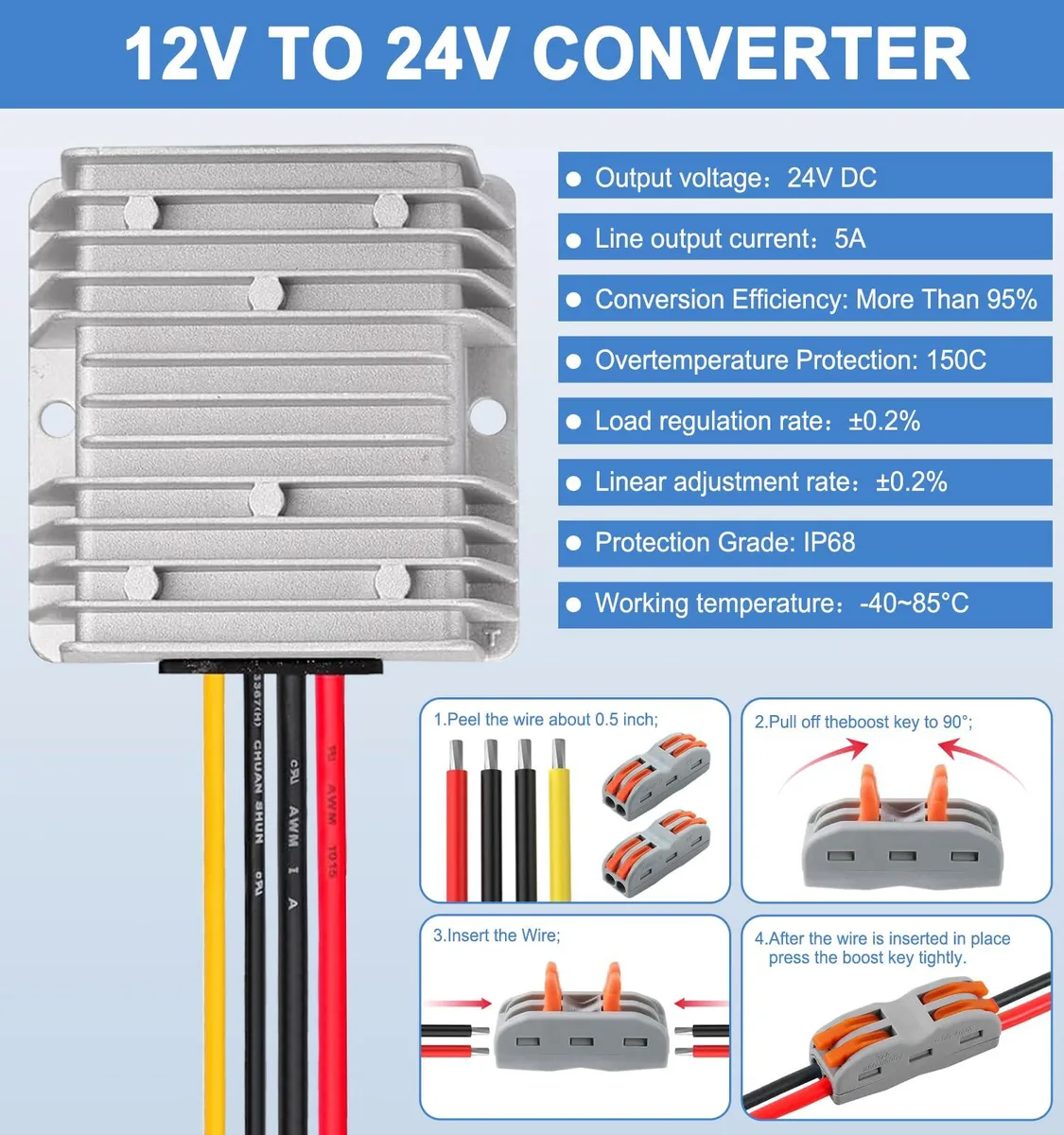

Simple two-wire install; watch input-current margin

Connect the DC input and output leads to the labelled terminals; the sealed enclosure needs no fan and mounts on any flat surface. The most common issue is supplying less input current than the load draws at 24V — verify the source can deliver roughly double the output amperage. Confirm polarity before powering up to avoid triggering the protection circuits.

Highlights

  • Steps 12 V up to fixed 24 V for 24 V gear
  • Delivers 120 W at 5 A with 97 % peak efficiency
  • IP68 epoxy-sealed aluminium case resists water, dust and shock
  • Built-in overload, overcurrent, over-temperature and short-circuit protection
  • Operates from 10 V to 16 V input across -40 °C to 85 °C

Specifications

BrandEAGWELL
Model11-16V to 24V 5A
Part NumberSYJYDY
ColorGray
Dimensions4.0 in x 3.0 in x 1.0 in

Questions about this item

What DC input voltage range must my battery or power supply provide for this boost converter to operate?

The converter accepts a DC input range of 10 V to 16 V, with 12 V recommended for best performance.

Can I connect this converter to an existing 12 V vehicle electrical system without modifications?

Yes, the unit is designed for 12 V DC systems and operates from 10 V to 16 V, making it compatible with standard automotive, RV, golf-cart and marine 12 V networks.

How can I verify the converter is delivering the correct 24 V output after installation?

Measure the output terminals with a multimeter; you should read a steady 24 V DC when the load is connected and the input is within the 10 V–16 V range.
