Ten small green circuit boards with solder pads and LED indicator

KEHIPI

KEHIPI 10PCS Mini Boost Module 3.7V to 5V 8V 9V 12V Step Up Board power adapter

SKU CH-MMR5-C9VXD

Pack of ten miniature step-up boards that convert a single 3.7 V lithium cell to selectable 5 V, 8 V, 9 V or 12 V outputs with a maximum 1.5 A current limit

  • Color10pcs
  • Selectable 5V 8V 9V 12V output via solder pads
  • Converts 3.7V lithium cell to higher voltages
  • Up to 1A output current per module
  • Compact 22 x 11 x 3.6mm board size
  • Pack of ten modules for multiple projects

Pack of ten step-up boards

This pack contains ten identical mini boost modules that raise a single-cell lithium battery voltage to a selectable 5V, 8V, 9V or 12V rail. Each board measures 22 by 11 by 3.6mm and is intended for DIY electronics projects that need a small, fixed-output supply.

Solder-jumper voltage selection

The output level is set by bridging two pads labelled A and B on the PCB with a soldering iron; the default configuration ships as 12V. Changing the jumper pattern lets you match the rail to 5V, 8V or 9V without adding external components or reprogramming anything.

Current limits and LED draw

With a 3.7V lithium input the module delivers up to 1A at 5V, 0.7A at 8V, 0.6A at 9V or 0.5A at 12V, provided neither input nor output current exceeds 1.5A. The on-board LED draws roughly 6mA at the default 12V setting and can be disabled to reduce quiescent current. Builders needing more than 1A continuous output or a wider input range should look elsewhere.

Highlights

  • Selectable 5V 8V 9V 12V output via solder pads
  • Converts 3.7V lithium cell to higher voltages
  • Up to 1A output current per module
  • Compact 22 x 11 x 3.6mm board size
  • Pack of ten modules for multiple projects

Specifications

BrandAITRIP
Color10pcs

Questions about this item

What are the board dimensions for fitting inside an enclosure?

Each module measures 22 mm long, 11 mm wide and 3.6 mm high, so allow at least that footprint plus clearance for soldered wires.

How do I change the output voltage on the module?

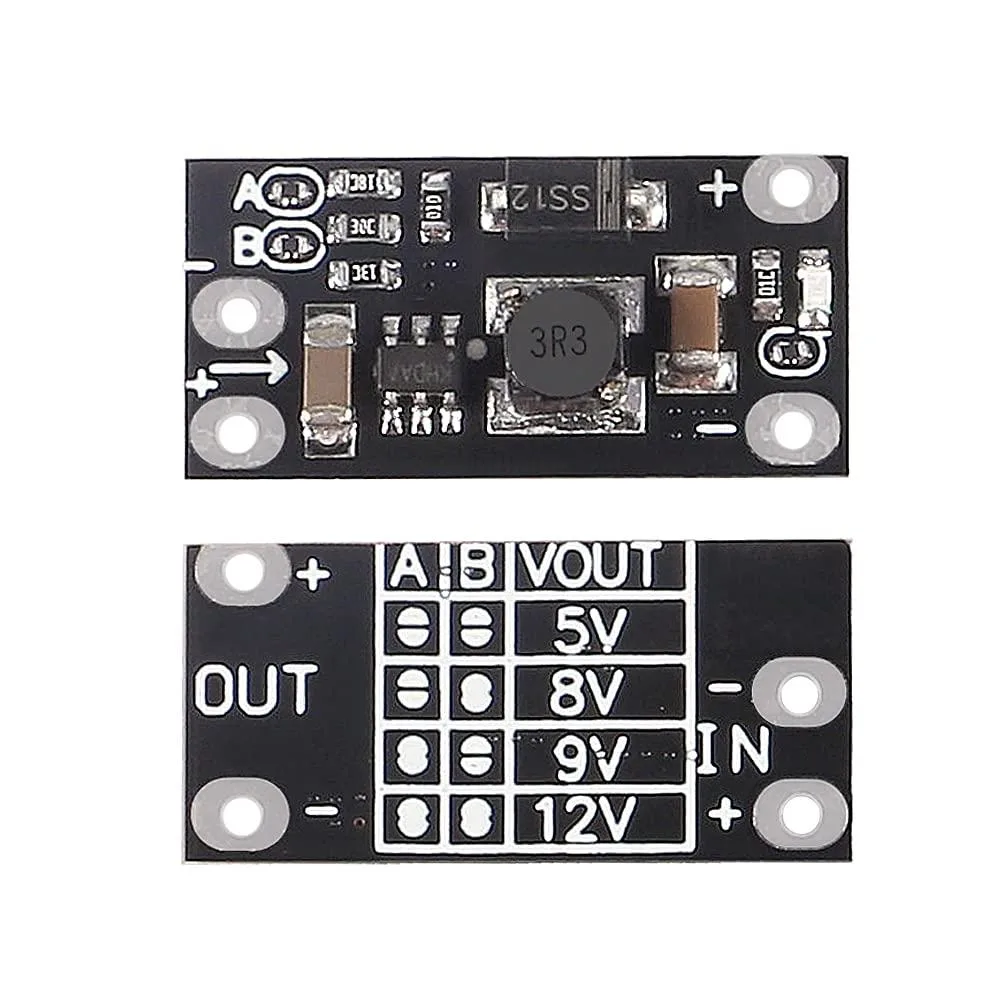

Use a soldering iron to bridge or open the two pads marked A and B on the PCB; the silkscreen table shows 00 = 5 V, 01 = 8 V, 10 = 9 V, 11 = 12 V.

Will the on-board LED drain my battery during long-term use?

With the default 12 V setting the indicator draws about 6 mA; desolder or cut the LED trace to eliminate that quiescent current.
