KeeYees CH341A Programmer with SOP8 Test Clip Kit
USB programmer kit with SOP8 clip for in-circuit 24/25 series BIOS flashing without desoldering
- Specificationsdedicated, eeprom, USB, pci_e, usb, 1 x CH341A Programmer, 1
- Connector AUSB, pci_e, usb
- Connector BUSB
- Features1 x CH341A Programmer, 1 x SOP8 Test Clip, 1 x 8Pin to 8Pin
- Dimensions2.5908 cm x 13.1064 cm x 13.3096 cm
- Weight0.05 kilograms
- SOP8 clip enables in-circuit programming without chip removal
- CH341A programmer backs up and flashes 24 and 25 series BIOS chips
- Kit includes test clip, converters and headers for immediate use
- Supports both wide-body and narrow-body SOP8 chips at 1.27 pitch
- PDF tutorials, software and drivers supplied for quick setup
In-Circuit BIOS Programmer Kit

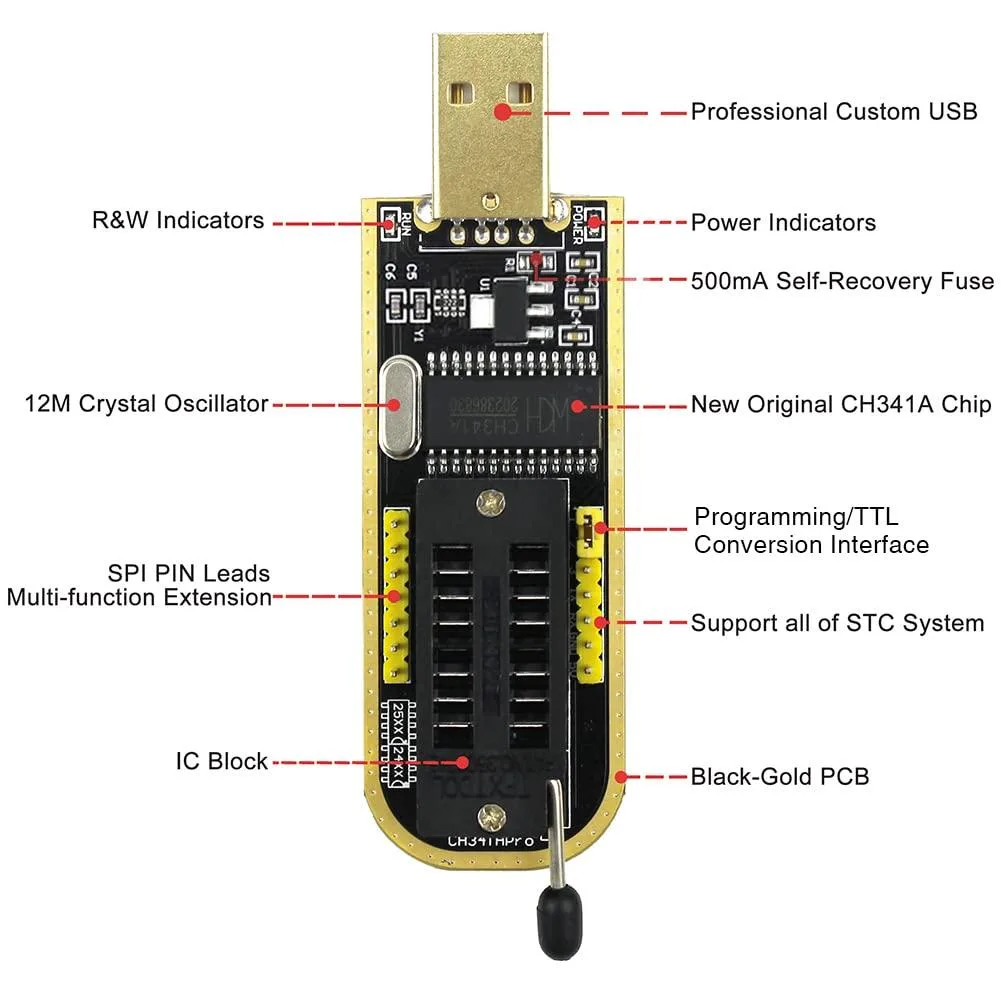

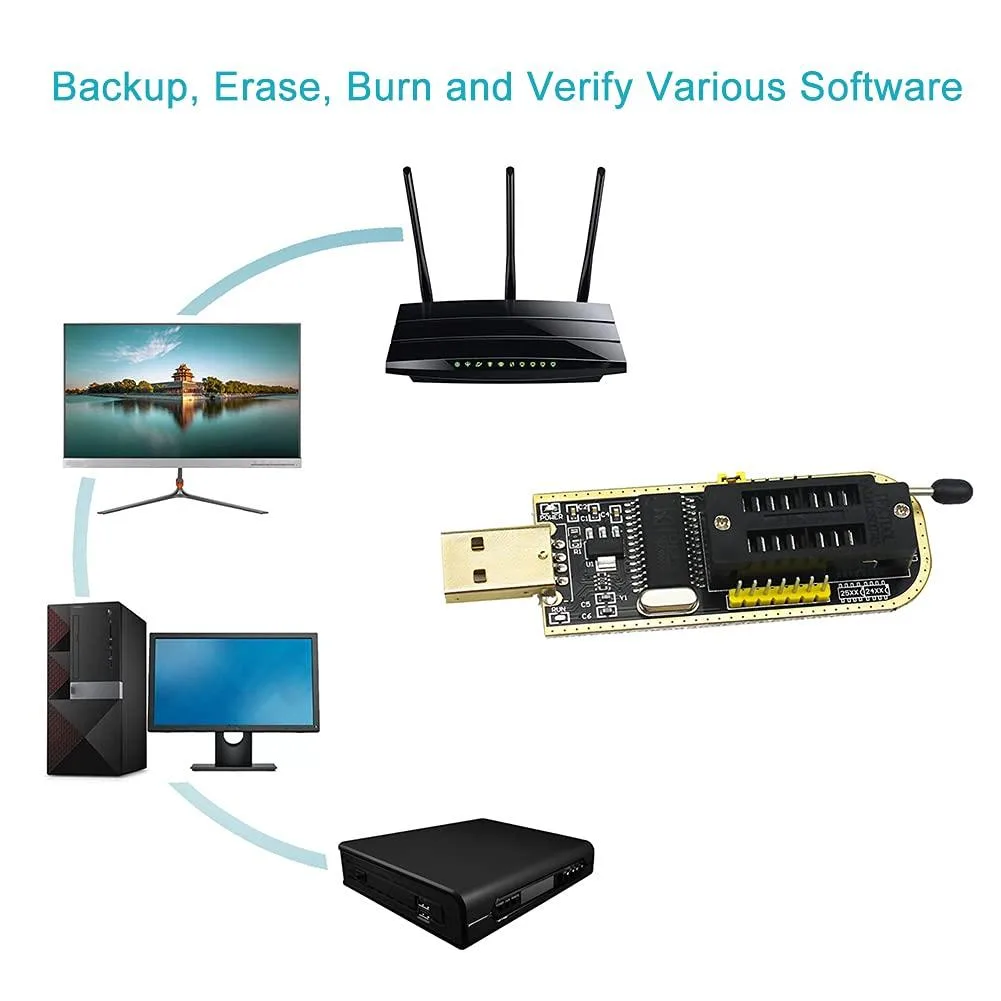

The KeeYees CH341A programmer with SOP8 test clip lets technicians and hobbyists flash 24 and 25 series EEPROM chips without desoldering them from motherboards, routers or set-top boxes. It connects via USB and supports both wide and narrow body SOP8 packages with 1.27 mm pitch.
Bundled Adapters and Software

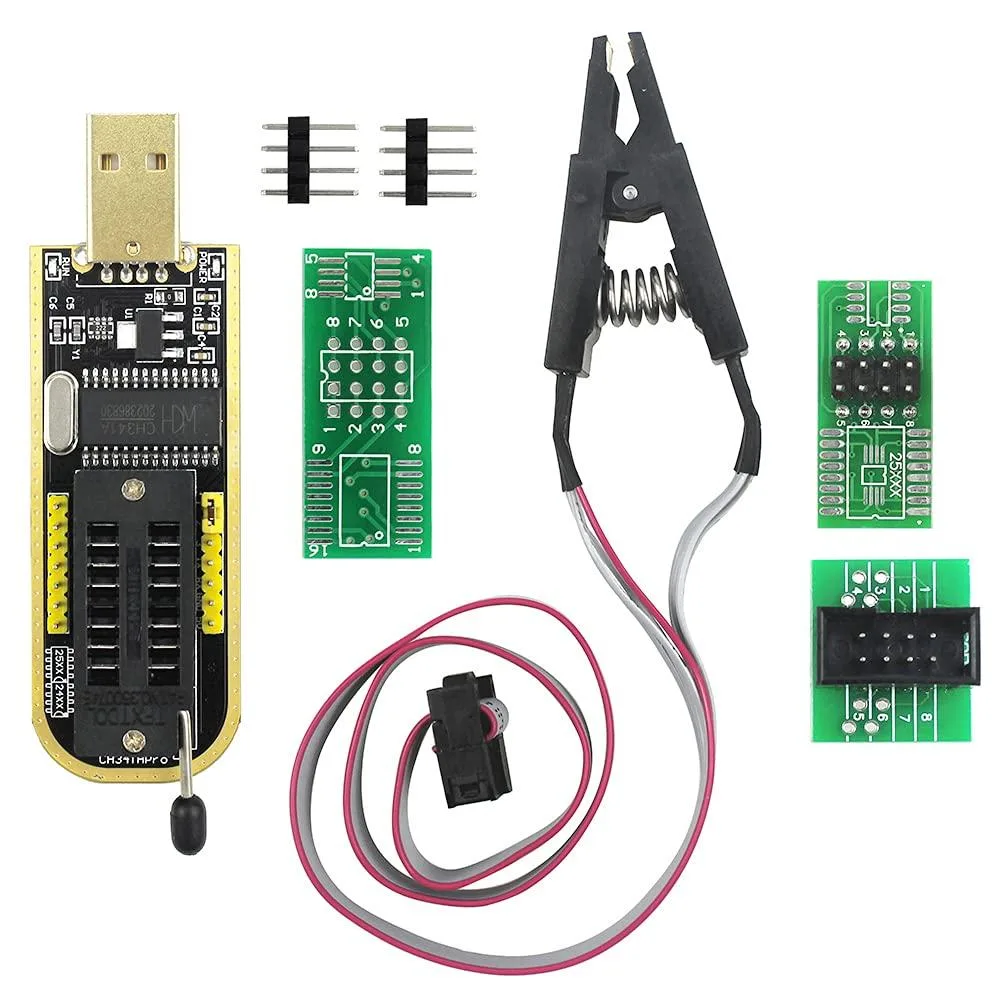

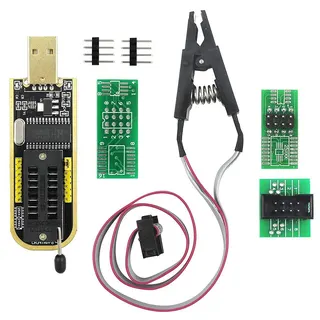

The kit includes an 8-pin to 8-pin converter, two SOP8/SOP16 to 8-pin converters and two 2.54 mm 4-pin headers for flexible chip connections. A PDF tutorial, CH341A software and drivers are supplied by email after purchase for programming, backup and calibration tasks.
Compatibility Check Required
The programmer covers most but not all 24 and 25 series SOP8 chips, so verify your exact chip model against the supported list before ordering. Buyers needing to program chips outside this series or requiring a different package type cannot use this kit.
Highlights
- SOP8 clip enables in-circuit programming without chip removal
- CH341A programmer backs up and flashes 24 and 25 series BIOS chips
- Kit includes test clip, converters and headers for immediate use
- Supports both wide-body and narrow-body SOP8 chips at 1.27 pitch
- PDF tutorials, software and drivers supplied for quick setup
Specifications
| Brand | KeeYees |
|---|---|
| Part Number | KYES61-KIT |
| Specifications | dedicated, eeprom, USB, pci_e, usb, 1 x CH341A Programmer, 1 x SOP8 Test Clip, 1 x 8Pin to 8Pin Converter, 2 x SOP8 SOP16 to 8Pin Converter, 2 x 2.54mm 4Pin header, 3840x2160, KYES61-KIT, KeeYees |
| Connector A | USB, pci_e, usb |
| Connector B | USB |
| Features | 1 x CH341A Programmer, 1 x SOP8 Test Clip, 1 x 8Pin to 8Pin Converter, 2 x SOP8 SOP16 to 8Pin Converter, 2 x 2.54mm 4Pin header, usb, USB, dedicated, Desktop |
| Dimensions | 2.5908 cm x 13.1064 cm x 13.3096 cm |
| Weight | 0.05 kilograms |
| Package Quantity | 1 |
| Package Contents | 1 x CH341A Programmer, 1 x SOP8 Test Clip, 1 x 8Pin to 8Pin Converter, 2 x SOP8 SOP16 to 8Pin Converter, 2 x 2.54mm 4Pin header |
Questions about this item
Will the SOP8 test clip tips wear out after repeated clamping?
The clip tips can bend if forced; open the clamp first, then clamp from the sides, and separate left and right before removing to avoid damage.
What limits continuous programming sessions with the CH341A programmer?
The USB interface supplies power, so extended use is limited by the host port's current capability and the clip's contact stability.
Does the CH341A programmer generate noticeable heat during all-day flashing?
The device draws power from USB and runs cool; no active cooling is needed for typical BIOS chip operations.
