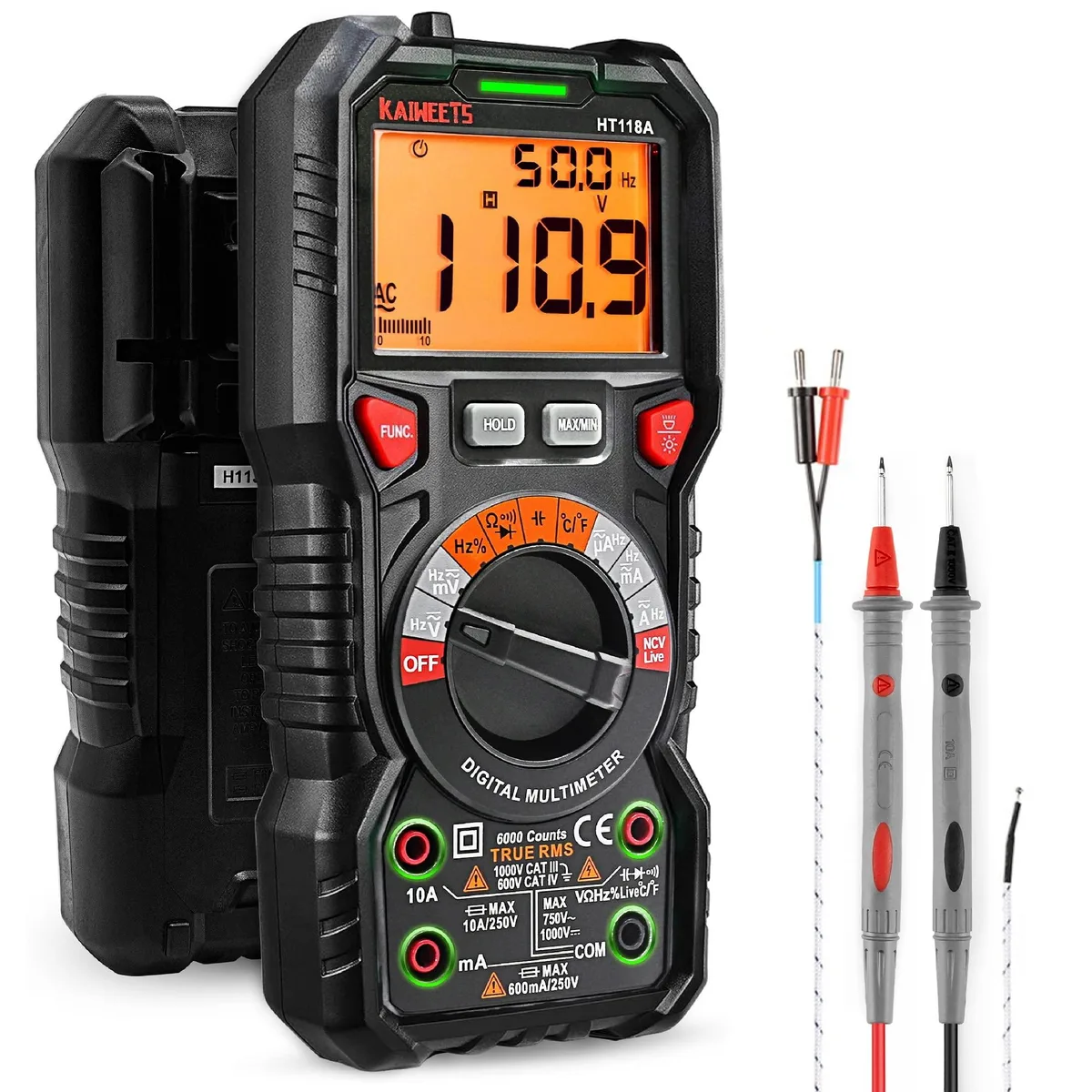

Orange handheld digital multimeter with LCD screen, rotary dial, test leads and silicone protective case

KAIWEETS HT118A Digital Multimeter 6000 Counts TRMS

SKU CH-CYQ3-KS6KE

Measures voltage, current, resistance, capacitance, frequency, duty-cycle and temperature with 6000-count TRMS accuracy and CAT III 1000V safety

  • FeaturesMultimeter Battery User Manual Test Leads Thermocouple, Iec,
  • Height20.4 L x 13 W x 6.2 H centimeters
  • Width20.4 L x 13 W x 6.2 H centimeters
  • Length20.4 L x 13 W x 6.2 H centimeters
  • Weight0.55 kilograms
  • Sports Team1 Piece
  • Measures up to 1000 V DC and 750 V AC for high-voltage tasks
  • True-RMS 6000-count display gives accurate readings on non-linear loads
  • CAT III 1000 V and CAT IV 600 V ratings protect against transients

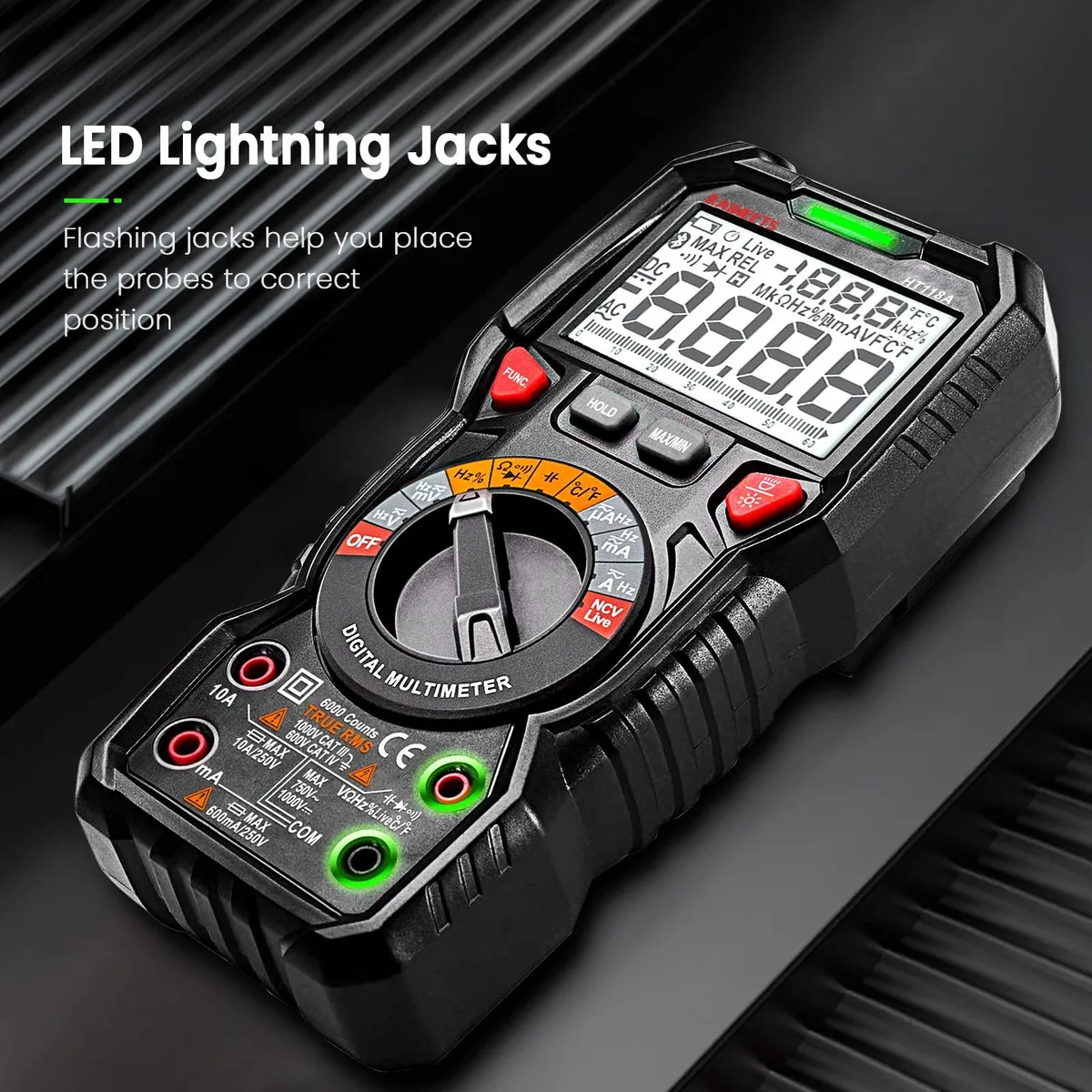

  • LED-lit input jacks and auto-ranging simplify operation in the field
  • Includes K-type thermocouple for temperature measurement up to 600 °C

Wide Measurement Range

The KAIWEETS HT118A is a digital multimeter built for electricians and DIYers who need more capability than a basic meter. It measures up to 1000V DC voltage and 750V AC voltage, plus 10A AC/DC current and 60 MOhms resistance. Additional functions include temperature, capacitance, frequency, duty-cycle, diode and continuity testing.

6000-Count Resolution Headroom

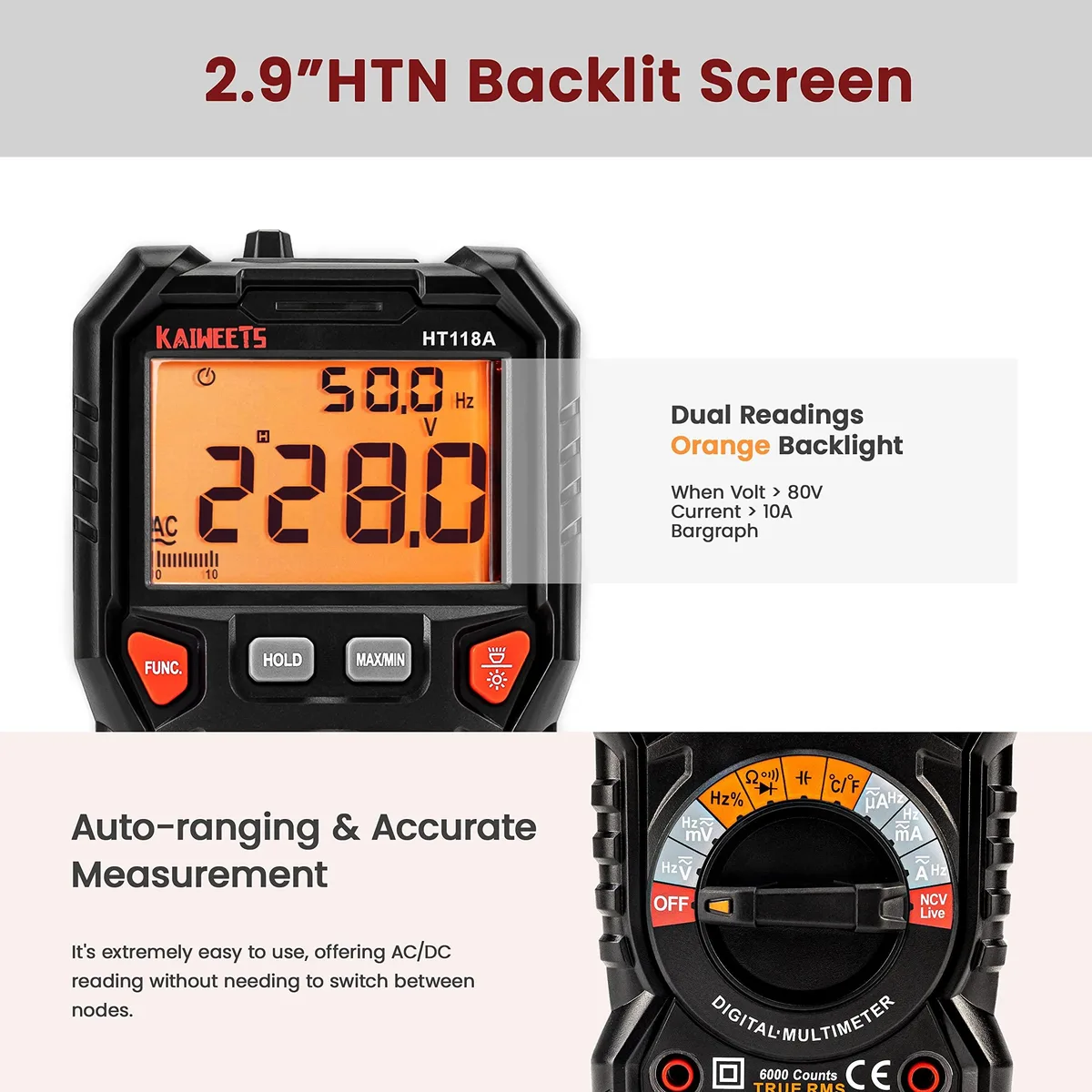

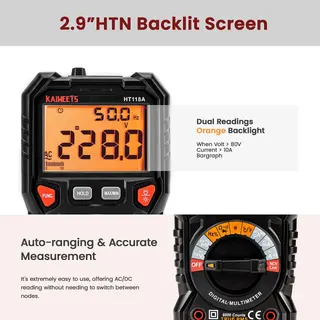

A 2.9 inch backlit LCD provides 6000-count resolution for finer readings across all ranges. Autoranging removes the need to select scales manually. The meter handles typical automotive and household circuits comfortably, while the CAT III 1000V and CAT IV 600V ratings define the upper safety limits for high-energy installations.

Upgrade From Basic Meters

This unit replaces entry-level testers that lack True RMS accuracy, temperature input or non-contact voltage detection. The jump is worth it when you need LED-guided terminals, a built-in flashlight and Min/Max/Average recording for fluctuating signals. It is not for users who require bench-grade precision or specialised analysis functions beyond the listed ranges.

Highlights

  • Measures up to 1000 V DC and 750 V AC for high-voltage tasks
  • True-RMS 6000-count display gives accurate readings on non-linear loads
  • CAT III 1000 V and CAT IV 600 V ratings protect against transients
  • LED-lit input jacks and auto-ranging simplify operation in the field
  • Includes K-type thermocouple for temperature measurement up to 600 °C

Specifications

BrandKAIWEETS
FeaturesMultimeter Battery User Manual Test Leads Thermocouple, Iec, Rohs Certified, Battery Powered, false
Height20.4 L x 13 W x 6.2 H centimeters
Width20.4 L x 13 W x 6.2 H centimeters
Length20.4 L x 13 W x 6.2 H centimeters
Weight0.55 kilograms
Sports Team1 Piece

Questions about this item

Will the HT118A's test leads and input jacks work safely with the older CAT III 600 V panel I still service?

The meter carries IEC CAT III 1000 V and CAT IV 600 V ratings, so its leads and jacks are rated for higher transient withstand than a CAT III 600 V installation requires.

How can I confirm the 6000-count display and auto-ranging are functioning correctly after I insert the batteries?

Select DC voltage, touch the leads to a known reference such as a fresh 9 V cell, and verify the screen shows the expected value with the range indicator auto-selecting the appropriate scale.

Does the HT118A box include the K-type thermocouple and batteries, or must I buy them separately?

The package includes the multimeter, test leads, K-type thermocouple, batteries and user manual, so no separate purchase is needed for those items.
