Black mid-tower case with bi-bent glass panels and wood accents

JONSBO

JONSBO TK-4 WD/BLACK Wood ATX PC Case

SKU CH-Z6PM-3T08W

Mid-tower ATX case with bi-bent surround-view glass, pre-installed 6×140 mm and 2×92 mm fans, 460 mm GPU clearance, and 175 mm CPU cooler height

  • Motherboard CompatibilityMicro ATX / ATX / ITX
  • ColorBlack
  • Case MaterialSGCC 1.0mm /Plastic / Glass:4mm / AL 2.0mm
  • TypeATX Desktop
  • Dust FiltersYes
  • Internal 3.5" Drive Bays2

Options TK-4 WD/BK

  • Bi-bent surround-view glass shows every component clearly
  • 2H-hardened glass film protects the curved panels from impact
  • Six 140 mm and two 92 mm fans pre-installed for strong airflow out of the box
  • Fits graphics cards up to 460 mm and CPU coolers up to 175 mm
  • Separated-cabinet layout with aluminum alloy frame keeps thermals tidy

Design and Build

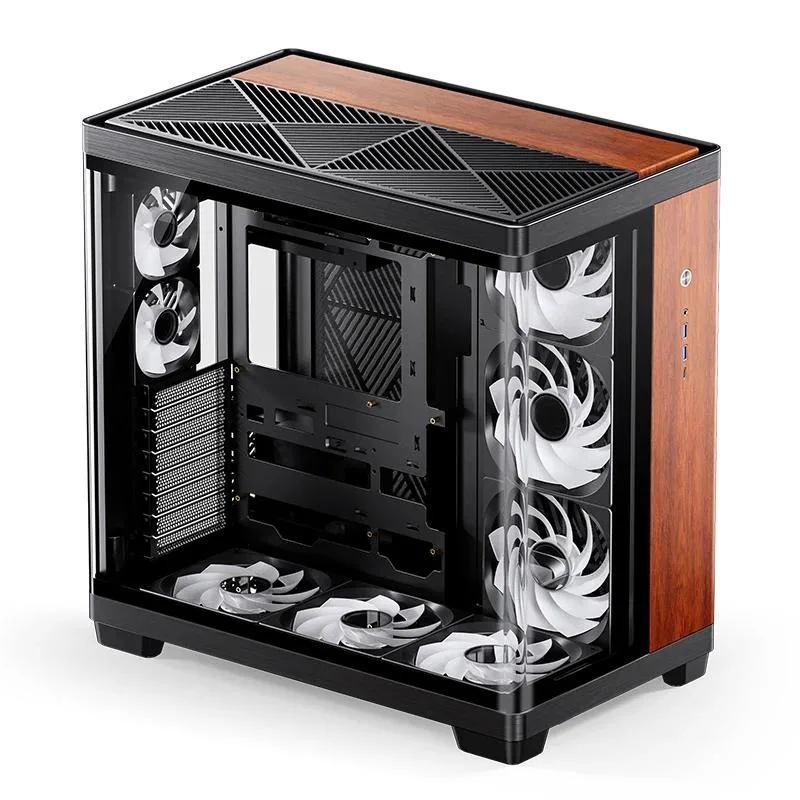

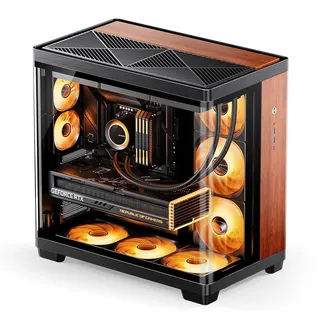

The JONSBO TK-4 WD/BLACK is a mid-tower ATX desktop case with a separated cabinet layout. Its frame uses SGCC steel, plastic, 4mm tempered glass and 2.0mm aluminium alloy. Bi-bent surround-view glass panels with a 2H hardness protective film show internal hardware from multiple angles. The case weighs 12.02KG and measures 495x298.6x495mm.

Cooling and Compatibility

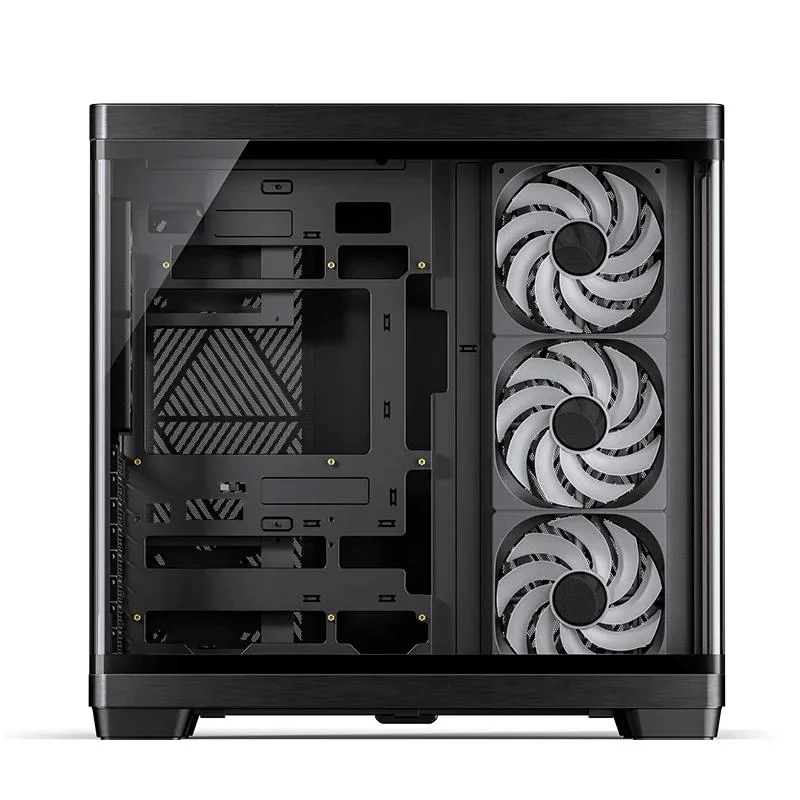

Six 140mm fans and two 92mm fans come pre-installed at the bottom, right side and rear. Optional mounts support three 120mm or 140mm fans at the top and side. Dual 420mm radiator positions are available at the top and bottom. The case accepts graphics cards up to 460mm, CPU coolers up to 175mm and power supplies up to 200mm. It fits ITX, Micro-ATX and ATX boards, including back-connect (BTF) models.

Storage and Front I/O

Two internal 3.5in bays and two 2.5in bays handle drive storage. The front panel provides one USB 3.2 Gen2 Type-C port, one USB 3.0 port and a combined audio/mic jack. Builders who need more than four drive bays or a different front-port selection should look at other cases.

Highlights

  • Bi-bent surround-view glass shows every component clearly
  • 2H-hardened glass film protects the curved panels from impact
  • Six 140 mm and two 92 mm fans pre-installed for strong airflow out of the box
  • Fits graphics cards up to 460 mm and CPU coolers up to 175 mm
  • Separated-cabinet layout with aluminum alloy frame keeps thermals tidy

Specifications

Motherboard CompatibilityMicro ATX / ATX / ITX
ColorBlack
Case MaterialSGCC 1.0mm /Plastic / Glass:4mm / AL 2.0mm
TypeATX Desktop
Dust FiltersYes
BrandJonsbo
SeriesTK
ModelTK-4 WD/BLACK
Internal 3.5" Drive Bays2
Internal 2.5" Drive Bays2
Expansion Slots8
90mm Fans2
140mm Fans6
Pre-installed FansBottom - 3 x 140mm,Right :3x140, Rear: 2x92
Max GPU Length460 mm
Max CPU Cooler Height175 mm
Max PSU Length200 mm
Dimensions19.49x11.76x19.49 inch
Weight12.02KG
FeaturesJONSBO TK-4 WD/BK Wood ATX PC Case, Desktop Case-
Case Design: ?JONSBO TK-4 WOOD Separated Cabinet PC Case, ATX Computer Case- Bi-Bent Surround View Glass :Hardwares inside clearly, with 2H hardness glass protection film applied to glass surfaces?? Tips: No tear off the curved-glass explosion-proof film
?Material Construction: Premium aluminum alloy construction providing durability and enhanced thermal performance? Material : SGCC 1.0mm /Plastic / Glass:4mm / AL 2.0mm
Motherboard Compatibility: Supports multiple form factors including ITX, M-ATX, and ATX with back-connect (BTF) moth

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How much clearance does the 495 mm wide case need for the bi-bent surround-view glass panels?

The case measures 495 mm wide by 495 mm deep by 298.6 mm high; allow a few millimetres on each side for the curved 4 mm glass and its 2H hardness protection film.

Which motherboard standoff pattern do I use for a back-connect ATX board in this separated-cabinet layout?

Align the board to the standard ATX standoffs, route cables through the rear cut-out, and do not remove the explosion-proof film on the curved glass during installation.

When should I clean the dust filters on the bottom, side and rear fan mounts?

Vacuum or rinse the filters every few months; the case has built-in 140 mm fans at the bottom and side plus 92 mm fans at the rear, all behind removable filters.
