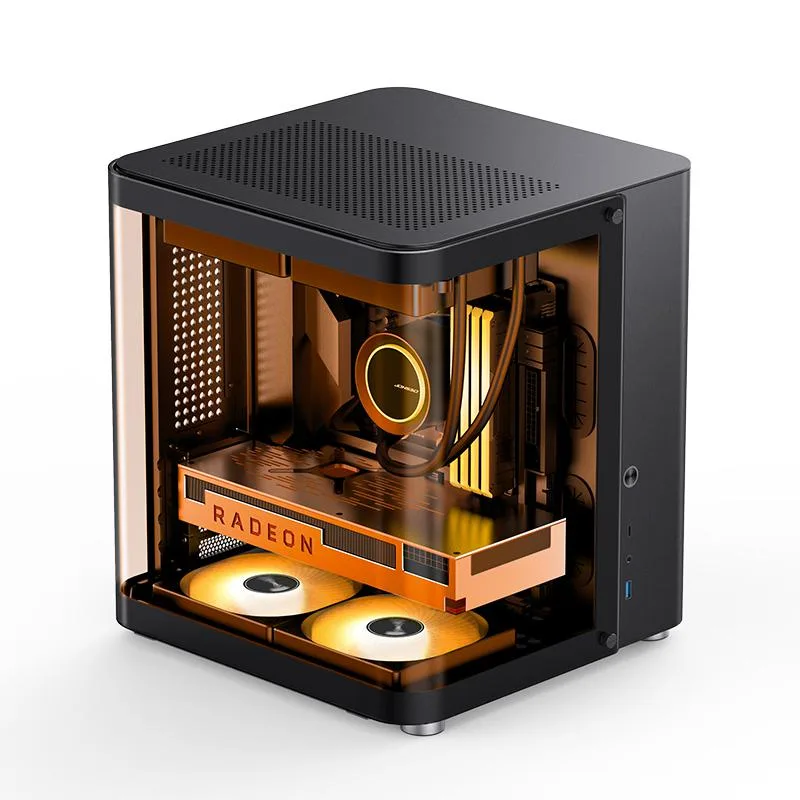

Black aluminium mini-tower with curved glass side panel and vertical air ducts

JONSBO

JONSBO TK-1 Black V2.0 Micro ATX Mini Tower PC Case

SKU CH-9NG9-57F0P

Micro-ATX mini tower with aluminium shell, curved tempered glass and separated interior, supporting 240 mm front radiator, 280 mm GPU and 165 mm CPU cooler

  • TypeMicro ATX / Mini-ITX
  • ColorBlack
  • Case MaterialAluminum / Steel
  • With Power SupplyNo
  • Side Panelwith Side Window
  • Dust FiltersBottom

Options TK-1 (Black)

  • Compact Micro-ATX footprint fits tight desk spaces
  • Aluminium-alloy shell with 2.5 curved glass for multi-angle viewing
  • Vertical air duct supports 240 radiator and dual 120 fans
  • Front USB 3.2 Gen2 Type-C at 10 Gbps plus USB 3.0
  • Clears 280 GPU, 165 CPU cooler and 220 PSU lengths

Separated Cabinet Micro-ATX Chassis

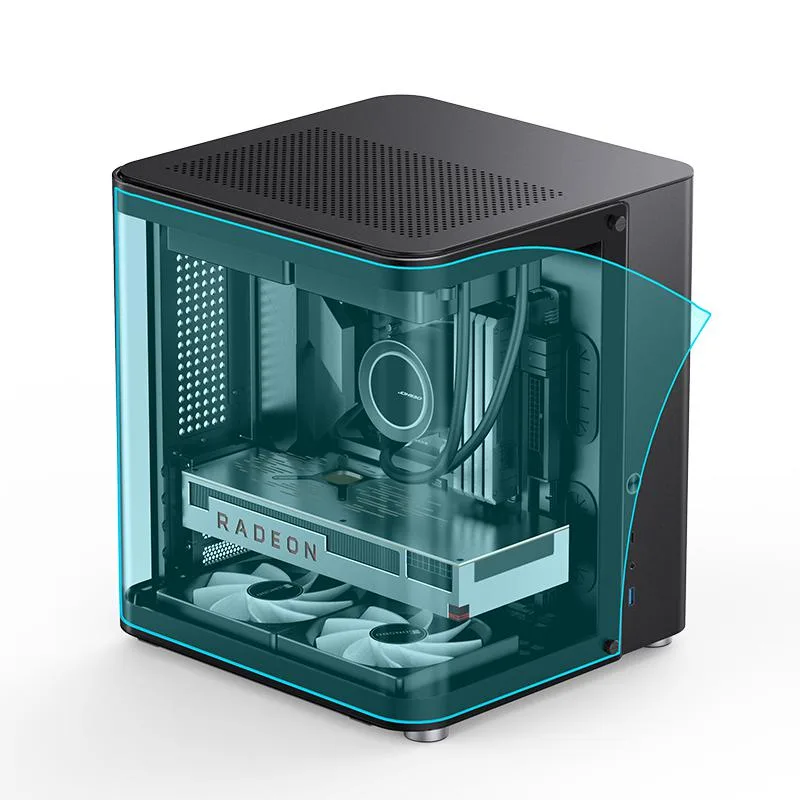

The JONSBO TK-1 Black V2.0 is a micro-ATX and mini-ITX tower built around a separated cabinet structure. Its aluminium alloy shell wraps two curved tempered glass panels that give a 2.5 surface perspective. The design keeps the power supply and drives isolated from the main component chamber for cleaner airflow paths.

Builders wanting a compact showcase with BTF support

This case suits builders who want a small-footprint desktop with vertical air ducting and support for BTF motherboards. It fits graphics cards up to 280 mm and CPU coolers up to 165 mm. Buyers who need more than one 3.5-inch drive bay or a radiator larger than 240 mm should look at a larger chassis.

Maximum graphics card length of 280 mm

The 280 mm GPU clearance is the single dimension that decides if your card will fit. Measure your graphics card before ordering; anything longer will not install. The front panel provides a USB 3.2 Gen 2 Type-C port at 10 Gbps plus a USB 3.0 port and combined audio jack.

Highlights

  • Compact Micro-ATX footprint fits tight desk spaces
  • Aluminium-alloy shell with 2.5 curved glass for multi-angle viewing
  • Vertical air duct supports 240 radiator and dual 120 fans
  • Front USB 3.2 Gen2 Type-C at 10 Gbps plus USB 3.0
  • Clears 280 GPU, 165 CPU cooler and 220 PSU lengths

Specifications

BrandJonsbo
TypeMicro ATX / Mini-ITX
ColorBlack
Case MaterialAluminum / Steel
With Power SupplyNo
Side Panelwith Side Window
Dust FiltersBottom
Internal 3.5" Drive Bays1
Internal 2.5" Drive Bays1
Expansion Slots4
Radiator OptionsFront - Up to 240mm
Side Air ductYes
Max GPU Length280 mm
Max CPU Cooler Height165 mm
Max PSU Length220 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How much heat can the front 240 mm radiator handle during long sessions?

The front supports a 240 mm radiator fed by two 120 mm fans, so sustained loads stay within that cooling envelope.

Which motherboard and power supply must I already have to build in this case?

You need a Micro-ATX or Mini-ITX board — version 2.0 adds BTF support — plus an ATX power supply no longer than 220 mm.

Will my existing 280 mm graphics card and 165 mm CPU cooler fit alongside the curved glass panels?

Yes, the case allows up to 280 mm GPU length and 165 mm cooler height, leaving clearance for the 2.5 curved glass side.
