White steel Micro ATX mesh case with tool-free panels

JONSBO

JONSBO C6 White Micro ATX Mesh PC Case

SKU CH-A47W-4NH41

Compact Micro-ATX mesh chassis with tool-free panels, room for a 255 mm GPU, 75 mm cooler and 185 mm PSU, plus one 3.5" and two 2.5" drive bays

  • TypeMicro ATX / Mini-ITX
  • ColorWhite
  • Case MaterialSteel
  • Motherboard CompatibilityMicro ATX / ITX
  • Dust FiltersBottom
  • Internal 3.5" Drive Bays1

Options C6 White

  • Micro ATX and Mini-ITX boards fit in a compact steel chassis
  • Mesh panels on all sides with three fan positions for airflow
  • Tool-free top cover and side panel open for quick access
  • One 3.5" or two 2.5" drive bays with front grille removal
  • Supports 220-255mm GPU, 75mm CPU cooler and 185mm PSU

Compact Micro ATX Mesh Chassis

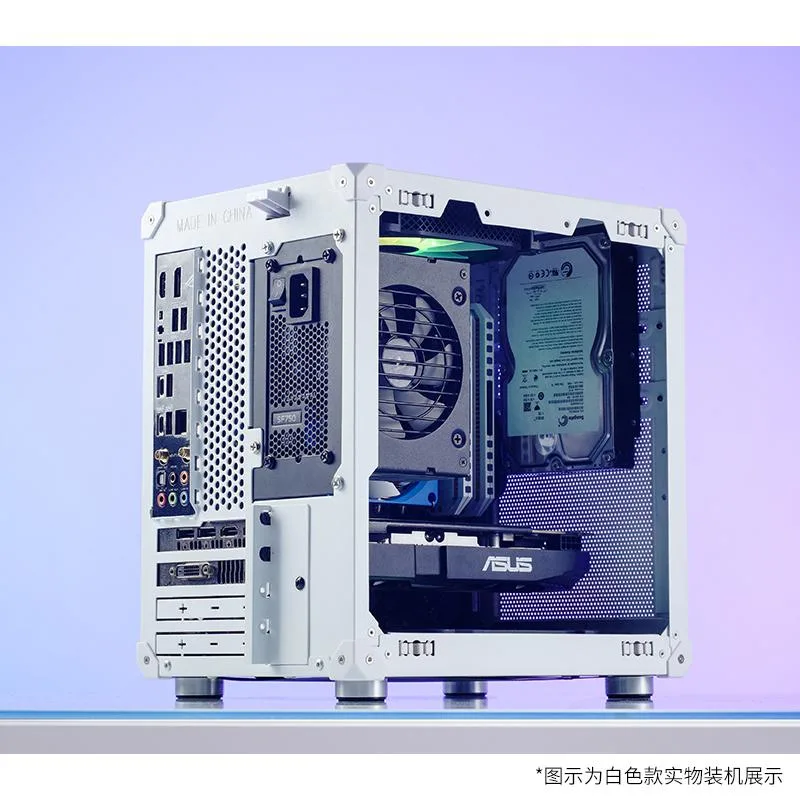

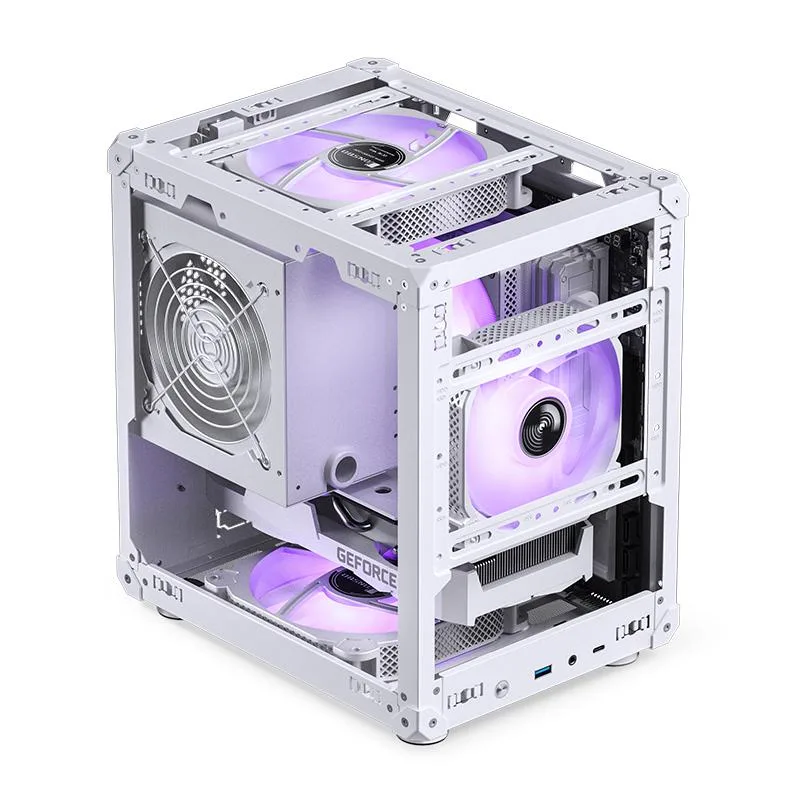

The JONSBO C6 is a white steel case built for Micro ATX and Mini-ITX motherboards. Its all-mesh panels expose three fan positions across the front, top and bottom for unrestricted airflow. Tool-free removal of the upper cover and side panel simplifies internal access. This chassis suits builders who want a small-footprint desktop with straightforward cooling.

Cooling and Power Limits

The case accepts one 120 mm or 140 mm fan at the bottom, one 120 mm fan at the front, and one 120 mm or 140 mm fan at the top. CPU coolers are restricted to a maximum height of 75 mm. Power supplies must not exceed 185 mm in length. Builders who need taller coolers or longer power supplies cannot use this enclosure.

Graphics Card Clearance

Graphics cards up to 255 mm in length will fit inside the chassis. Cards longer than this limit are not supported. The case provides one internal 3.5-inch bay and two 2.5-inch bays for storage. A bottom dust filter helps keep the interior clean.

Highlights

  • Micro ATX and Mini-ITX boards fit in a compact steel chassis
  • Mesh panels on all sides with three fan positions for airflow
  • Tool-free top cover and side panel open for quick access
  • One 3.5" or two 2.5" drive bays with front grille removal
  • Supports 220-255mm GPU, 75mm CPU cooler and 185mm PSU

Specifications

BrandJonsbo
TypeMicro ATX / Mini-ITX
ColorWhite
Case MaterialSteel
Motherboard CompatibilityMicro ATX / ITX
Dust FiltersBottom
Internal 3.5" Drive Bays1
Internal 2.5" Drive Bays2
Fan OptionsBottom - 1 x 120mm / Bottom - 1 x 140mm / Front - 1 x 120mm / Top - 1 x 120mm / Top - 1 x 140mm
Max GPU Length220-255mm
Max CPU Cooler Height75 mm
Max PSU Length185 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Should I pick the single 3.5 inch bay or the two 2.5 inch bays for storage?

The chassis fits one 3.5 inch hard drive or two 2.5 inch solid-state drives in the same internal space, so choose the 3.5 inch bay for higher capacity mechanical storage or the 2.5 inch bays for faster flash drives.

What does the 75 mm CPU cooler limit mean when I build the system?

Only low-profile coolers up to 75 mm tall will fit, so select a compact air cooler or an all-in-one liquid unit with a thin radiator and fan stack that stays within that height.

How does the 185 mm maximum power supply length affect my PSU choice?

Any ATX power supply 185 mm or shorter will install without interfering with the drive cage or front fan mounts, while longer units would block those areas.
