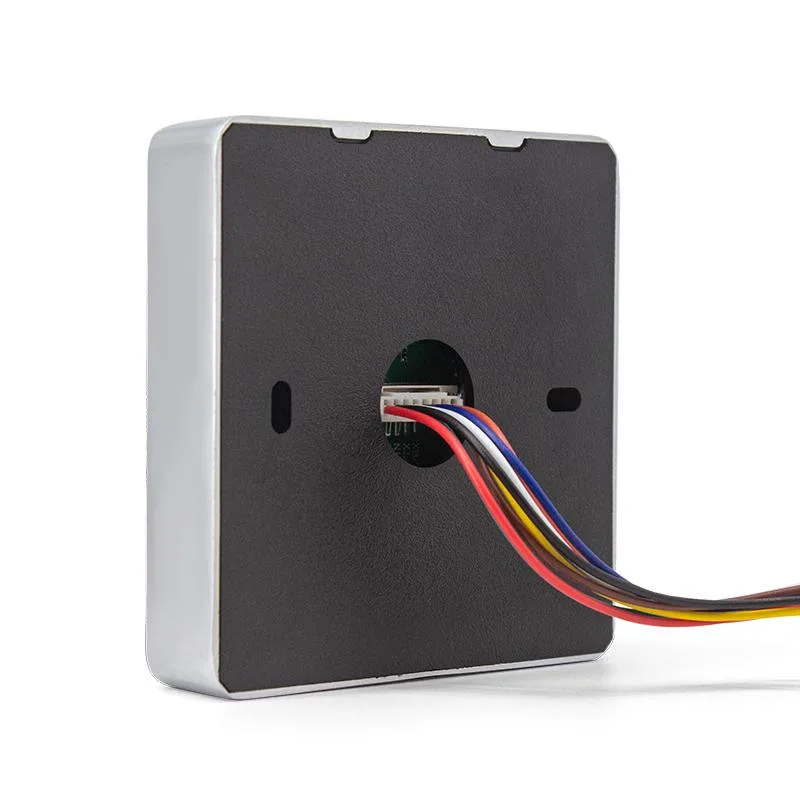

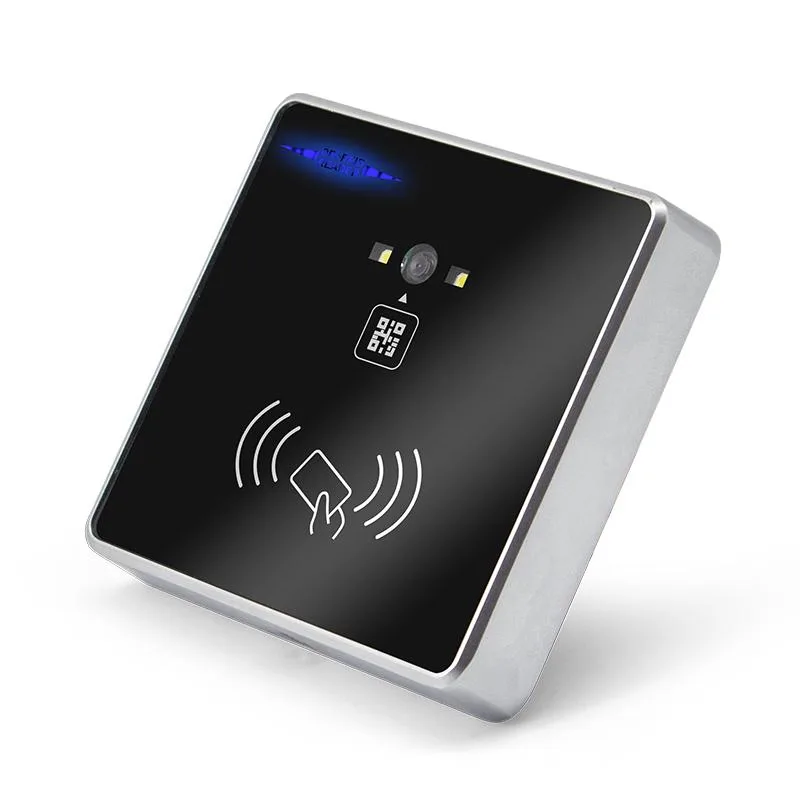

Black rectangular 86-box RFID and QR code reader with lens and speaker grille

Jedrek

Jedrek QR RFID Reader 12V Wiegand RS232 RS485 86 Box

SKU CH-SMZ8-9G310

12V QR and RFID reader fits 86-box, reads EM 125 kHz and ISO1443A 13.56 MHz cards, supports Wiegand RS232 RS485, 800 mA

  • TypeKeyless Entry System
  • ColorBlack
  • Fast scanning with auto-sensing and buzzer feedback
  • Reads EM cards at 125 kHz and MF cards at 13.56 MHz
  • Decodes QR and barcodes via image decoding at 45° angle
  • Connects through Wiegand, RS232 or RS485 interfaces
  • Fits standard 86 box and runs on 8-12V at 800mA

86-box QR RFID reader for access control

This Jedrek reader mounts in a standard 86 box and reads QR codes, EM cards at 125 kHz and ISO1443A MF cards at 13.56 MHz. It outputs data over Wiegand, RS232 or RS485 for connection to a separate controller. The unit suits office lobbies, scenic venues, community gates and smart-home entry points.

Check power and controller before ordering

The reader needs an 8–12 V supply capable of 800 mA and must be wired to an access-control controller to operate doors or gates. Verify that your controller accepts Wiegand, RS232 or RS485 signals. Card read range is 3–6 cm, so mounting height and user positioning matter.

Interfaces define system integration

Wiegand, RS232 and RS485 ports let the reader fit legacy panels, PC-based software or long-distance bus wiring without extra converters. Auto-sensing scan with a 45° read angle and audible buzzer speeds throughput at turnstiles and visitor kiosks. No standalone door control is included; the controller handles relay switching.

Highlights

  • Fast scanning with auto-sensing and buzzer feedback
  • Reads EM cards at 125 kHz and MF cards at 13.56 MHz
  • Decodes QR and barcodes via image decoding at 45° angle
  • Connects through Wiegand, RS232 or RS485 interfaces
  • Fits standard 86 box and runs on 8-12V at 800mA

Specifications

TypeKeyless Entry System
ColorBlack

Questions about this item

What comes in the box with the Jedrek 86 box reader and what must be purchased separately?

The reader itself is supplied; a controller, power supply and door-release hardware are not included and must be sourced separately.

Which interface version should I choose among Wiegand, RS232 and RS485?

Match the controller you are using: Wiegand for legacy panels, RS232 for short direct links, RS485 for longer multi-drop runs.

What does the 800 mA current draw mean for my 12 V supply?

Budget at least 1 A on the 12 V rail so the reader stays stable during continuous scanning.
