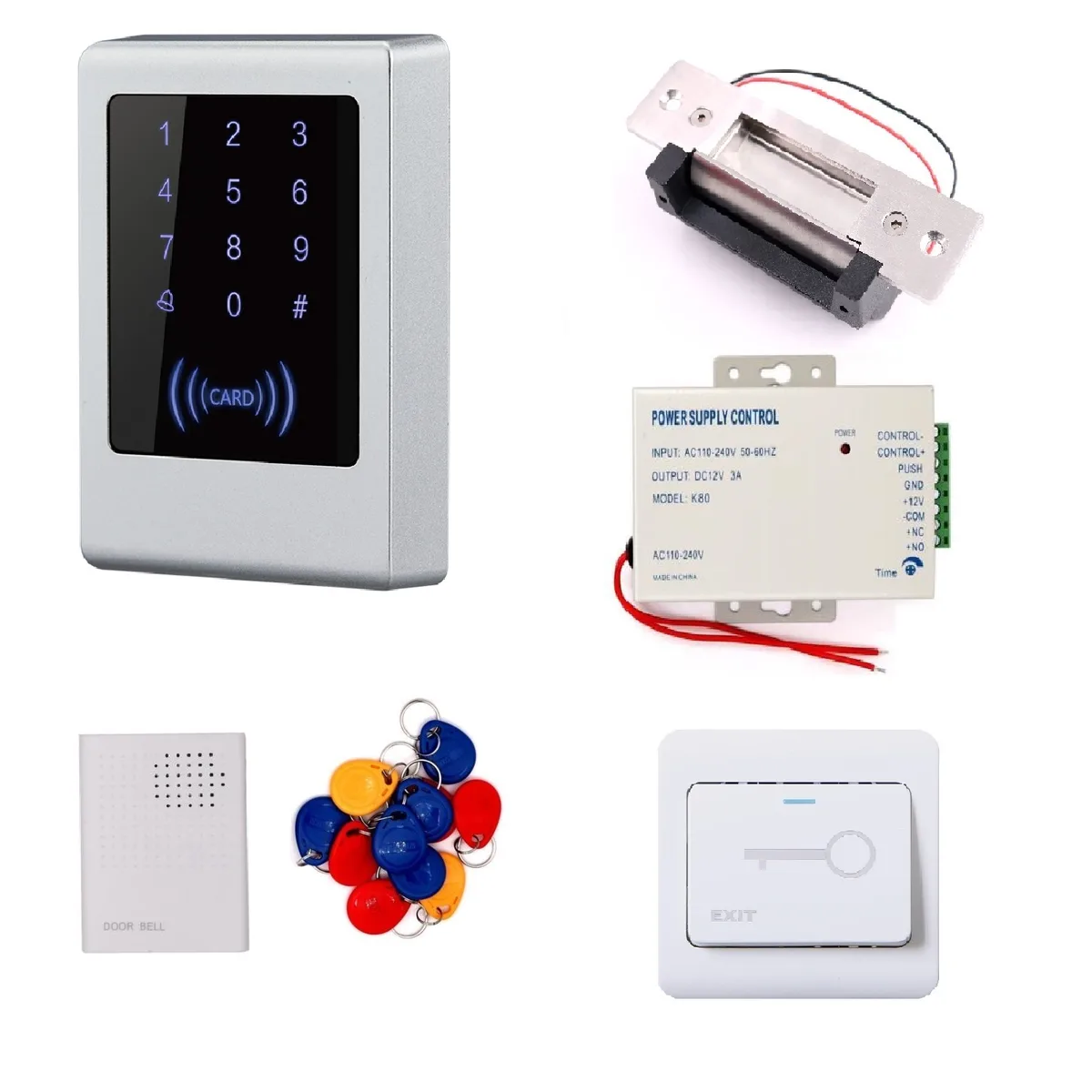

Jedrek electric strike lock kit with keypad and metal strike plate

Jedrek

Jedrek Electric Strike Lock Kit 500 Card Fail Secure/Safe 12V

SKU CH-WFNS-9Q8A3

An access-control kit with keypad and electric strike supporting 500 cards, 12 V operation and selectable fail-secure or fail-safe mode

  • TypeElectric Lock
  • Supports 500 card users for keyless entry
  • Three unlock modes: card, PIN or card plus PIN
  • Adjustable fail-secure and fail-safe operation
  • Weather-resistant keypad rated for outdoor mounting
  • Operates on 12 V DC with 0.5 A supply

Electric Strike Lock Kit 500 Card Capacity

The Jedrek Electric Strike Lock Kit provides keypad and RFID card access for up to 500 users. It operates on a 12 V DC supply with a working range of 9 V to 15 V. The kit includes a waterproof keypad for outdoor mounting and an electric strike that is not waterproof. It suits residential or small business doors needing simple standalone entry control.

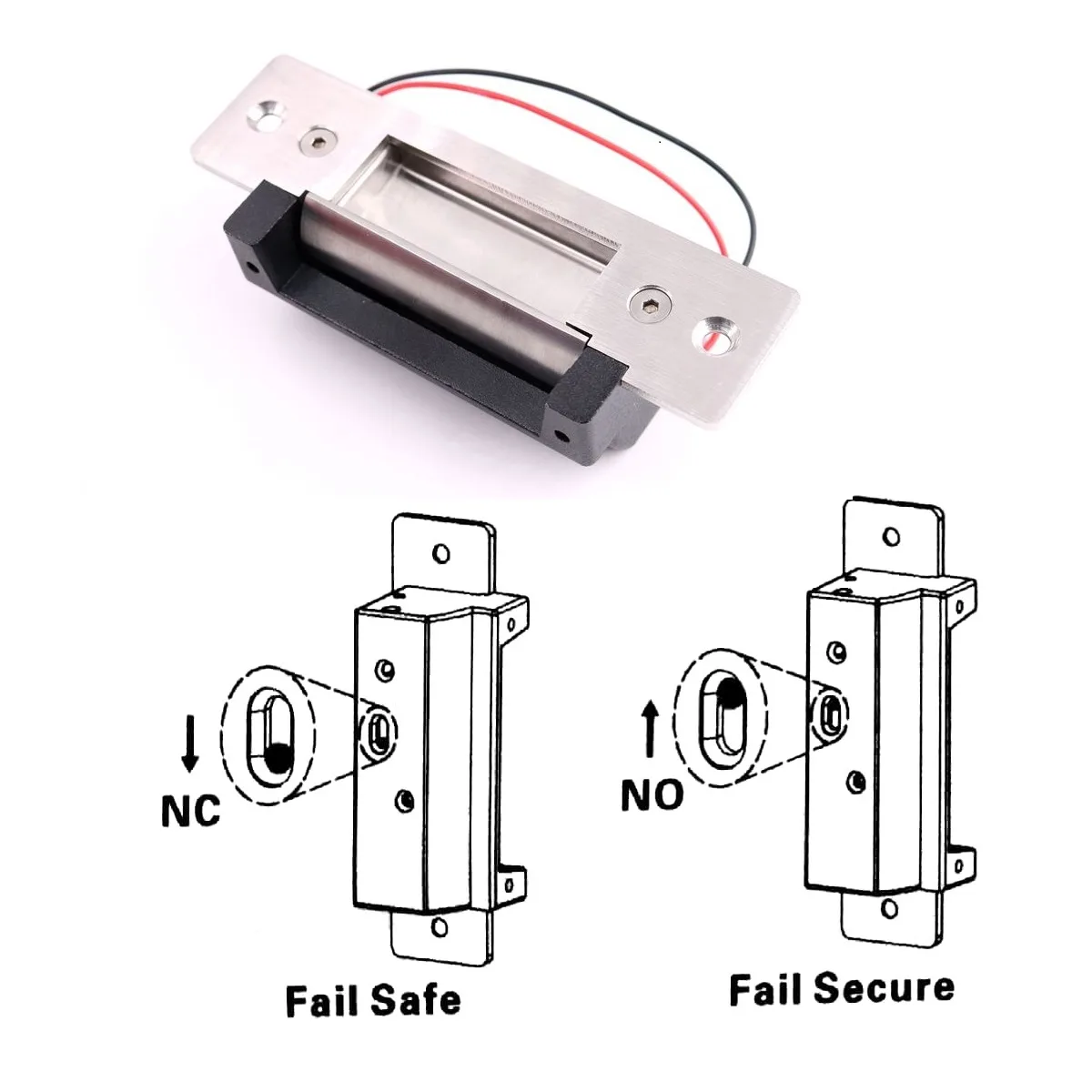

Fail Secure or Fail Safe Mode Adjustable

The electric strike supports both fail secure and fail safe operation selectable by changing a screw position. It draws 250 mA at 12 V and provides NO/NC contacts for the lock output. The controller unlocks at up to 1000 mA and offers an adjustable unlock delay from 0 to 10 seconds. This flexibility lets installers match the lock behavior to local fire and safety requirements.

Standalone Operation With Three Auth Modes

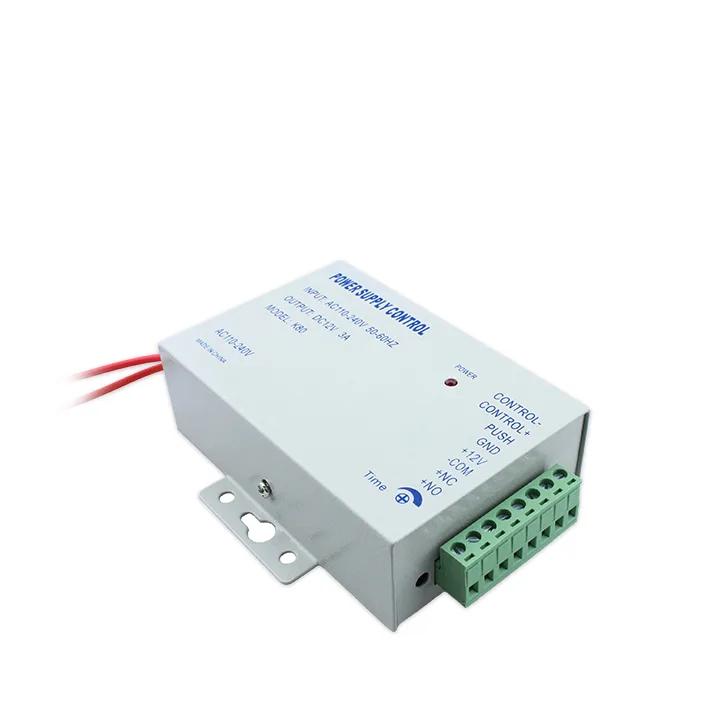

The controller works without a computer connection and stores no access logs. It accepts EM4100 cards at 125 kHz and allows entry by card only, PIN only, or card plus PIN. A built-in relay drives the strike directly from the 12 V 3 A supply output. The keypad is rated for outdoor use but must not be immersed in water.

Highlights

  • Supports 500 card users for keyless entry
  • Three unlock modes: card, PIN or card plus PIN
  • Adjustable fail-secure and fail-safe operation
  • Weather-resistant keypad rated for outdoor mounting
  • Operates on 12 V DC with 0.5 A supply

Specifications

TypeElectric Lock

Questions about this item

How many cards can the keypad store for entry?

The keypad supports up to 500 cards using 125KHz EM4100 frequency for access control.

What voltage range does the system accept and what current does the strike draw?

The kit operates on DC 9V to 15V with a standard 12V supply; the electric strike draws 250mA working current.

What are the physical dimensions of the keypad unit for mounting?

The keypad measures 215mm by 170mm by 75mm and is designed for surface mounting with the strike installed in the door frame.
