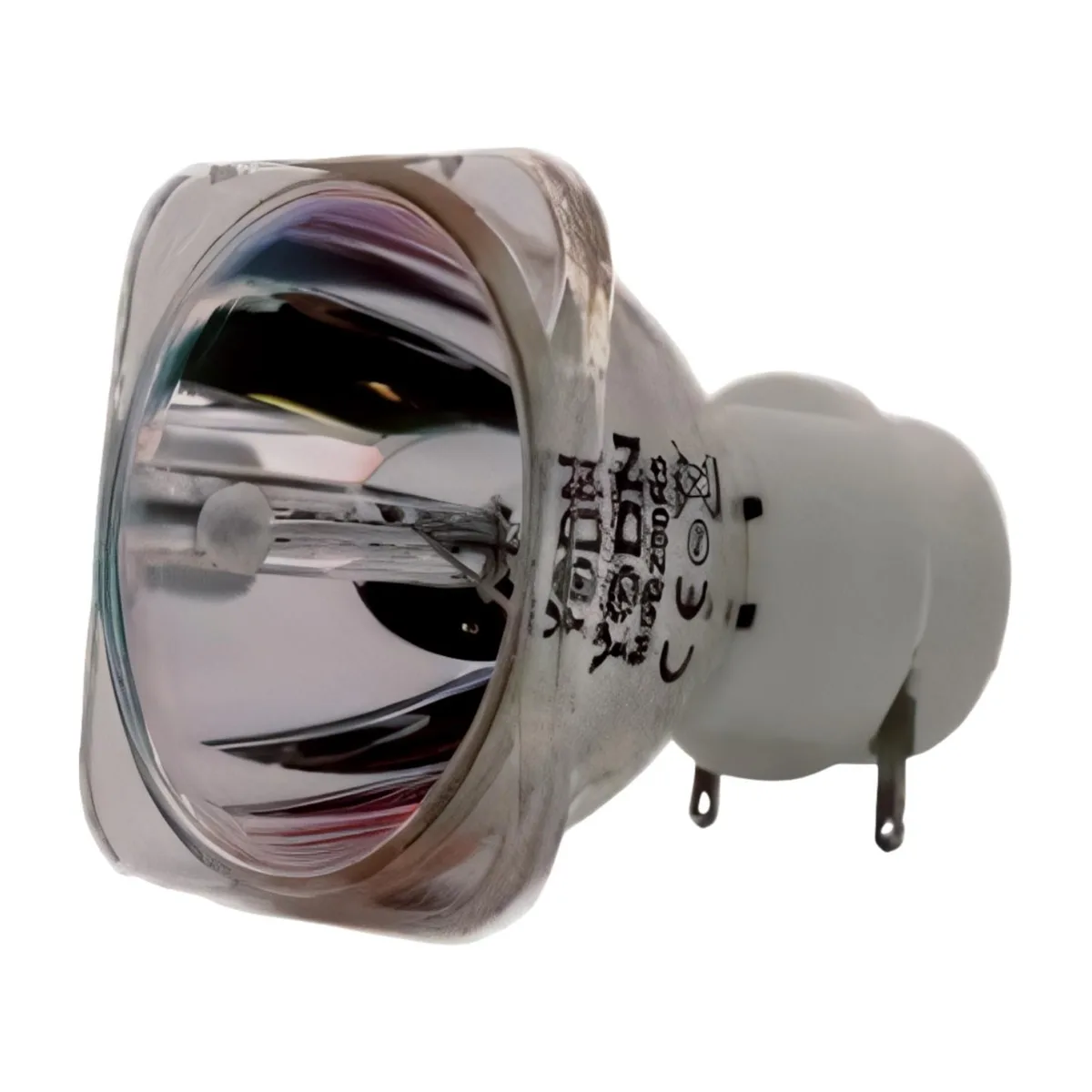

Compact bare discharge lamp with metal base and arc tube 51 by 51 by 61 mm

Jaspertronics

Jaspertronics DTS Jack-LAMP 200W DLP Replacement Lamp

SKU CH-PQSN-5CE5T

A 200 W discharge lamp with a 1.1 mm arc gap, 7 200 lm output and 8 000 K colour temperature for DTS Jack moving-head fixtures

  • TypeProject Lamp
  • Weight0.2000
  • High-intensity 200 W output with 7 200 lm for bright stage projection
  • Compact 51 x 51 x 61 mm arc lamp fits DTS Jack fixtures easily
  • 8 000 K colour temperature delivers crisp white light for venues
  • Any burning position allows flexible mounting in moving-head units
  • 3 000-hour rated life reduces replacement frequency in clubs and theaters

Product identity

The Jaspertronics DTS Jack-LAMP is a 200W discharge lamp built for the DTS Jack moving-head fixture. It suits venues such as houses of worship, clubs, concerts and theatres that need a compact, high-intensity beam source. The 8 000 K colour temperature and 7 200 lumen output deliver a crisp white beam for professional stage lighting.

Installation notes

The bare bulb weighs 0.2 kg and measures 51 x 51 x 61 mm with a 34.5 mm working distance, so it fits the fixture’s lamp cavity without adapters. Its 1.1 mm arc gap and any burning position simplify alignment, but the high voltage strike at 75 V requires the fixture’s ignitor to be in good condition to avoid misfires.

Sustained operation

Average life is rated at 3 000 hours at the full 200 W load, and the CRI of 70 remains stable throughout that period. The compact envelope maintains optical focus during long runs, though the fixture’s cooling must handle the continuous heat load to prevent premature arc degradation.

Highlights

  • High-intensity 200 W output with 7 200 lm for bright stage projection
  • Compact 51 x 51 x 61 mm arc lamp fits DTS Jack fixtures easily
  • 8 000 K colour temperature delivers crisp white light for venues
  • Any burning position allows flexible mounting in moving-head units
  • 3 000-hour rated life reduces replacement frequency in clubs and theaters

Specifications

BrandJaspertronics
ModelDTS Jack-LAMP
Part NumberDTS Jack-LAMP
TypeProject Lamp
Weight0.2000

Questions about this item

How do I confirm the lamp is operating correctly after installation?

The lamp should ignite and reach its full 7,200 lumen output with a stable arc at the specified 1.1 mm gap. Verify the fixture reports normal voltage near 75 V and that the 8,000 K colour temperature appears consistent across the beam.

What components are included and what must be sourced separately?

The package contains the bare YODN 200 W MSD200R5/MSD200S5 discharge lamp only; no housing, reflector or cables are supplied. You must reuse or purchase a compatible lamp housing and any required connectors for the DTS Jack fixture.

Which lamp code should I select for my DTS Jack fixture?

Choose the MSD200R5 or MSD200S5 product code; both are 200 W, 5R short-arc lamps rated for 3,000 hours average life and designed for the DTS Jack moving-head fixture.
