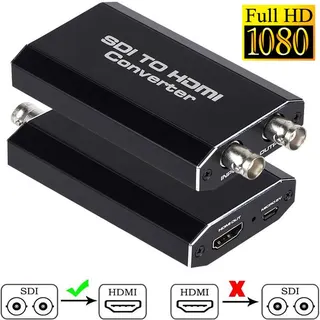

Compact black aluminium box with SDI in, SDI loop out and HDMI out

Jansicotek

Jansicotek SDI to HDMI Converter with Loop Out (OZH5-1)

SKU CH-DC4Q-NDSYZ

Converts 3G/HD/SD-SDI video up to 1080p60 to HDMI while looping the original SDI signal to a second display

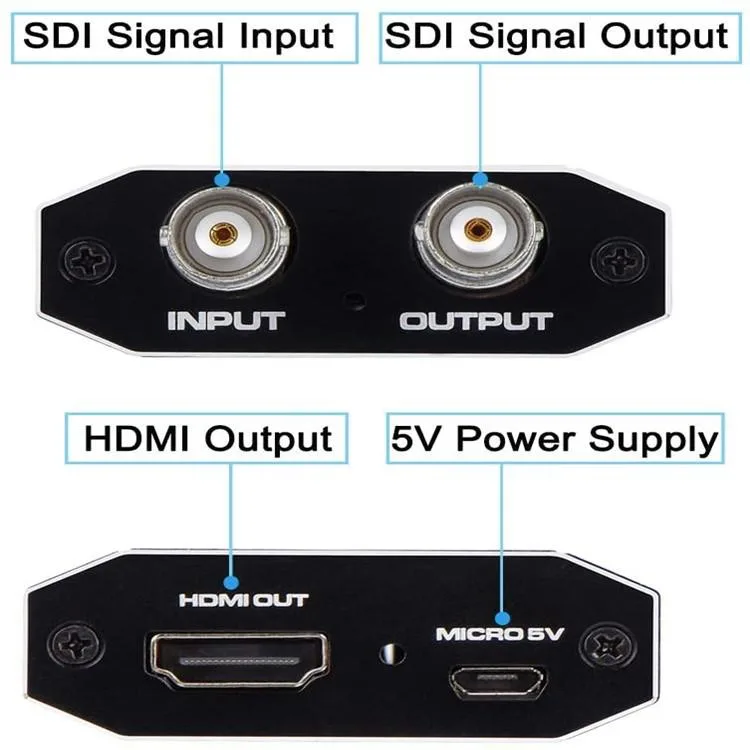

  • TypeSDI to HDMI Converter
  • Connector A1 x SDI input
  • Connector B1 x SDI output, 1 x HDMI output
  • Package ContentsSDI to HDMI Converter * 1 USB Charge Cable * 1 Power Adapter
  • Converts SDI to HDMI for standard displays
  • SDI loop-out keeps original signal on local monitor
  • Auto-detects SD-SDI, HD-SDI and 3G-SDI formats
  • Aluminium alloy body measures 90x55x20mm and weighs 165g
  • Powered by included 5V DC adapter drawing 1A

SDI to HDMI Converter with Loop Output

This Jansicotek converter changes an SDI signal into HDMI while keeping a loop-through SDI output for a local monitor. It accepts SD-SDI, HD-SDI and 3G-SDI inputs up to 1080p/60Hz and delivers the same resolution on the HDMI port. The unit is powered by an included 5V/1A adapter and housed in a black aluminium alloy case measuring 90x55x20mm.

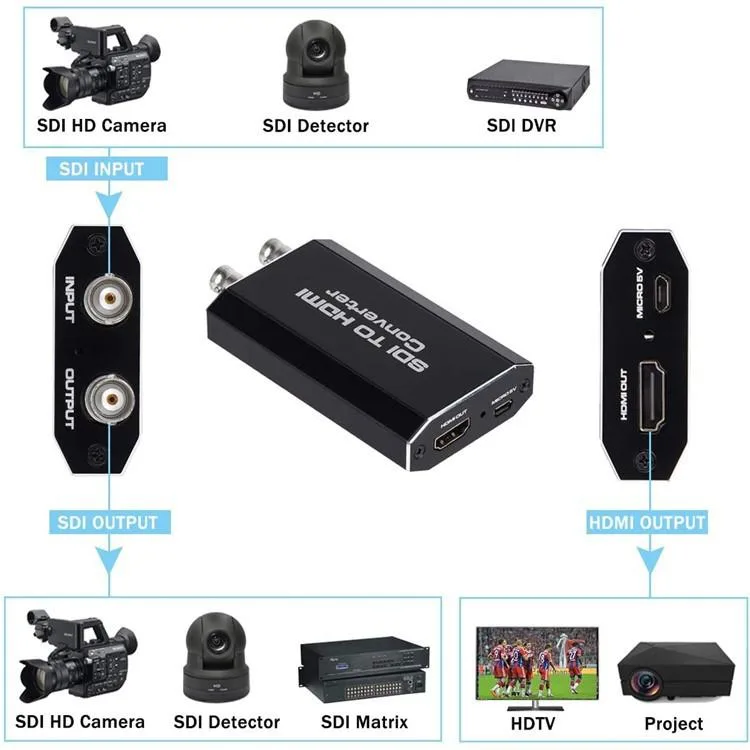

For live production and monitoring workflows

Camera operators and broadcast engineers who need to view an SDI feed on an HDMI screen while simultaneously feeding a second SDI monitor will find this device suitable. It also serves home-theatre enthusiasts converting legacy SDI sources. Users requiring 4K resolution, HDR pass-through or multi-channel audio extraction should look elsewhere.

Maximum supported resolution is 1080p at 60Hz

Both the SDI input and the HDMI output are limited to 1080p/60Hz, so the converter cannot handle 4K, 1440p or higher frame-rate signals. If your source or display demands a resolution above 1080p, this model will not meet the requirement.

Highlights

  • Converts SDI to HDMI for standard displays
  • SDI loop-out keeps original signal on local monitor
  • Auto-detects SD-SDI, HD-SDI and 3G-SDI formats
  • Aluminium alloy body measures 90x55x20mm and weighs 165g
  • Powered by included 5V DC adapter drawing 1A

Specifications

TypeSDI to HDMI Converter
Connector A1 x SDI input
Connector B1 x SDI output, 1 x HDMI output
Package ContentsSDI to HDMI Converter * 1
USB Charge Cable * 1
Power Adapter * 1
User Manual * 1

Questions about this item

What SDI cable do I need to connect my camera to the converter's SDI input?

Use a standard SDI coaxial cable with BNC connectors rated for 3G-SDI (2.970 Gbps) to match the converter's input capability.

Will the SDI loop output pass the signal to my older SD-SDI monitor without conversion?

Yes, the loop output re-clocks and forwards the incoming SD-SDI, HD-SDI or 3G-SDI signal unchanged to the local display.

How can I confirm the converter is outputting a valid 1080p 60 Hz signal to my HDMI display?

Check the display's info menu for 1080p at 60 Hz and verify both video and de-embedded audio are present.
