Black aluminium SDI to HDMI converter with loop-out, 90x55x20mm

Jansicotek

Jansicotek SDI to HDMI Converter 1080p 60Hz Loopout

SKU CH-3AN0-MF773

Converts SDI video up to 1080p at 60Hz to HDMI with a loop-out SDI port for simultaneous monitoring

  • TypeSDI to HDMI Converter

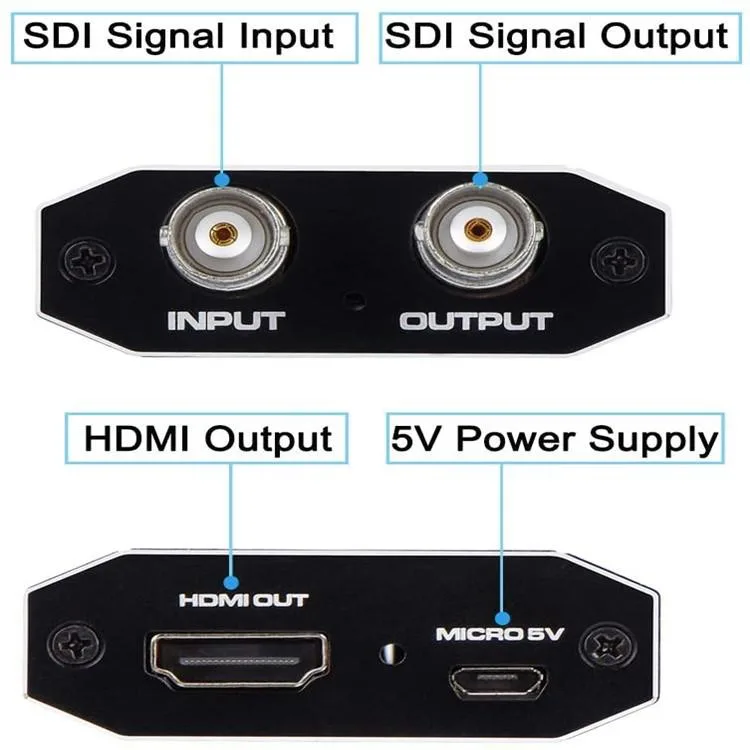

  • Connector A1 x SDI input
  • Connector B1 x SDI output, 1 x HDMI output
  • Package ContentsSDI to HDMI Converter * 1 USB Charge Cable * 1 Power Adapter
  • Converts SDI to HDMI at 1080p 60Hz for modern displays
  • Loop-through SDI output keeps original signal on second monitor
  • Auto-detects SD, HD and 3G-SDI formats up to 2.970 Gbps
  • De-embeds stereo audio to HDMI for single-cable sound
  • Aluminium alloy body 90x55x20mm weighs 165g for portable rigs

SDI to HDMI Conversion for Professional Video

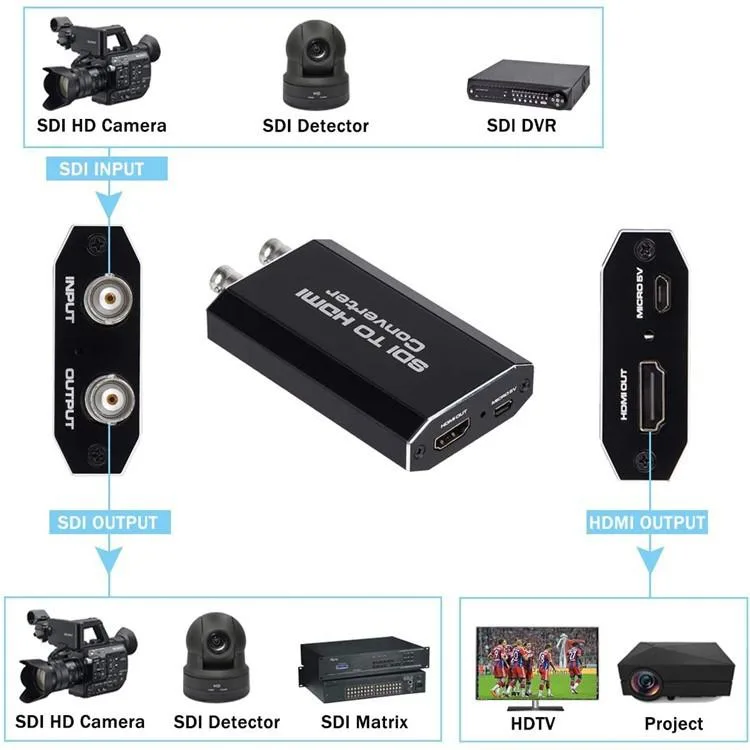

This Jansicotek converter translates SD-SDI, HD-SDI and 3G-SDI signals to an HDMI output while providing an SDI loop-through output for simultaneous monitoring. It accepts input resolutions up to 1080p at 60 Hz and delivers the same resolution on the HDMI port. The aluminium alloy enclosure measures 90 x 55 x 20 mm and weighs 165 g, and the unit ships with a 5 V DC power supply and user manual.

Bit-Rate Ceiling and Resolution Limit

The converter handles SDI bit rates up to 2.970 Gbps, which corresponds to the maximum throughput of 3G-SDI and restricts the output to 1080p at 60 Hz. Signals above this bit rate or resolutions beyond 1080p are not supported, so 4K or higher frame-rate workflows cannot be accommodated. The HDMI output mirrors the input format without up-scaling or frame-rate conversion.

Auto-Detection and Stereo Audio De-embedding

Automatic format detection identifies the incoming SDI standard and configures the output accordingly, while the built-in de-embedder extracts stereo audio for delivery over HDMI. This makes the device suitable for camera feeds, broadcast monitoring and home-theatre integration where embedded SDI audio must be heard on an HDMI display. Buyers needing multi-channel audio extraction or 4K signal conversion should look elsewhere.

Highlights

  • Converts SDI to HDMI at 1080p 60Hz for modern displays
  • Loop-through SDI output keeps original signal on second monitor
  • Auto-detects SD, HD and 3G-SDI formats up to 2.970 Gbps
  • De-embeds stereo audio to HDMI for single-cable sound
  • Aluminium alloy body 90x55x20mm weighs 165g for portable rigs

Specifications

TypeSDI to HDMI Converter
Connector A1 x SDI input
Connector B1 x SDI output, 1 x HDMI output
Package ContentsSDI to HDMI Converter * 1
USB Charge Cable * 1
Power Adapter * 1
User Manual * 1

Questions about this item

Should I choose a converter with loop-out or a simpler one without?

The loop-out lets you keep the SDI signal going to an SDI monitor while also sending HDMI to a display.

What does 1080p at 60Hz mean when I connect a camera and a monitor?

It means the converter passes full HD video at up to 60 frames per second with no scaling or frame-rate conversion.

Which SDI standards does the 3G-SDI input actually support in practice?

It handles SD-SDI, HD-SDI and 3G-SDI signals up to a 2.970 Gbps bit rate, auto-detecting the format.
