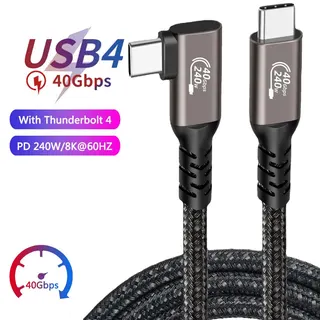

Black USB-C to USB-C cable with 90-degree right-angle connectors, 5ft length

Jansicotek

Jansicotek PQ005 90° USB4 cable 40Gbps 240W 8K@60Hz 5ft

SKU CH-PQZZ-XRS4X

A 5 ft right-angle USB-C to USB-C cable delivers 40 Gbps data, 240 W charging and single 8K@60 Hz video for Thunderbolt devices

  • TypeUSB4
  • Connector TypeUSB C to USB C
  • ColorBlack
  • Thunderbolt 3Yes
  • Terminal GenderMale to Male
  • Apple CompatibleUSB-C port

Cable Length 5 Feet

  • Charges up to 240W with PD 3.1 EPR
  • Transfers data at 40Gbps USB4 Gen 3x2
  • Drives single 8K@60Hz or dual 4K@60Hz displays
  • 90° right-angle connector fits tight spaces and reduces strain
  • Works with Thunderbolt 3/4 and USB-C devices

USB4 cable with 90-degree connector

The Jansicotek PQ005 is a USB4 Gen 3x2 cable with USB-C male connectors on both ends. It supports Thunderbolt 3 and 4 hosts and is compatible with Apple USB-C devices. The right-angle plug reduces strain in tight ports on notebooks, phones, SSD enclosures and desktop docks.

Sustained 40 Gbps bandwidth and 240 W delivery

The cable is rated for 40 Gbps data transfer, enabling a theoretical 3000 Mbps/s throughput when both ends support the full Gen 3x2 link. Power Delivery 3.1 EPR allows up to 240 W at 48 V and 5 A, so charging rate remains at the device maximum during long sessions. Video bandwidth carries a single 8K signal at 60 Hz or dual 4K at 60 Hz without dropping frames.

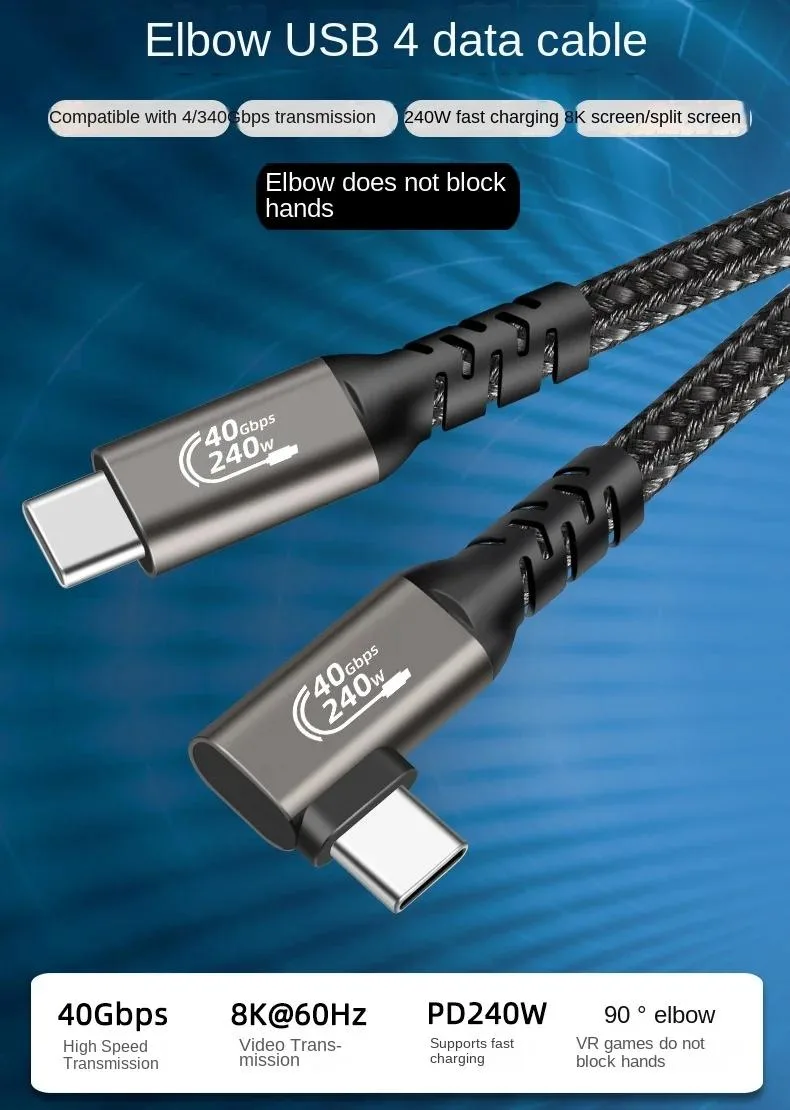

Reinforced right-angle build for daily routing

The 90-degree L-shaped connector protects the port and cable joint from bending fatigue when the device sits against a wall or in a cramped bag. Bi-directional, reversible plugs mean either end can face the host or peripheral. PD 3.1, PD 3.0 PPS, PD 2.0, QC 4.0, AFC, SCP and FCP protocols are all supported for broad charger compatibility.

Highlights

  • Charges up to 240W with PD 3.1 EPR
  • Transfers data at 40Gbps USB4 Gen 3x2
  • Drives single 8K@60Hz or dual 4K@60Hz displays
  • 90° right-angle connector fits tight spaces and reduces strain
  • Works with Thunderbolt 3/4 and USB-C devices

Specifications

BrandJansicotek
ModelPQ005
TypeUSB4
Connector TypeUSB C to USB C
ColorBlack
Thunderbolt 3Yes
Terminal GenderMale to Male
Apple CompatibleUSB-C port
Specifications240W USB4 Cable
USB Standard: The Latest USB4 Gen 3x2
Connector Gender & Type: USB C Male to USB C Male, Bi-directional & Reversible.
Power Delivery: PD 3.1/PD 3.0 PPS/PD2.0, QC4.0/3.0, and AFC, SCP, FCP, etc.
Extended Power Range: Fully Supported, Backwards compatible with lower power requirements like 180W/140W/100W/60W and below.
Supported Maximum Wattage: 240W, Compatible with Apple 140W USB-C EPR Charger to power MacBook Pro 16'' with a full load of 140W (Requires a 240W EPR PD 3.1 charger and device to load 240W).
Supported Maximum Voltage: 48V, Voltage rating according to PD 3
Refresh Rate8K@60Hz
Features240W, Leading Fast Charging Tech: When our USB C to USB C cable paired with a compatible charger, it reaches the maximum power supported by the device, supporting up to 240W (48V/5A) power supply. Within the next 5 to 10 years, this USBC to USBC fast charging cable can completely meet the demands of fast charging, and could charge virtually any USB-C device from phones and accessories to gaming laptops.
Support 8K UHD Display: Support ultra HD video resolution, 40Gbps bandwidth allows single 8K@60Hz outputs or dual 4K@60Hz video, 40Gbps speed cables are suitable for eGPU and dual 4K

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does the 90° USB4 cable get warm when delivering 240W continuously all day?

The cable supports up to 240W (48V/5A) PD 3.1 power delivery; heat will depend on the charger and device limits, but the right-angle design reduces strain during extended use.

What must my charger and device support to reach 240W with this cable?

Both the charger and the connected device need USB PD 3.1 EPR capability at 48V/5A; the cable handles up to 240W but cannot exceed the limits of either end.

Will the 40Gbps bandwidth work with my Thunderbolt 3 dock and older USB-C laptop?

The cable is Thunderbolt 3 and 4 compatible and bi-directional; actual speed will be limited to the lowest common standard of the host, dock and cable.
