Black rectangular box with HDMI ports and audio connectors on front and back

Jansicotek

Jansicotek OZV8E HDMI eARC Audio Extractor 18Gbps 4K 60Hz

SKU CH-NBY8-186VT

Extracts HDMI audio to 3.5 mm jack, optical, coaxial and HDMI audio ports while passing 4K 60 Hz video

  • TypeHDMI Splitters
  • Ports4
  • AudioYes
  • ColorBlack
  • SpecificationsPower Supply: DC 5v/ 1000mA. HDMI Audio Only Port：PCM 2.0, L
  • Input Connector1 HDMI input
  • Extracts eARC audio to soundbars via HDMI ARC
  • 4K 60 Hz video passes through at 18 Gbps bandwidth
  • Four output paths: HDMI audio, optical, coaxial, 3.5 mm jack
  • Toggle selects TV, 2.0, 5.1 or 7.1 channel output
  • Supports Dolby Atmos, TrueHD, DTS:X and other high-definition formats

HDMI eARC Audio Extractor 18Gbps

The Jansicotek OZV8E extracts audio from a single HDMI 2.0 source at up to 18Gbps and 4K 60Hz. It provides four simultaneous audio outputs: HDMI audio-only, optical Toslink, coaxial and a 3.5mm jack. A four-position toggle selects TV, 2.0, 5.1 or 7.1 channel output.

Suits systems with legacy amplifiers

Ideal for owners of AV receivers or soundbars that lack HDMI 2.0 or eARC inputs but accept optical, coaxial or analogue stereo. Not suited for users who need HDMI switching between multiple sources, or for installations that require HDMI 2.1 bandwidth above 18Gbps.

Check source and display capabilities

Verify your source device can output PCM or bitstream formats the extractor supports, and that your amplifier accepts the chosen digital or analogue input. The unit requires the included DC 5V 1000mA power supply; confirm a nearby mains socket is available.

Highlights

  • Extracts eARC audio to soundbars via HDMI ARC
  • 4K 60 Hz video passes through at 18 Gbps bandwidth
  • Four output paths: HDMI audio, optical, coaxial, 3.5 mm jack
  • Toggle selects TV, 2.0, 5.1 or 7.1 channel output
  • Supports Dolby Atmos, TrueHD, DTS:X and other high-definition formats

Specifications

BrandJansicotek
SeriesOZV8E
ModelOZV8E
Part NumberOZV8E
TypeHDMI Splitters
Ports4
AudioYes
ColorBlack
SpecificationsPower Supply: DC 5v/ 1000mA.
HDMI Audio Only Port：PCM 2.0, LPCM 5.1/ 7.1, Dolby Digital, Dolby Digital plus, Dolby True HD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X.
Toslink SPDIF: LPCM 2.0/ 5.1,Dolby Digital 2.0/ 5.1, DTS 2.0/ 5.1.
Coaxial Output: LPCM 2.0/ 5.1,Dolby Digital 2.0/ 5.1, DTS 2.0/ 5.1.
3.5mm Audio Jack：Analog stereo 2.0ch.
Color Depth: 8-bit, 10 bit, 12 bit (1080p@60Hz);8-bit (4K x 2k@60Hz RGB 8:8:8/ YUV 4:4:4);8-bit, 10-bit, 12-bit (4K x 2K@60Hz YCbCr 4:2:2 /4:2:0).
Input Connector1 HDMI input

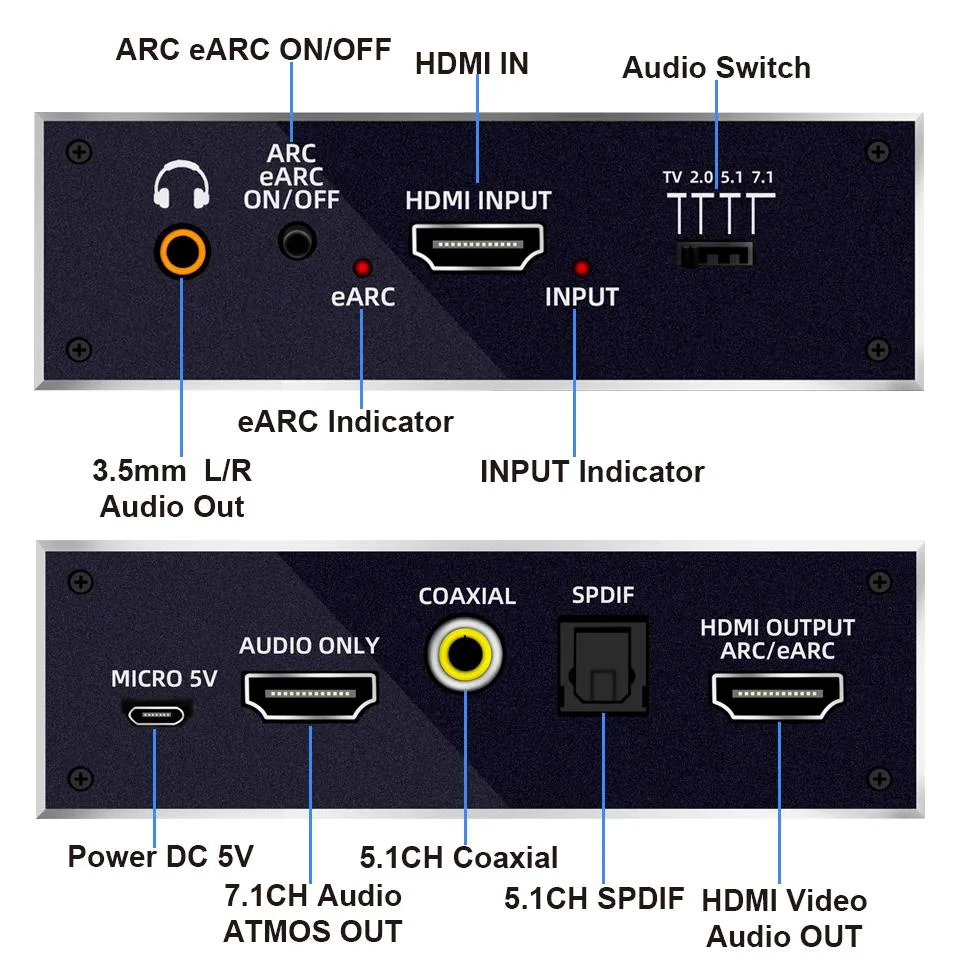

Output Connector3.5mm Audio Jack, Toslink SPDIF, Coaxial, HDMI Audio Port
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
FeaturesSupport 4K x 2K@60Hz, Support 3D.
4 speed toggle switch to switch TV/ 2.0/ 5.1/ 7.1 audio format.
HDMI Audio Formats:PCM 2.0, LPCM 5.1/ 7.1, Dolby Digital, Dolby Digital plus, Dolby True HD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X.

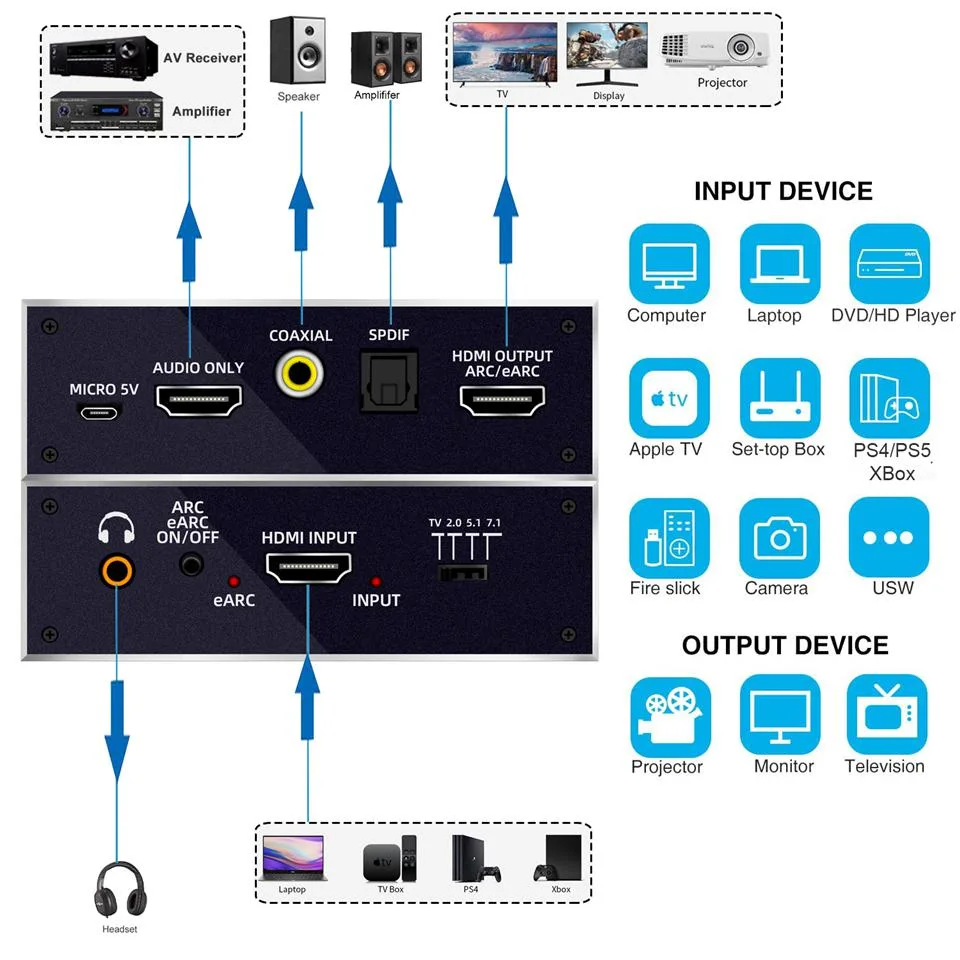

HDMI video/ audio output: monitor, TV, projector. HDMI Audio/ SPDIF/ 3.5mm/ Coaxial Audio Output: Receivers, amplifiers, speakers, headphones and other audio devices.
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1 x 18Gbps HDMI eARC Extractor
1 x Power Adapter
1 x User Manual

Questions about this item

Does my TV need an HDMI ARC port to use the eARC extraction feature?

Yes, connect your TV HDMI ARC/eARC port to the extractor HDMI output port with an HDMI cable to extract audio from the TV to a soundbar or amplifier.

Will my older AV receiver that only accepts PCM 2.0 work with the 7.1 channel HDMI audio output?

Set the 4-speed toggle switch to 2.0 or PCM on the extractor and set your source device to output PCM/LPCM; the HDMI audio port will then send a compatible stereo signal.

How can I confirm the extractor is passing 4K 60 Hz HDR video to my display after setup?

Check your display information menu for 3840 x 2160 at 60 Hz with HDR active; the extractor supports 18 Gbps bandwidth and 10-bit HDR pass-through.
