Small black box with HDMI ports and audio jacks on front and back, matte finish, compact rectangular shape

Jansicotek

Jansicotek OZV8E 4K 60Hz HDMI eARC Audio Extractor Splitter

SKU CH-XV1P-6XJB8

Extracts audio from a 4K 60 Hz HDMI source to optical, coaxial, 3.5 mm and HDMI audio outputs with a four-position format switch

  • TypeHDMI Splitters
  • Ports4
  • AudioYes
  • ColorBlack
  • SpecificationsPower Supply: DC 5v/ 1000mA. HDMI Audio Only Port：PCM 2.0, L
  • Input Connector1 HDMI input
  • Extracts audio to soundbars via four outputs
  • 4K 60 Hz video passes through at 18 Gbps
  • Toggle selects TV stereo or 5.1 and 7.1 formats
  • HDMI eARC pulls TV app sound to external speakers
  • Compact 5.59 x 3.15 x 1.26 in unit powered by 5 V 1000 mA adapter

What it does and who needs it

The Jansicotek OZV8E extracts audio from a single HDMI source and routes it to 3.5 mm jack, Toslink, coaxial or a dedicated HDMI audio port while passing 4K video at 60 Hz to a display. It suits anyone connecting a console, Blu-ray player or streaming box to a soundbar or amplifier that lacks HDMI inputs.

HDMI 2.0 bandwidth and format limits

The 18 Gbps link caps video at 3840 x 2160 at 60 Hz with HDR10+ and Dolby Vision pass-through; it cannot carry higher refresh rates or 8K signals. The extractor outputs LPCM up to 7.1 channels, Dolby TrueHD, Atmos and DTS:X bitstreams but does not decode them, so the downstream device must support each format natively.

Check your source and amplifier first

Verify the player or console can send PCM or bitstream audio over HDMI and set it to PCM/LPCM if the amplifier cannot handle Dolby TrueHD, Atmos or DTS-HD. Ensure the soundbar or receiver accepts LPCM 5.1/7.1 or the listed bitstream formats on its Toslink, coaxial or 3.5 mm input, and confirm the TV ARC/eARC port is connected to the extractor’s HDMI output for return audio.

Highlights

  • Extracts audio to soundbars via four outputs
  • 4K 60 Hz video passes through at 18 Gbps
  • Toggle selects TV stereo or 5.1 and 7.1 formats
  • HDMI eARC pulls TV app sound to external speakers
  • Compact 5.59 x 3.15 x 1.26 in unit powered by 5 V 1000 mA adapter

Specifications

BrandJansicotek
SeriesOZV8E
ModelOZV8E
Part NumberOZV8E
TypeHDMI Splitters
Ports4
AudioYes
ColorBlack
SpecificationsPower Supply: DC 5v/ 1000mA.
HDMI Audio Only Port：PCM 2.0, LPCM 5.1/ 7.1, Dolby Digital, Dolby Digital plus, Dolby True HD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X.
Toslink SPDIF: LPCM 2.0/ 5.1,Dolby Digital 2.0/ 5.1, DTS 2.0/ 5.1.
Coaxial Output: LPCM 2.0/ 5.1,Dolby Digital 2.0/ 5.1, DTS 2.0/ 5.1.
3.5mm Audio Jack：Analog stereo 2.0ch.
Color Depth: 8-bit, 10 bit, 12 bit (1080p@60Hz);8-bit (4K x 2k@60Hz RGB 8:8:8/ YUV 4:4:4);8-bit, 10-bit, 12-bit (4K x 2K@60Hz YCbCr 4:2:2 /4:2:0).
Input Connector1 HDMI input

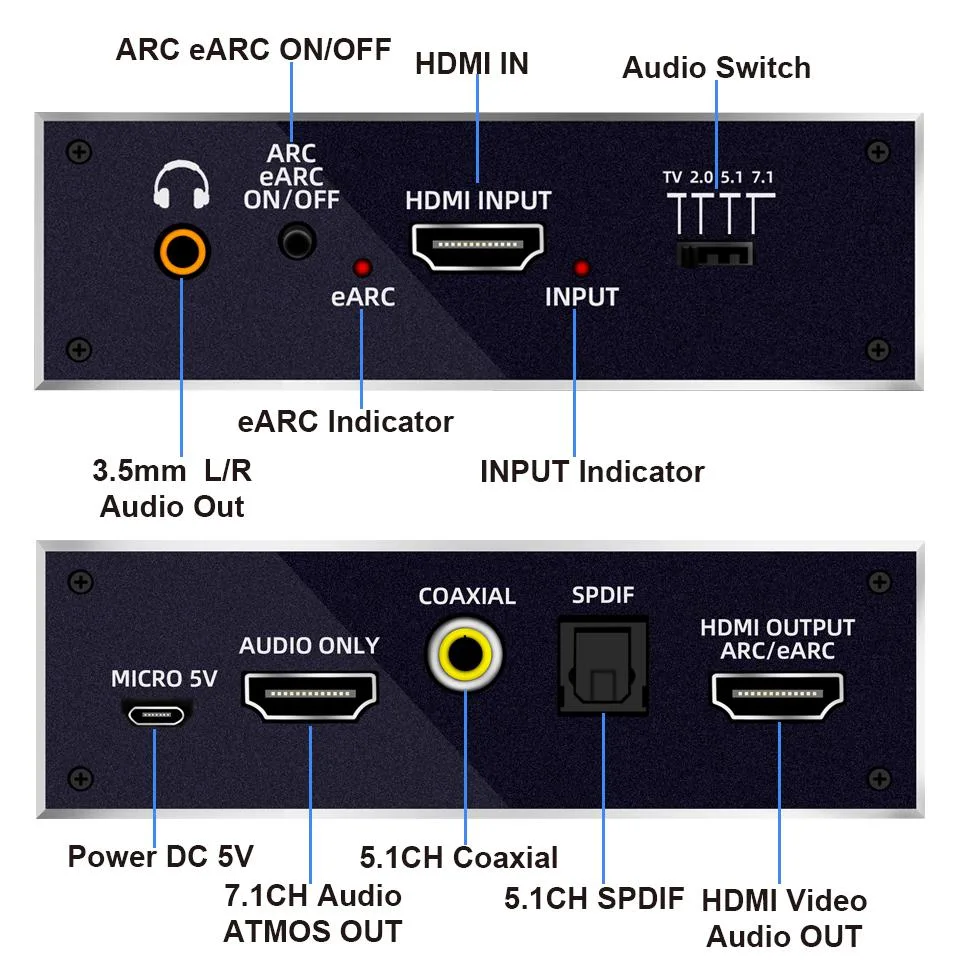

Output Connector3.5mm Audio Jack, Toslink SPDIF, Coaxial, HDMI Audio Port
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
FeaturesSupport 4K x 2K@60Hz, Support 3D.
4 speed toggle switch to switch TV/ 2.0/ 5.1/ 7.1 audio format.
HDMI Audio Formats:PCM 2.0, LPCM 5.1/ 7.1, Dolby Digital, Dolby Digital plus, Dolby True HD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X.

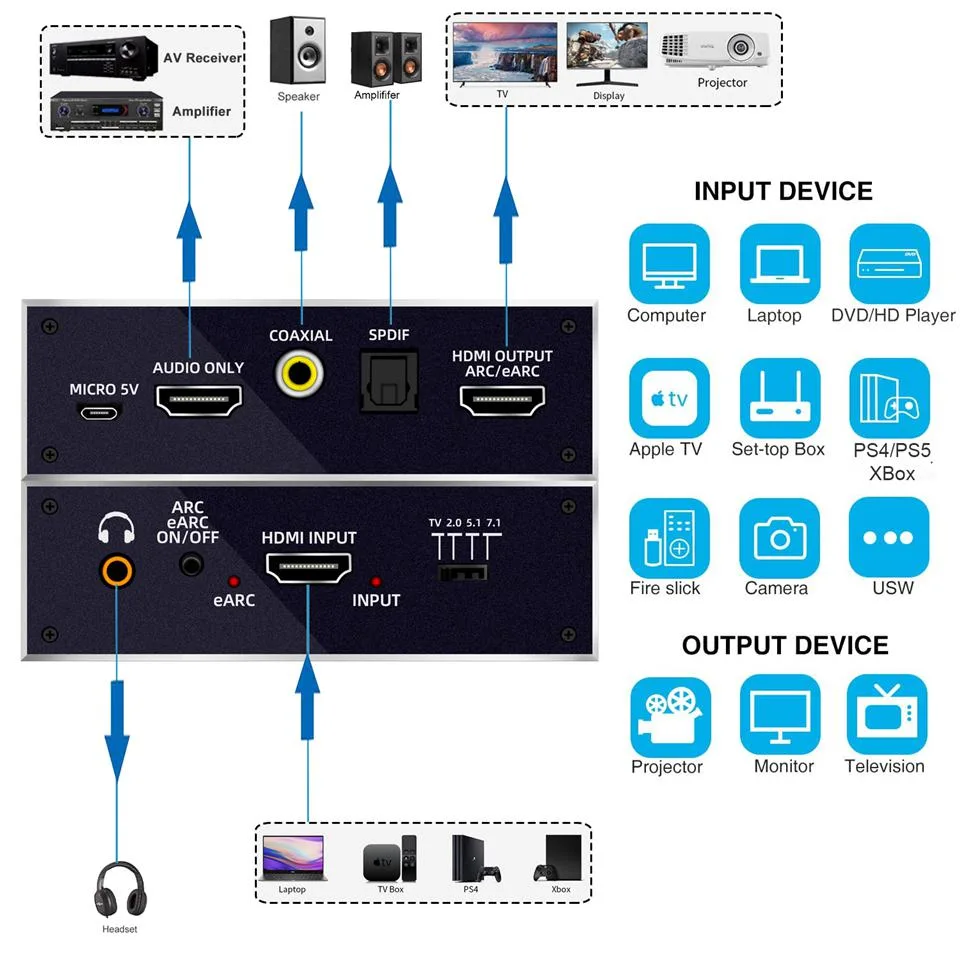

HDMI video/ audio output: monitor, TV, projector. HDMI Audio/ SPDIF/ 3.5mm/ Coaxial Audio Output: Receivers, amplifiers, speakers, headphones and other audio devices.
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1 x 18Gbps HDMI eARC Extractor
1 x Power Adapter
1 x User Manual

Questions about this item

Which Jansicotek OZV8E audio output should I use for my soundbar?

Use the HDMI audio-only port for full 7.1-channel LPCM, Dolby Atmos and DTS:X pass-through; choose Toslink or coaxial when your soundbar only accepts 5.1-channel Dolby Digital or DTS; use the 3.5 mm jack for simple stereo connections.

What does the 18 Gbps bandwidth mean for my 4K 60 Hz setup?

It carries the full 3840 × 2160 at 60 Hz signal with HDR10+ and Dolby Vision metadata intact, so the video reaching your display is bit-for-bit identical to the source.

How does the HDMI 2.0 eARC interface limit the audio formats I can extract?

The eARC path supports uncompressed 7.1 LPCM and object-based codecs such as Dolby Atmos and DTS:X, while the optical and coaxial outputs are capped at 5.1-channel Dolby Digital or DTS.
