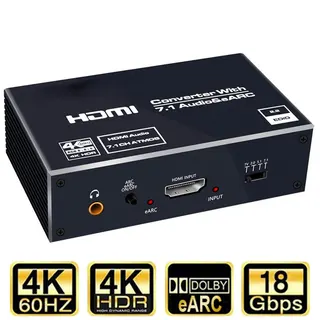

Compact black HDMI audio extractor with multiple output ports

Jansicotek

Jansicotek OZV8E 4K 60Hz HDMI Audio Extractor 7.1CH Atmos

SKU CH-80TQ-38B2B

Extracts audio from 4K 60 Hz HDMI sources to optical, coaxial, 3.5 mm and HDMI audio outputs with 7.1-channel Atmos passthrough

  • TypeHDMI Splitters
  • Ports4
  • AudioYes
  • ColorBlack
  • SpecificationsPower Supply: DC 5v/ 1000mA. HDMI Audio Only Port：PCM 2.0, L
  • Input Connector1 HDMI input
  • Extract immersive 7.1-channel Dolby Atmos audio via HDMI, optical, coaxial and 3.5 mm outputs
  • Enjoy 4K 60 Hz HDR video pass-through at 18 Gbps bandwidth without signal loss
  • Toggle between TV, 2.0, 5.1 and 7.1 audio modes with a four-position switch
  • Connect TV ARC or eARC sources directly to a soundbar or amplifier without a display
  • Compact 5.59 × 3.15 × 1.26 in unit powered by included 5 V 1000 mA adapter

Jansicotek OZV8E 4K 60Hz Audio Extractor

The Jansicotek OZV8E extracts audio from a 4K 60Hz HDMI source and sends it to multiple outputs. It serves owners of AV receivers, soundbars or amplifiers that lack HDMI inputs but need Dolby Atmos or DTS:X soundtracks. The unit also passes 3D and HDR video to a display while splitting audio.

Installation and common issues

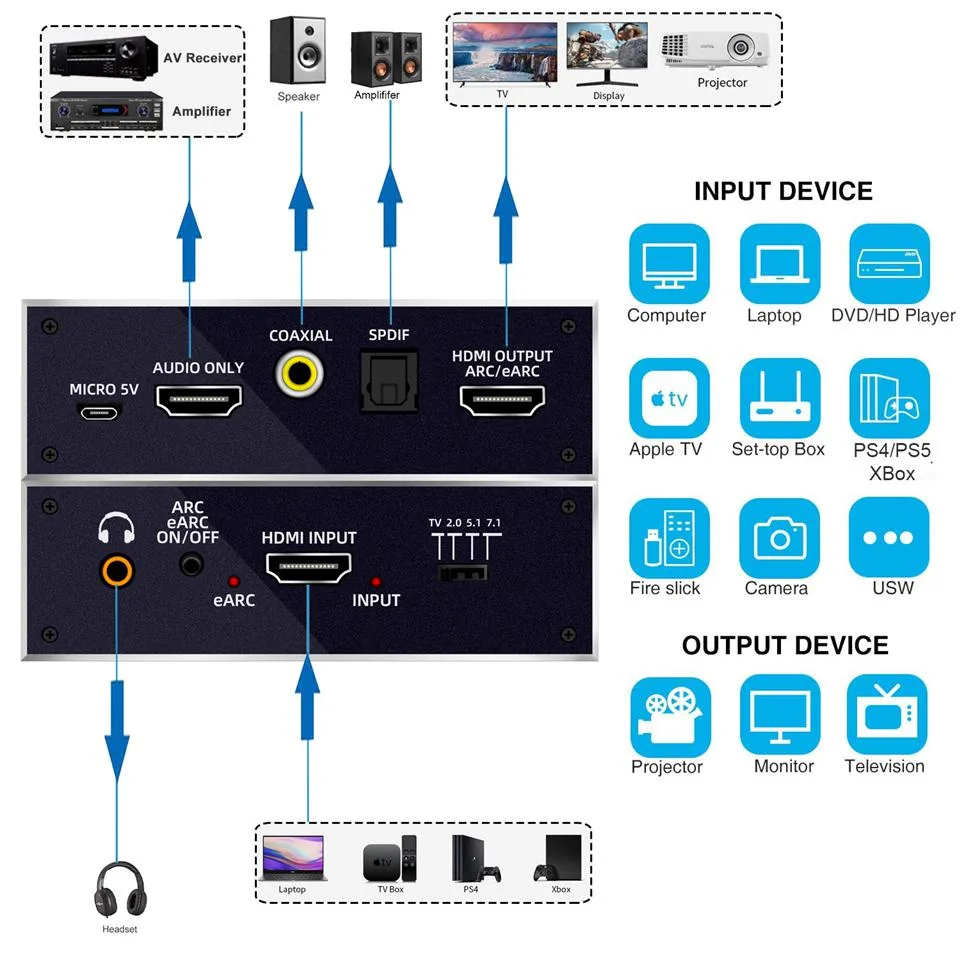

Connect the source to the HDMI input, the display to the HDMI output, and choose an audio path via 3.5mm jack, Toslink, coaxial or the dedicated HDMI audio port. Power the device with the included DC 5V 1000mA adapter. A four-position toggle selects TV, 2.0, 5.1 or 7.1 output mode. If the connected amplifier cannot decode Dolby TrueHD, DTS-HD or Atmos, set the source to PCM or LPCM to avoid silence.

Before you order

Verify your source can output 4K at 60Hz over HDMI 2.0 and that your display accepts the same signal. Confirm your audio equipment supports at least one of the listed output formats — PCM 2.0, LPCM 5.1 or 7.1, Dolby Digital, Dolby Digital Plus or DTS 5.1 — otherwise choose a different extractor. Ensure a free power outlet is available for the supplied adapter.

Highlights

  • Extract immersive 7.1-channel Dolby Atmos audio via HDMI, optical, coaxial and 3.5 mm outputs
  • Enjoy 4K 60 Hz HDR video pass-through at 18 Gbps bandwidth without signal loss
  • Toggle between TV, 2.0, 5.1 and 7.1 audio modes with a four-position switch
  • Connect TV ARC or eARC sources directly to a soundbar or amplifier without a display
  • Compact 5.59 × 3.15 × 1.26 in unit powered by included 5 V 1000 mA adapter

Specifications

BrandJansicotek
SeriesOZV8E
ModelOZV8E
Part NumberOZV8E
TypeHDMI Splitters
Ports4
AudioYes
ColorBlack
SpecificationsPower Supply: DC 5v/ 1000mA.
HDMI Audio Only Port：PCM 2.0, LPCM 5.1/ 7.1, Dolby Digital, Dolby Digital plus, Dolby True HD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X.
Toslink SPDIF: LPCM 2.0/ 5.1,Dolby Digital 2.0/ 5.1, DTS 2.0/ 5.1.
Coaxial Output: LPCM 2.0/ 5.1,Dolby Digital 2.0/ 5.1, DTS 2.0/ 5.1.
3.5mm Audio Jack：Analog stereo 2.0ch.
Color Depth: 8-bit, 10 bit, 12 bit (1080p@60Hz);8-bit (4K x 2k@60Hz RGB 8:8:8/ YUV 4:4:4);8-bit, 10-bit, 12-bit (4K x 2K@60Hz YCbCr 4:2:2 /4:2:0).
Input Connector1 HDMI input

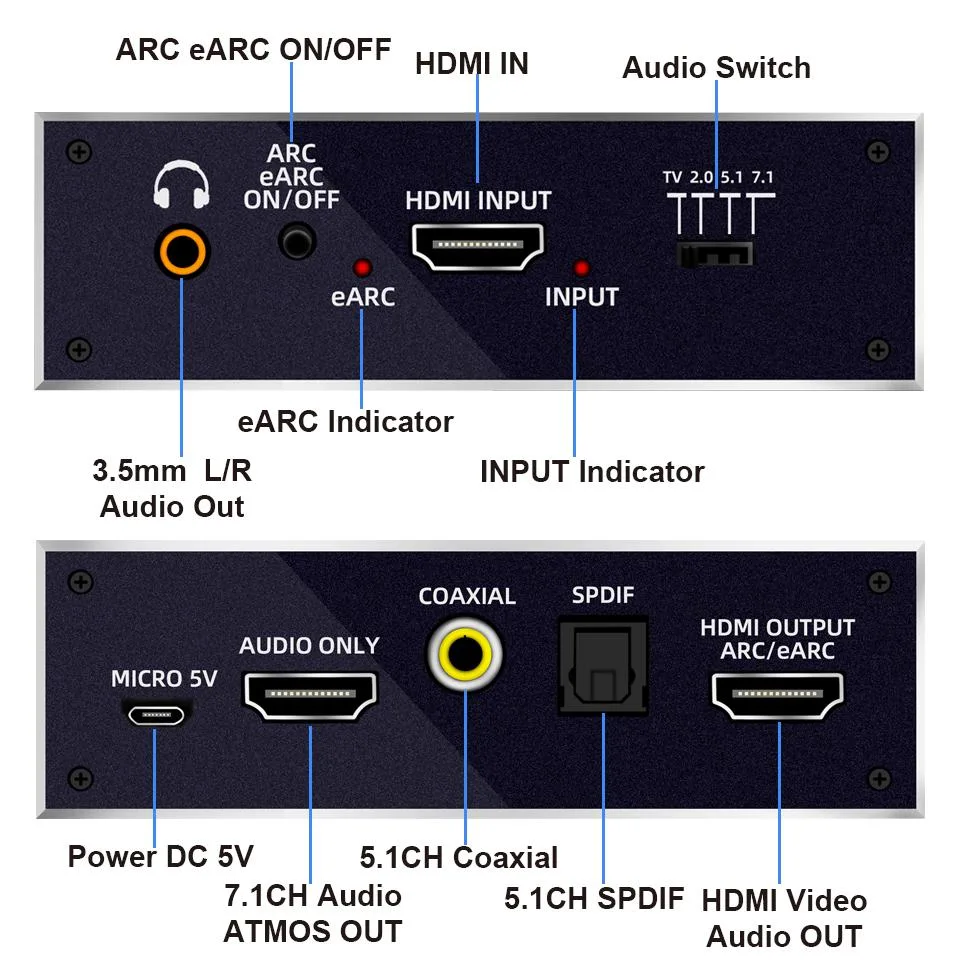

Output Connector3.5mm Audio Jack, Toslink SPDIF, Coaxial, HDMI Audio Port
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
FeaturesSupport 4K x 2K@60Hz, Support 3D.
4 speed toggle switch to switch TV/ 2.0/ 5.1/ 7.1 audio format.
HDMI Audio Formats:PCM 2.0, LPCM 5.1/ 7.1, Dolby Digital, Dolby Digital plus, Dolby True HD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X.
HDMI video/ audio output: monitor, TV, projector. HDMI Audio/ SPDIF/ 3.5mm/ Coaxial Audio Output: Receivers, amplifiers, speakers, headphones and other audio devices.
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1 x 18Gbps HDMI eARC Extractor
1 x Power Adapter
1 x User Manual

Questions about this item

How do I confirm the extractor is passing 4K 60Hz video and 7.1 audio correctly after setup?

Connect the source to the HDMI input, then link the HDMI output to your display and the audio outputs to your receiver. Use the 4-position toggle to select 7.1, then verify the receiver shows LPCM 7.1 or Dolby Atmos while the display reports 3840 x 2160 at 60Hz.

What comes in the box and what must I supply myself?

The package includes the extractor, a DC 5V 1000mA power adapter, and a user manual. You must provide the HDMI cables for the input, the HDMI loop-out to your display, and the Toslink, coaxial, or 3.5mm cables for your audio devices.

Which audio mode should I choose on the toggle switch for my system?

Set the toggle to TV for stereo passthrough, 2.0 for PCM stereo, 5.1 for LPCM 5.1 or compressed 5.1 formats, or 7.1 for LPCM 7.1, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, or DTS:X — match the setting to what your amplifier or soundbar can decode.
