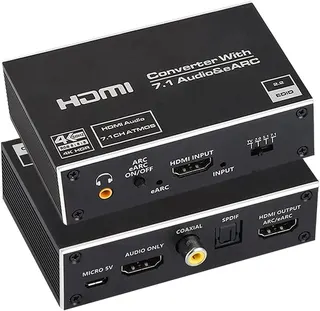

Black rectangular box with HDMI ports and toggle switch on front, optical coaxial and 3.5mm jacks on sides

Jansicotek

Jansicotek OZV8E 4K@60Hz HDMI Audio Extractor

SKU CH-PPK6-WHDNS

Extracts audio from 4K@60Hz HDMI sources to optical, coaxial, 3.5mm and HDMI audio outputs with 7.1-channel Dolby Atmos and DTS:X pass-through

  • TypeHDMI Splitters
  • Ports4
  • AudioYes
  • ColorBlack
  • SpecificationsPower Supply: DC 5v/ 1000mA. HDMI Audio Only Port：PCM 2.0, L
  • Input Connector1 HDMI input
  • Extract 7.1-channel Atmos audio via four outputs
  • Pass 4K 60 Hz HDR video at 18 Gbps
  • Toggle TV stereo 5.1 7.1 with hardware switch
  • Connect soundbar or amp through optical coaxial 3.5 mm
  • Powered by included 5 V 1000 mA adapter

4K 60 Hz HDMI Audio Extractor

The Jansicotek OZV8E extracts audio from a single HDMI 2.0 source at up to 3840 x 2160 resolution and 60 Hz refresh rate. It provides four simultaneous audio outputs including HDMI audio only port, optical Toslink SPDIF, coaxial and 3.5 mm jack. A four position toggle selects TV, 2.0, 5.1 or 7.1 channel output mode. The unit requires the included DC 5 V 1000 mA power supply.

Replaces basic HDMI splitters that lack audio

This extractor adds dedicated audio paths for receivers, soundbars or headphones while passing 4K 60 Hz video with HDR and HDCP 2.2 through the HDMI loop out. The upgrade is worthwhile when your display cannot decode Dolby Atmos, DTS:X or multichannel LPCM and you need to send those formats to a separate audio system. It also enables eARC or ARC audio return from a compatible TV without routing video through the receiver.

Check source and sink capabilities before ordering

Verify that your HDMI source can output the desired audio format and that your amplifier or soundbar accepts the corresponding signal over optical, coaxial or 3.5 mm. The extractor does not decode bitstream formats so the connected audio device must support Dolby TrueHD, DTS-HD Master or Atmos natively. Ensure the HDMI cables used are rated for 18 Gbps bandwidth to maintain 4K 60 Hz performance.

Highlights

  • Extract 7.1-channel Atmos audio via four outputs
  • Pass 4K 60 Hz HDR video at 18 Gbps
  • Toggle TV stereo 5.1 7.1 with hardware switch
  • Connect soundbar or amp through optical coaxial 3.5 mm
  • Powered by included 5 V 1000 mA adapter

Specifications

BrandJansicotek
SeriesOZV8E
ModelOZV8E
Part NumberOZV8E
TypeHDMI Splitters
Ports4
AudioYes
ColorBlack
SpecificationsPower Supply: DC 5v/ 1000mA.
HDMI Audio Only Port：PCM 2.0, LPCM 5.1/ 7.1, Dolby Digital, Dolby Digital plus, Dolby True HD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X.
Toslink SPDIF: LPCM 2.0/ 5.1,Dolby Digital 2.0/ 5.1, DTS 2.0/ 5.1.
Coaxial Output: LPCM 2.0/ 5.1,Dolby Digital 2.0/ 5.1, DTS 2.0/ 5.1.
3.5mm Audio Jack：Analog stereo 2.0ch.
Color Depth: 8-bit, 10 bit, 12 bit (1080p@60Hz);8-bit (4K x 2k@60Hz RGB 8:8:8/ YUV 4:4:4);8-bit, 10-bit, 12-bit (4K x 2K@60Hz YCbCr 4:2:2 /4:2:0).
Input Connector1 HDMI input

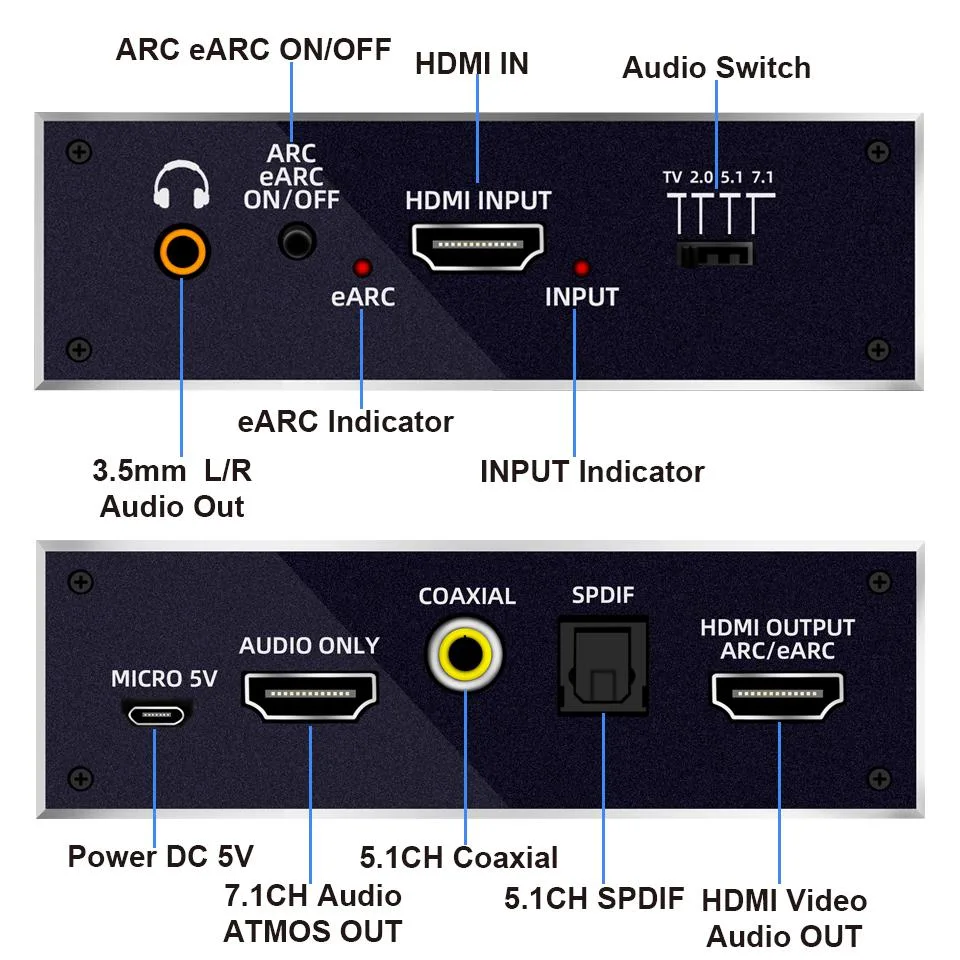

Output Connector3.5mm Audio Jack, Toslink SPDIF, Coaxial, HDMI Audio Port
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
FeaturesSupport 4K x 2K@60Hz, Support 3D.
4 speed toggle switch to switch TV/ 2.0/ 5.1/ 7.1 audio format.
HDMI Audio Formats:PCM 2.0, LPCM 5.1/ 7.1, Dolby Digital, Dolby Digital plus, Dolby True HD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X.

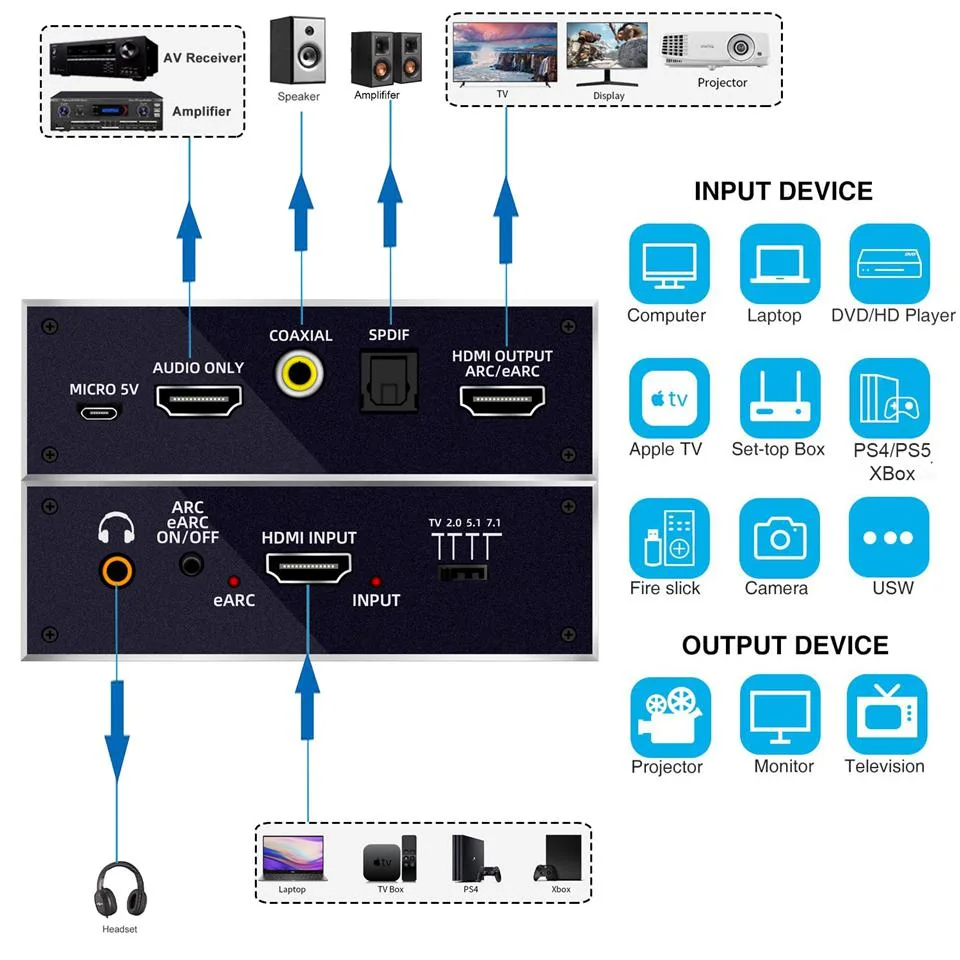

HDMI video/ audio output: monitor, TV, projector. HDMI Audio/ SPDIF/ 3.5mm/ Coaxial Audio Output: Receivers, amplifiers, speakers, headphones and other audio devices.
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1 x 18Gbps HDMI eARC Extractor
1 x Power Adapter
1 x User Manual

Questions about this item

What power supply does the Jansicotek OZV8E need?

The unit ships with a DC 5 V / 1000 mA adapter that plugs into the extractor’s power jack.

Which setting on the four‑position toggle should I choose for my surround‑sound system?

Match the toggle to your audio device — TV stereo, 2.0, 5.1 or 7.1 — and set the source to PCM/LPCM if the receiver cannot decode Dolby or DTS formats.

Does the extractor require any firmware updates or consumable parts over time?

No firmware updates or replaceable components are needed; the device is passive once powered and connected.
