Black rectangular HDMI audio extractor with HDMI, optical and 3.5mm ports

Jansicotek

Jansicotek OZV8C HDMI Audio Extractor 4K 60Hz SPDIF 3.5mm

SKU CH-TRAM-P934X

Extracts HDMI audio to optical SPDIF and 3.5 mm outputs while passing 4K 60 Hz video

  • TypeHDMI Splitters
  • Ports3
  • AudioYes
  • ColorBlack
  • SpecificationsHDMI Audio Extractor The converter allows the HD Source conn
  • Input Connector1 HDMI input
  • Extract audio to soundbar via optical and 3.5mm simultaneously
  • Pass 4K 60Hz video with 18Gbps bandwidth intact
  • Choose TV, 2.0CH or 5.1CH audio EDID modes
  • Support DTS-HD, Dolby TrueHD, LPCM 7.1 formats
  • Compact 5.59×3.15×1.26 in design with 5V power included

Audio extraction for HDMI sources

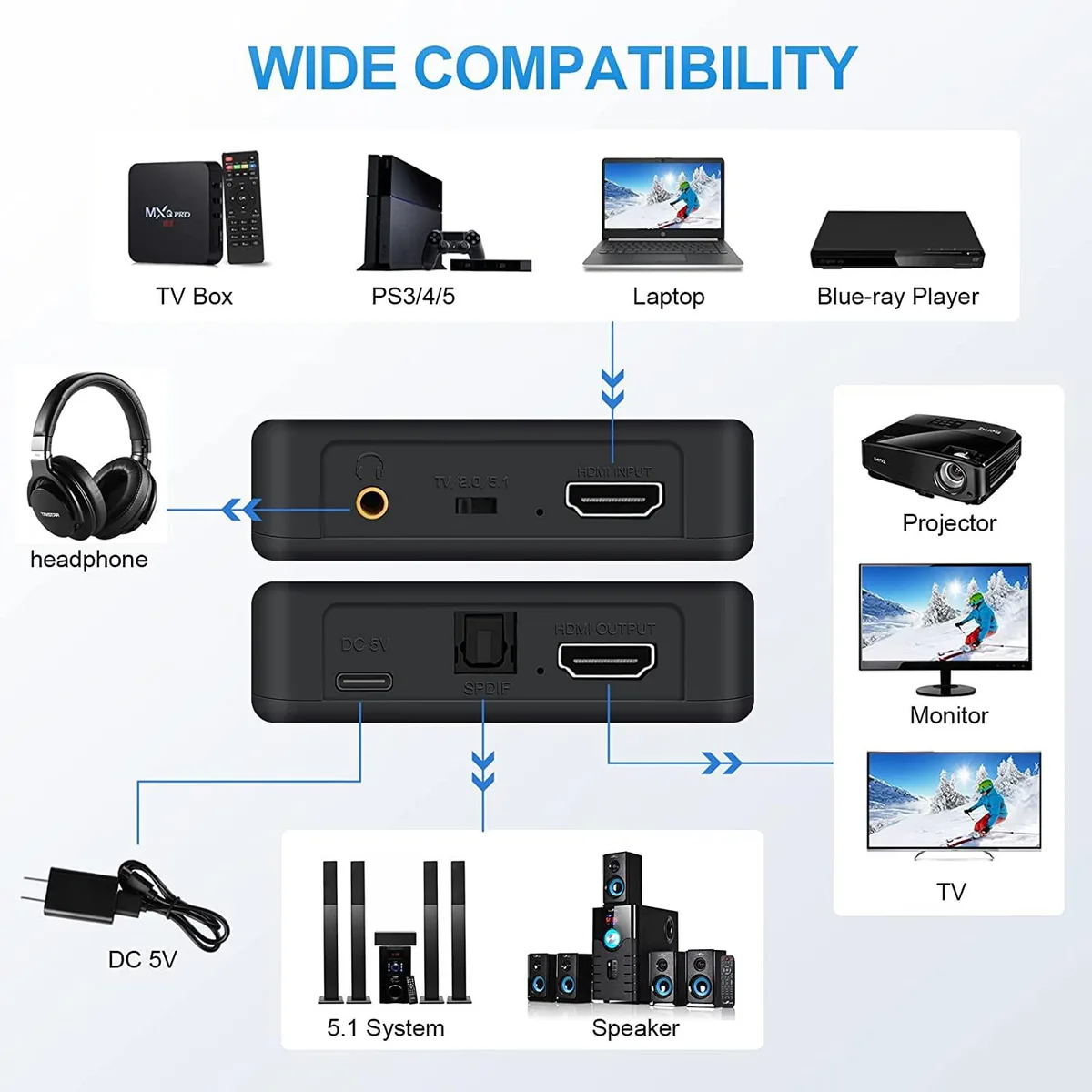

The Jansicotek OZV8C takes a single HDMI input and splits it into one HDMI video output plus separate optical Toslink SPDIF and 3.5 mm stereo audio outputs. It is built for users who need to send sound from a console, Blu-ray player or streaming device to a soundbar, amplifier or headphones while keeping the picture on a TV or monitor.

Build integration and connectivity

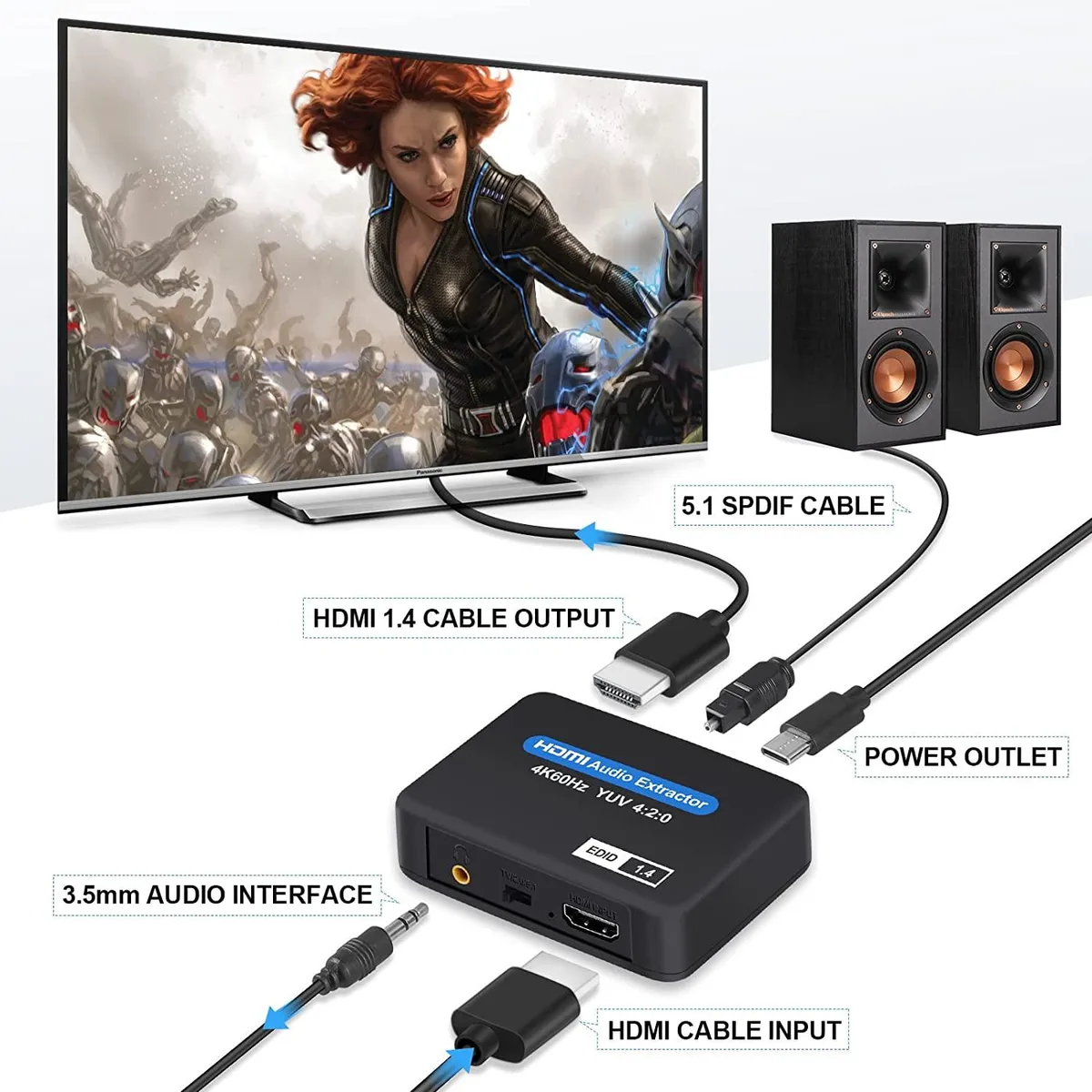

The unit requires a 5 V power adaptor, which is included, and fits into a chain between the source and the display using standard HDMI cables up to 32.8 ft on each side. It frees the system from relying on a TV’s internal speakers or limited audio outputs by providing both digital and analogue paths simultaneously. Three EDID modes — TV, 2.0 CH and 5.1 CH — let the installer match the downstream audio device without re-cabling.

Thermals noise and power

The compact aluminium enclosure measures 5.59 by 3.15 by 1.26 inches and weighs 3.2 ounces, with no moving parts so it runs silently. Power draw is limited to the supplied 5 V adaptor, and the device operates at a maximum bandwidth of 18 Gbps while supporting video up to 3840 x 2160 at 60 Hz. No fan or heatsink is needed in normal use.

Highlights

  • Extract audio to soundbar via optical and 3.5mm simultaneously
  • Pass 4K 60Hz video with 18Gbps bandwidth intact
  • Choose TV, 2.0CH or 5.1CH audio EDID modes
  • Support DTS-HD, Dolby TrueHD, LPCM 7.1 formats
  • Compact 5.59×3.15×1.26 in design with 5V power included

Specifications

BrandJansicotek
SeriesOZV8C
ModelOZV8C
Part NumberOZV8C
TypeHDMI Splitters
Ports3
AudioYes
ColorBlack
SpecificationsHDMI Audio Extractor
The converter allows the HD Source connected to single HD display and adds extra one 3.5mm audio and SPDIF audio out port.
One HDMI input converted to one HDMI+ Audio(SPDIF+3.5mm audio)Output to achieve the synchronization of audio signal separation.
Input Connector1 HDMI input
Output ConnectorHDMI + Optical Toslink SPDIF + 3.5mm Audio Output
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
FeaturesThere are TV /2.0CH/5.1CH three kinds of audio mode
Support 4K x 2K@60Hz, Support 3D HDCP1.4
Support blue-ray 24/50/60fs/hd-dvd/XVYCC
Digital audio format, as DTS-HD/dobly-truehd/LPCM7.1/DTS/dobly-ac371s (Not Support Always Dobly Digital plus)
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1x HDMI Audio Extractor Converter
1x 5V Power Adaptor
1x User Manual

Questions about this item

Will the 18 Gbps bandwidth handle 4K 60 Hz HDR without dropping frames during long sessions?

The extractor is rated for 18 Gbps and supports 3840 x 2160 at 60 Hz with HDCP 1.4, so sustained 4K 60 Hz playback stays within its bandwidth limit.

Does the unit get hot or noisy when powered continuously for a full day?

It has no fan and draws only 5 V from the included adaptor, so it runs silently and stays cool during all-day operation.

Which cables and power source must I already have to use this extractor?

You need an HDMI source, an HDMI display, either a Toslink optical or 3.5 mm audio cable for your sound system, and a mains outlet for the supplied 5 V power adaptor.
