Small black box with HDMI, optical and 3.5mm ports

Jansicotek

Jansicotek OZV8C 4K@60Hz HDMI Audio Extractor Splitter

SKU CH-RVAX-2BM8Z

Extracts audio from a 4K@60Hz HDMI source to optical Toslink and 3.5 mm outputs while passing video through

  • TypeHDMI Splitters
  • Ports3
  • AudioYes
  • ColorBlack
  • SpecificationsHDMI Audio Extractor The converter allows the HD Source conn
  • Input Connector1 HDMI input
  • Extract audio to soundbar via optical or 3.5 mm jack
  • Pass 4K 60 Hz video with 18 Gbps bandwidth
  • Switch between TV 2.0 CH and 5.1 CH audio modes
  • Decode DTS-HD Dolby TrueHD LPCM 7.1 surround formats
  • Compact 5.59 x 3.15 x 1.26 inch black enclosure

4K@60Hz HDMI Audio Extractor

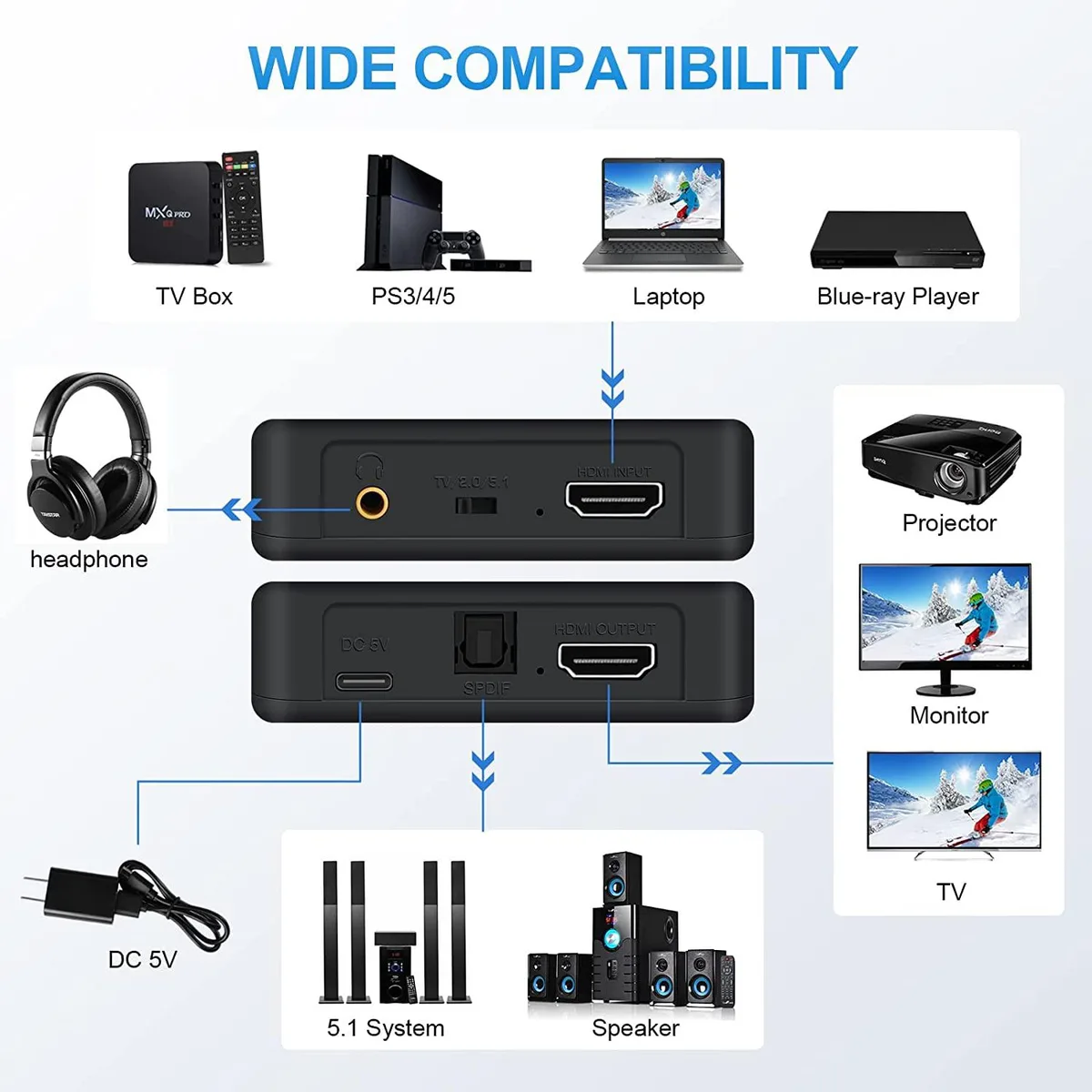

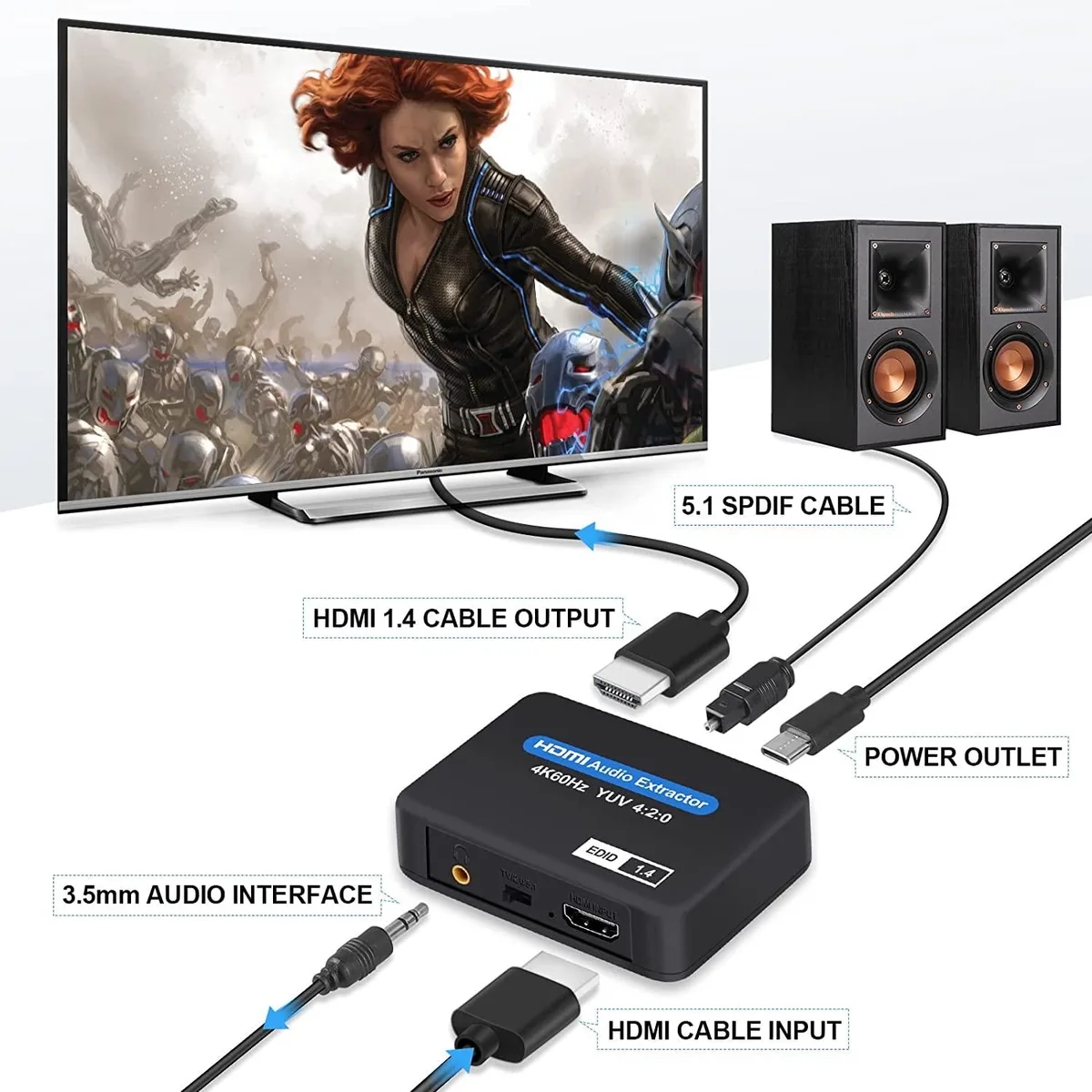

The Jansicotek OZV8C extracts audio from a single HDMI source and delivers it through HDMI, optical Toslink SPDIF and a 3.5 mm stereo jack simultaneously. It is built for users who need to send sound to a soundbar, amplifier or headphones while keeping the video signal on a display. The unit handles 4K resolution at 60 Hz with HDCP 1.4 compliance.

18 Gbps bandwidth with three EDID modes

The splitter operates at 18 Gbps bandwidth and supports 3840 x 2160 resolution at 60 Hz. Three audio EDID settings — TV, 2.0 CH and 5.1 CH — let the source match the connected audio equipment. Optical SPDIF carries 2.0 CH PCM or 5.1 CH bitstream while the 3.5 mm output provides 2.0 CH PCM stereo.

Passive cooling with external 5 V power

The compact black enclosure measures 5.59 x 3.15 x 1.26 inches and weighs 3.2 ounces, using passive heat dissipation without a fan. A supplied 5 V power adaptor drives the circuitry, so no USB or bus power is required. Normal operation is silent and draws minimal current from the external supply.

Highlights

  • Extract audio to soundbar via optical or 3.5 mm jack
  • Pass 4K 60 Hz video with 18 Gbps bandwidth
  • Switch between TV 2.0 CH and 5.1 CH audio modes
  • Decode DTS-HD Dolby TrueHD LPCM 7.1 surround formats
  • Compact 5.59 x 3.15 x 1.26 inch black enclosure

Specifications

BrandJansicotek
SeriesOZV8C
ModelOZV8C
Part NumberOZV8C
TypeHDMI Splitters
Ports3
AudioYes
ColorBlack
SpecificationsHDMI Audio Extractor
The converter allows the HD Source connected to single HD display and adds extra one 3.5mm audio and SPDIF audio out port.
One HDMI input converted to one HDMI+ Audio(SPDIF+3.5mm audio)Output to achieve the synchronization of audio signal separation.
Input Connector1 HDMI input
Output ConnectorHDMI + Optical Toslink SPDIF + 3.5mm Audio Output
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
FeaturesThere are TV /2.0CH/5.1CH three kinds of audio mode
Support 4K x 2K@60Hz, Support 3D HDCP1.4
Support blue-ray 24/50/60fs/hd-dvd/XVYCC
Digital audio format, as DTS-HD/dobly-truehd/LPCM7.1/DTS/dobly-ac371s (Not Support Always Dobly Digital plus)
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1x HDMI Audio Extractor Converter
1x 5V Power Adaptor
1x User Manual

Questions about this item

What does the 18 Gbps bandwidth mean for my 4K 60 Hz setup?

18 Gbps bandwidth supports 4K at 60 Hz with HDCP 1.4 and 3D, handling 24-bit or 30-bit deep colour video and audio formats such as DTS-HD, Dolby TrueHD, LPCM 7.1, DTS, Dolby AC3, and DSD.

How does the HDMI 1.4 interface limit what I can connect?

HDMI 1.4 caps the link at 4K 60 Hz 4:2:0 or 1080p 60 Hz 4:4:4, so 4K 60 Hz 4:4:4 10-bit HDR and Dolby Digital Plus are not supported.

What space and power does the 5.59 × 3.15 × 1.26 inch unit need?

The extractor measures 5.59 by 3.15 by 1.26 inches, weighs 3.2 ounces, and includes a 5 V power adaptor for operation.
