Small black box with HDMI, optical, 3.5mm ports and power input

Jansicotek

Jansicotek OZV8C 4K@60Hz HDMI Audio Extractor

SKU CH-P0MC-QR569

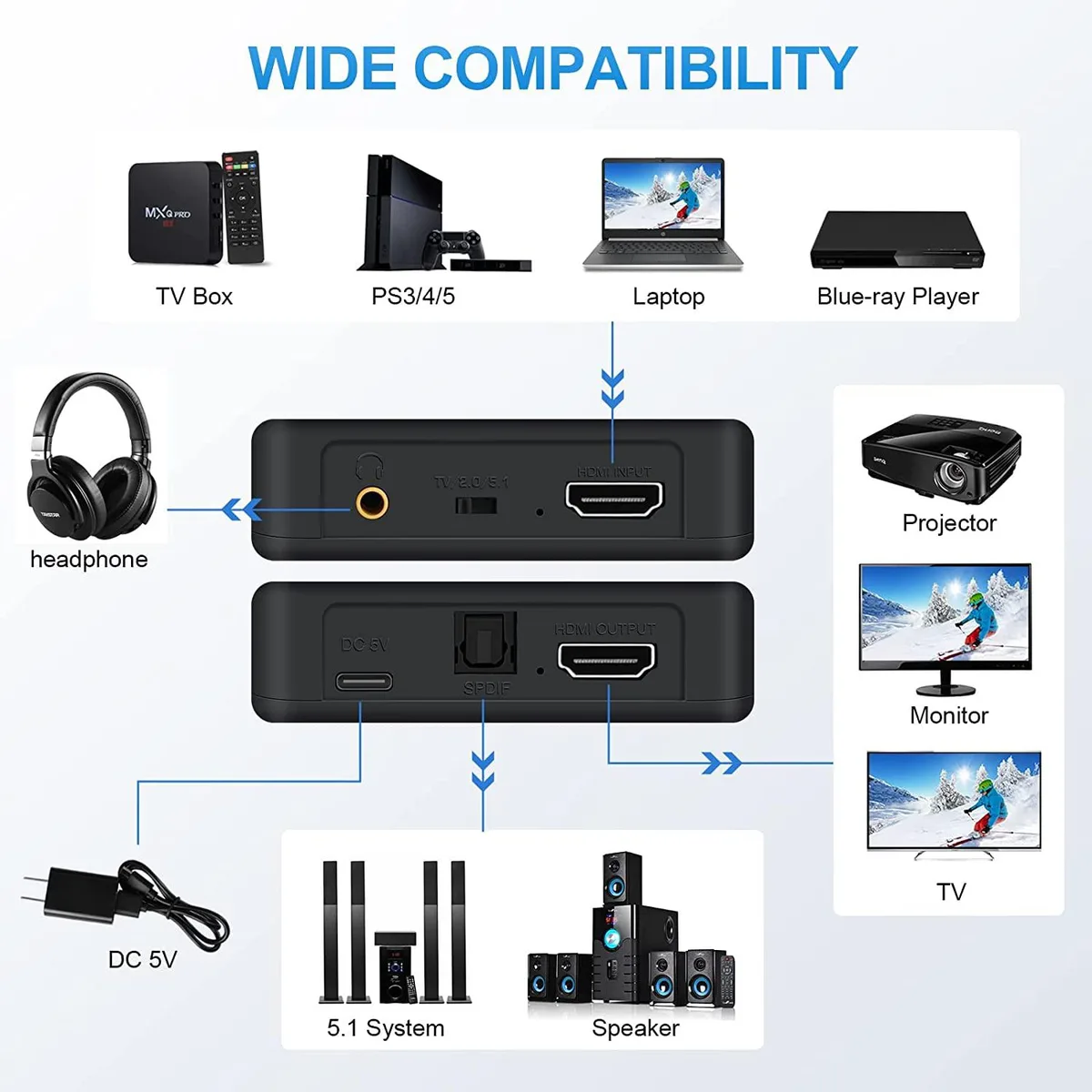

Extracts audio from a 4K@60 Hz HDMI source to optical Toslink and 3.5 mm stereo outputs while passing video through to a display

  • TypeHDMI Splitters
  • Ports3
  • AudioYes
  • ColorBlack
  • SpecificationsHDMI Audio Extractor The converter allows the HD Source conn
  • Input Connector1 HDMI input
  • Extract audio to soundbar or amplifier via optical SPDIF and 3.5 mm stereo output
  • Enjoy 4K video at 60 Hz with HDCP 1.4 and 18 Gbps bandwidth
  • Choose TV, 2.0 CH or 5.1 CH audio mode with EDID switch
  • Supports DTS-HD, Dolby TrueHD, LPCM 7.1 and other high-resolution formats
  • Compact 5.59 x 3.15 x 1.26 in design with 5 V power adapter included

HDMI Audio Extractor for 4K@60Hz Sources

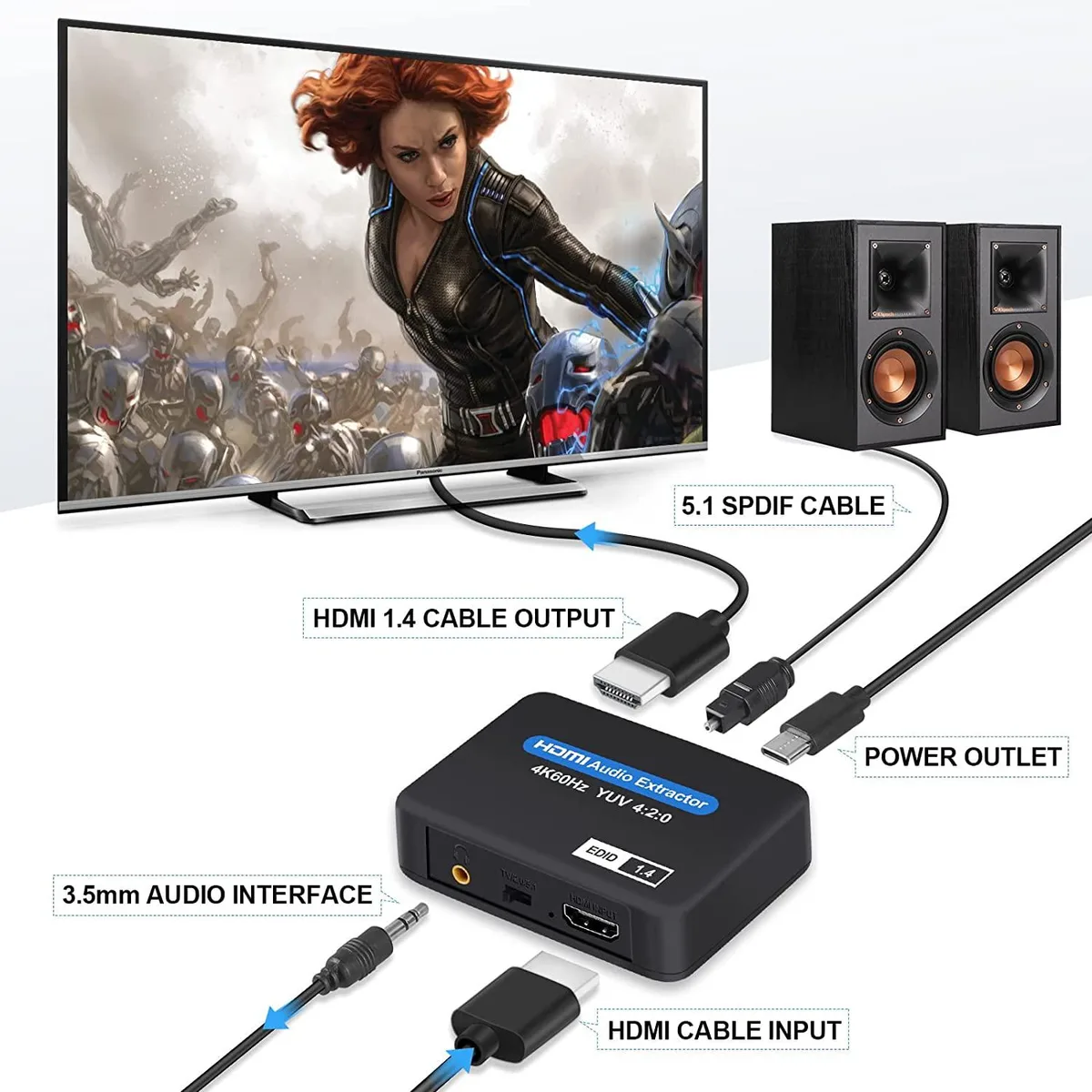

The Jansicotek OZV8C takes a single HDMI input and splits it to one HDMI video output plus Optical Toslink SPDIF and 3.5mm stereo audio outputs. It supports resolutions up to 3840 x 2160 at 60 Hz with 18 Gbps bandwidth and HDCP 1.4 compliance. This suits users who need to send audio to a soundbar, amplifier or headphones while keeping video on a display.

Passive Operation with External 5V Power

The unit draws power from an included 5V adaptor and has no internal fan, so it runs silently. Its compact enclosure measures 5.59 x 3.15 x 1.26 inches and weighs 3.2 ounces, adding negligible heat to an AV rack. Maximum cable runs of 32.8 ft are supported on both input and output when using AWG26 HDMI cables.

Bundled Power Adaptor

A 5V power adaptor is supplied so the extractor works straight from the box without sourcing a separate supply. The manual details the three EDID audio modes — TV, 2.0CH and 5.1CH — which configure the 3.5mm jack for PCM stereo and the Optical output for PCM or 5.1CH bitstream. No software or drivers are required.

Highlights

  • Extract audio to soundbar or amplifier via optical SPDIF and 3.5 mm stereo output
  • Enjoy 4K video at 60 Hz with HDCP 1.4 and 18 Gbps bandwidth
  • Choose TV, 2.0 CH or 5.1 CH audio mode with EDID switch
  • Supports DTS-HD, Dolby TrueHD, LPCM 7.1 and other high-resolution formats
  • Compact 5.59 x 3.15 x 1.26 in design with 5 V power adapter included

Specifications

BrandJansicotek
SeriesOZV8C
ModelOZV8C
Part NumberOZV8C
TypeHDMI Splitters
Ports3
AudioYes
ColorBlack
SpecificationsHDMI Audio Extractor
The converter allows the HD Source connected to single HD display and adds extra one 3.5mm audio and SPDIF audio out port.
One HDMI input converted to one HDMI+ Audio(SPDIF+3.5mm audio)Output to achieve the synchronization of audio signal separation.
Input Connector1 HDMI input
Output ConnectorHDMI + Optical Toslink SPDIF + 3.5mm Audio Output
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
FeaturesThere are TV /2.0CH/5.1CH three kinds of audio mode
Support 4K x 2K@60Hz, Support 3D HDCP1.4
Support blue-ray 24/50/60fs/hd-dvd/XVYCC
Digital audio format, as DTS-HD/dobly-truehd/LPCM7.1/DTS/dobly-ac371s (Not Support Always Dobly Digital plus)
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1x HDMI Audio Extractor Converter
1x 5V Power Adaptor
1x User Manual

Questions about this item

How do I install the Jansicotek OZV8C extractor and which step do people miss?

Connect the source to the HDMI input, the display to the HDMI output, then attach either the 3.5mm jack or Optical Toslink SPDIF to your sound system and power the unit with the included 5V adaptor; the step often missed is selecting the correct EDID mode — TV, 2.0CH or 5.1CH — before powering on.

What maintenance or replacement will the Jansicotek OZV8C need over time?

The unit has no moving parts or user-serviceable components; only the external 5V power adaptor may require replacement if it fails.

What limit appears first during sustained 4K@60Hz use of the Jansicotek OZV8C?

The 10.8Gbps bandwidth ceiling and HDCP 1.4 compliance cap the sustained throughput, so 4K 60Hz 4:4:4 signals at the full 18Gbps rate will not pass.
