Black rectangular HDMI audio extractor with multiple ports

Jansicotek

Jansicotek OZV8 HDMI Audio Extractor 4K@60Hz ARC

SKU CH-ZJCK-N24GA

Extracts audio from an HDMI source to optical and 3.5 mm outputs while passing 4K@60 Hz video to a display

  • TypeHDMI Splitters
  • Ports3
  • AudioYes
  • ColorBlack
  • SpecificationsInput Port: 1 x HDMI IN, 1 x 5V Power Port, 3 x EDID Audio(P
  • Input Connector1 HDMI input
  • Extracts audio to optical and 3.5 mm jack while passing 4K@60 Hz video
  • ARC return channel sends TV audio back to an amplifier without extra cables
  • Three EDID modes select stereo pass-through, 2.0 CH or 5.1 CH surround
  • 18 Gbps bandwidth supports 24, 30 and 36 bit deep colour at 3840 x 2160
  • Compact 5.59 x 3.15 x 1.26 inch metal box includes HDMI cable and 5 V power adapter

Purpose and user

The Jansicotek OZV8 is a compact HDMI audio extractor that takes a single HDMI source and delivers the video to a display while splitting the audio to both an optical Toslink port and a 3.5 mm analogue jack. It is built for owners of soundbars, AV receivers or headphones who need digital or analogue audio from a 4K@60 Hz source without replacing their display.

Who it suits and who it does not

The unit fits setups where a streaming stick, Blu-ray player or game console connects directly to a TV yet the listener wants separate audio sent to an external amplifier or soundbar. It also serves installations that require ARC audio return from a compatible television. Buyers who need simultaneous multi-zone video distribution, HDMI 2.1 bandwidth, or wireless audio transmission should look at other solutions.

Deciding specification

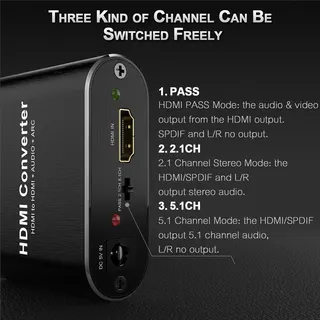

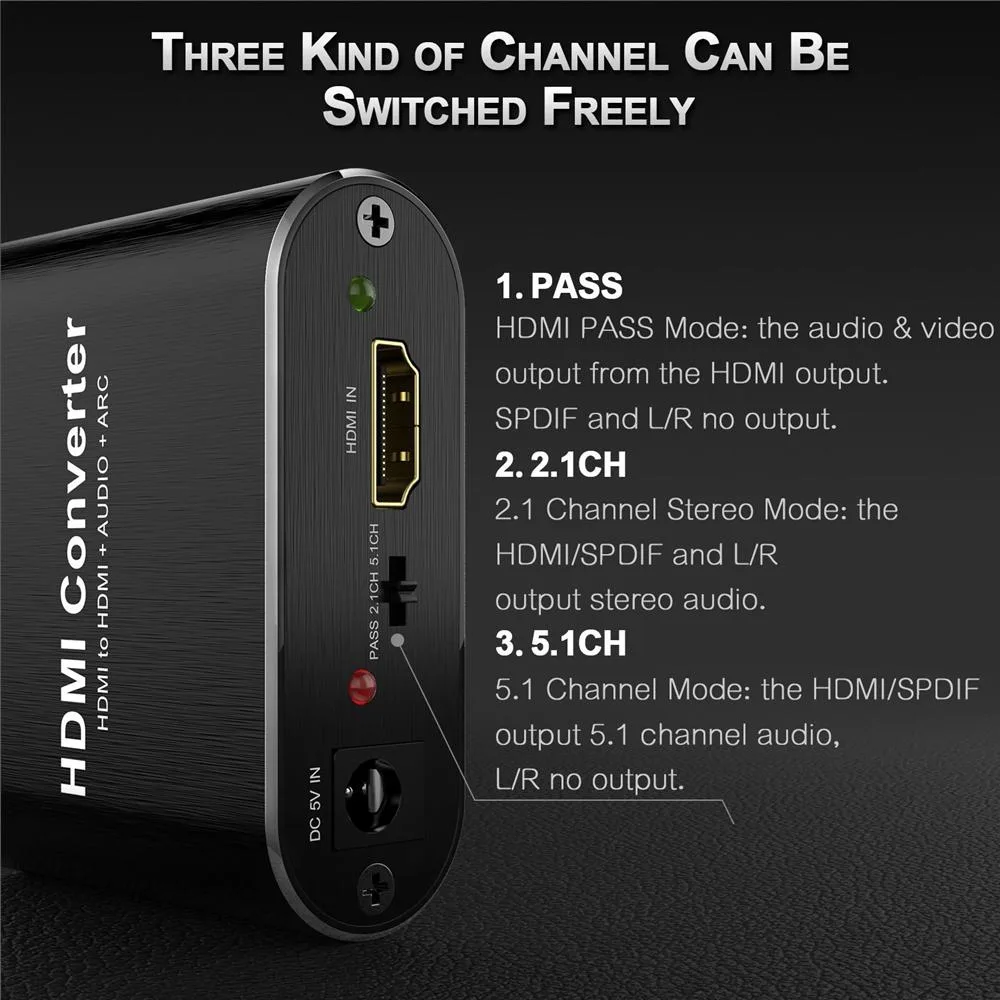

The extractor passes HDMI 1.4 signals up to 4K@60 Hz with 18 Gbps bandwidth and offers a three-position EDID switch for Pass, 2.0 CH or 5.1 CH audio modes, which determines whether the connected audio gear receives stereo or multichannel sound.

Highlights

  • Extracts audio to optical and 3.5 mm jack while passing 4K@60 Hz video
  • ARC return channel sends TV audio back to an amplifier without extra cables
  • Three EDID modes select stereo pass-through, 2.0 CH or 5.1 CH surround
  • 18 Gbps bandwidth supports 24, 30 and 36 bit deep colour at 3840 x 2160
  • Compact 5.59 x 3.15 x 1.26 inch metal box includes HDMI cable and 5 V power adapter

Specifications

BrandJansicotek
SeriesOZV8
ModelOZV8
Part NumberOZV8
TypeHDMI Splitters
Ports3
AudioYes
ColorBlack
SpecificationsInput Port: 1 x HDMI IN, 1 x 5V Power Port, 3 x EDID Audio(Pass/2CH/5.1CH)

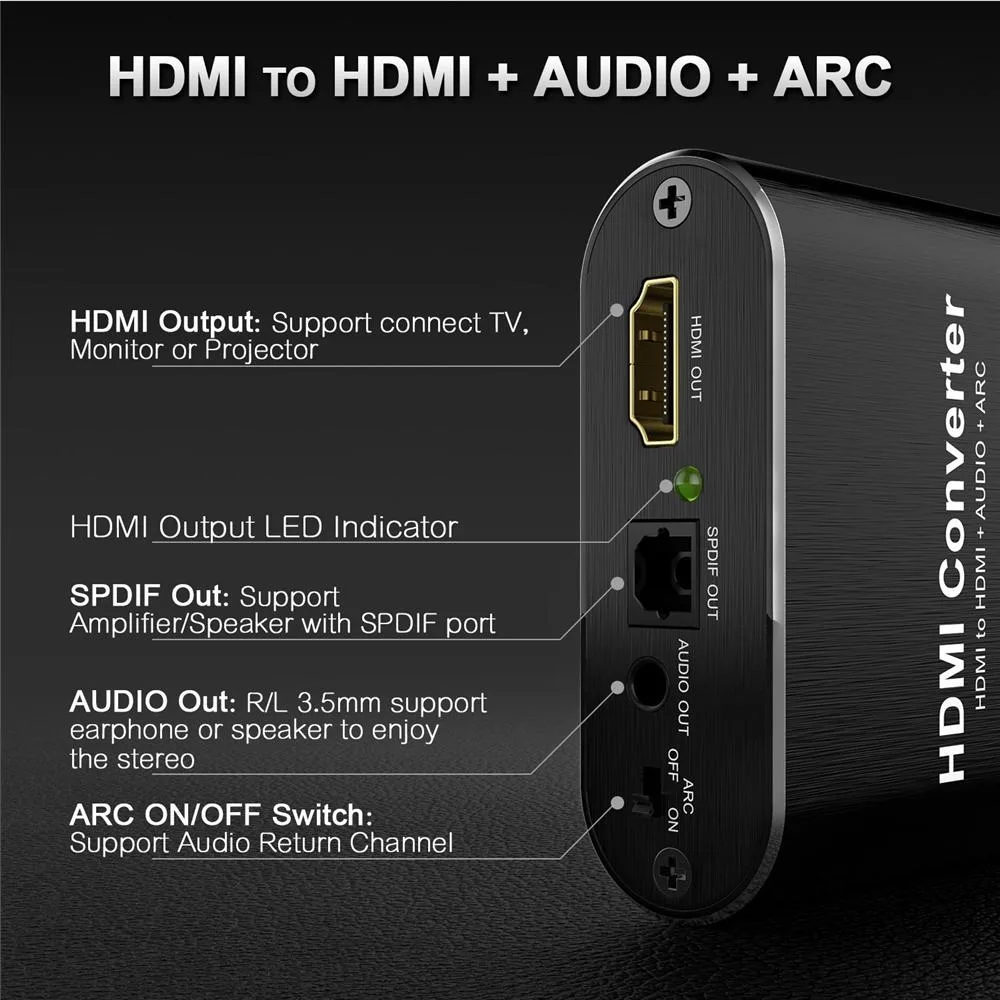

Output Port: 1 x HDMI OUT, 1 x SPDIF (Optical), 1 x 3.5mm Jack
HDMI resolution: 4K@60Hz/1080P/1080i/720p/576p/576i/480p/480i
Support video color format: 24bit/deep color 30bit,36bit
Max bandwidth: 340MHz
Max baud rate: 18Gbps
Max working current: 350mA
Input Connector1 HDMI input
Output Connectorone HDMI + Audio (SPDIF+3.5mm) Output
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
Features1.HDMI Audio Extractor :One HDMI input to One HDMI ouput + Optical Toslink SPDIF and Analog 3.5mm AUX stereo audio out,hdmi to 3.5mm audio adapter (Tips: SPDIF and AUX audio support output separeately to soundbar, amplifier, headphone and other audio receiver without connecting TV / Monitor)
2.Three Audio mode switch settings: (Pass, 2CH and 5.1CH Mode) 3.5mm audio output supports incoming 2CH PCM LPCM stereo audio; Optical SPDIF output supports incoming 2CH PCM, 5.1CH Dobly Digital, Dobly TrueHD, DTS-HD.(Note:Our product don’t support Dobly Digital plus and CEC function)
3. 4K 60Hz
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1 X HDMI Audio Extractor
1 x HDMI cable
1 x 5V/1A Power Adapter
1 X User Manual

Questions about this item

How do I confirm the Jansicotek OZV8 is passing 4K@60Hz video and 5.1CH audio after connecting it?

Check that the LED indicator lights for the active signal source and output, then verify your display shows 3840 x 2160 at 60Hz and your receiver reports a 5.1CH bitstream from the SPDIF or 3.5mm jack when the EDID switch is set to 5.1CH.

What cables and accessories come with the OZV8 and what must I provide myself?

The box includes the extractor, a 1.26-inch HDMI cable, a 5V/1A power adapter and a user manual; you must supply an optical Toslink cable for SPDIF or a 3.5mm stereo cable for analog audio, plus the source and display HDMI cables if longer runs are needed.

Which EDID audio setting — Pass, 2.0CH or 5.1CH — should I choose for my soundbar that only accepts stereo PCM?

Set the three-position EDID switch to 2.0CH so the extractor advertises two-channel PCM to the source, ensuring the SPDIF and 3.5mm outputs deliver compatible stereo audio without down-mixing errors.
