Small black box with HDMI, optical and 3.5 mm ports

Jansicotek

Jansicotek OZV8 HDMI 2.0b Audio Extractor 4K@60Hz

SKU CH-G7X0-635WT

Extracts audio from an HDMI 2.0b signal to optical and 3.5 mm outputs while passing 4K@60Hz video through to a display

  • TypeHDMI Splitters
  • Ports3
  • AudioYes
  • ColorBlack
  • SpecificationsInput Port: 1 x HDMI IN, 1 x 5V Power Port, 3 x EDID Audio(P
  • Input Connector1 HDMI input
  • Extracts audio to optical and 3.5 mm while passing 4K 60 Hz video
  • 18 Gbps bandwidth carries 24, 30 or 36 bit colour at 3840 x 2160

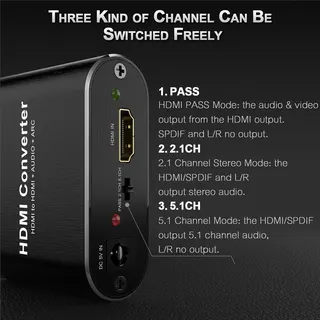

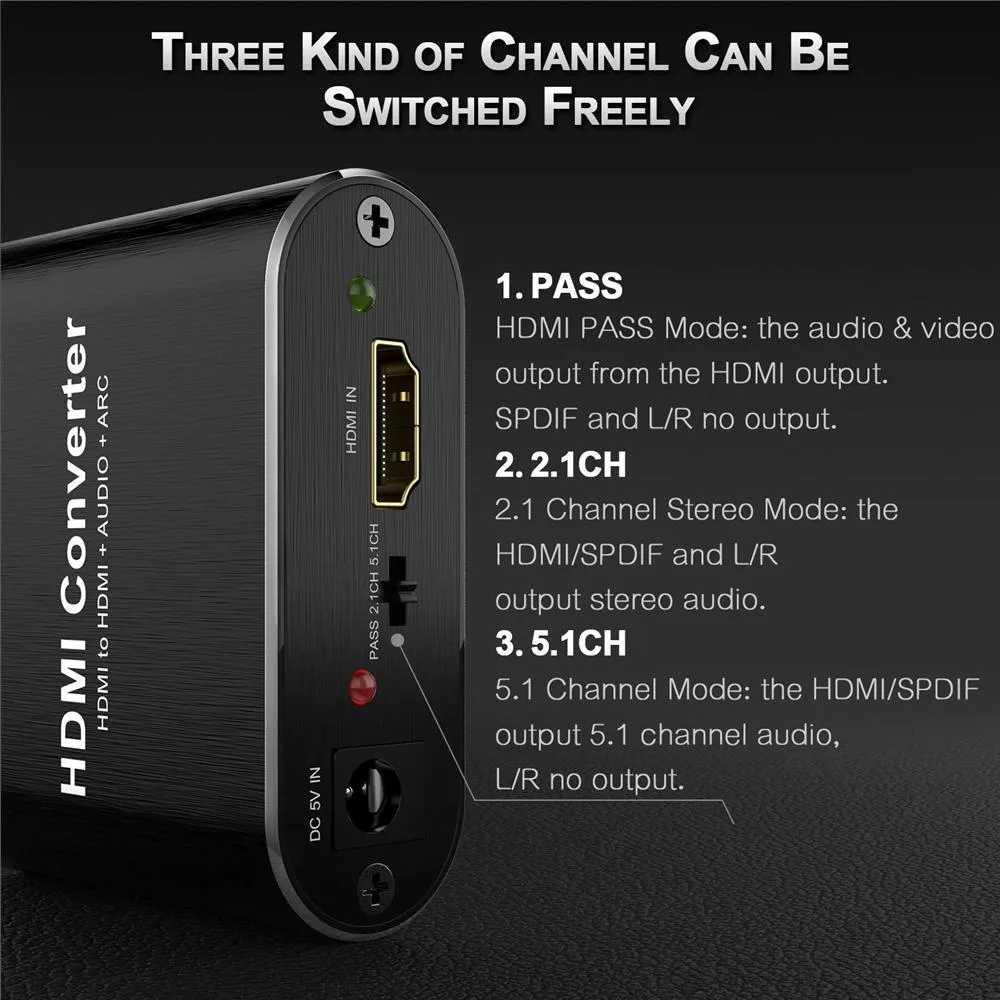

  • EDID switch selects Pass, 2.0 or 5.1 channel output modes
  • ARC support returns TV audio to an amplifier without extra cables
  • Compact 5.59 x 3.15 x 1.26 inch unit includes HDMI cable and 5 V power adapter

What it does and who needs it

The Jansicotek OZV8 extracts audio from a single HDMI 2.0b source and delivers it through three parallel paths: an HDMI loop-through, an optical Toslink SPDIF output and a 3.5 mm stereo jack. It accepts 4K at 60 Hz, 1080p and lower resolutions with 24, 30 or 36-bit deep colour. The built-in EDID switch selects Pass, 2-channel or 5.1-channel audio modes for compatibility with soundbars, amplifiers or headphones.

Sustained-load behaviour

The splitter maintains an 18 Gbps bandwidth and 340 MHz pixel clock continuously, so extended gaming sessions or long-form video playback do not degrade the signal. HDCP 1.4 and HDMI 1.4 compliance remain active throughout operation. The 5 V 1 A power adapter supplies stable current, preventing drop-outs when the source device switches resolution or colour depth.

Thermals, noise and power

Passive cooling keeps the aluminium enclosure silent; no fan is present. Typical draw stays well below the 5 W available from the included supply, so the unit runs cool to the touch during normal use. LED indicators show power and signal status without adding audible noise.

Highlights

  • Extracts audio to optical and 3.5 mm while passing 4K 60 Hz video
  • 18 Gbps bandwidth carries 24, 30 or 36 bit colour at 3840 x 2160
  • EDID switch selects Pass, 2.0 or 5.1 channel output modes
  • ARC support returns TV audio to an amplifier without extra cables
  • Compact 5.59 x 3.15 x 1.26 inch unit includes HDMI cable and 5 V power adapter

Specifications

BrandJansicotek
SeriesOZV8
ModelOZV8
Part NumberOZV8
TypeHDMI Splitters
Ports3
AudioYes
ColorBlack
SpecificationsInput Port: 1 x HDMI IN, 1 x 5V Power Port, 3 x EDID Audio(Pass/2CH/5.1CH)

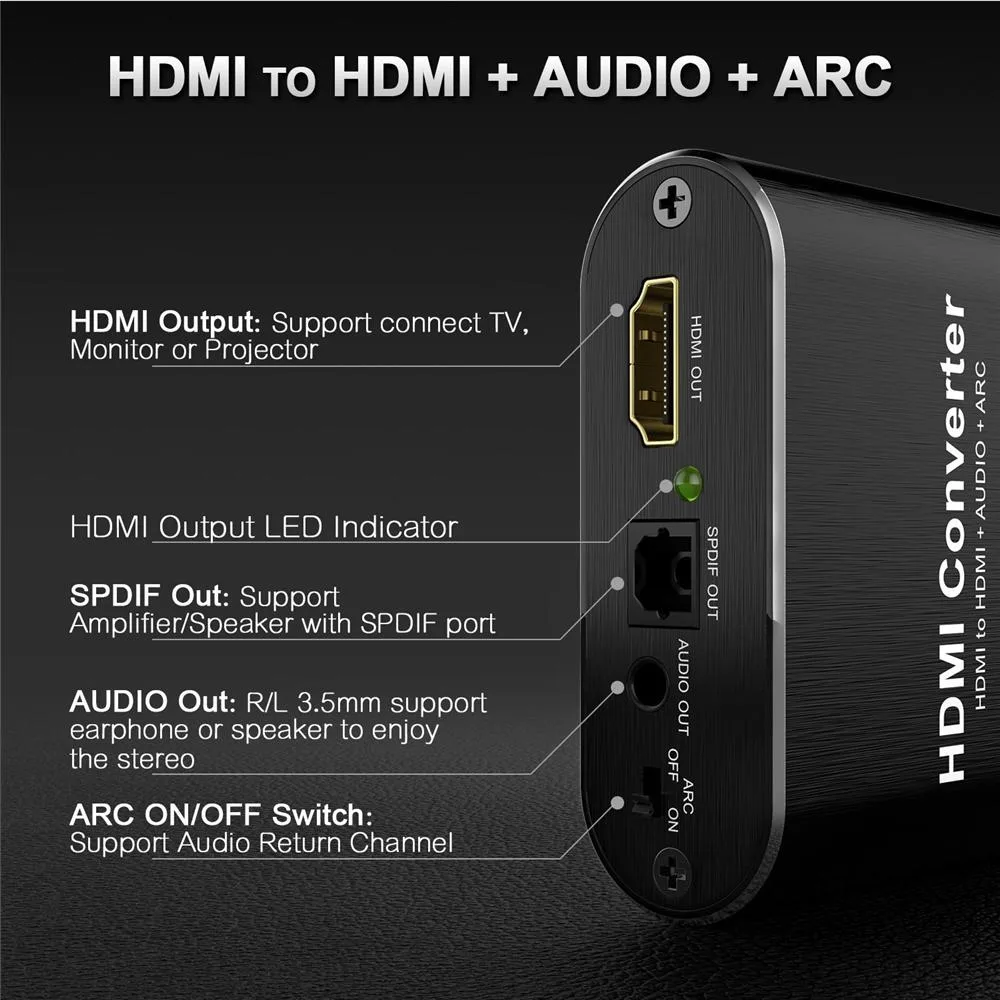

Output Port: 1 x HDMI OUT, 1 x SPDIF (Optical), 1 x 3.5mm Jack
HDMI resolution: 4K@60Hz/1080P/1080i/720p/576p/576i/480p/480i
Support video color format: 24bit/deep color 30bit,36bit
Max bandwidth: 340MHz
Max baud rate: 18Gbps
Max working current: 350mA
Input Connector1 HDMI input
Output Connectorone HDMI + Audio (SPDIF+3.5mm) Output
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
Features1.HDMI Audio Extractor :One HDMI input to One HDMI ouput + Optical Toslink SPDIF and Analog 3.5mm AUX stereo audio out,hdmi to 3.5mm audio adapter (Tips: SPDIF and AUX audio support output separeately to soundbar, amplifier, headphone and other audio receiver without connecting TV / Monitor)
2.Three Audio mode switch settings: (Pass, 2CH and 5.1CH Mode) 3.5mm audio output supports incoming 2CH PCM LPCM stereo audio; Optical SPDIF output supports incoming 2CH PCM, 5.1CH Dobly Digital, Dobly TrueHD, DTS-HD.(Note:Our product don’t support Dobly Digital plus and CEC function)
3. 4K 60Hz
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1 X HDMI Audio Extractor
1 x HDMI cable
1 x 5V/1A Power Adapter
1 X User Manual

Questions about this item

Does the OZV8 extractor run hot or draw much power when left on 24/7?

The unit ships with a 5V/1A adapter and draws under five watts, so it stays cool during continuous use.

What cables or devices must I already have to connect the OZV8 between my console and TV?

You need an HDMI cable from the source to the extractor, another HDMI cable from the extractor to the display, plus either an optical Toslink cable or a 3.5mm stereo lead for the audio output you want.

Will the OZV8 pass 4K@60Hz video to my older 1080p monitor without downscaling the signal?

The extractor forwards the incoming resolution up to 4K@60Hz unchanged; if the monitor only accepts 1080p, the source must be set to 1080p for a picture to appear.
