Jansicotek OZV8 HDMI 2.0 Audio Extractor 4K 60Hz SPDIF 3.5mm
Extracts audio from a 4K 60 Hz HDMI 2.0 signal to optical SPDIF and 3.5 mm analogue outputs while passing video through unchanged
- TypeHDMI Splitters
- Ports3
- AudioYes
- ColorBlack
- SpecificationsInput Port: 1 x HDMI IN, 1 x 5V Power Port, 3 x EDID Audio(P
- Input Connector1 HDMI input
- Extract audio to optical and 3.5 mm while keeping 4K 60 Hz video
- Pass-through 18 Gbps bandwidth for 3840 x 2160 at 60 Hz
- Switch between Pass, 2.0 CH and 5.1 CH EDID audio modes
- Support ARC return channel for TV-to-amplifier audio backhaul
- Compact 5.59 x 3.15 x 1.26 inch unit includes power supply and HDMI cable
HDMI 2.0 Audio Extractor 4K 60Hz
The Jansicotek OZV8 splits one HDMI 2.0 source into a video path and two independent audio paths. It suits owners of soundbars, AV receivers or headphones that lack HDMI inputs. The unit handles 4K at 60 Hz, 1080p and lower resolutions with 18 Gbps bandwidth.
Upgrade from TV-only audio
It replaces the limited audio outputs built into displays, letting a PS5, Xbox Series X or Blu-ray player feed a separate sound system while the picture continues to the screen. The jump is worth it when the display has no eARC port or when the amplifier only accepts optical or analogue stereo.
5.1-channel optical and 3.5 mm analogue
The extractor passes 5.1 surround through the SPDIF port and stereo through the 3.5 mm jack, both selectable via an EDID switch. It runs out of headroom for uncompressed multichannel formats beyond 5.1 and cannot pass HDR metadata beyond the HDMI 1.4 colour-space limits.
Highlights
- Extract audio to optical and 3.5 mm while keeping 4K 60 Hz video
- Pass-through 18 Gbps bandwidth for 3840 x 2160 at 60 Hz
- Switch between Pass, 2.0 CH and 5.1 CH EDID audio modes
- Support ARC return channel for TV-to-amplifier audio backhaul
- Compact 5.59 x 3.15 x 1.26 inch unit includes power supply and HDMI cable
Specifications
| Brand | Jansicotek |
|---|---|
| Series | OZV8 |
| Model | OZV8 |
| Part Number | OZV8 |
| Type | HDMI Splitters |
| Ports | 3 |
| Audio | Yes |
| Color | Black |

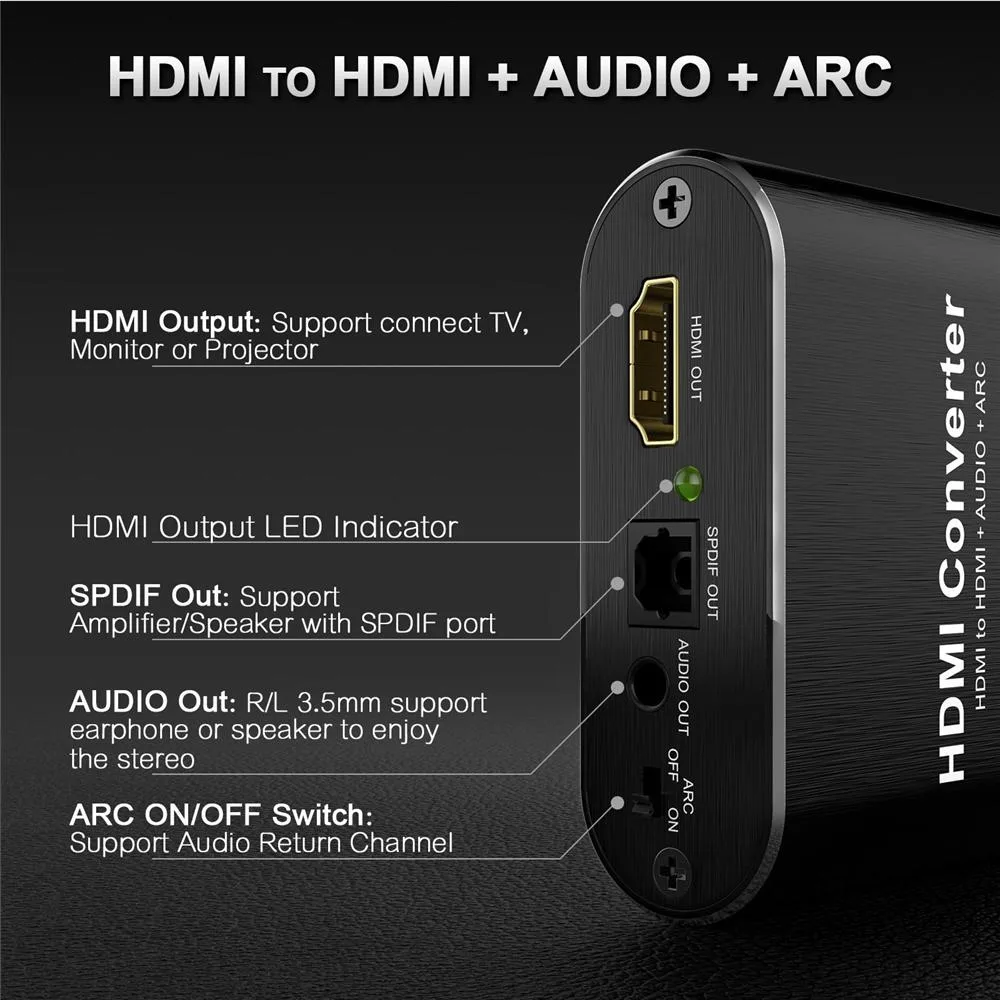

| Specifications | Input Port: 1 x HDMI IN, 1 x 5V Power Port, 3 x EDID Audio(Pass/2CH/5.1CH) Output Port: 1 x HDMI OUT, 1 x SPDIF (Optical), 1 x 3.5mm Jack HDMI resolution: 4K@60Hz/1080P/1080i/720p/576p/576i/480p/480i Support video color format: 24bit/deep color 30bit,36bit Max bandwidth: 340MHz Max baud rate: 18Gbps Max working current: 350mA |
| Input Connector | 1 HDMI input |
| Output Connector | one HDMI + Audio (SPDIF+3.5mm) Output |
| Maximum Resolutions | 3840 x 2160 |
| Bandwidth | 18Gbps |
| Features | 1.HDMI Audio Extractor :One HDMI input to One HDMI ouput + Optical Toslink SPDIF and Analog 3.5mm AUX stereo audio out,hdmi to 3.5mm audio adapter (Tips: SPDIF and AUX audio support output separeately to soundbar, amplifier, headphone and other audio receiver without connecting TV / Monitor) 2.Three Audio mode switch settings: (Pass, 2CH and 5.1CH Mode) 3.5mm audio output supports incoming 2CH PCM LPCM stereo audio; Optical SPDIF output supports incoming 2CH PCM, 5.1CH Dobly Digital, Dobly TrueHD, DTS-HD.(Note:Our product don’t support Dobly Digital plus and CEC function) 3. 4K 60Hz |
| Dimensions | 5.59 x 3.15 x 1.26 inches |
| Weight | 3.2 ounces |
| Package Quantity | 1 |
| Package Contents | 1 X HDMI Audio Extractor 1 x HDMI cable 1 x 5V/1A Power Adapter 1 X User Manual |
Questions about this item
What are the dimensions of the OZV8 audio extractor and what power connection does it require?
The unit measures 5.59 x 3.15 x 1.26 inches and includes a 5V power port; the supplied 5V/1A adapter must be connected for operation.

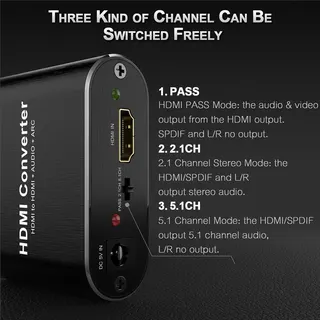

How do I set the EDID audio switch on the OZV8 and what is the common mistake?
Slide the three-position switch to Pass, 2CH, or 5.1CH to match your audio system; the frequent error is leaving it on Pass when a soundbar only accepts stereo.
Will the optical SPDIF or 3.5 mm jack on the OZV8 need periodic replacement?
Both output ports are passive connectors with no moving parts; they do not wear out under normal use and require no scheduled replacement.
