Small black box with HDMI, optical and 3.5mm ports

Jansicotek

Jansicotek OZV8 4K@60Hz HDMI Audio Extractor SPDIF 3.5mm

SKU CH-5ZTD-7T78Y

Extracts audio from an HDMI source to optical SPDIF and 3.5 mm outputs while passing 4K@60 Hz video to a display

  • TypeHDMI Splitters
  • Ports3
  • AudioYes
  • ColorBlack
  • SpecificationsInput Port: 1 x HDMI IN, 1 x 5V Power Port, 3 x EDID Audio(P
  • Input Connector1 HDMI input
  • Extract audio to optical and 3.5mm while passing 4K@60Hz video
  • Select 2.0CH or 5.1CH EDID mode for compatible sound systems
  • Supports ARC return channel from TV to amplifier via HDMI
  • 18Gbps bandwidth handles 3840x2160 at 60Hz with deep colour
  • Compact 5.59x3.15x1.26 inch unit includes power adapter and HDMI cable

What this is and who it is for

The Jansicotek OZV8 is a new HDMI audio extractor that takes one HDMI input and delivers one HDMI video output plus separate optical SPDIF and 3.5 mm analogue audio. It handles video up to 3840 x 2160 at 60 Hz with 18 Gbps bandwidth and supports ARC for TV-to-amplifier audio return.

Who should buy it and who should not

This suits anyone who needs to split HDMI audio to a soundbar, amplifier or headphones while keeping the video path intact, and who wants selectable EDID modes for stereo or 5.1 channel output. Buyers who require multiple HDMI outputs, HDMI 2.1 features such as higher refresh rates or eARC, or pass-through of advanced HDR formats should look elsewhere because the device provides only a single HDMI output and follows the HDMI 1.4 specification.

The specification that decides fit

The key figure is the 18 Gbps maximum bandwidth, which locks the extractor to 4K at 60 Hz and HDMI 1.4 capabilities; if your source or display needs the higher throughput of HDMI 2.0 or 2.1 this unit will not pass the full signal.

Highlights

  • Extract audio to optical and 3.5mm while passing 4K@60Hz video
  • Select 2.0CH or 5.1CH EDID mode for compatible sound systems
  • Supports ARC return channel from TV to amplifier via HDMI
  • 18Gbps bandwidth handles 3840x2160 at 60Hz with deep colour
  • Compact 5.59x3.15x1.26 inch unit includes power adapter and HDMI cable

Specifications

BrandJansicotek
SeriesOZV8
ModelOZV8
Part NumberOZV8
TypeHDMI Splitters
Ports3
AudioYes
ColorBlack
SpecificationsInput Port: 1 x HDMI IN, 1 x 5V Power Port, 3 x EDID Audio(Pass/2CH/5.1CH)

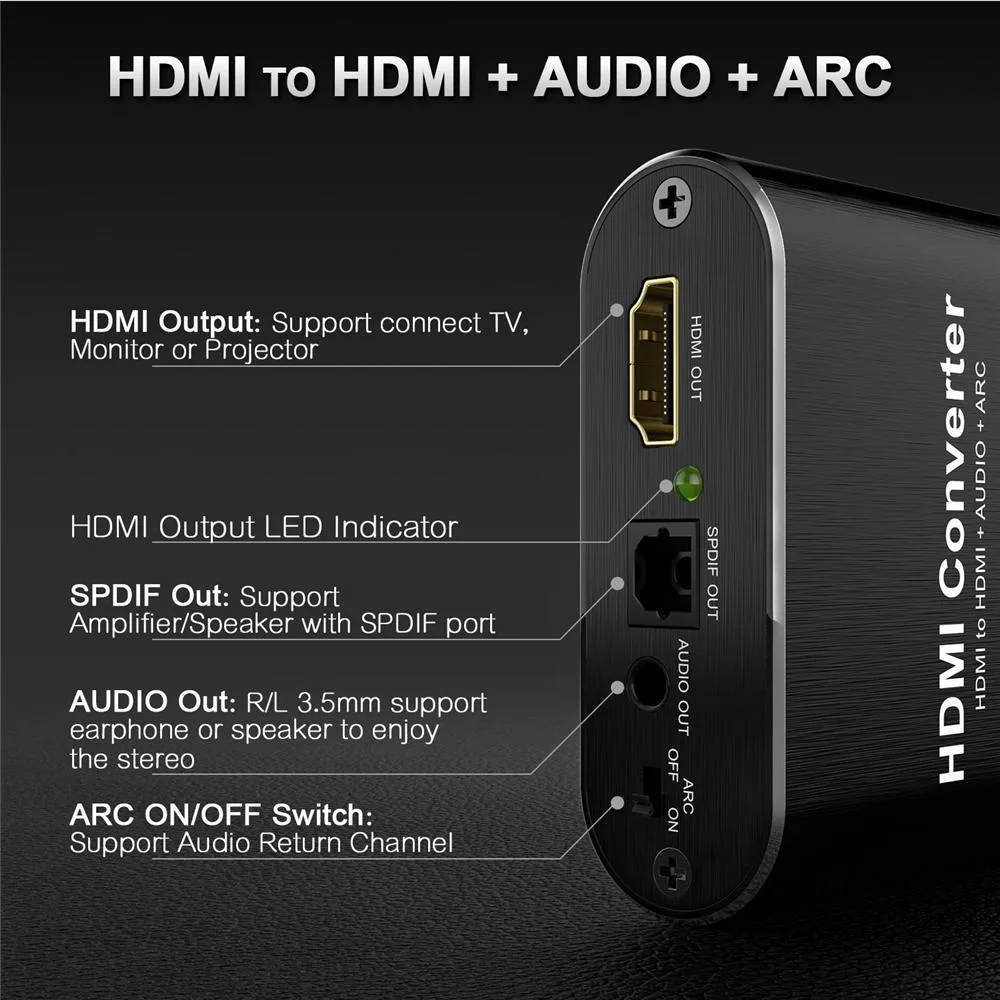

Output Port: 1 x HDMI OUT, 1 x SPDIF (Optical), 1 x 3.5mm Jack
HDMI resolution: 4K@60Hz/1080P/1080i/720p/576p/576i/480p/480i
Support video color format: 24bit/deep color 30bit,36bit
Max bandwidth: 340MHz
Max baud rate: 18Gbps
Max working current: 350mA
Input Connector1 HDMI input
Output Connectorone HDMI + Audio (SPDIF+3.5mm) Output
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
Features1.HDMI Audio Extractor :One HDMI input to One HDMI ouput + Optical Toslink SPDIF and Analog 3.5mm AUX stereo audio out,hdmi to 3.5mm audio adapter (Tips: SPDIF and AUX audio support output separeately to soundbar, amplifier, headphone and other audio receiver without connecting TV / Monitor)

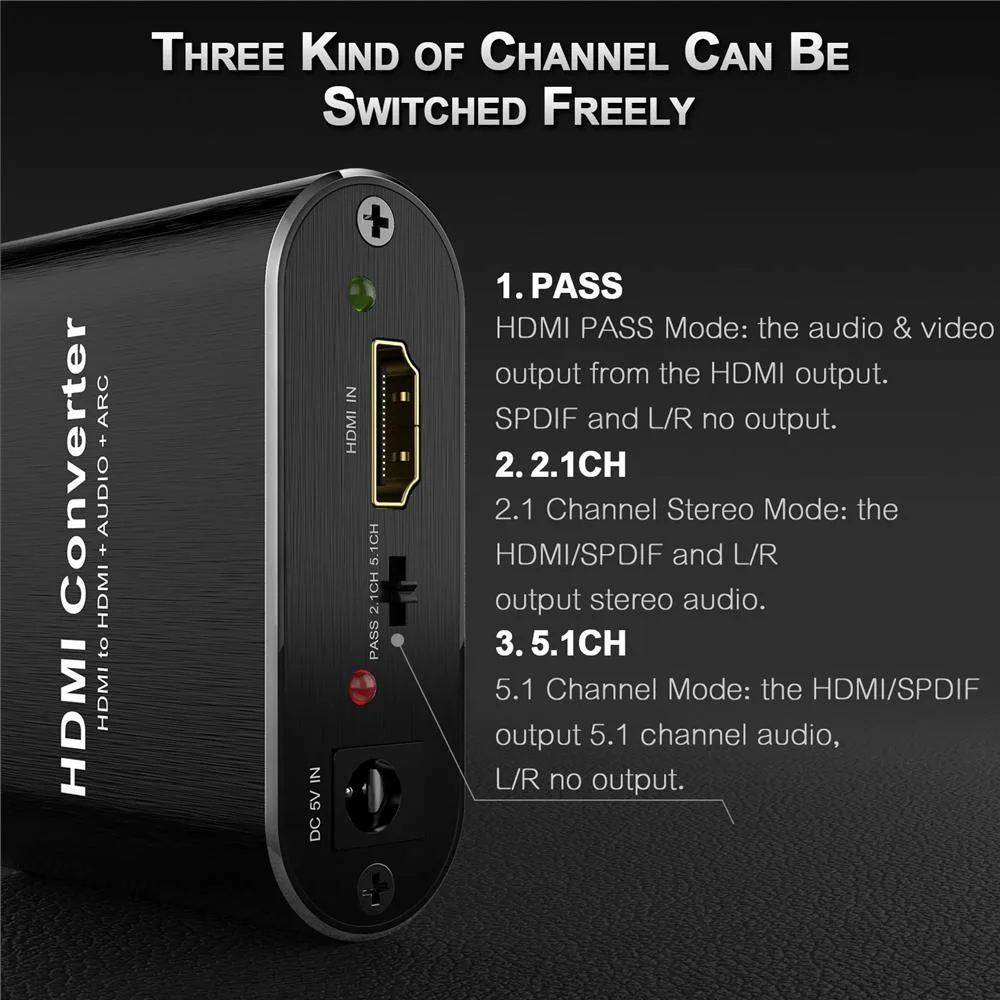

2.Three Audio mode switch settings: (Pass, 2CH and 5.1CH Mode) 3.5mm audio output supports incoming 2CH PCM LPCM stereo audio; Optical SPDIF output supports incoming 2CH PCM, 5.1CH Dobly Digital, Dobly TrueHD, DTS-HD.(Note:Our product don’t support Dobly Digital plus and CEC function)
3. 4K 60Hz
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1 X HDMI Audio Extractor
1 x HDMI cable
1 x 5V/1A Power Adapter
1 X User Manual

Questions about this item

Does the 5 V 1 A power adapter ever need replacing?

The included 5 V 1 A adapter powers the unit; if it fails you can swap in any 5 V 1 A supply with the same barrel plug.

What resolution or bandwidth ceiling appears first on a long 4K 60 Hz run?

The 18 Gbps HDMI 1.4 link and 340 MHz pixel clock set the hard limit for 4K 60 Hz signals.

How warm or noisy does the OZV8 get when left on all day?

No fan is fitted so it runs silent; the aluminium case stays only slightly warm during continuous 4K 60 Hz use.
