Black compact HDMI audio extractor with HDMI, optical and 3.5 mm ports

Jansicotek

Jansicotek OZV8 4K 60Hz HDMI 2.0 Audio Extractor ARC

SKU CH-K9QF-C5491

Extracts HDMI audio to optical and 3.5 mm outputs while passing 4K 60 Hz video, with ARC support and selectable EDID modes

  • TypeHDMI Splitters
  • Ports3
  • AudioYes
  • ColorBlack
  • SpecificationsInput Port: 1 x HDMI IN, 1 x 5V Power Port, 3 x EDID Audio(P
  • Input Connector1 HDMI input
  • Extracts audio to optical SPDIF and 3.5 mm jack for soundbars or headphones
  • Passes 4K 60 Hz video at 18 Gbps bandwidth to the display
  • Supports ARC return channel so TV audio reaches an amplifier without extra cables
  • Three EDID modes — Pass 2 CH 5.1 CH — match any source device
  • Compact 5.59 x 3.15 x 1.26 inch unit powered by included 5 V adapter

4K 60 Hz HDMI 2.0 Audio Extractor

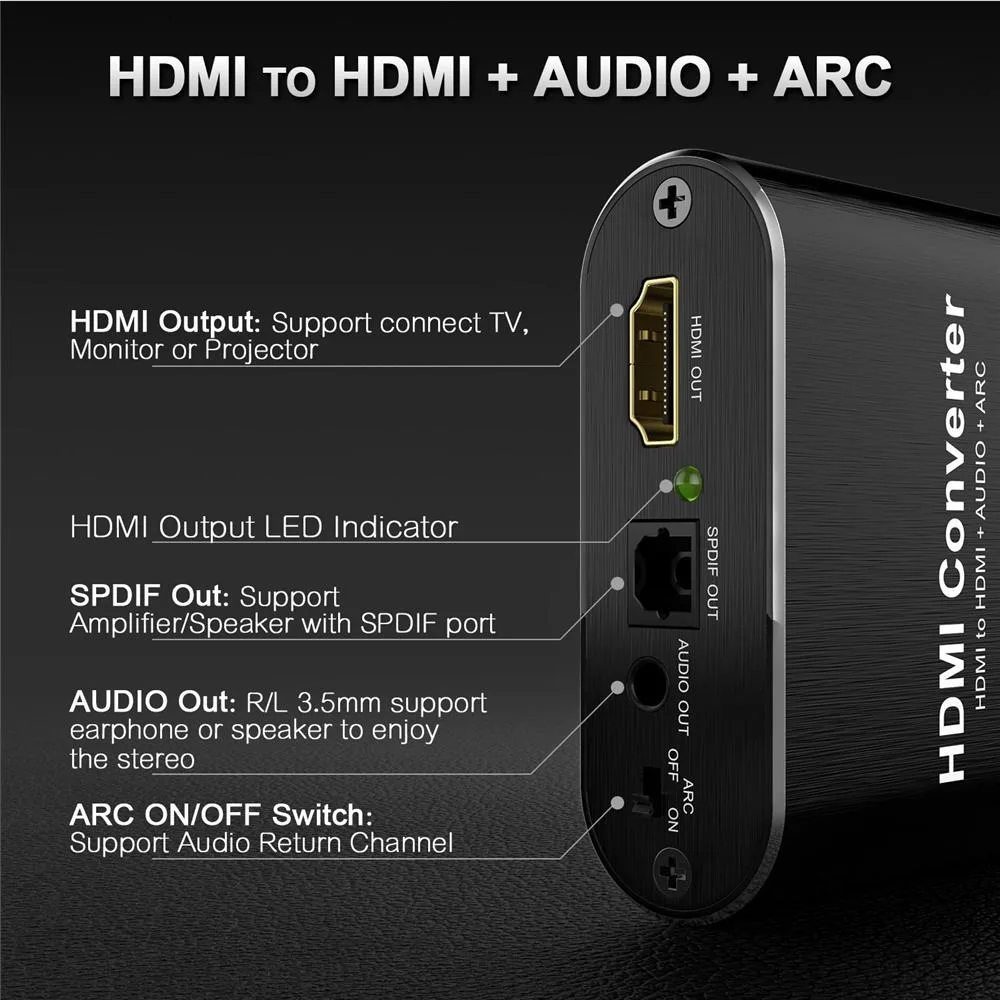

The Jansicotek OZV8 takes a single HDMI 2.0 input and delivers one HDMI video output plus separate digital optical and analogue 3.5 mm audio outputs. It handles resolutions up to 4K at 60 Hz with 18 Gbps bandwidth and supports ARC for audio return from a compatible display.

Suitable for consoles.

This unit suits users who want to send video to a TV or projector while routing 5.1-channel or stereo sound to a soundbar, amplifier or headphones via optical or 3.5 mm connections. It does not suit installations that require HDMI 2.1 bandwidth, multiple HDMI inputs, or automatic source switching.

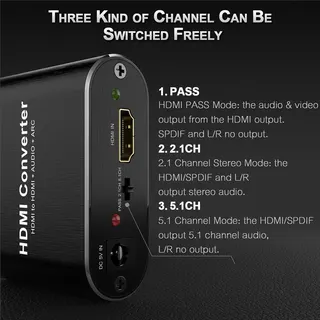

EDID audio mode switch decides compatibility

A three-position switch selects Pass, 2-channel or 5.1-channel EDID presentation to the source device, determining whether the connected player outputs multichannel or stereo audio. Choosing the wrong setting can silence surround sound or cause handshake failures.

Highlights

  • Extracts audio to optical SPDIF and 3.5 mm jack for soundbars or headphones
  • Passes 4K 60 Hz video at 18 Gbps bandwidth to the display
  • Supports ARC return channel so TV audio reaches an amplifier without extra cables
  • Three EDID modes — Pass 2 CH 5.1 CH — match any source device
  • Compact 5.59 x 3.15 x 1.26 inch unit powered by included 5 V adapter

Specifications

BrandJansicotek
SeriesOZV8
ModelOZV8
Part NumberOZV8
TypeHDMI Splitters
Ports3
AudioYes
ColorBlack
SpecificationsInput Port: 1 x HDMI IN, 1 x 5V Power Port, 3 x EDID Audio(Pass/2CH/5.1CH)
Output Port: 1 x HDMI OUT, 1 x SPDIF (Optical), 1 x 3.5mm Jack
HDMI resolution: 4K@60Hz/1080P/1080i/720p/576p/576i/480p/480i
Support video color format: 24bit/deep color 30bit,36bit
Max bandwidth: 340MHz
Max baud rate: 18Gbps
Max working current: 350mA
Input Connector1 HDMI input
Output Connectorone HDMI + Audio (SPDIF+3.5mm) Output
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
Features1.HDMI Audio Extractor :One HDMI input to One HDMI ouput + Optical Toslink SPDIF and Analog 3.5mm AUX stereo audio out,hdmi to 3.5mm audio adapter (Tips: SPDIF and AUX audio support output separeately to soundbar, amplifier, headphone and other audio receiver without connecting TV / Monitor)
2.Three Audio mode switch settings: (Pass, 2CH and 5.1CH Mode) 3.5mm audio output supports incoming 2CH PCM LPCM stereo audio; Optical SPDIF output supports incoming 2CH PCM, 5.1CH Dobly Digital, Dobly TrueHD, DTS-HD.(Note:Our product don’t support Dobly Digital plus and CEC function)
3. 4K 60Hz
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1 X HDMI Audio Extractor
1 x HDMI cable
1 x 5V/1A Power Adapter
1 X User Manual

Questions about this item

Do I need a separate power adapter for the OZV8 extractor?

The unit includes a 5V/1A power adapter that plugs into its dedicated 5V power port; the extractor will not operate without it.

Will my older 1080p display still pass video through the HDMI 2.0 output?

Yes — the HDMI OUT supports 1080p, 1080i, 720p and lower resolutions at up to 60Hz alongside the 4K 60Hz mode.

How can I verify the ARC return channel is active after connecting everything?

The front LED indicator lights when a valid HDMI signal is present; audio from the TV’s ARC feed will appear simultaneously on both the optical SPDIF and 3.5mm outputs when the EDID switch is set to Pass or 5.1CH.
