Small black box with HDMI, optical and 3.5mm ports

Jansicotek

Jansicotek OZV8-1A 4K@60Hz HDMI Audio Extractor

SKU CH-JWMW-Z9VC9

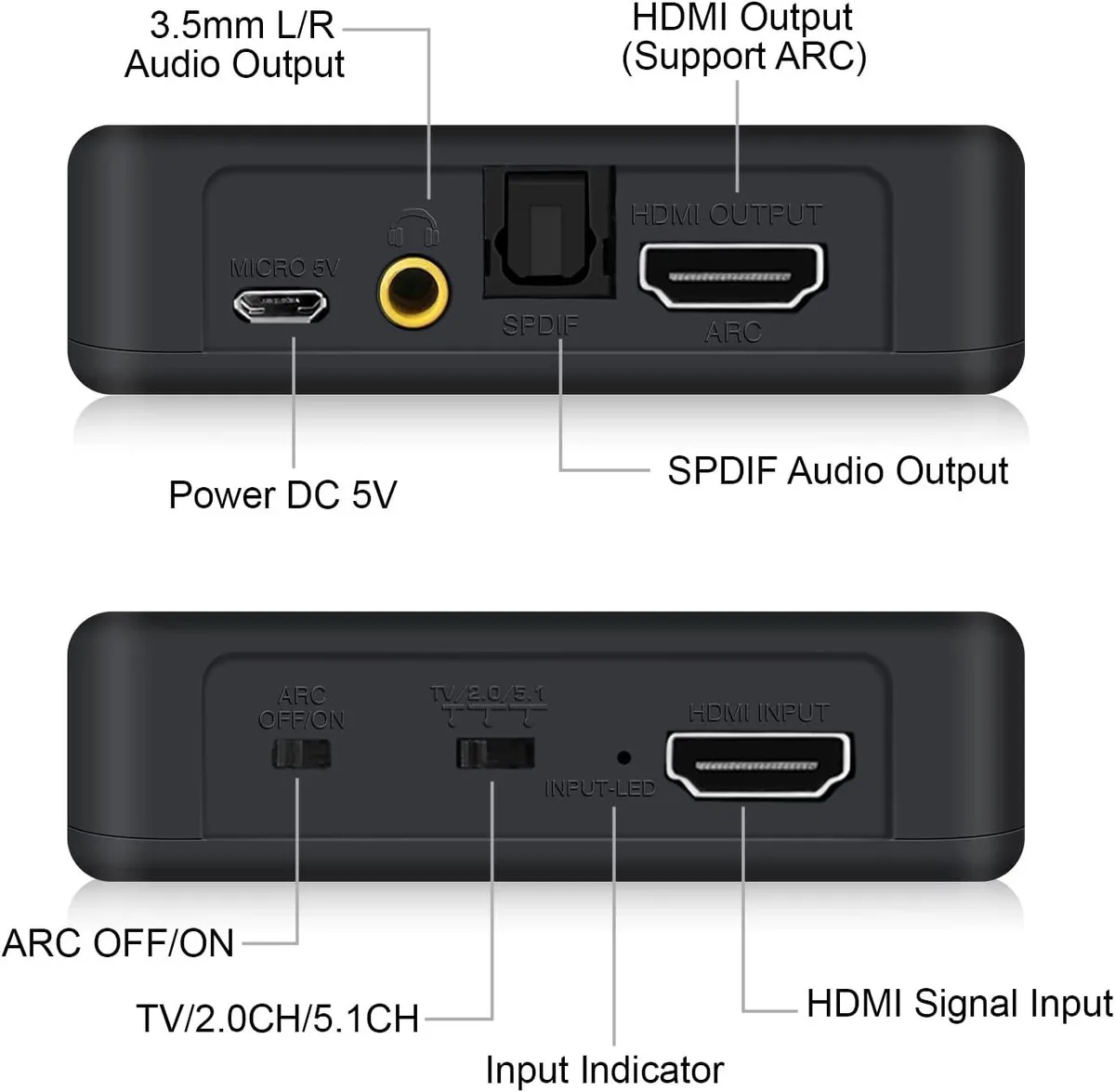

Extracts digital audio from an HDMI source to optical SPDIF and 3.5 mm outputs while passing 4K 60 Hz video to a display

  • TypeHDMI Splitters
  • Ports3
  • AudioYes
  • ColorBlack
  • SpecificationsHDMI to HDMI Audio Extractor 1. One HDMI input converted to
  • Input Connector1 HDMI input
  • Extract audio to amplifier or soundbar via optical and 3.5 mm outputs
  • Pass 4K 60 Hz video with 18 Gbps bandwidth and HDCP 2.2
  • Use ARC to return TV audio through the same HDMI cable
  • Choose 2.0 CH or 5.1 CH output modes for stereo or surround
  • Compact 5.59 x 3.15 x 1.26 inch unit includes optical cable and power adapter

Product Identity

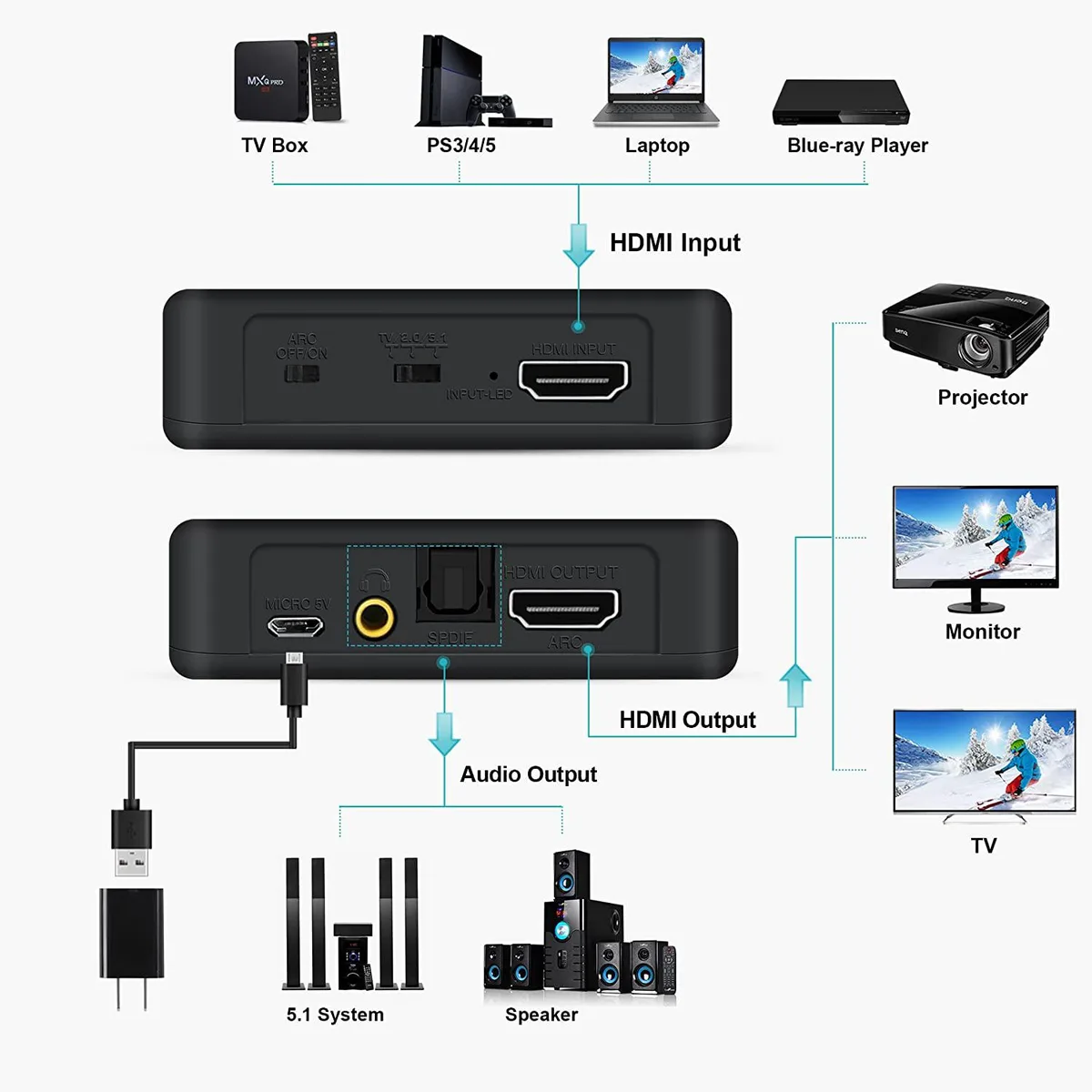

The Jansicotek OZV8-1A extracts audio from an HDMI source and sends it to separate analogue or digital outputs while passing 4K video at 60 Hz to a display. It suits anyone connecting a console, streaming stick or laptop to a soundbar, amplifier or powered speakers that lack HDMI inputs.

Setup Check

Verify your source device has an HDMI output and that your audio system accepts either a 3.5 mm stereo jack or a Toslink optical cable. The extractor requires the included USB power adapter, so a spare USB port or mains charger must be available. Ensure the HDMI cable run does not exceed the bandwidth needed for 3840 x 2160 at 60 Hz.

Thermals Noise Power

The unit draws power from a 5 V USB supply and runs without a fan, so it adds no audible noise to the listening environment. Its compact enclosure stays cool during continuous operation because the circuitry only processes signal conversion rather than amplifying audio. No external power brick beyond the supplied adapter is needed.

Highlights

  • Extract audio to amplifier or soundbar via optical and 3.5 mm outputs
  • Pass 4K 60 Hz video with 18 Gbps bandwidth and HDCP 2.2
  • Use ARC to return TV audio through the same HDMI cable
  • Choose 2.0 CH or 5.1 CH output modes for stereo or surround
  • Compact 5.59 x 3.15 x 1.26 inch unit includes optical cable and power adapter

Specifications

BrandJansicotek
SeriesOZV8-1A
ModelOZV8-1A
Part NumberOZV8-1A
TypeHDMI Splitters
Ports3
AudioYes
ColorBlack
SpecificationsHDMI to HDMI Audio Extractor
1. One HDMI input converted to one HDMI + Audio (SPDIF+R/L) output.
2. One Output ports support 3.5mm Audio Port, Toslink SPDIF Optical port
3. HDMI resolution:480i/480p/576i/576p/720p/1080i/1080p/4K2K@30Hz/3D
4. Digital audio format,as DTS-HD/Dolby-trueHD/LPCM7. 1/DTS/Dolby-AC3/DSD
5. Support 4Kx2K@30Hz,Support 3D
6. Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
Input Connector1 HDMI input
Output Connectorone HDMI + Audio (SPDIF+3.5mm) Output
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
FeaturesOne HDMI input converted to one HDMI + Audio (SPDIF+3.5mm) Output to achieve the synchronization of audio signal separation.
Support ARC Function (Audio Return Channel)
Support 4Kx2K@60Hz, Support 3D HDCP 2.2
Support blue-ray 24/ 50/ 60fs/ hd-dvd/ XVYCC
Digital audio format, as dts-hd/ dobly-true hd/ LPCM7.1/ DTS/ dobly-ac-3 (Not Support Always Dobly Digital plus)
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1 x HDMI Audio Extractor Converter
1 x Digital Optical Cable
1 x USB Power Adapter
1 x HDMI Cable
1 x User Manual

Questions about this item

Does the box include every cable I need to connect a source and a soundbar?

The package contains the extractor, a digital optical cable, an HDMI cable and a USB power adapter, so you can link a source, a display and a soundbar without buying extra leads.

Should I use the 3.5 mm jack or the optical port for 5.1 surround sound?

The optical SPDIF output carries 5.1 channel Dolby Digital, Dolby True HD and DTS, while the 3.5 mm jack is limited to 2 channel PCM stereo.

Will 4K at 60 Hz video pass through without dropping frames?

The unit supports 3840 x 2160 at 60 Hz with 18 Gbps bandwidth and HDCP 2.2, so full 4K 60 Hz signals travel to the display intact.
