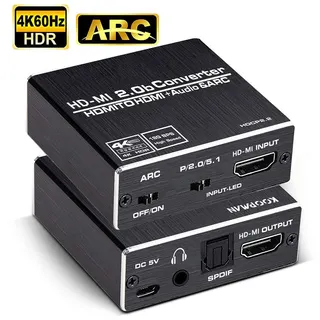

Black aluminum box with HDMI, optical and 3.5 mm ports

Jansicotek

Jansicotek OZV8-1 HDMI Audio Extractor 4K 60Hz ARC

SKU CH-4C2H-5TW9Q

Extracts audio from a 4K 60 Hz HDMI source to optical and 3.5 mm outputs while passing HDR video

  • TypeHDMI Splitters
  • Ports3
  • AudioYes
  • ColorBlack
  • SpecificationsHDMI Resolution: 4K2K/3D/1080P/720P/576P/480P/480i Support v
  • Input Connector1 HDMI input
  • 4K 60 Hz video with HDR10 via HDMI 2.0 18 Gbps bandwidth
  • Extracts audio to optical Toslink and 3.5 mm jack for soundbars or speakers
  • Supports DTS-HD Dolby TrueHD LPCM 7.1 through SPDIF output
  • EDID switch selects 2.1 CH 5.1 CH or pass-through audio modes
  • Aluminium housing with 5 V 1 A power adapter included

4K 60 Hz HDMI audio extractor

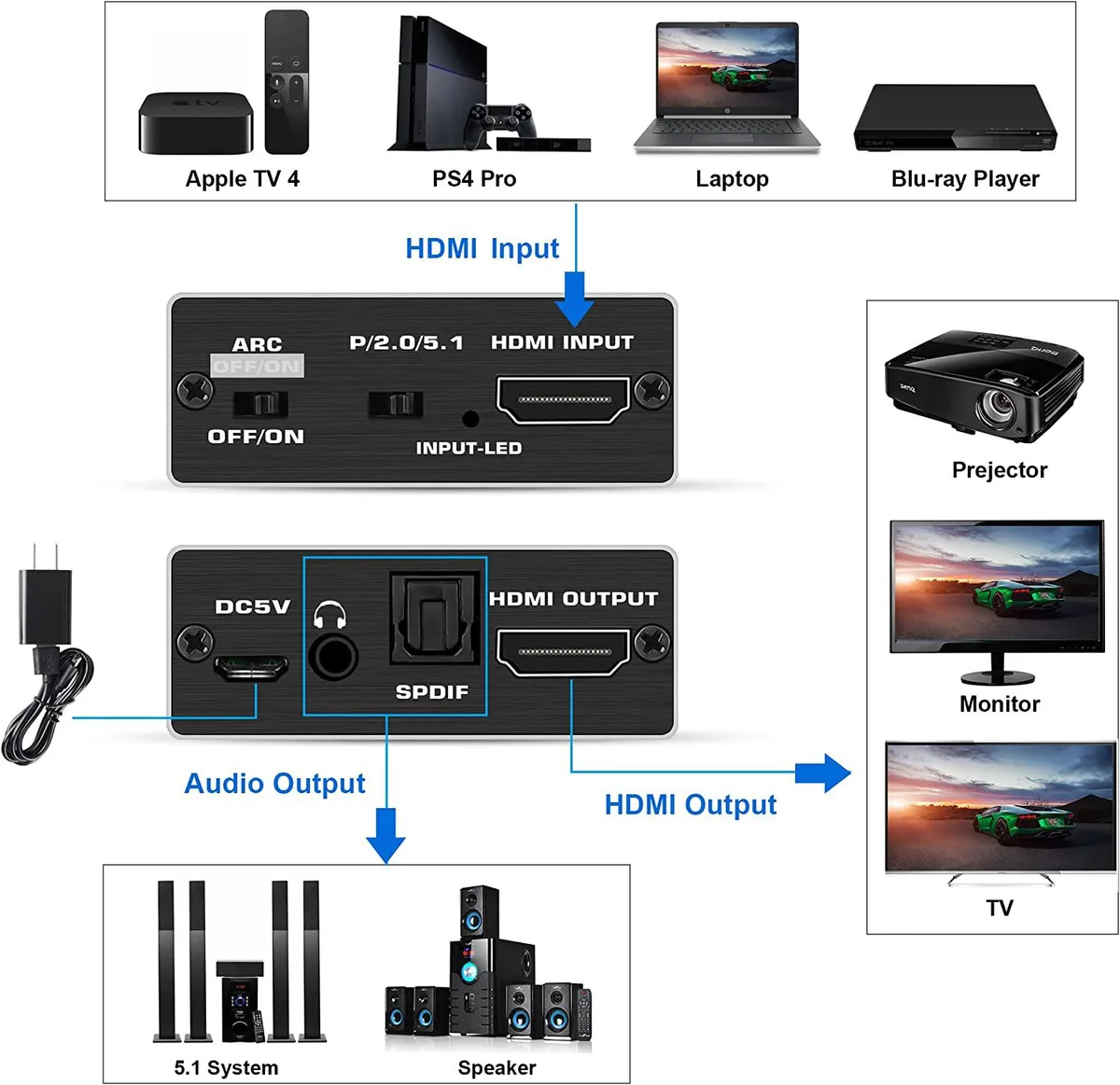

The Jansicotek OZV8-1 splits one HDMI source into a mirrored HDMI output plus separate optical Toslink and 3.5 mm analogue audio feeds. It handles 4K at 60 Hz with HDR10 and 18 Gbps bandwidth, making it suited for consoles, Blu-ray players or media streamers that need external sound systems. The box includes a 5 V power adapter and a short manual.

Aluminium shell with gold-plated ports

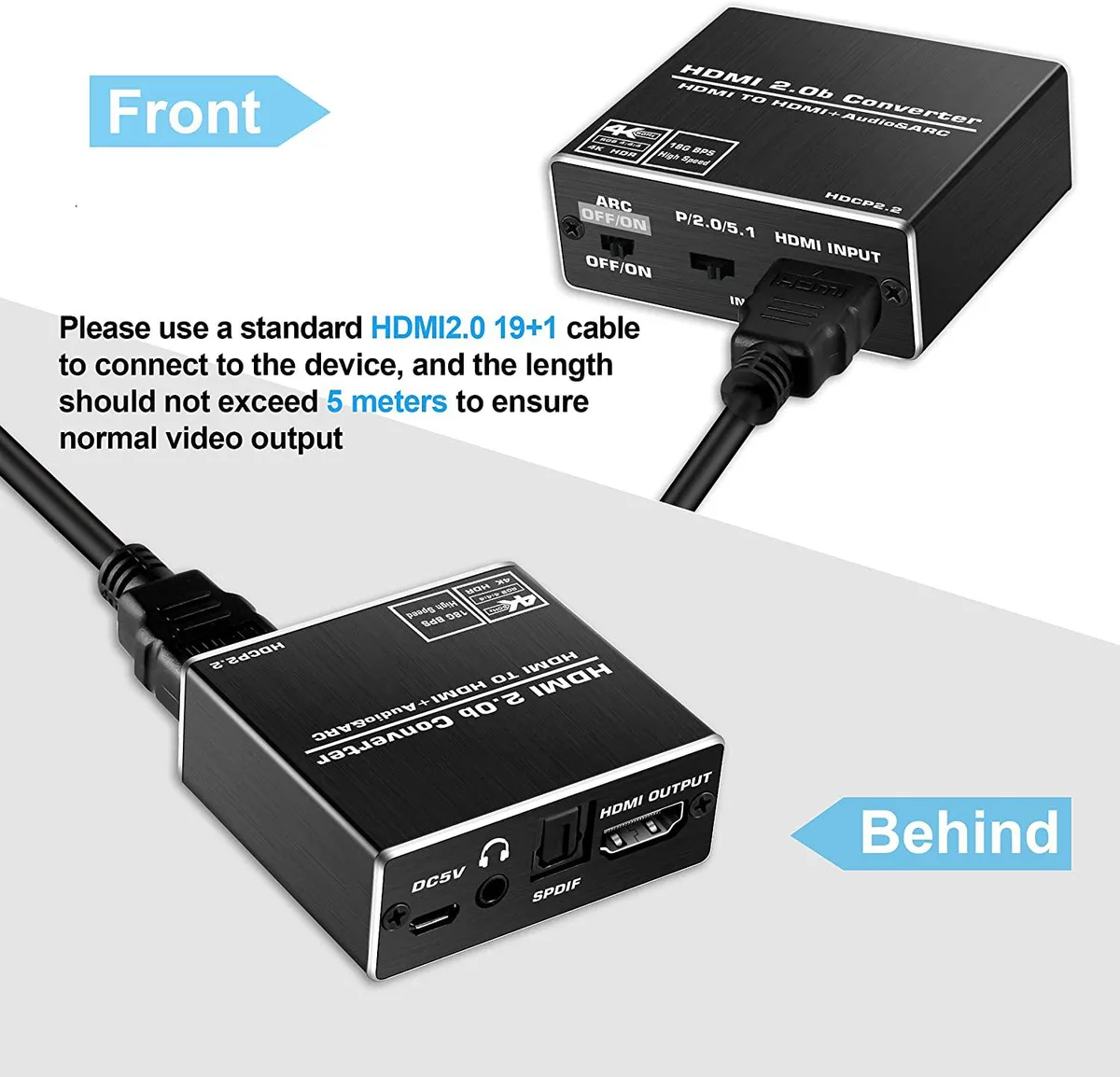

A compact aluminium enclosure measuring 5.59 by 3.15 by 1.26 inches houses gold-plated HDMI connectors rated for 10 metre input cables at AWG26. One HDMI input accepts the source; one HDMI output passes video onward while SPDIF and 3.5 mm jacks deliver extracted audio. EDID switches select 2.1 CH, 5.1 CH or pass-through modes without software.

Passive cooling, external 5 V supply

The unit draws power from the supplied 5 V 1 A adapter and runs without a fan, so operation is silent. Maximum video bandwidth reaches 600 MHz and 18 Gbps while supporting deep-colour formats up to 36 bit. No Dolby Digital Plus or Atmos decoding is provided, so multichannel formats beyond the listed DTS-HD, Dolby TrueHD, LPCM 7.1 and standard AC-3 require a downstream processor.

Highlights

  • 4K 60 Hz video with HDR10 via HDMI 2.0 18 Gbps bandwidth
  • Extracts audio to optical Toslink and 3.5 mm jack for soundbars or speakers
  • Supports DTS-HD Dolby TrueHD LPCM 7.1 through SPDIF output
  • EDID switch selects 2.1 CH 5.1 CH or pass-through audio modes
  • Aluminium housing with 5 V 1 A power adapter included

Specifications

BrandJansicotek
SeriesOZV8-1
ModelOZV8-1
Part NumberOZV8-1
TypeHDMI Splitters
Ports3
AudioYes
ColorBlack
SpecificationsHDMI Resolution: 4K2K/3D/1080P/720P/576P/480P/480i
Support video color format: 24bit/deep color 30bit,36bit
Max bandwidth: 600MHZ
Max baud rate: 18Gbps
Input cable distance: 10m AWG26 HDMI standard cable
Output cable distance: 10m AWG26 HDMI standard cable
Max working current: 350mA
Input Connector1 HDMI input
Output Connectorone HDMI + Audio (SPDIF+3.5mm) Output
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
FeaturesSupport 4K x 2K@60Hz, Support 3D
Support blue-ray 24/50/60fs/HD-DVD/XVYCC
Digital audio format, as dts-hd/dobly-truehd/LPCM7.1/DTS/dobly-ac-3(not support always Dobly Digital plus)
Need DC5V power supply.
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1 X HDMI Audio Extractor
1 x 5V/1A Power Adapter
1 X User Manual

Questions about this item

What HDMI standard and bandwidth limit does the OZV8-1 use for 4K 60 Hz video?

It uses HDMI 2.0 with an 18 Gbps bandwidth ceiling, which caps 4K at 60 Hz with 4:4:4 chroma and HDR10.

What are the exact dimensions and weight of the OZV8-1 unit itself?

The aluminium enclosure measures 5.59 x 3.15 x 1.26 inches and weighs 3.2 ounces.

How is the OZV8-1 powered and which step do users often miss?

Connect the included 5 V / 1 A DC adapter to the unit before linking any HDMI cables; skipping the power step yields no audio or video output.
