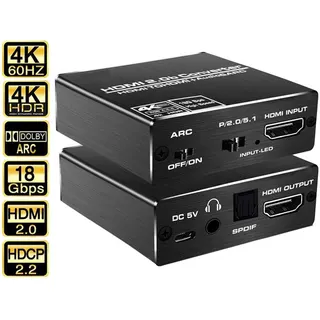

Small black aluminium box with HDMI input, HDMI output, optical and 3.5 mm audio ports

Jansicotek

Jansicotek OZV8-1 HDMI Audio Extractor 4K 60Hz 18Gbps

SKU CH-TF52-4NR3N

Extracts audio from a 4K 60 Hz HDMI source to optical and 3.5 mm outputs while passing through HDR10 video

  • TypeHDMI Splitters
  • Ports3
  • AudioYes
  • ColorBlack
  • SpecificationsHDMI Resolution: 4K2K/3D/1080P/720P/576P/480P/480i Support v
  • Input Connector1 HDMI input
  • Extract audio to soundbars via 3.5 mm and optical outputs
  • Enjoy 4K 60 Hz video with 18 Gbps bandwidth and HDR10
  • Switch between 2.1 CH, 5.1 CH and Pass audio modes with EDID control
  • Supports DTS-HD, Dolby TrueHD, LPCM 7.1 and other high-resolution formats
  • Compact aluminium enclosure measures 5.59 x 3.15 x 1.26 inches

HDMI 2.0 audio extractor

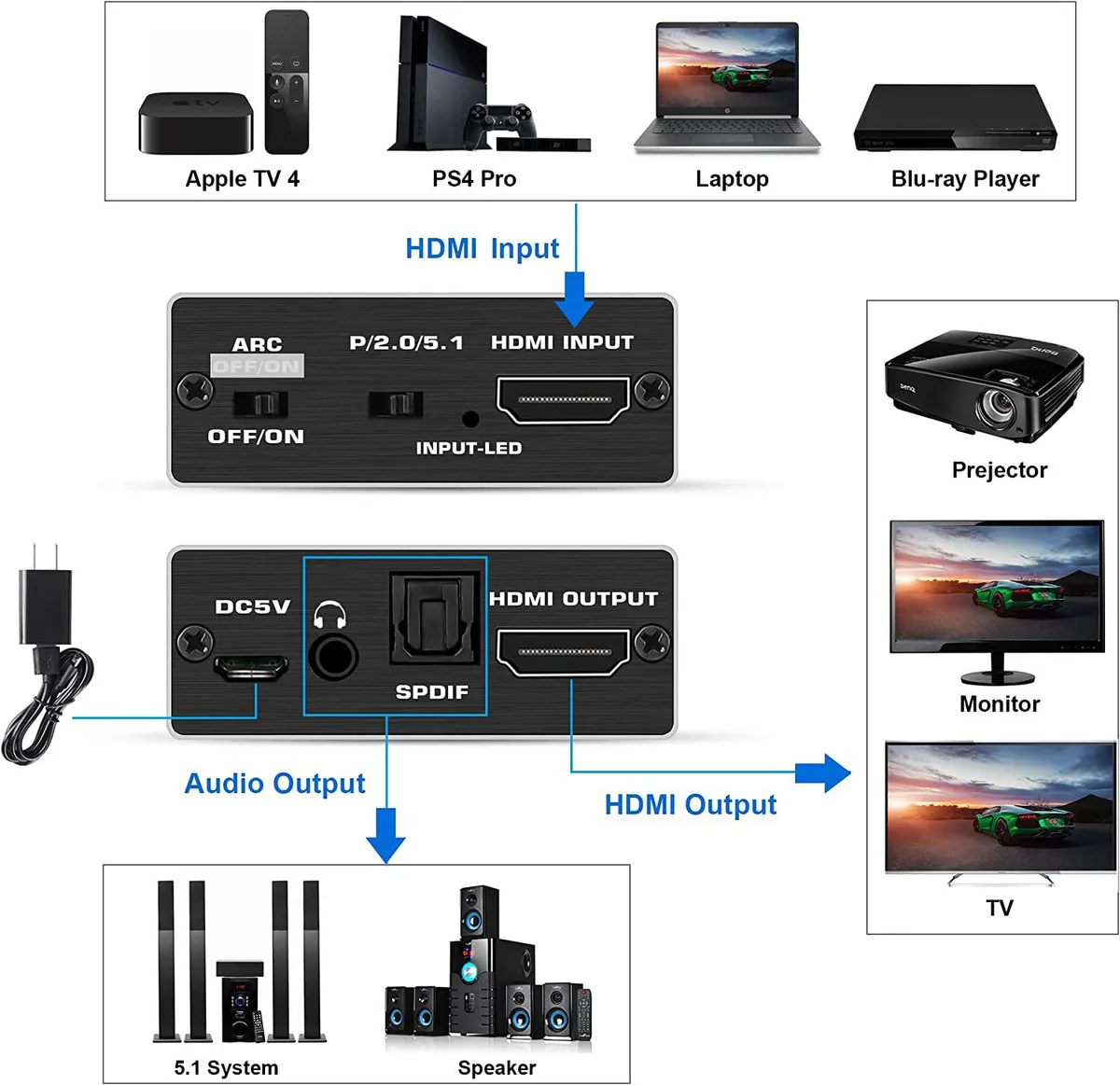

This Jansicotek OZV8-1 unit takes one HDMI input and provides one HDMI output plus optical Toslink and 3.5 mm analogue audio outputs. It is built for users who need to separate sound from a 4K video source for a soundbar, AV receiver or powered speakers. The aluminium shell houses an HDMI 2.0 and HDCP 2.2 compliant pathway with HDR10 support.

Bandwidth and format limits

The extractor passes video up to 3840 x 2160 at 60 Hz within an 18 Gbps bandwidth ceiling and a 600 MHz pixel clock. Deep-colour formats up to 36 bit are supported, but Dolby Digital Plus and Dolby Atmos bitstreams are not decoded or passed through the SPDIF port. Input cables up to 10 m AWG26 are specified for reliable operation.

Capacity and headroom

The SPDIF output carries DTS-HD, Dolby TrueHD, LPCM 7.1, DTS 5.1 and Dolby AC-3, while the 3.5 mm jack is limited to two-channel PCM stereo. EDID switching lets you select 2.1 CH, 5.1 CH or pass-through modes to match the connected audio device. A 5 V 1 A power adapter is required and included.

Highlights

  • Extract audio to soundbars via 3.5 mm and optical outputs
  • Enjoy 4K 60 Hz video with 18 Gbps bandwidth and HDR10
  • Switch between 2.1 CH, 5.1 CH and Pass audio modes with EDID control
  • Supports DTS-HD, Dolby TrueHD, LPCM 7.1 and other high-resolution formats
  • Compact aluminium enclosure measures 5.59 x 3.15 x 1.26 inches

Specifications

BrandJansicotek
SeriesOZV8-1
ModelOZV8-1
Part NumberOZV8-1
TypeHDMI Splitters
Ports3
AudioYes
ColorBlack
SpecificationsHDMI Resolution: 4K2K/3D/1080P/720P/576P/480P/480i
Support video color format: 24bit/deep color 30bit,36bit
Max bandwidth: 600MHZ
Max baud rate: 18Gbps

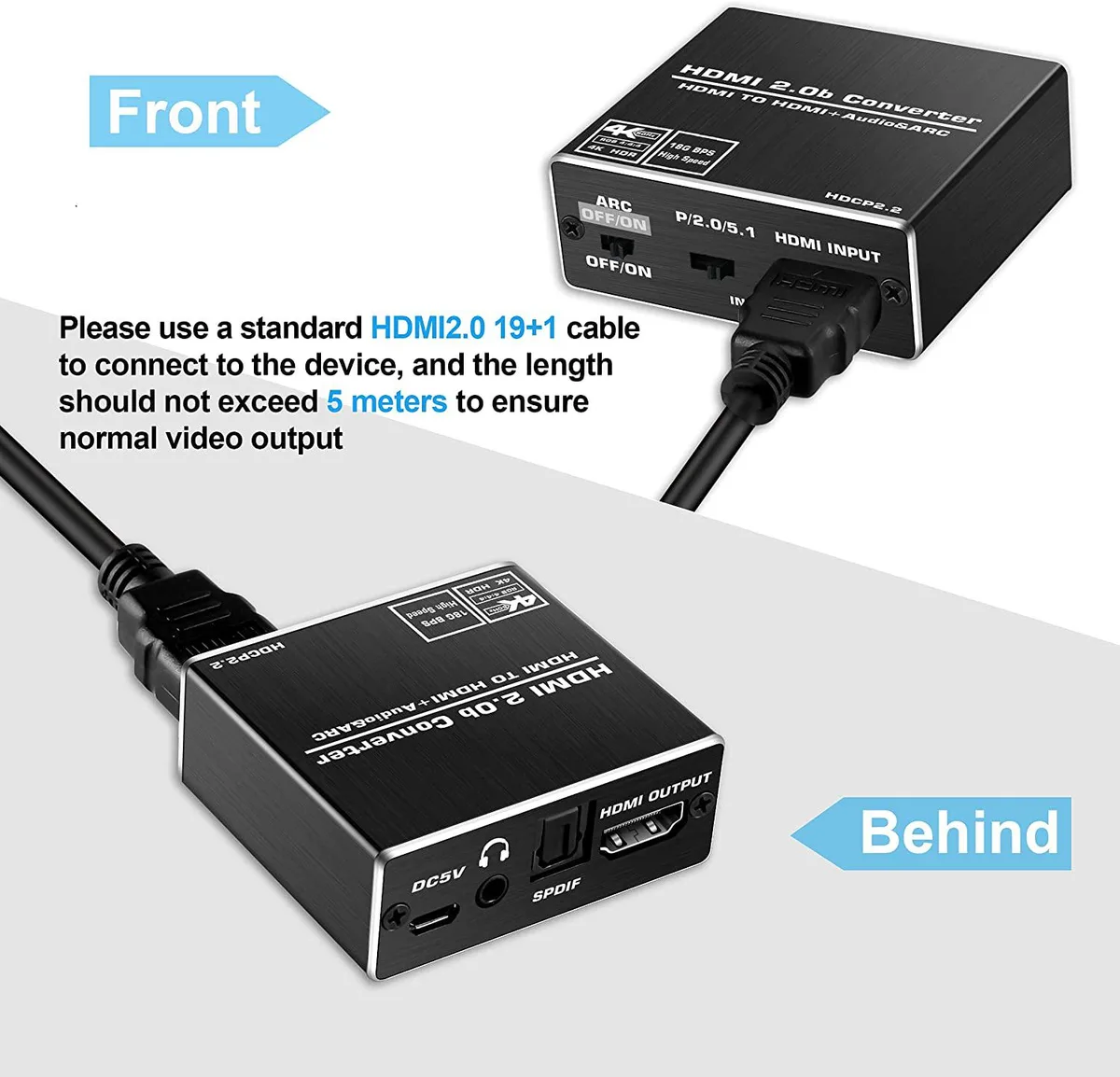

Input cable distance: 10m AWG26 HDMI standard cable
Output cable distance: 10m AWG26 HDMI standard cable
Max working current: 350mA
Input Connector1 HDMI input
Output Connectorone HDMI + Audio (SPDIF+3.5mm) Output
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
FeaturesSupport 4K x 2K@60Hz, Support 3D
Support blue-ray 24/50/60fs/HD-DVD/XVYCC
Digital audio format, as dts-hd/dobly-truehd/LPCM7.1/DTS/dobly-ac-3(not support always Dobly Digital plus)
Need DC5V power supply.
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1 X HDMI Audio Extractor
1 x 5V/1A Power Adapter
1 X User Manual

Questions about this item

Should I pick this extractor or a different model for my 4K 60Hz setup?

This OZV8-1 handles 4K at 60 Hz with 18Gbps bandwidth, so it matches the source and display you already have.

What does the 18Gbps bandwidth actually deliver when I plug it in?

It carries full 4K 60 Hz 4:4:4 HDR10 video to the HDMI output while simultaneously sending multichannel audio to optical and 3.5 mm ports.

How does the HDMI 2.0 interface limit what I can connect?

The HDMI 2.0 link caps video at 4K 60 Hz 18Gbps and audio at LPCM 7.1 or bitstream DTS-HD and Dolby TrueHD; Dolby Digital Plus and Atmos are not supported.
