Compact black aluminium box with HDMI ports and audio outputs

Jansicotek

Jansicotek OZV8-1 4K@60Hz HDMI Audio Extractor Splitter

SKU CH-3R0P-G415F

Extracts HDMI audio to optical Toslink and 3.5 mm while passing 4K@60Hz video with HDR10 and ARC support

  • TypeHDMI Splitters
  • Ports3
  • AudioYes
  • ColorBlack
  • SpecificationsHDMI Resolution: 4K2K/3D/1080P/720P/576P/480P/480i Support v
  • Input Connector1 HDMI input
  • Extract audio to soundbars via optical or 3.5 mm jack
  • Pass 4K 60 Hz HDR video through HDMI 2.0 18 Gbps link
  • Choose 2.1 CH, 5.1 CH or Pass EDID audio modes
  • Supports DTS-HD, Dolby TrueHD, LPCM 7.1 on SPDIF output
  • Compact aluminium shell 5.59 x 3.15 x 1.26 inches

4K@60Hz HDMI audio extractor

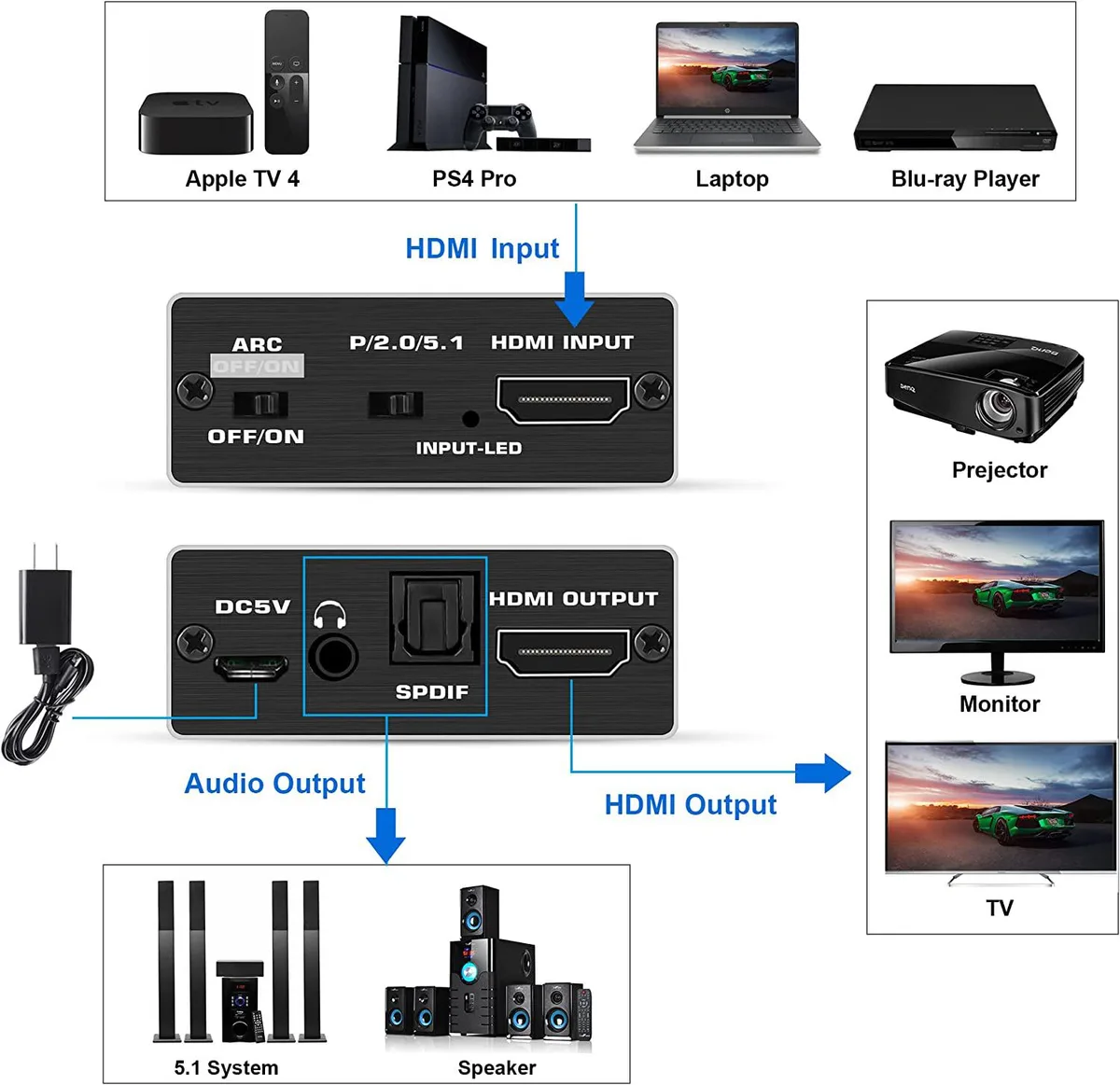

The Jansicotek OZV8-1 splits one HDMI source into a mirrored HDMI output plus optical Toslink and 3.5 mm analogue audio. It handles 4K at 60 Hz, 1080p, 3D and deep-colour video up to 36-bit. The aluminium shell unit is aimed at owners of soundbars or AV receivers that lack HDMI inputs.

Passive cooling with external 5 V supply

The extractor draws power from an included 5 V 1 A adapter and has no fan, so it adds no audible noise to a living-room setup. Video bandwidth reaches 18 Gbps over HDMI 2.0 with HDCP 2.2, while the 10 m AWG26 input cable limit keeps signal integrity at 4K60. Power consumption stays low enough for the supplied brick.

Bundled power adapter and EDID switch

A 5 V 1 A power supply and a user manual ship in the box, removing the need to source a separate wall wart. The EDID selector lets you choose 2.1 CH, 5.1 CH or pass-through modes so the source outputs the correct audio format for your sound system. Dolby Digital Plus and Atmos are not supported on the optical or 3.5 mm outputs.

Highlights

  • Extract audio to soundbars via optical or 3.5 mm jack
  • Pass 4K 60 Hz HDR video through HDMI 2.0 18 Gbps link
  • Choose 2.1 CH, 5.1 CH or Pass EDID audio modes
  • Supports DTS-HD, Dolby TrueHD, LPCM 7.1 on SPDIF output
  • Compact aluminium shell 5.59 x 3.15 x 1.26 inches

Specifications

BrandJansicotek
SeriesOZV8-1
ModelOZV8-1
Part NumberOZV8-1
TypeHDMI Splitters
Ports3
AudioYes
ColorBlack
SpecificationsHDMI Resolution: 4K2K/3D/1080P/720P/576P/480P/480i
Support video color format: 24bit/deep color 30bit,36bit
Max bandwidth: 600MHZ
Max baud rate: 18Gbps

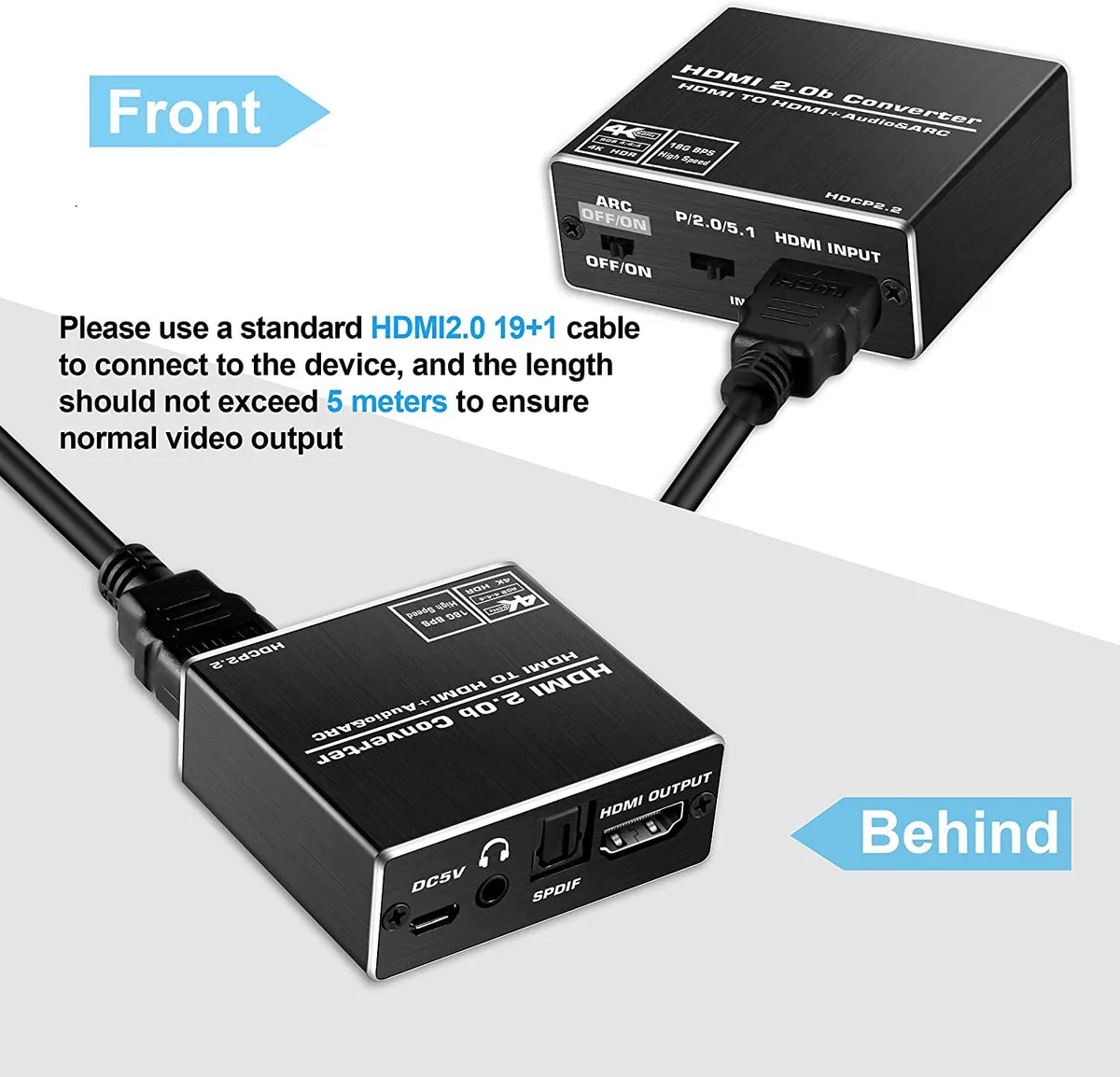

Input cable distance: 10m AWG26 HDMI standard cable
Output cable distance: 10m AWG26 HDMI standard cable
Max working current: 350mA
Input Connector1 HDMI input
Output Connectorone HDMI + Audio (SPDIF+3.5mm) Output
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
FeaturesSupport 4K x 2K@60Hz, Support 3D
Support blue-ray 24/50/60fs/HD-DVD/XVYCC
Digital audio format, as dts-hd/dobly-truehd/LPCM7.1/DTS/dobly-ac-3(not support always Dobly Digital plus)
Need DC5V power supply.
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1 X HDMI Audio Extractor
1 x 5V/1A Power Adapter
1 X User Manual

Questions about this item

How do I install the OZV8-1 and what step is often missed?

Connect the source to the HDMI input, the display to the HDMI output, and audio devices to the optical Toslink or 3.5 mm jack; the step often missed is plugging in the included 5 V/1 A DC power adapter because the unit will not operate without external power.

What maintenance or replacement will the OZV8-1 need over time?

The extractor itself has no user-serviceable parts; only the supplied 5 V/1 A power adapter or the HDMI cables may need replacement if they fail or if longer runs beyond the 10 m AWG26 input limit are required.

What limit appears first during sustained 4K 60 Hz use on the OZV8-1?

The 18 Gbps bandwidth ceiling and HDMI 2.0 specification cap the video path at 4K 60 Hz 4:4:4, while the optical output cannot carry Dolby Digital Plus or Dolby Atmos, so advanced audio formats are the first feature limitation encountered.
