Small black rectangular box with HDMI ports and audio outputs on the front and back

Jansicotek

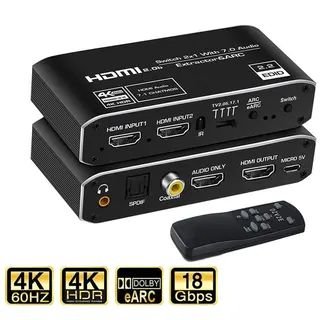

Jansicotek OZV2E 2x1 HDMI Switch Audio Extractor 4K 60Hz ARC

SKU CH-0JPP-F25MG

A 2×1 HDMI switch with ARC and eARC audio extraction delivering 4K 60 Hz video plus optical, coaxial, 3.5 mm and HDMI audio outputs

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports2
  • AudioYes
  • SpecificationsPower Supply:DC 5v/1000mA. HDMI Output ARC/eARC:TV eARC/ARC
  • Extract audio to optical, coaxial, 3.5 mm or HDMI audio port
  • Switch between two 4K 60 Hz sources with 18.5 Gbps bandwidth
  • Supports Dolby Atmos, Dolby True HD, DTS:X and 7.1-channel LPCM
  • ARC and eARC return-channel audio from compatible TVs
  • Includes IR remote and 5 V power supply for immediate setup

Two-input 4K HDMI switch with audio extraction

The Jansicotek OZV2E routes two HDMI 2.0b sources to a single display while pulling the soundtrack out through optical, coaxial, 3.5 mm or a dedicated HDMI audio port. It handles 4K at 60 Hz with 18.5 Gbps bandwidth and supports HDR colour spaces including RGB 8:8:8 and YCbCr 4:4:4. A four-position toggle selects stereo, 5.1 or 7.1 channel output formats. The unit ships with an IR remote and a 5 V power adapter.

HDMI 2.0b limits video to 60 Hz at 4K resolution

The switch tops out at 3840 x 2160 pixels at 60 frames per second, so 120 Hz 4K sources will drop to 60 Hz or a lower resolution. HDCP 2.3 protection is supported, but the 18.5 Gbps ceiling means 10-bit or 12-bit 4K 60 Hz is restricted to YCbCr 4:2:2 or 4:2:0 sampling. ARC and eARC return audio from a compatible TV, yet the extractor cannot pass through uncompressed multichannel PCM beyond 7.1 channels.

Seven-channel HDMI audio output decides

The dedicated HDMI audio-only port delivers up to LPCM 7.1 plus Dolby TrueHD, Atmos, DTS-HD Master and DTS:X bitstreams to an AV receiver that lacks HDMI 2.0b video inputs. If your amplifier only accepts stereo PCM or legacy Dolby Digital, the toggle switch can downmix accordingly. Buyers who need more than two HDMI inputs or 4K 120 Hz passthrough should look elsewhere.

Highlights

  • Extract audio to optical, coaxial, 3.5 mm or HDMI audio port
  • Switch between two 4K 60 Hz sources with 18.5 Gbps bandwidth
  • Supports Dolby Atmos, Dolby True HD, DTS:X and 7.1-channel LPCM
  • ARC and eARC return-channel audio from compatible TVs
  • Includes IR remote and 5 V power supply for immediate setup

Specifications

BrandJansicotek
SeriesOZV2E
ModelOZV2E
Part NumberOZV2E
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports2
AudioYes
SpecificationsPower Supply:DC 5v/1000mA.
HDMI Output ARC/eARC:TV eARC/ARC audio output port(connectto TV with ARC function).
HDMI Audio Only Port:PCM 2.0, LPCM 5.1/7.1, Dolby Digital, Dolby Digital plus, Dolby True HD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X.
Toslink SPDIF: LPCM 2.0/5.1,Dolby Digital 2.0/5.1, DTS 2.0/5.1
Coaxial Output: LPCM 2.0/5.1,Dolby Digital 2.0/5.1, DTS 2.0/5.1
3.5mm Audio Jack:Analog stereo 2.0ch
Color Depth:8-bit, 10 bit, 12 bit (1080p@60Hz);8-bit (4Kx2k@60Hz RGB 8:8:8/ YUV 4:4:4);8-bit, 10-bit, 12-bit (4Kx2K@60Hz YCbCr 4:2:2 /4:2:0).
Turn on/off th
Input Connector2 x HDMI2.0b
Output Connector1 x HDMI2.0b+HDMI Audio
Connector Stylewith Audio
Maximum Resolutions3840 x 2160
Bandwidth18.5Gbps
FeaturesSupport 4K x 2K@60Hz, Support 3D.
Support RGB 8:8:8,YCbCr 4:4:4/4:2:2/4:2:0.
4 speed toggle switch to switch TV/2.0/5.1/7.1 audio format.
HDMI Audio Formats:PCM 2.0, LPCM 5.1/ 7.1, Dolby Digital, Dolby Digital plus, Dolby True HD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X.

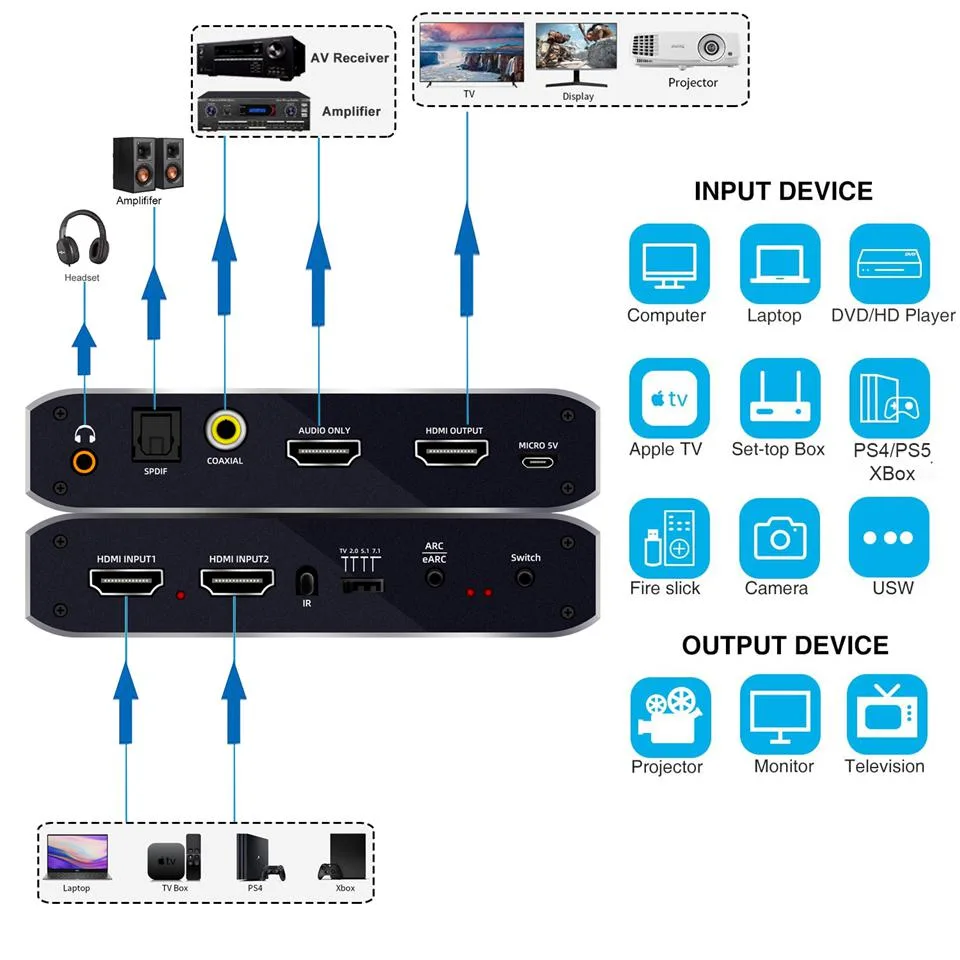

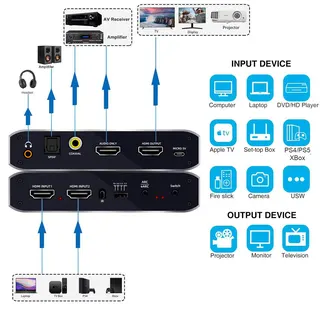

HDMI video/audio output: monitor, TV, projector. HDMI Audio/ SPDIF /3.5mm/ Coaxial Audio Output: Receivers, amplifiers, speakers, headphones and other audio devices.
Dimensions5.75 x 5.08 x 1.5 inches
Weight8.8 ounces
Package Quantity1
Package ContentsHDMI Switch eARC Audio Extractor x 1 pcs
IR Remote control x 1 pcs(without battery)
5V/2A DC Power Adapter x 1 pcs
User Manual x 1 pcs

Questions about this item

Should I pick the OZV2E if I need to connect two 4K sources to one display?

Yes — the OZV2E is a 2x1 HDMI switch that accepts two HDMI 2.0b inputs and routes one to a single HDMI 2.0b output at up to 3840 x 2160 at 60 Hz.

What does the 18.5 Gbps bandwidth mean when I plug it in?

It carries full 4K 60 Hz RGB 8:8:8 or YCbCr 4:4:4 video plus high-bitrate audio such as Dolby Atmos or DTS:X without compression.

Which HDMI version and HDCP level does the switch use, and what does that cap?

HDMI 2.0b with HDCP 2.3 limits video to 4K at 60 Hz and 18.5 Gbps, so 4K 120 Hz or 8K signals will not pass through.
