Small black box with two HDMI inputs and multiple audio outputs including optical and 3.5mm jack

Jansicotek

Jansicotek OZV2E 2x1 HDMI 2.0b switch audio extractor

SKU CH-77PA-AHDDS

Connects two HDMI sources to one display at 4K 60Hz while extracting audio to optical, coaxial, 3.5 mm jack or a dedicated HDMI audio port with ARC support

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports2
  • AudioYes
  • SpecificationsPower Supply:DC 5v/1000mA. HDMI Output ARC/eARC:TV eARC/ARC
  • 2 HDMI 2.0b inputs switch to one 4K 60Hz output
  • Extract audio to optical, coaxial, 3.5 mm jack and HDMI audio port
  • Supports PCM 2.0 through Dolby Atmos and DTS:X formats
  • IR remote and front toggle select source and audio mode
  • DC 5 V 1 A power adapter included

2×1 HDMI 2.0b switch with audio extraction

The Jansicotek OZV2E routes two HDMI 2.0b sources to one display while stripping audio to optical Toslink, coaxial, 3.5 mm jack and a dedicated HDMI audio port. It handles 4K at 60 Hz, 3D and colour spaces up to RGB 8:8:8 or YCbCr 4:4:4. The box is aimed at owners of AV receivers or soundbars that lack enough HDMI inputs.

Installation and common issues

Connect the supplied 5 V 1 A power adapter, link up to two source devices and the display, then select the active input with the included IR remote or the front toggle. A four-position audio-format switch sets TV, 2.0, 5.1 or 7.1 output. Handshake failures usually trace to mismatched EDID or an HDCP 2.3 mismatch; power-cycling the switch and sources in order typically restores the link.

Limits of the HDMI 2.0b interface

Bandwidth tops out at 18.5 Gbps, so 4K 120 Hz or 8K signals cannot pass. HDR metadata and deep-colour 10- or 12-bit at 4K 60 Hz are restricted to YCbCr 4:2:2 or 4:2:0 subsampling. ARC and eARC return audio from a compatible TV, but the TV must support the respective standard for the feature to work.

Highlights

  • 2 HDMI 2.0b inputs switch to one 4K 60Hz output
  • Extract audio to optical, coaxial, 3.5 mm jack and HDMI audio port
  • Supports PCM 2.0 through Dolby Atmos and DTS:X formats
  • IR remote and front toggle select source and audio mode
  • DC 5 V 1 A power adapter included

Specifications

BrandJansicotek
SeriesOZV2E
ModelOZV2E
Part NumberOZV2E
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports2
AudioYes
SpecificationsPower Supply:DC 5v/1000mA.
HDMI Output ARC/eARC:TV eARC/ARC audio output port(connectto TV with ARC function).
HDMI Audio Only Port:PCM 2.0, LPCM 5.1/7.1, Dolby Digital, Dolby Digital plus, Dolby True HD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X.
Toslink SPDIF: LPCM 2.0/5.1,Dolby Digital 2.0/5.1, DTS 2.0/5.1
Coaxial Output: LPCM 2.0/5.1,Dolby Digital 2.0/5.1, DTS 2.0/5.1
3.5mm Audio Jack:Analog stereo 2.0ch
Color Depth:8-bit, 10 bit, 12 bit (1080p@60Hz);8-bit (4Kx2k@60Hz RGB 8:8:8/ YUV 4:4:4);8-bit, 10-bit, 12-bit (4Kx2K@60Hz YCbCr 4:2:2 /4:2:0).
Turn on/off th
Input Connector2 x HDMI2.0b
Output Connector1 x HDMI2.0b+HDMI Audio
Connector Stylewith Audio
Maximum Resolutions3840 x 2160
Bandwidth18.5Gbps
FeaturesSupport 4K x 2K@60Hz, Support 3D.
Support RGB 8:8:8,YCbCr 4:4:4/4:2:2/4:2:0.
4 speed toggle switch to switch TV/2.0/5.1/7.1 audio format.
HDMI Audio Formats:PCM 2.0, LPCM 5.1/ 7.1, Dolby Digital, Dolby Digital plus, Dolby True HD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X.

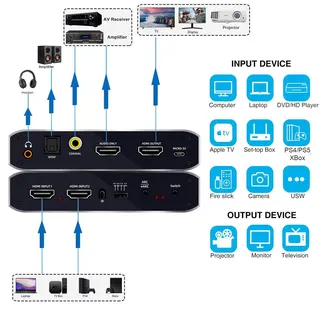

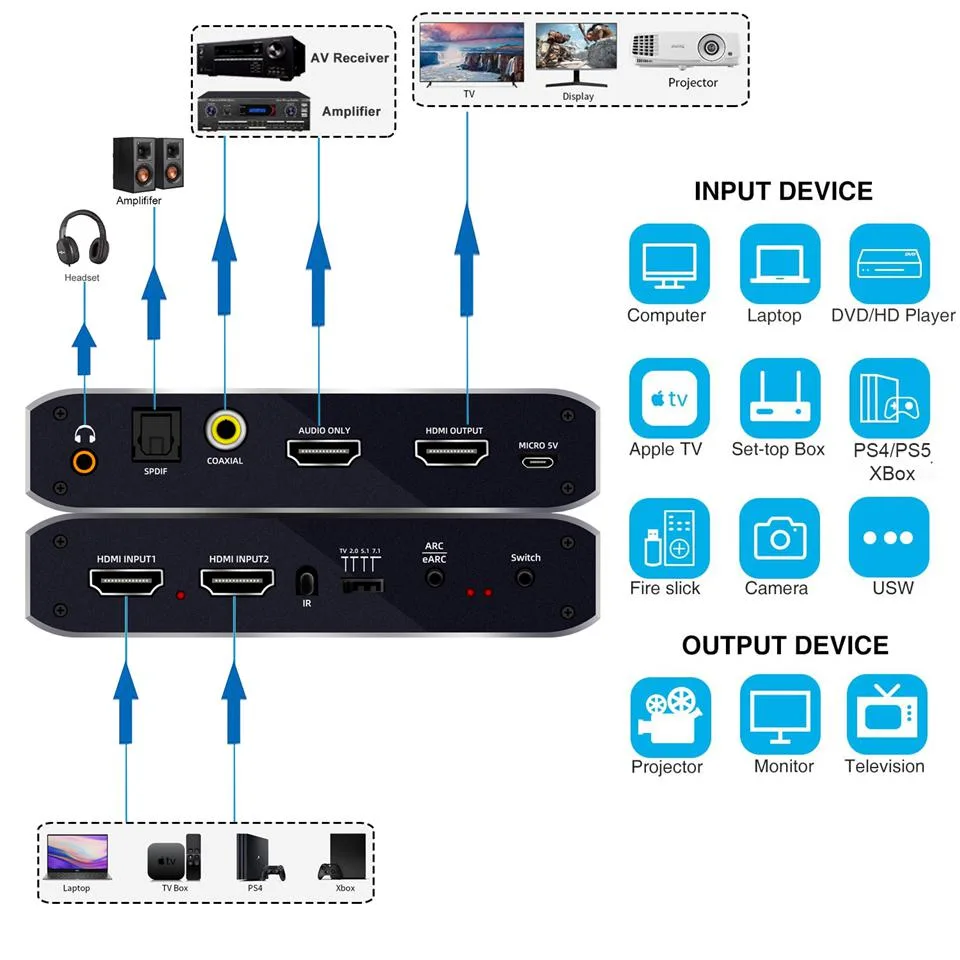

HDMI video/audio output: monitor, TV, projector. HDMI Audio/ SPDIF /3.5mm/ Coaxial Audio Output: Receivers, amplifiers, speakers, headphones and other audio devices.
Dimensions5.75 x 5.08 x 1.5 inches
Weight8.8 ounces
Package Quantity1
Package ContentsHDMI Switch eARC Audio Extractor x 1 pcs
IR Remote control x 1 pcs(without battery)
5V/2A DC Power Adapter x 1 pcs
User Manual x 1 pcs

Questions about this item

How can I confirm the 4K 60Hz signal is passing correctly after connecting both sources?

Check that the display shows 3840 x 2160 at 60 Hz and that the LED for the active HDMI input stays solid; the switch supports RGB 8:8:8 and YCbCr 4:4:4 at 18.5 Gbps bandwidth.

What cables and accessories are included, and what must I provide separately?

The box contains the switch, IR remote (no battery), 5 V 2 A power adapter and manual; you supply two HDMI 2.0b source cables, one HDMI 2.0b display cable and any optical, coaxial or 3.5 mm audio cables you need.

Which audio-output mode should I select on the 4-position toggle for my 5.1 surround system?

Set the toggle to the 5.1 position; the extractor then outputs LPCM 5.1, Dolby Digital, Dolby Digital Plus, DTS 5.1 and other 5.1 formats through optical, coaxial, 3.5 mm and the dedicated HDMI audio port.
