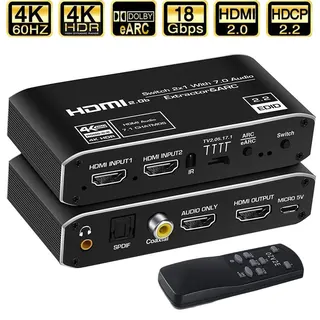

Small black box with two HDMI inputs and multiple audio outputs

Jansicotek

Jansicotek OZV2E 2x1 HDMI 2.0 switch eARC audio extractor 4K 60Hz

SKU CH-H87W-XQ8KD

A 2×1 HDMI 2.0 switch extracts eARC and ARC audio to optical, coaxial, 3.5 mm and HDMI audio-only outputs while passing 4K 60 Hz video

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports2
  • AudioYes
  • SpecificationsPower Supply:DC 5v/1000mA. HDMI Output ARC/eARC:TV eARC/ARC
  • 2 HDMI inputs switch to one output for simple source selection
  • 4K 60 Hz video passes through at 18.5 Gbps bandwidth
  • eARC and ARC return TV audio to your sound system
  • Optical Toslink, coaxial, 3.5 mm jack and HDMI audio ports give multiple connection choices
  • IR remote and front toggle switch let you change audio format between TV, 2.0, 5.1 and 7.1 channels

2x1 HDMI 2.0 Switch with eARC

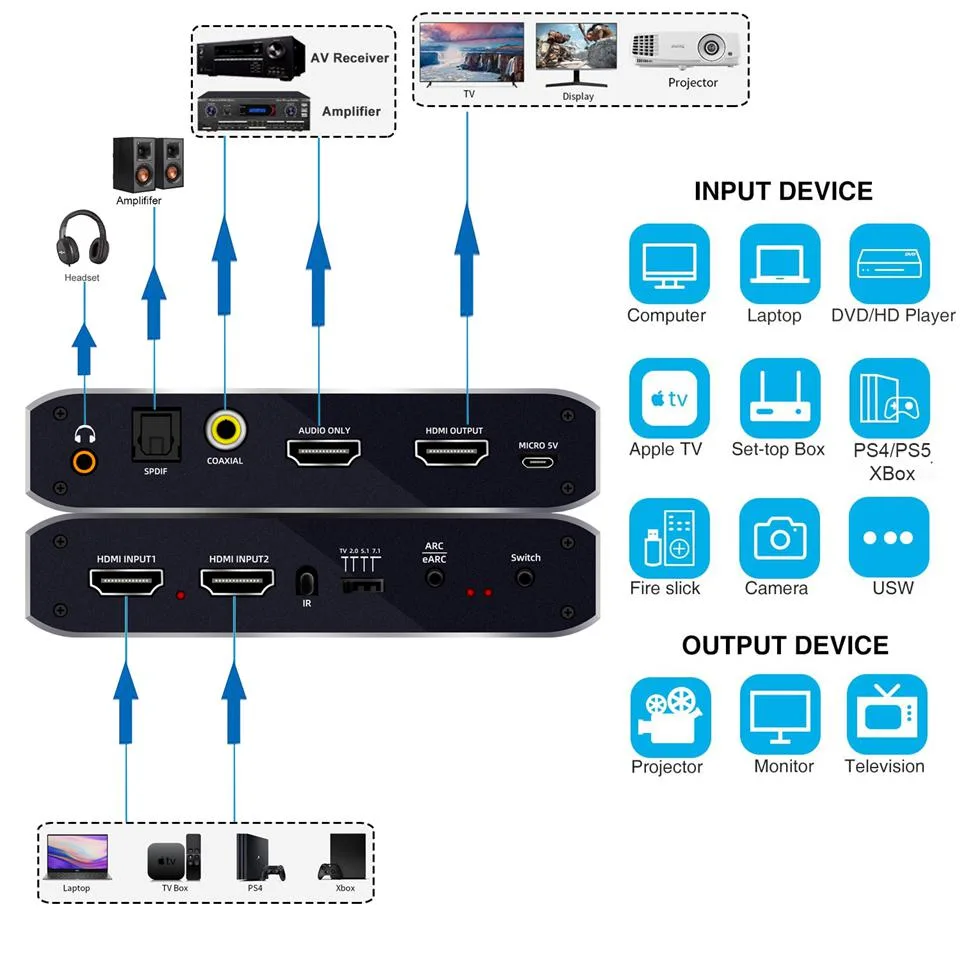

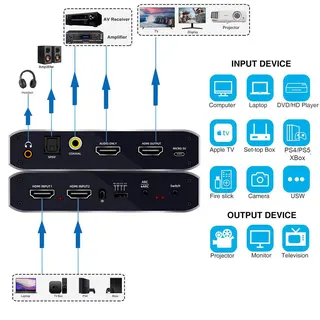

This device accepts two HDMI 2.0b sources and routes one to a single HDMI 2.0b display. It simultaneously extracts audio to a dedicated HDMI audio port, optical Toslink, coaxial SPDIF and a 3.5 mm jack. The unit supports 4K resolution at 60 Hz with 18.5 Gbps bandwidth and HDCP 2.3 compliance. A supplied IR remote allows input switching from a distance.

Home cinema owners using a legacy receiver

The extractor suits anyone sending 4K video to a modern display while feeding multichannel sound to an older amplifier or soundbar that lacks HDMI 2.0 inputs. It handles PCM 2.0 through 7.1, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS formats up to DTS:X. Users who only need simple pass-through without audio separation should consider a basic switch instead.

HDMI 2.0b with 18.5 Gbps bandwidth

This specification defines the maximum video capability: 3840 x 2160 at 60 Hz with RGB 8:8:8 or YCbCr 4:4:4 colour sampling. The 18.5 Gbps limit means 4K at 120 Hz or higher refresh rates are not supported. Verify that both source devices and the display operate within the HDMI 2.0b standard before purchase.

Highlights

  • 2 HDMI inputs switch to one output for simple source selection
  • 4K 60 Hz video passes through at 18.5 Gbps bandwidth
  • eARC and ARC return TV audio to your sound system
  • Optical Toslink, coaxial, 3.5 mm jack and HDMI audio ports give multiple connection choices
  • IR remote and front toggle switch let you change audio format between TV, 2.0, 5.1 and 7.1 channels

Specifications

BrandJansicotek
SeriesOZV2E
ModelOZV2E
Part NumberOZV2E
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports2
AudioYes
SpecificationsPower Supply:DC 5v/1000mA.
HDMI Output ARC/eARC:TV eARC/ARC audio output port(connectto TV with ARC function).
HDMI Audio Only Port:PCM 2.0, LPCM 5.1/7.1, Dolby Digital, Dolby Digital plus, Dolby True HD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X.
Toslink SPDIF: LPCM 2.0/5.1,Dolby Digital 2.0/5.1, DTS 2.0/5.1
Coaxial Output: LPCM 2.0/5.1,Dolby Digital 2.0/5.1, DTS 2.0/5.1
3.5mm Audio Jack:Analog stereo 2.0ch
Color Depth:8-bit, 10 bit, 12 bit (1080p@60Hz);8-bit (4Kx2k@60Hz RGB 8:8:8/ YUV 4:4:4);8-bit, 10-bit, 12-bit (4Kx2K@60Hz YCbCr 4:2:2 /4:2:0).
Turn on/off th
Input Connector2 x HDMI2.0b
Output Connector1 x HDMI2.0b+HDMI Audio
Connector Stylewith Audio
Maximum Resolutions3840 x 2160
Bandwidth18.5Gbps
FeaturesSupport 4K x 2K@60Hz, Support 3D.
Support RGB 8:8:8,YCbCr 4:4:4/4:2:2/4:2:0.
4 speed toggle switch to switch TV/2.0/5.1/7.1 audio format.
HDMI Audio Formats:PCM 2.0, LPCM 5.1/ 7.1, Dolby Digital, Dolby Digital plus, Dolby True HD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X.
HDMI video/audio output: monitor, TV, projector. HDMI Audio/ SPDIF /3.5mm/ Coaxial Audio Output: Receivers, amplifiers, speakers, headphones and other audio devices.
Dimensions5.75 x 5.08 x 1.5 inches
Weight8.8 ounces
Package Quantity1
Package ContentsHDMI Switch eARC Audio Extractor x 1 pcs
IR Remote control x 1 pcs(without battery)
5V/2A DC Power Adapter x 1 pcs
User Manual x 1 pcs

Questions about this item

What display capability must my TV or projector have to use the 4K 60Hz video pass-through?

The TV or projector must accept a 3840 x 2160 signal at 60 Hz over HDMI 2.0b to match the switch’s maximum resolution and bandwidth of 18.5 Gbps.

Can I keep using an older AV receiver that only has optical Toslink or coaxial inputs?

Yes — the extractor provides both Toslink and coaxial SPDIF outputs carrying PCM 2.0, LPCM 5.1/7.1, Dolby Digital, Dolby Digital Plus and DTS formats for legacy receivers.

How do I confirm the audio format the extractor is sending to my sound system?

Use the four-position toggle switch to select TV, 2.0, 5.1 or 7.1 output mode, then check your receiver’s input display — it will show the active format such as PCM 2.0, Dolby Atmos or DTS-HD Master Audio.
